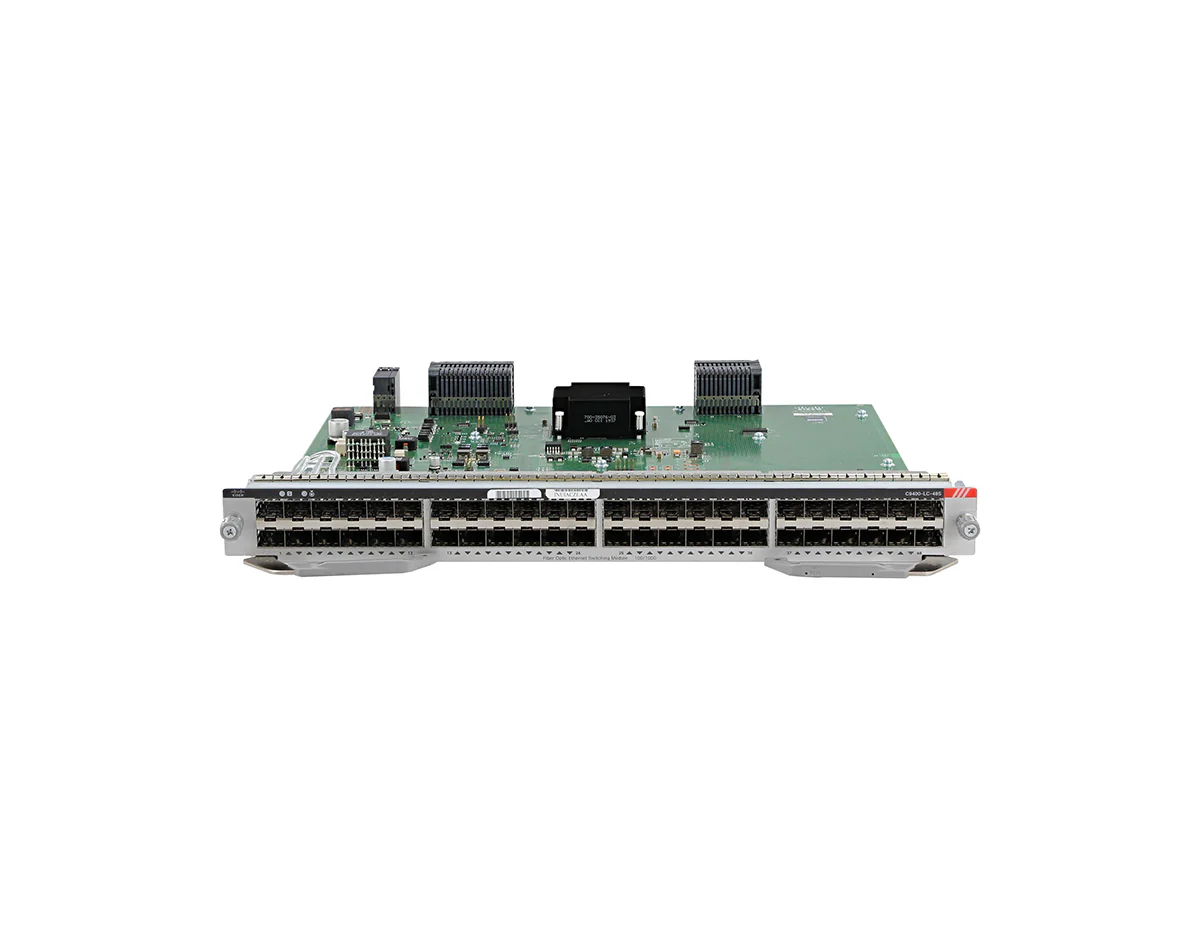

Cisco C9400-LC-48S Switch Line Card
[shortdesc]
- Line Card, 48 x Gigabit SFP, Plug-in module
[properties]
| Properties | Cisco C9400-LC-48S |
| Description | Cisco Catalyst 9400 Series 48-Port Gigabit Ethernet (SFP) |
| Product Family | Catalyst 9400 |
| Product Type | Switch Line Card |
| Number of ports | 48 |
| Port speed | 1 GE |
| Port type | SFP |
| Cisco Catalyst 9400 Series switch min/max ports | |
| C9404R | 48/96 |
| C9407R | 48/240 |
| C9410R | 48/384 |
| Physical dimensions | Occupies one slot in Cisco Catalyst 9400 Series switches Dimensions (H x W x D): 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm) |
| Max rated power (W) | 170 |
[/properties]
[specifications]
| Specifications | C9400-LC-48S |
| Standards | Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3an |
| Features | Ββ β β β β Supports up to 48 nonblocking SFP ports Ββ β β β β Supported on Cisco IOS XE Software Release 16.8.1 or later Ββ β β β β IEEE 802.1AE (MACsec-256) capability in hardware Ββ β β β β Layer 2 to Layer 4 Jumbo Frame support (up to 9216 bytes) Ββ β β β β Enterprise, mid-market, and commercial core and distribution deployments requiring line-rate capability Ββ β β β β Service provider: Gigabit Ethernet aggregation for DSL Access Multiplexer (DSLAM), Passive Optical Network (PON), and mobile data backhaul; FTTX for residential and business applications Ββ β β β β Enterprise: Providing Fiber To The Desktop (FTTD), for deployments where non-blocking is mandatory requirement |
| Bandwidth per slot by chassis | |
| Supervisor | β |
| C9400 Supervisor Engine-1 (C9400-SUP-1) | Bandwidth per slot Chassis C9404R: 80 Gbps Chassis C9407R: 80 Gbps Chassis C9410R: 80 Gbps Oversubscription: 1:1 |
| C9400 Supervisor Engine-1XL (C9400-SUP-1XL) | Bandwidth per slot Chassis C9404R: 240 Gbps Chassis C9407R: 120 Gbps Chassis C9410R: 80 Gbps Oversubscription: 1:1 |
| C9400 Supervisor Engine-1XL-Y (C9400-SUP-1XL-Y) | Bandwidth per slot Chassis C9404R: 240 Gbps Chassis C9407R: 120 Gbps Chassis C9410R: 80 Gbps Oversubscription: 1:1 |
| C9400 Supervisor Engine-2XL (C9400X-SUP-2XL) | Bandwidth per slot Chassis C9404R: 480 Gbps Chassis C9407R: 480 Gbps Chassis C9410R: 480 Gbps Oversubscription: 1:1 |
| C9400 Supervisor Engine-2 (C9400X-SUP-2) | Bandwidth per slot Chassis C9404R: 240 Gbps Chassis C9407R: 240 Gbps Chassis C9410R: 240 Gbps Oversubscription: 1:1 |
| Operating temperature | Ββ Normal Operating * Temperature and Altitudes: β β β Β¦β β β 23Β° to 113Β°F (-5 to +45Β°C), up to 6,000 feet (1800 m) β β β Β¦β β β 23Β° to 104Β°F (-5 to +40Β°C), up to 10,000 feet (3000 m) β β β Β¦β β β *Minimum ambient temperature for cold startup is 0Β°C Ββ Short-Term ** Exceptional Conditions: β β β Β¦β β β 23Β° to 131Β°F (-5 to +55Β°C), up to 6,000 feet (1800 m) β β β Β¦β β β 23Β° to 122Β°F (-5 to +50Β°C), up to 10,000 feet (3000 m) β β β Β¦β β β **Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences |
| Storage temperature | -40Β° to 158Β° F (-40Β° to 70Β°C) |
| Relative humidity | 10 to 95%, noncondensing |
| Operating altitude | -60 to 3000m |
| Rated MTBF (hours) | 937,600 |
| Safety conditions | Fiber optic lasers: Class 1 laser products |
| Safety certifications | Ββ UL 60950-1 Ββ CAN/CSA-C222.2 No. 60950-1 Ββ EN 60950-1 Ββ IEC 60950-1 Ββ AS/NZS 60950.1 Ββ IEEE 802.3 |
| Electromagnetic emissions certifications | Ββ 47 CFR Part 15 Ββ CISPR22 Class A Ββ EN 300 386 V1.6.1 Ββ EN 55022 Class A Ββ EN 55032 Class A Ββ CISPR 32 Class A Ββ EN61000-3-2 Ββ EN61000-3-3 Ββ ICES-003 Class A Ββ TCVN 7189 Class A Ββ V-3 Class A Ββ CISPR24 Ββ EN 300 386 Ββ EN55024 Ββ TCVN 7317 |
| ROHS compliance | ROHS5 |
[/specifications]
Cisco Catalyst C9400-LC-48S Line Card
The Cisco Catalyst C9400-LC-48S Line Card is a high-density module designed for the Cisco Catalyst 9400 Series modular switches, offering advanced connectivity options for enterprise networks that require reliable and high-speed data transfer. This line card features 48 Gigabit Ethernet SFP ports, making it ideal for supporting a wide range of network devices across large-scale deployments. The C9400-LC-48S is engineered to meet the growing demands of modern enterprise environments, providing the flexibility, scalability, and security needed to support expanding network infrastructures.
Key Features:
- 48 x Gigabit Ethernet SFP Ports: Provides high-speed data connectivity, enabling efficient data transfer across various network devices.
- High-Density Design: Supports a large number of connections in a single module, ideal for environments that require extensive network coverage.
- Scalable Architecture: Seamlessly integrates with the Cisco Catalyst 9400 Series chassis, allowing for easy network expansion as your business grows.
- Enterprise-Grade Security: Includes advanced security features to protect your network from threats and unauthorized access.
- Energy Efficient: Designed to reduce power consumption while maintaining high performance, contributing to lower operational costs.
Technical Overview:
- Recommended for: Large enterprise networks requiring scalable, high-density Gigabit Ethernet connectivity with flexible deployment options.
- Ports: 48 x Gigabit Ethernet SFP ports.
- Compatibility: Fully compatible with Cisco Catalyst 9400 Series modular switches.
- Management: Managed through Cisco DNA Center and other Cisco network management tools.
- Security: Integrated with advanced security features, including network segmentation and access control.
You can check the related tab for the C9400-LC-48S datasheet.
