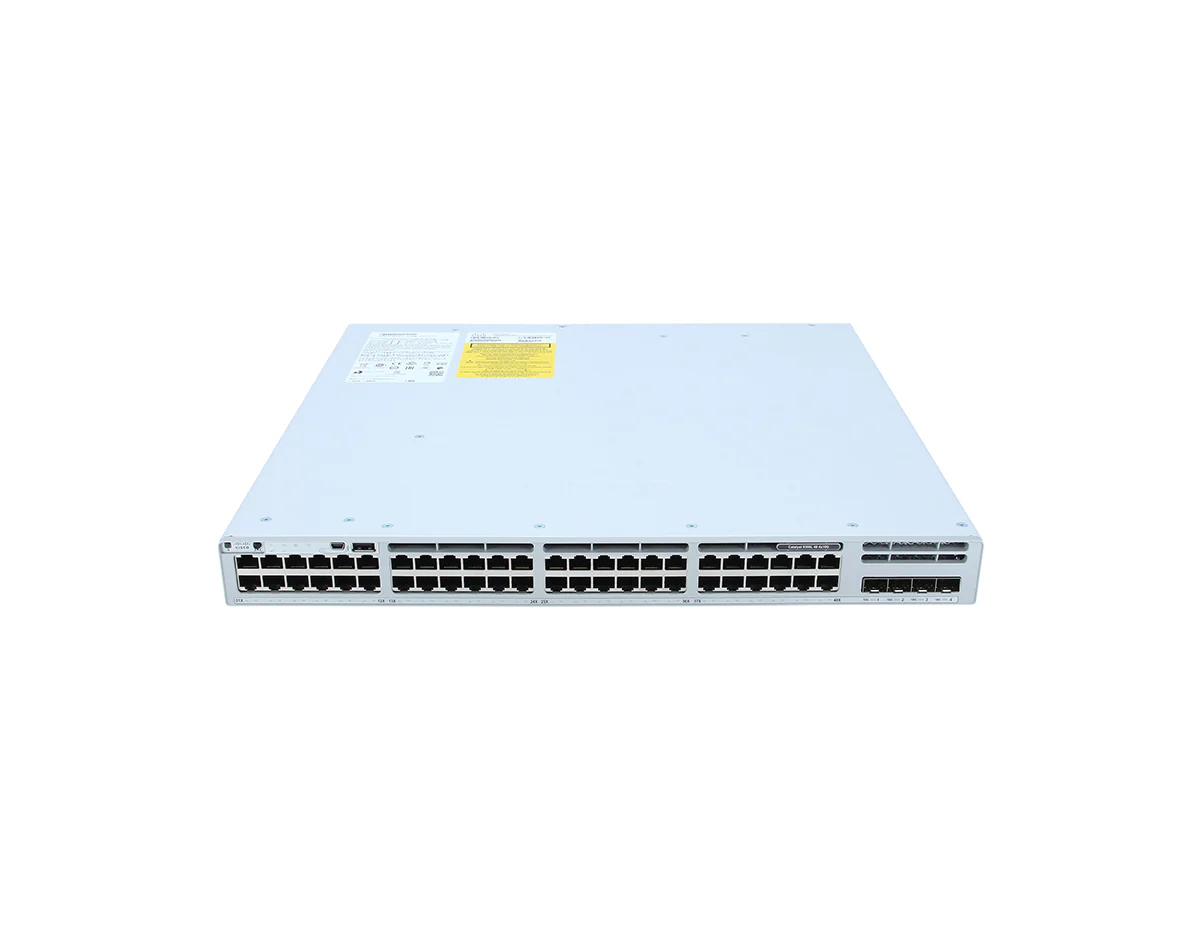

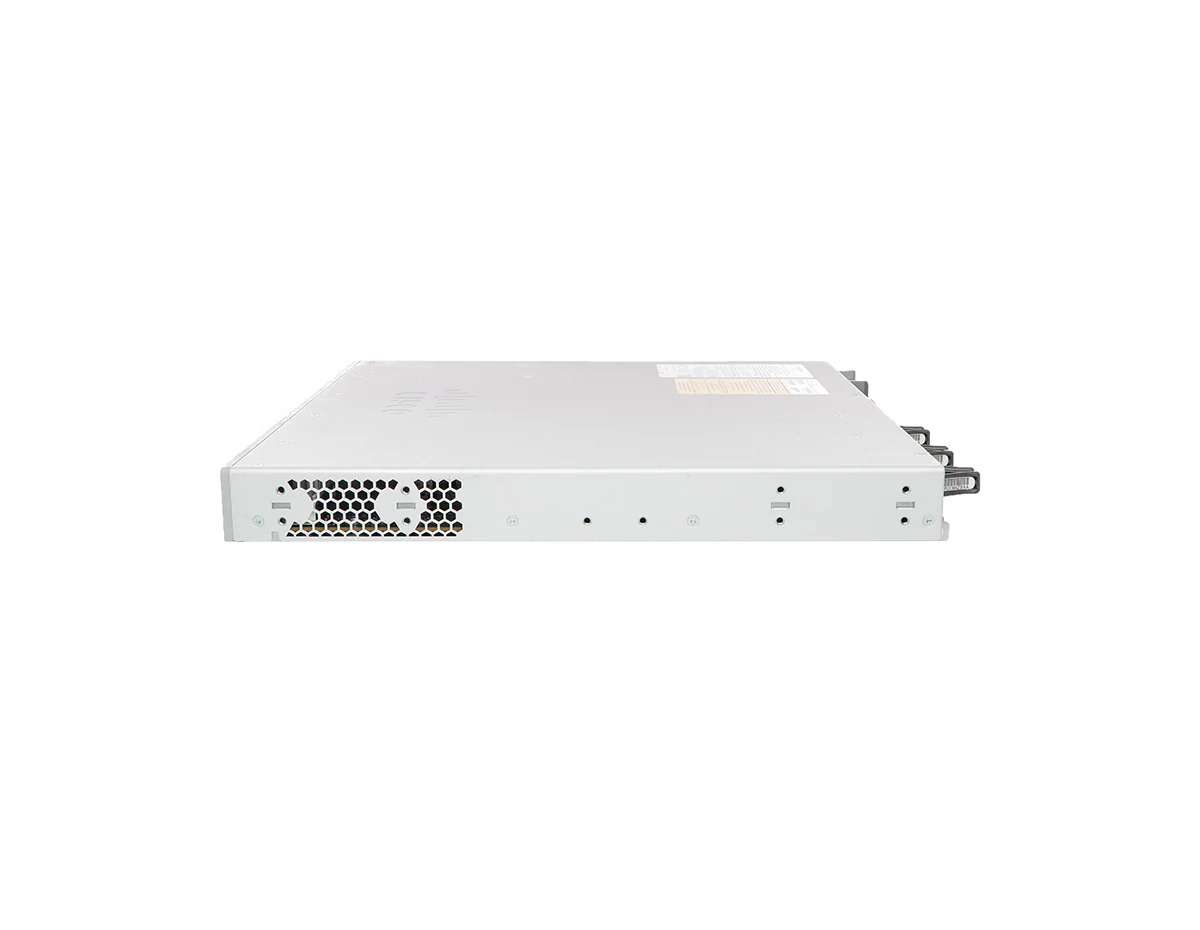

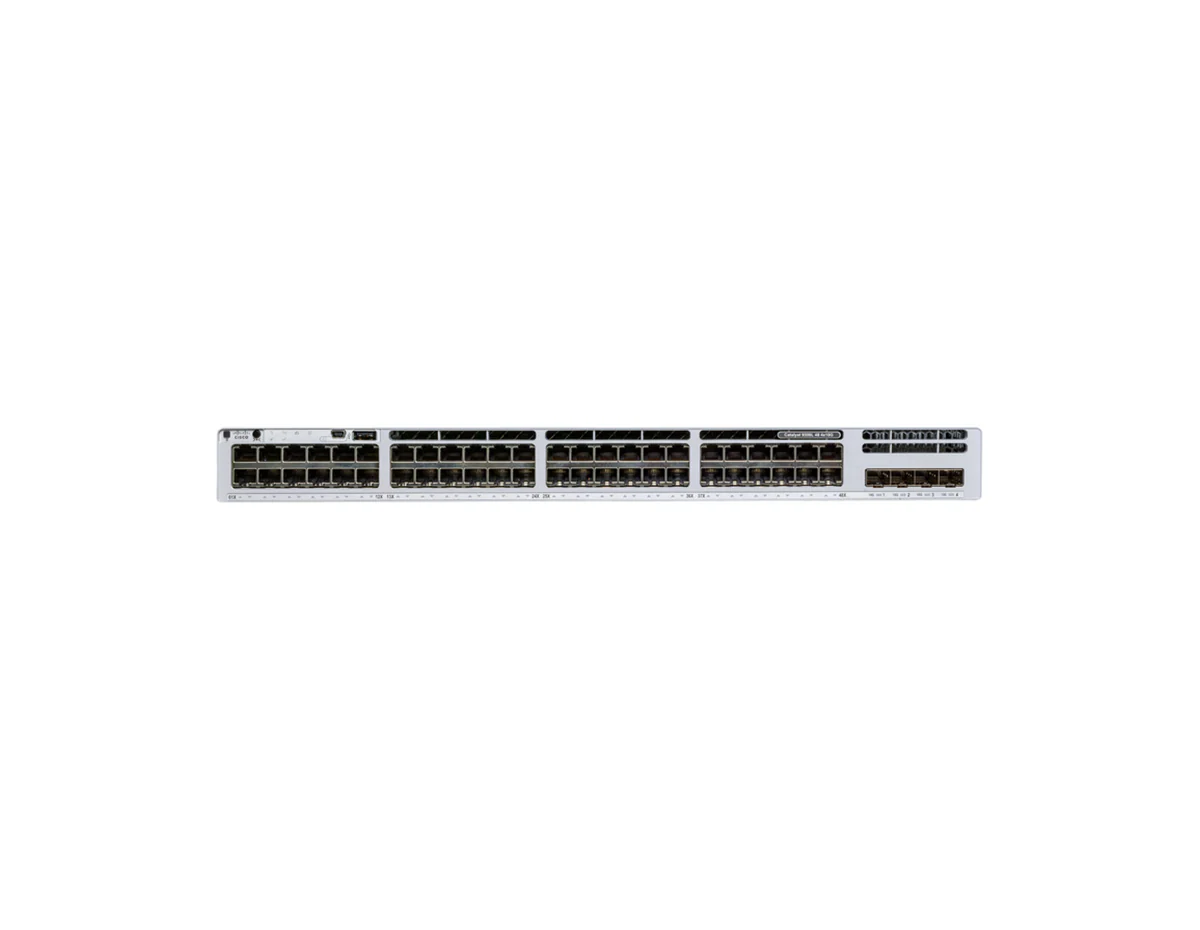

Cisco C9300L-48T-4X-A Switch – 48-Port Gigabit, 4× 10G Uplinks, Network Advantage
[shortdesc]
Cisco C9300L-48T-4X-A is a 48× 1G non-PoE Layer 3 switch with 4× 10G SFP+ uplinks, StackWise-320 support, and a Network Advantage license.
[/shortdesc]
[properties]
| Properties | C9300L-48T-4X-A |
| Description | Catalyst 9300L 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, data-only, Network Advantage |
| Product Family | Catalyst 9300L |
| Product Type | Ethernet Switch |
| Number of Ports | 48 |
| Downlinks total 10/100/1000 or PoE+ copper ports |
48 port Data (non-PoE) |
| Uplink configuration | 4x 10G/1G fixed uplinks |
| Cisco IOS Software | Network Advantage |
| Default primary AC power supply |
PWR-C1-350WAC-P |
| Available PoE power with additional secondary power supply |
No PoE |
| Fans | Three field-replaceable fans |
| Chassis + FEP + Fan Dimensions (HxWxD) Inches |
1.73 x 17.5 x 17.7 |
[/properties]
[specifications]
| Specifications | C9300L-48T-4X-A |
| Console Ports | RJ-45 console (RJ-45-to-DB9 cable); USB console supported on some revisions |
| DRAM | 8 GB |
| Flash Memory | 16 GB |
| Switching capacity | 176 Gbps |
| Forwarding rate | 130.95 Mpps |
| MAC addresses | 32,000 |
| Operating Temperature Up to 5,000 ft (1500 m) |
-5°C to +45°C |
| Operating Temperature Up to 10,000 ft (3000 m) |
-5°C to +40°C |
| Safety | UL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEEE 802.3 |
| Electromagnetic compatibility certifications |
47 CFR Part 15 EN 300 386 V1.6.1 EN 55032 Class A CISPR 32 Class A EN61000-3-2 EN61000-3-3 ICES-003 Class A TCVN 7189 Class A V-3 Class A CISPR 35 EN 300 386 EN 55035 TCVN 7317 V-2/2015.04 V-3/2015.04 CNS13438 KN32 KN35 QCVN 118:2018/BTTTT VCCI-CISPR 32 Class A |
| EMC compliance |
FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55032 Class A CISPR 32 Class A AS/NZS 3548 Class A BSMI Class A (AC input models only) VCCI Class A EN 55024, EN300386, EN 61000-3-2, EN 61000-3-3 EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6 |
| Environmental | Reduction of Hazardous Substances (ROHS) 5 |
[/specifications]
[accesories]
| Stacking Support | StackWise-320 |
| Stacking bandwidth support | 320 Gbps |
| Stacking hardware | C9300L-STACK-KIT or C9300L-STACK-KIT2 |
| Number of members |
8 |
| Supported stack members | Other C9300L and C9300LM models with the same license level |
| Stacking accessories | |
| STACK-T3-50CM | Data stack 50cm cable (default cable with C9300L Stack Kit) |
| STACK-T3-1M | Data stack 1m cable (cable option with C9300L Stack Kit) |
| STACK T3-3M | Data stack 3m cable (cable option with C9300L Stack Kit) |
[/accesories]
At a Glance
- Ports: 48 × 1G Ethernet (non-PoE)
- Uplinks: 4 × 10G SFP+ fixed uplinks
- Stacking: StackWise-320 (up to 8 units, 320 Gbps bandwidth)
- Software: Network Advantage license (advanced Layer 3, SD-Access ready)
Product Overview
The Cisco C9300L-48T-4X-A is an enterprise-grade Layer 3 switch for high-performance access in campus and branch environments. It provides 48 non-PoE Gigabit ports with four 10G SFP+ uplinks and supports StackWise-320 for simplified, resilient operations. With Network Advantage, it enables advanced routing, segmentation, and automation on Cisco IOS XE and UADP ASIC.
Technical Specifications
Hardware
- Model: C9300L-48T-4X
- Ports: 48 × 10/100/1000 Ethernet ports (non-PoE)
- Uplinks: 4 × 10G SFP+ fixed uplink ports
- Stacking Support: StackWise-320
- Stacking Bandwidth: 320 Gbps
- Power Supply: 1 × 350W AC (standard efficiency)
- Fan Modules: 3 × field-replaceable fans
- Physical Dimensions: 1.73 × 17.5 × 17.7 in (4.4 × 44.5 × 44.9 cm)
- Weight: 15.41 lbs (7.0 kg)
Performance
- Switching Capacity: 176 Gbps
- Forwarding Rate: 130.95 Mpps
- DRAM: 8 GB
- Flash Memory: 16 GB
- VLAN Support: 4094 VLANs
- MAC Address Table Size: 32,000 entries
- Jumbo Frame Support: Up to 9198 bytes
Software & Features
- Operating System: Cisco IOS XE
- License Tier: Network Advantage
- Routing Protocols: OSPF, EIGRP, BGP, IS-IS, VRF
- Security Features: MACsec (AES-128/256), 802.1X, ACLs
Frequently Asked Questions (FAQ)
Can the C9300L-48T-4X-A be stacked with other Catalyst 9300L switches?
Yes. This model supports StackWise-320 and can stack with other compatible Catalyst 9300L/C9300LM switches, up to 8 units.
Does this switch support Cisco StackPower?
No. StackPower is not supported on Catalyst 9300L models. Power redundancy is via optional dual PSUs.
How can I manage the switch?
Manage via CLI (console), Cisco DNA Center, and model-dependent monitor-only visibility in the Meraki dashboard. Full programmability is available through Cisco IOS XE.
