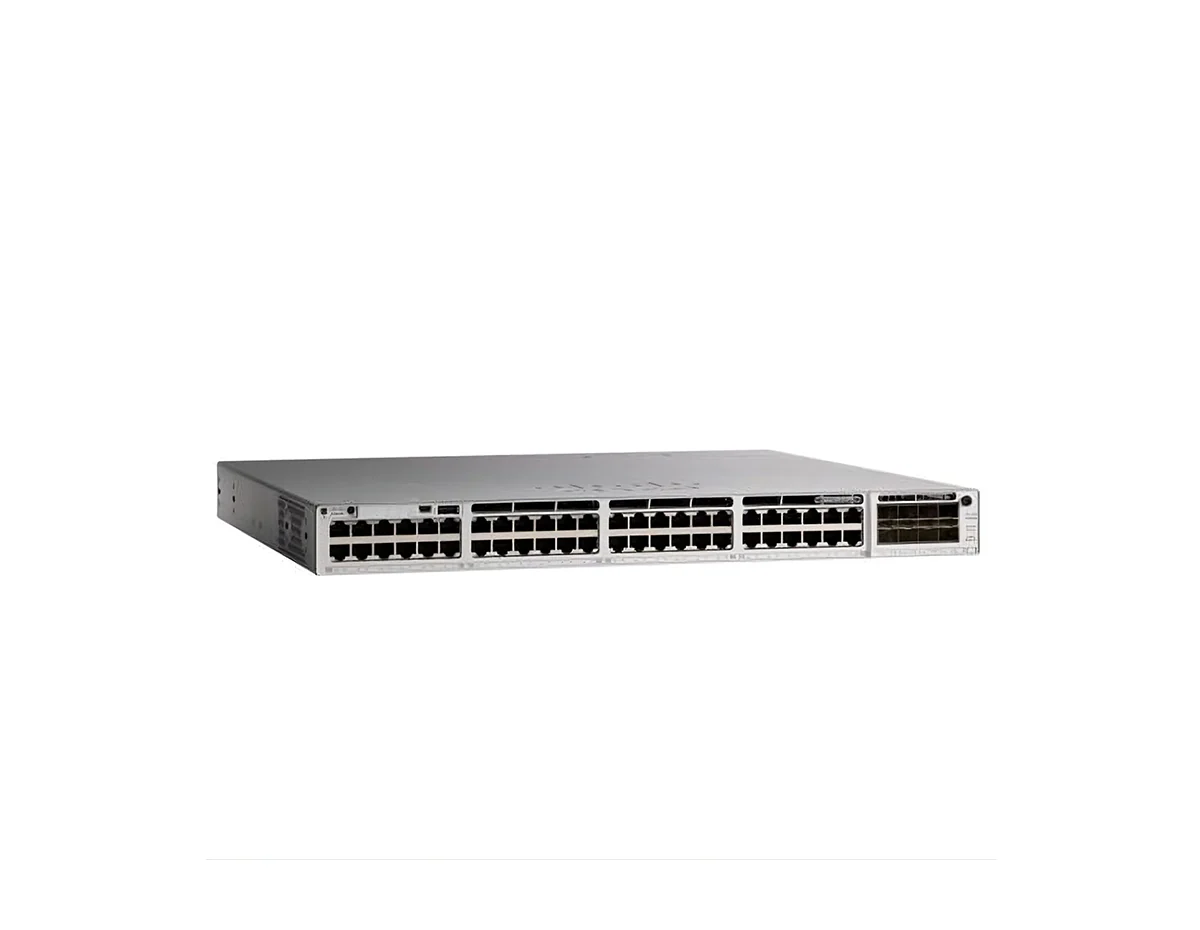

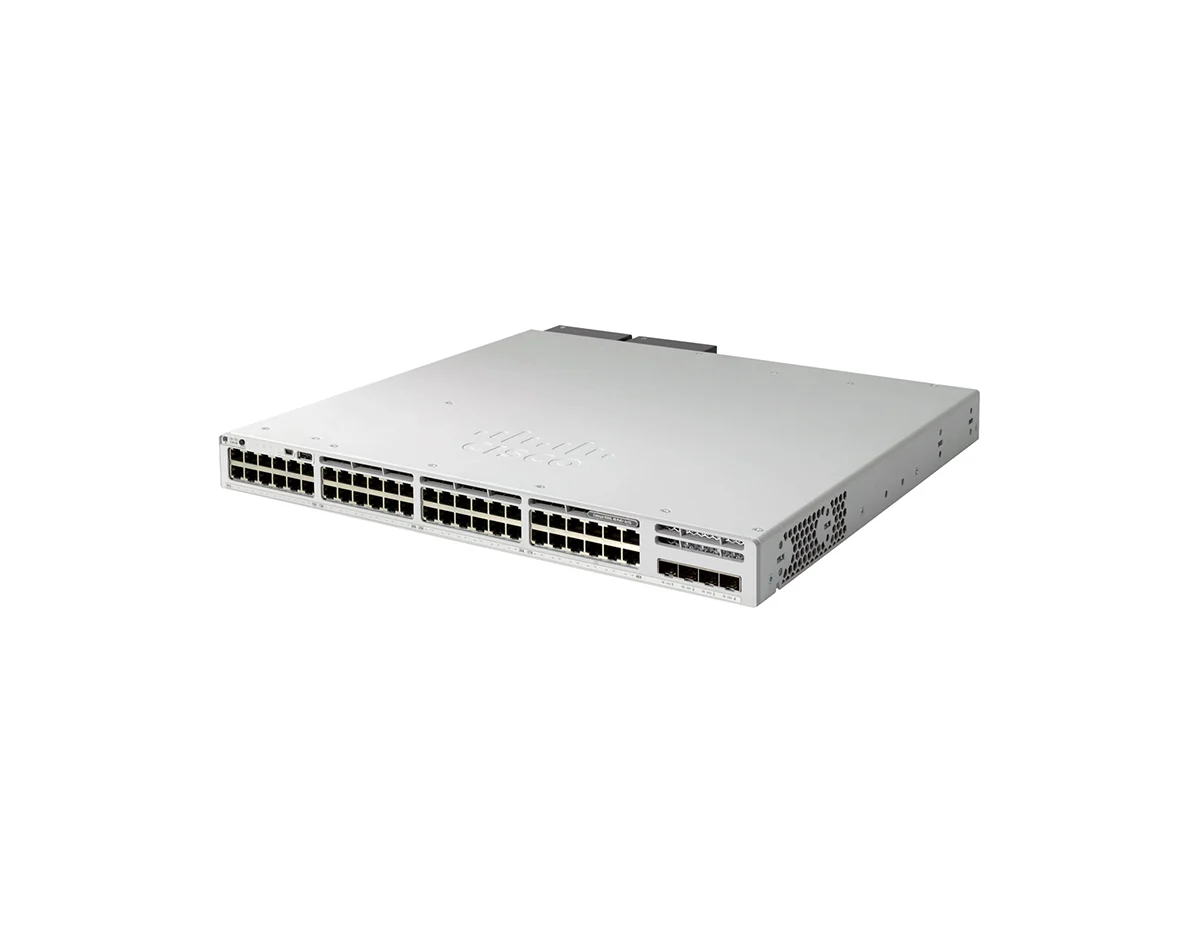

Cisco C9300L-48PF-4X-A Switch
[shortdesc]
- Managed, Rack-mountable, Fixed (4x10G/1G SFP+ uplinks), 48 x 1G ports, Full PoE+
[properties]
| Properties | C9300L-48PF-4X-A |
| Description | Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, full PoE+ Network Advantage |
| Product Family | Catalyst 9300 |
| Product Type | Ethernet Switch |
| Number of Ports | 48 |
| Downlinks total 10/100/1000 or PoE+ copper ports |
48 port PoE+ |
| Uplink configuration | 4x 10G/1G fixed uplinks |
| Cisco IOS Software | Network Advantage |
| Default primary AC power supply |
PWR-C1-1100WAC-P |
| Available PoE power with additional secondary power supply |
1440W (With 1100W Secondary PS) |
| Fans | - |
| Chassis + FEP + Fan Dimensions (HxWxD) Inches |
1.73 x 17.5 x 19.2 |
[/properties][specifications]
| Specifications | C9300L-48PF-4X-A |
| Console Ports | RJ-45-to-DB9 cable for PC connections |
| DRAM | 8 GB |
| Flash Memory | 16 GB |
| Switching capacity | 176 Gbps |
| Forwarding rate | 130.95 Mpps |
| MAC addresses | 32000 |
| Operating Temperature Up to 5,000 ft (1500 m) |
-5°C to +45°C |
| Operating Temperature Up to 10,000 ft (3000 m) |
-5°C to +40°C |
| Safety | ● UL 60950-1 ● CAN/CSA-C222.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● AS/NZS 60950.1 ● IEEE 802.3 |
| Electromagnetic compatibility certifications |
● 47 CFR Part 15 ● EN 300 386 V1.6.1 ● EN 55032 Class A ● CISPR 32 Class A ● EN61000-3-2 ● EN61000-3-3 ● ICES-003 Class A ● TCVN 7189 Class A ● V-3 Class A ● CISPR 35 ● EN 300 386 ● EN 55035 ● TCVN 7317 ● V-2/2015.04 ● V-3/2015.04 ● CNS13438 ● KN32 ● KN35 ● QCVN 118:2018/BTTTT ● VCCI-CISPR 32 Class A |
| EMC compliance |
FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55032 Class A CISPR 32 Class A AS/NZS 3548 Class A BSMI Class A (AC input models only) VCCI Class A EN 55024, EN300386, EN 61000-3-2, EN 61000-3-3 EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6 |
| Environmental | Reduction of Hazardous Substances (ROHS) 5 |
[/specifications][accesories]
| Stacking Support | Stackwise-320 |
| Stacking bandwidth support | 320 Gbps |
| Stacking hardware | C9300L-STACK-KIT |
| Number of members |
8 |
| Supported stack members | Other C9300 SKUs with same license level |
| Stacking accessories | |
| STACK-T3-50CM |
Data stack 50cm cable (default cable with C9300L Stack Kit)
|
| STACK-T3-1M |
Data stack 1m cable (cable option with C9300L Stack Kit)
|
| STACK T3-3M |
Data stack 3m cable (cable option with C9300L Stack Kit)
|
| C9300L-STACK-KIT |
Stack kit for C9300L SKUs only: Two data stack adapters and one
|
| C9300L-STACK-KIT2 | Stack kit for C9300LM and C9300L SKUs: Two data stack adapters and one data stack cable |
| STACK-T3A-50CM | Data stack 50cm cable (cable option with C9300L Stack Kit2) |
| STACK-T3A-1M | Data stack 1m cable (cable option with C9300L Stack Kit2) |
| STACK-T3A-3M | Data stack 3m cable (cable option with C9300L Stack Kit2) |
[/accesories]
Cisco Catalyst C9300L-48PF-4X-A Switch
The Cisco Catalyst C9300L-48PF-4X-A Switch is an advanced enterprise-class networking solution designed to deliver robust power delivery, high-speed connectivity, and enhanced security. With 48 PoE+ Gigabit Ethernet ports featuring full power over Ethernet (PoE) support and 4 fixed 10G SFP+ uplink ports, this switch is ideal for powering a wide range of devices, including IP phones, cameras, and wireless access points. The C9300L-48PF-4X-A is equipped with advanced Layer 3 routing capabilities and StackWise-480 technology, making it an excellent choice for organizations looking to build a scalable, secure, and efficient network infrastructure.
Key Features:
- 48 x PoE+ Gigabit Ethernet Ports: Delivers up to 30W per port, providing reliable power and data connectivity for devices such as IP phones and cameras.
- 4 x Fixed 10G SFP+ Uplink Ports: Offers high-speed uplink options, ensuring fast data transfer between network segments and core infrastructure.
- Full Power PoE: Supports full power over Ethernet (PoE) across all ports, making it ideal for environments with high power demands.
- Advanced Layer 3 Routing: Supports protocols such as OSPF, EIGRP, and BGP, enabling sophisticated routing and traffic management.
- StackWise-480 Technology: Provides up to 480 Gbps of stacking bandwidth, ensuring high availability and simplified management across multiple switches.
- Enhanced Security: Integrates MACsec encryption, ACLs, and advanced security protocols to safeguard your network from unauthorized access.
Technical Overview:
- Recommended for: Medium to large enterprises, corporate campuses, and power-demanding environments.
- Ports: 48 x 10/100/1000 Mbps PoE+ Gigabit Ethernet ports (up to 30W per port) and 4 x 10G SFP+ uplink ports.
- Switching Capacity: 176 Gbps.
- Forwarding Rate: 130.95 Mpps.
- Layer 3 Features: OSPF, EIGRP, BGP, VLANs, and ACLs for advanced network control.
- Management: Web-based GUI, CLI, SNMP, and Cisco DNA for comprehensive network automation and monitoring.
- Licensing: Network Advantage.
- Security: MACsec encryption and advanced access control features.
- Energy Efficiency: Meets IEEE 802.3az standards for energy-efficient operation.
You can check the related tab for the C9300L-48PF-4X-A datasheet.
