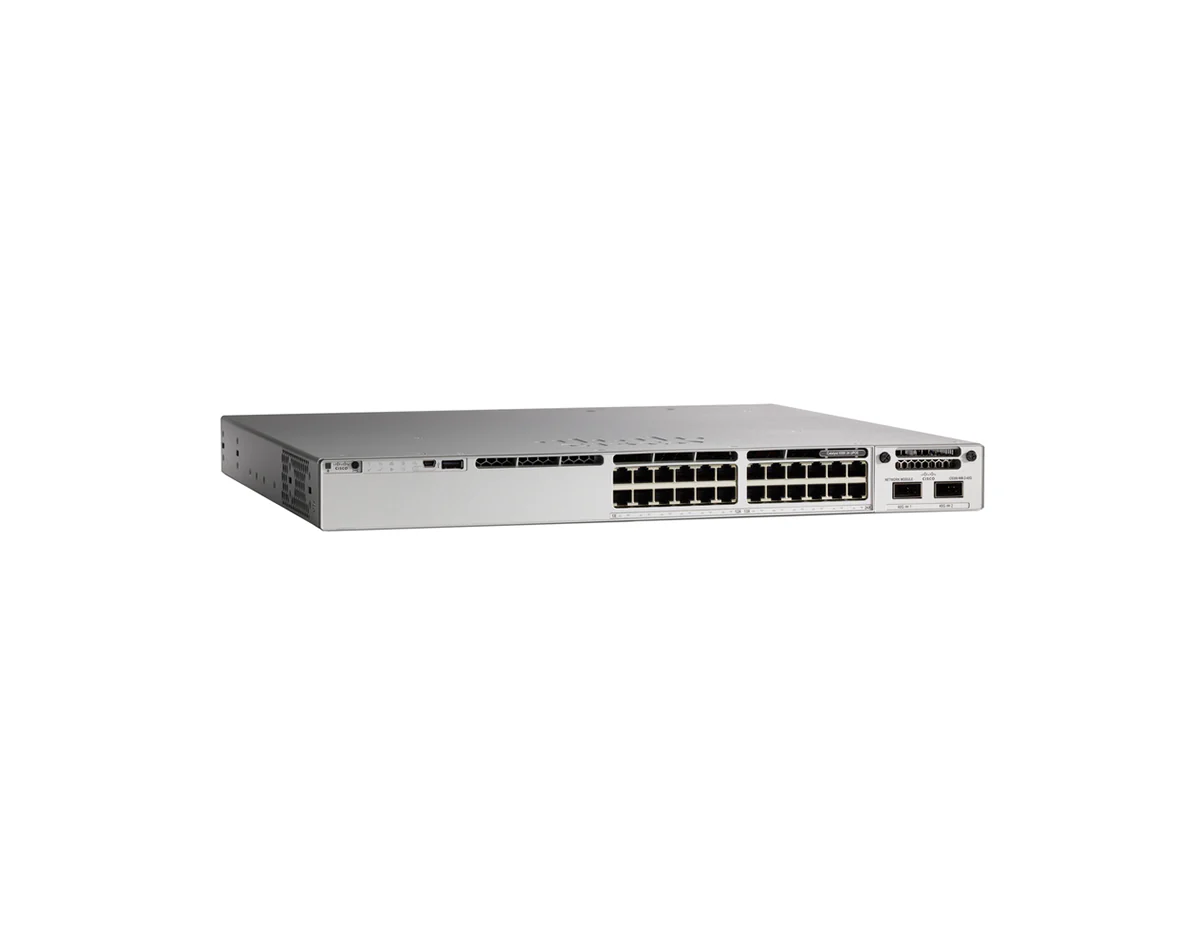

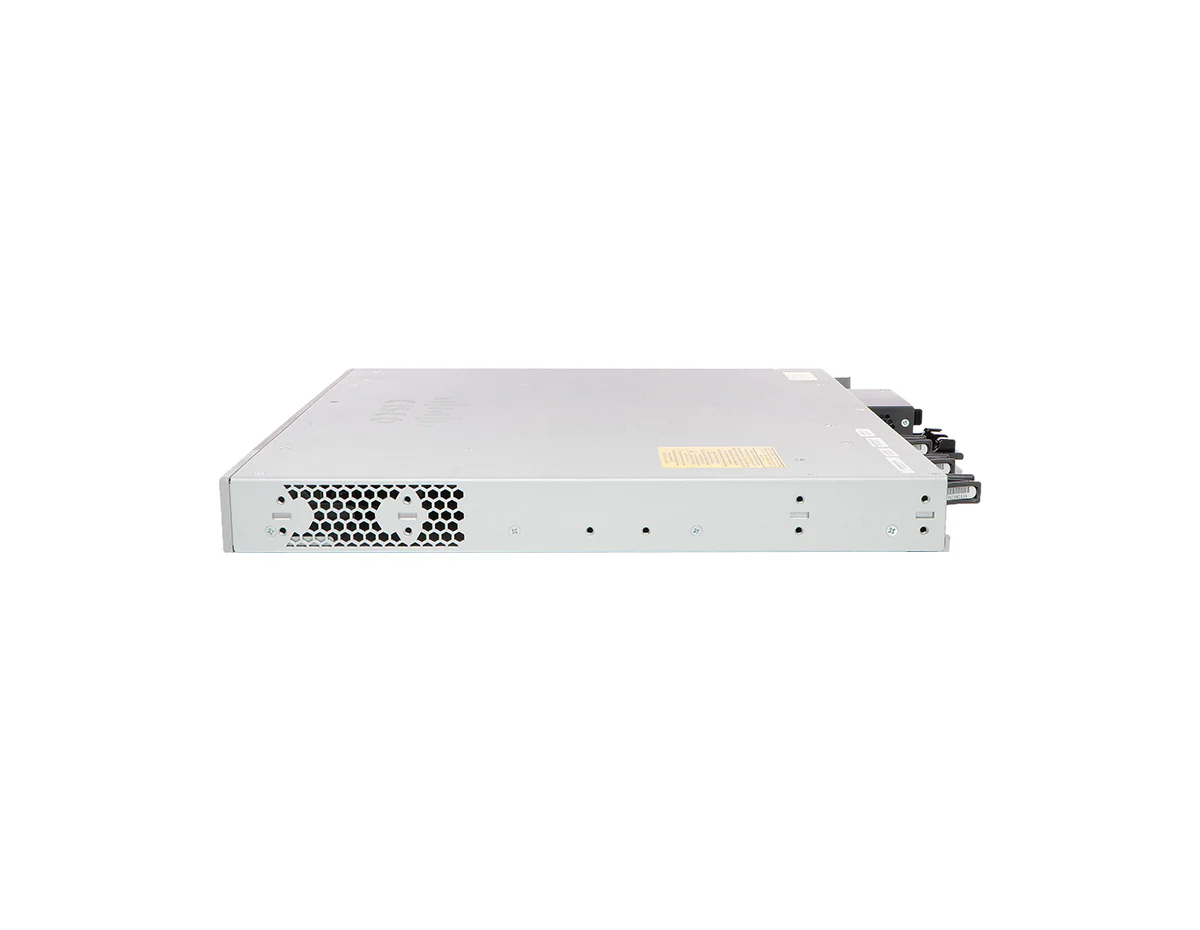

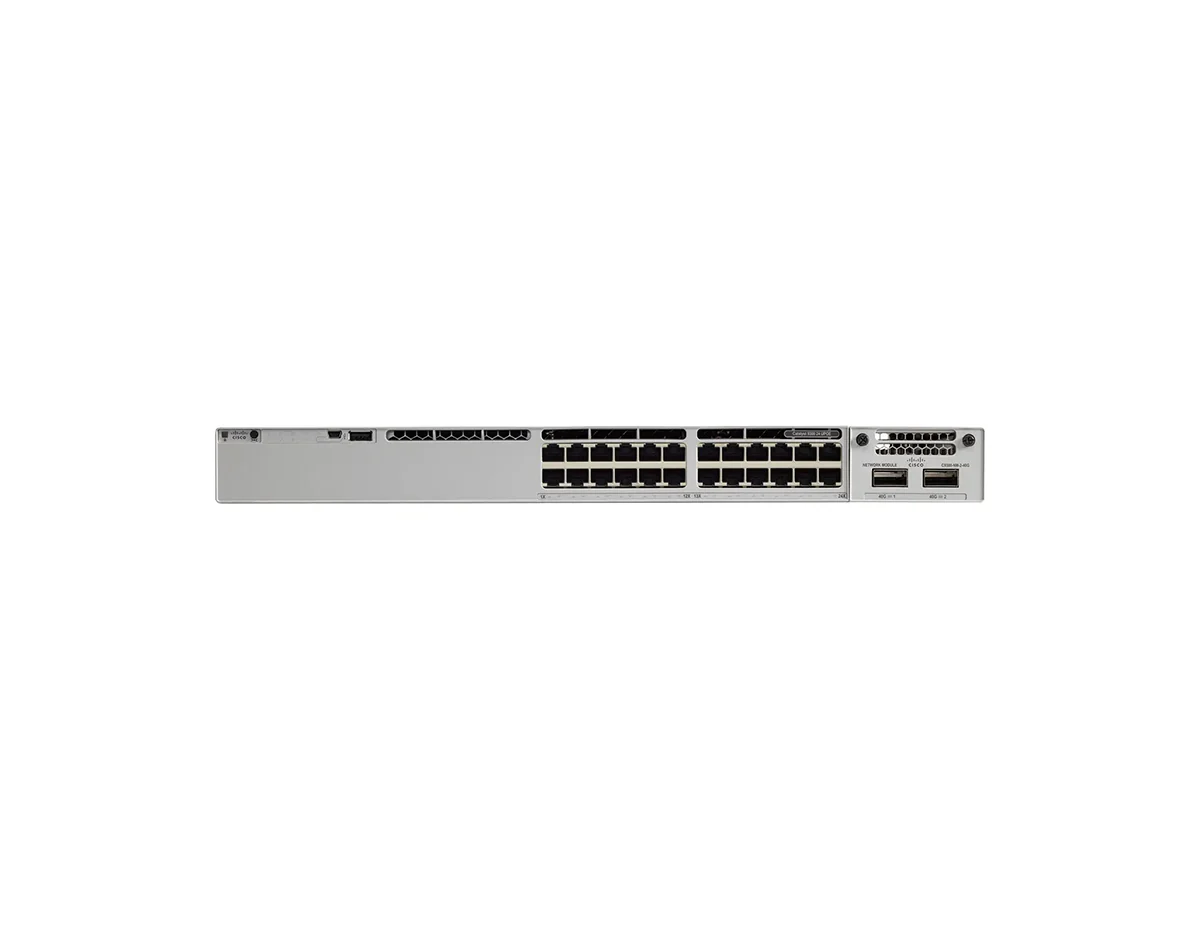

Cisco C9300-24U-E Switch
[shortdesc]
- Managed, Rack-mountable, 24 x 1G ports, Modular Uplinks, UPOE
[properties]
| Properties | C9300-24U-E |
| Description | Catalyst 9300 24-port 1G copper with modular uplinks, UPOE, Network Essentials‚ |
| Product Family | Catalyst 9300 |
| Product Type | Ethernet Switch |
| Number of Ports | 24 |
| Downlinks total 10/100/1000 or PoE+ copper ports |
24 port Cisco UPOE‚ |
| Uplink configuration | Modular uplink options |
| Cisco IOS Software | Network Essentials‚ |
| Default primary AC power supply |
PWR-C1-1100WAC‚ |
| Available PoE power with additional secondary power supply |
830W‚ |
| Fans | Three field-replaceable fans |
| Chassis + FEP + ‚ Fan Dimensions (HxWxD) Inches |
1.73 x 17.5 x 19.2‚ |
[/properties][specifications]
| Specifications | C9300-24U-A |
| Console Ports | RJ-45-to-DB9 cable for PC connections‚ |
| DRAM | 8 GB‚ |
| Flash Memory | 16 GB‚ |
| Switching capacity | 208 Gbps‚ |
| Forwarding rate‚ | 154.76 Mpps‚ |
| MAC addresses | 32000 |
| Operating Temperature Up to 5,000 ft (1500 m) |
-5°C to +45°C |
| Operating Temperature Up to 10,000 ft (3000 m) |
-5°C to +40°C |
| Safety | UL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEEE 802.3 |
| Electromagnetic compatibility certifications |
47 CFR Part 15 EN 300 386 V1.6.1 EN 55032 Class A CISPR 32 Class A EN61000-3-2 EN61000-3-3 ICES-003 Class A TCVN 7189 Class A V-3 Class A CISPR 35 EN 300 386 EN 55035 TCVN 7317 V-2/2015.04 V-3/2015.04 CNS13438 KN32 KN35 |
| EMC compliance |
FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55032 Class A CISPR 32 Class A AS/NZS 3548 Class A BSMI Class A (AC input models only) VCCI Class A EN 55024, EN300386, EN 61000-3-2, EN 61000-3-3 EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6 |
| Environmental | Reduction of Hazardous Substances (ROHS) 5 |
[/specifications][accesories]
| Stacking Support | Stackwise-480‚ |
| Stacking bandwidth support | 480 Gbps‚ |
| Stacking hardware‚ | StackWise Cable‚ |
| Number of members |
8 |
| Supported stack members | Other C9300 SKUs with same license level C9300 higher scale SKUs only stack with other like higher scale models |
| Stacking accessories | |
| STACK-T1-50CM‚ | Data stack 50 cm (cable option with C9300 and C9300X SKUs)‚ |
| STACK-T1-1M‚ | Data stack 1m (cable option with C9300 and C9300X SKUs)‚ |
| STACK-T1-3M‚ | Data stack 3m (cable option with C9300 and C9300X SKUs)‚ |
[/accesories]
Cisco Catalyst C9300-24U-E Switch
The Cisco Catalyst C9300-24U-E Switch is a high-performance, enterprise-grade solution designed to meet the needs of modern network environments that require advanced security, scalable management, and efficient power delivery. Featuring 24 UPOE (Universal Power Over Ethernet) ports, this switch is ideal for powering a wide range of devices, such as IP phones, cameras, and wireless access points, while providing robust Layer 3 routing capabilities. The C9300-24U-E’s modular uplinks and flexible design make it a future-proof choice for growing networks.
Key Features:
- 24 x UPOE Gigabit Ethernet Ports: Delivers up to 60W per port, ensuring reliable power and high-speed connectivity for connected devices.
- Modular Uplinks: Supports various uplink options including 1G, 10G, and 40G, providing scalability for future network expansions.
- Advanced Layer 3 Routing: Features protocols such as OSPF, EIGRP, and BGP, enabling sophisticated routing and traffic management.
- StackWise-480 Technology: Provides up to 480 Gbps of stacking bandwidth, ensuring high availability and simplified management across multiple switches.
- Energy-Efficient Design: Compliant with IEEE 802.3az standards, optimizing power consumption while maintaining superior network performance.
- Enhanced Security: Integrates MACsec encryption, ACLs, and advanced security protocols to safeguard your network against unauthorized access.
Technical Overview:
- Recommended for: Enterprise environments, large campuses, and data-driven operations.
- Ports: 24 x 10/100/1000 Mbps UPOE Gigabit Ethernet ports (up to 60W per port).
- Uplink Modules: Modular uplinks supporting 1G, 10G, and 40G for flexible network growth.
- Switching Capacity: 208 Gbps.
- Forwarding Rate: 154.76 Mpps.
- Layer 3 Features: OSPF, EIGRP, BGP, VLANs, and ACLs for advanced network control.
- Management: Web-based GUI, CLI, SNMP, and Cisco DNA for comprehensive network automation and monitoring.
- Licensing: Network Essentials.
- Security: MACsec encryption and advanced access control features.
- Energy Efficiency: Meets IEEE 802.3az standards for energy-efficient operation.
You can check the related tab for the C9300-24U-E datasheet.
