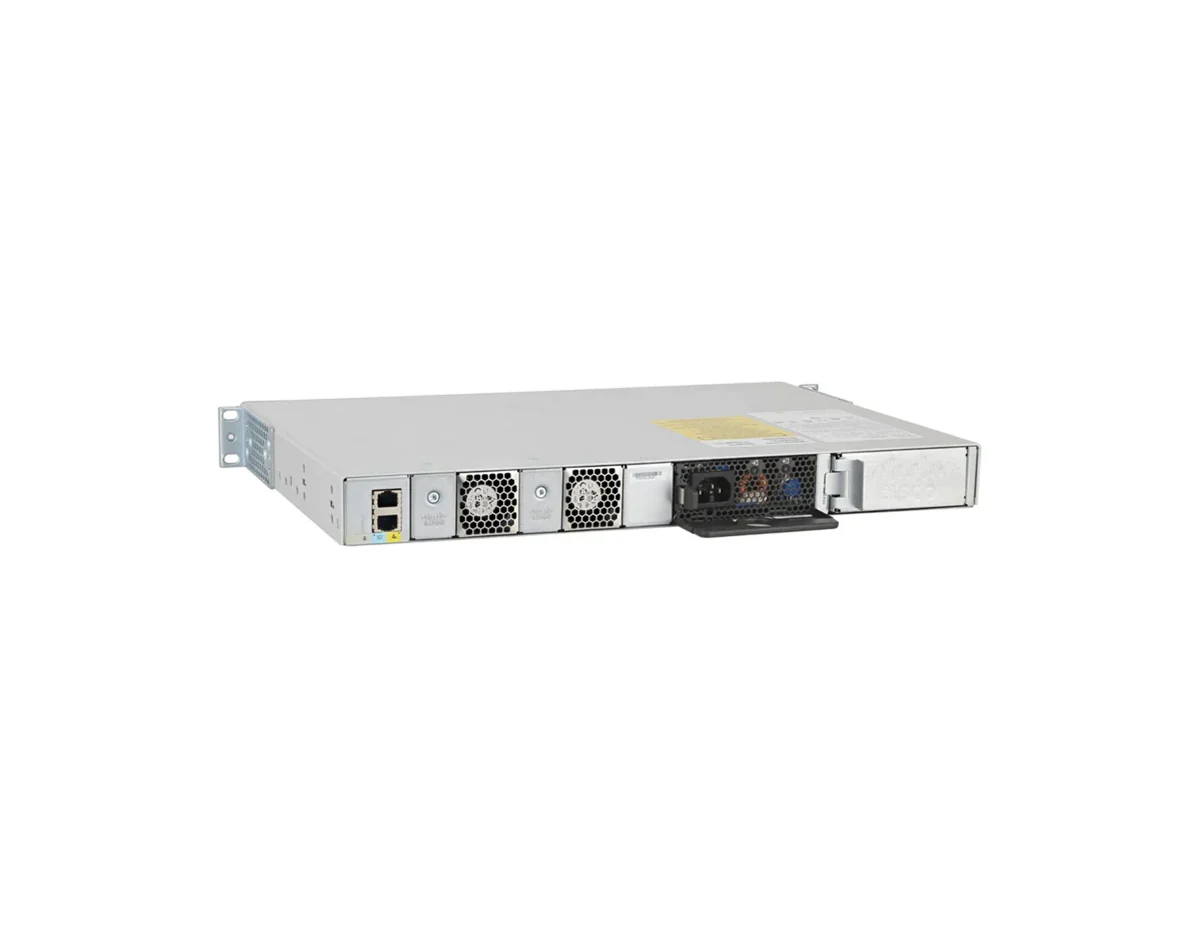

Cisco Catalyst C9200L-48P-4G-A 48-Port PoE+ Switch with 4x1G SFP Uplinks, Network Advantage
[shortdesc]
- Switch
- L3
- 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
- Rack-mountable
- PoE+ (1440 W)
[properties]
| Properties | C9200L-48P-4G-A |
| Description | Catalyst 9200L 48-port PoE+ 4x1G uplink Switch, Network Advantage |
| Product Family | Catalyst 9200-L |
| Product Type | Ethernet Switch |
| Number of Ports | 48 |
| Downlinks total 10/100/1000 or PoE+ copper ports |
48 ports full POE+‚ |
| Uplink configuration | 4x 1G fixed uplinks |
| Cisco IOS Software | Network Advantage |
| Default primary AC power supply |
PWR-C5-1KWAC |
| Available PoE power with additional secondary power supply |
1440W |
| Fans | Fixed redundant |
| Chassis + FEP + ‚ Fan Dimensions (HxWxD) Inches |
1.73 x 17.5 x 11.3 |
[/properties]
[specifications]
| Specifications | C9200L-48P-4G-A |
| Console Ports | RJ-45-to-DB9 cable for PC connections, USB-C adaptor, USB adaptor |
| DRAM | 2 GB |
| Flash Memory | 4 GB |
| Switching capacity | 104 Gbps |
| Forwarding rate‚ | 77.38 Mpps |
| MAC addresses | 16000 |
| Operating Temperature Up to 5,000 ft (1500 m) |
-5°C to +45°C |
| Operating Temperature Up to 10,000 ft (3000 m) |
-5°C to +40°C |
| Safety | IEC 60950-1 UL 60950-1 CAN/CSA C22.2 No. 60950-1 EN 60950-1 AS/NZS 60950.1 Class I Equipment |
| Electromagnetic compatibility certifications |
47 CFR Part 15 CISPR 32 Class A CNS 13438 EN 300 386* EN 55032 Class A EN61000-3-2 EN61000-3-3 ICES-003 Class A KN 32 TCVN 7189 Class A V-3 Class A CISPR 35 EN 300 386* EN 55035 KN 35 TCVN 7317 |
| EMC compliance |
FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55032 Class A CISPR 32 Class A AS/NZS 3548 Class A BSMI Class A VCCI Class A CISPR 35 EN 55035, EN300 386* EN 61000-3-2, EN 61000-3-3 |
| Safety compliance |
UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking |
| Environmental | Reduction of Hazardous Substances (ROHS) 5 |
[/specifications]
[accesories]
| Stacking Support | StackWise-80 |
| Stacking bandwidth support | 80 Gbps |
| Stacking hardware‚ | C9200L-STACK-KIT |
| Number of members |
8 |
| Supported stack members | Other C9200L models with same license level |
| Stacking accessories | |
| C9200L-STACK-KIT | Stack kit for C9200L SKUs only: Two data stack adapters and one data stack cable |
| STACK-T4-50CM | Data stack 50 cm cable (default cable with Stack Kit) |
| STACK-T4-1M | Data stack 1 m cable |
| STACK T4-3M | Data stack 3 m cable |
| Mounting Accessories | |
| ACC-KIT-T1= | Accessory kit with 19 inch Type 1 rack mount |
| RACK-KIT-T1= | 19, 23, 24 inch and ETSI Type 1 rack mount kit |
| 4PT-KIT-T2= | 4 Point rack mount kit New |
| C9K-MGNT-TRAY | Magnet and Mounting Tray for compact switches |
| C9K-CMPCT-DIN-MNT | DIN Rail Mount for compact switches |
| RACKMNT-19-CMPACT | 19-Inch Rack Mounting Brackets for compact switches |
| C9K-CMPCT-CBLE-GRD | Cable guard for compact switches (for C9K-WALL-TRAY) |
| C9K-WALL-TRAY | Wall mount bracket for compact switches |
| C9K-CMPCT-DESK-MNT | Under desk mount for compact switches |
[/accesories]
Cisco Catalyst C9200L-48P-4G-A Switch
The Cisco Catalyst C9200L-48P-4G-A Switch is a robust and scalable networking solution designed for small to medium-sized businesses and branch offices. Featuring 48 Gigabit Ethernet PoE+ ports and 4 fixed 1G SFP uplinks, this switch provides reliable connectivity and supports a substantial 740W PoE budget, making it ideal for powering devices such as IP phones, cameras, and wireless access points. The C9200L-48P-4G-A ensures network security and performance with advanced security features, Layer 3 routing capabilities, and simplified management through Cisco DNA Center, making it a reliable choice for modern network infrastructures.
Key Features:
- 48 x Gigabit Ethernet PoE+ Ports: Delivers power and data connectivity for PoE-enabled devices, supporting a 740W PoE budget.
- 4 x 1G SFP Uplinks: Offers flexible uplink options for connecting to other switches or network devices, ensuring network scalability.
- Advanced Security: Includes features such as MACsec encryption and segmentation for enhanced network protection.
- Layer 3 Routing: Supports static routing, OSPF, EIGRP stub, and routed access for efficient traffic management and network segmentation.
- Easy Management: Managed through Cisco DNA Center, CLI, and a web-based UI, simplifying network operations and administration.
Technical Overview:
- Recommended for: Small to medium-sized businesses, branch offices, and enterprise networks requiring reliable PoE and secure connectivity.
- Ports: 48 x 10/100/1000 Mbps Gigabit Ethernet PoE+ ports with 4 fixed 1G SFP uplinks.
- PoE Budget: 740W.
- Switching Capacity: 104 Gbps.
- Forwarding Rate: 77.38 Mpps.
- Management: Cisco DNA Center, CLI, and web-based GUI for comprehensive network management.
- Security: MACsec encryption and advanced segmentation for enhanced network security.
- Energy Efficiency: Compliant with IEEE 802.3az Energy Efficient Ethernet standards.
You can check the related tab for the C9200L-48P-4G-A datasheet.
