Cisco Catalyst C9200L-24PXG-4X-E 24-Port mGig PoE+ Switch (8xmGig, 4x10G SFP+), Network Essentials
[shortdesc]
- Catalyst 9200L
- 24-port 8 x mGig, 16 x 1G, 4 x 10G, PoE+
[properties]
| Properties | C9200L-24PXG-4X-E |
| Description |
Catalyst 9200L 24-port 8xmGig, 16x1G, 4x10G, PoE+, Network Essentials
|
| Product Family | Catalyst 9200-L |
| Product Type | Ethernet Switch |
| Number of Ports | 24 |
| Downlinks total 10/100/1000 or PoE+ copper ports |
24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G) |
| Uplink configuration |
4x 1/10G fixed uplinks
|
| Cisco IOS Software | Essentials |
| Default primary AC power supply |
PWR-C5-600WAC |
| Available PoE power with additional secondary power supply |
740W |
| Fans | Fixed redundant |
| Chassis + FEP + Fan Dimensions (HxWxD) Inches |
1.73x17.5x15.4 |
[/properties] [specifications]
| Specifications | C9200L-24PXG-4X-E |
| Console Ports | RJ-45-to-DB9 cable for PC connections, USB-C adaptor, USB adaptor |
| DRAM | 2 GB |
| Flash Memory | 4 GB |
| Switching capacity | 272 Gbps |
| Forwarding rate | 352 Gbps |
| MAC addresses | 16000 |
| Operating Temperature Up to 5,000 ft (1500 m) |
-5°C to +45°C |
| Operating Temperature Up to 10,000 ft (3000 m) |
-5°C to +40°C |
| Safety | IEC 60950-1 UL 60950-1 CAN/CSA C22.2 No. 60950-1 EN 60950-1 AS/NZS 60950.1 Class I Equipment |
| Electromagnetic compatibility certifications |
47 CFR Part 15 CISPR 32 Class A CNS 13438 EN 300 386* EN 55032 Class A EN61000-3-2 EN61000-3-3 ICES-003 Class A KN 32 TCVN 7189 Class A V-3 Class A CISPR 35 EN 300 386* EN 55035 KN 35 TCVN 7317 |
| EMC compliance |
FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55032 Class A CISPR 32 Class A AS/NZS 3548 Class A BSMI Class A VCCI Class A CISPR 35 EN 55035, EN300 386* EN 61000-3-2, EN 61000-3-3 |
| Safety compliance |
UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking |
| Environmental | Reduction of Hazardous Substances (ROHS) 5 |
[/specifications] [accesories]
| Stacking Support | StackWise-80 |
| Stacking bandwidth support | 80 Gbps |
| Stacking hardware | C9200L-STACK-KIT |
| Number of members |
8 |
| Supported stack members | Other C9200L models with the same license level |
| Stacking accessories | |
| C9200L-STACK-KIT | Stack kit for C9200L SKUs only: Two data stack adapters and one data stack cable |
| STACK-T4-50CM | Data stack 50 cm cable (default cable with Stack Kit) |
| STACK-T4-1M | Data stack 1 m cable |
| STACK T4-3M | Data stack 3 m cable |
| Mounting Accessories | |
| ACC-KIT-T1= | Accessory kit with 19 inch Type 1 rack mount |
| RACK-KIT-T1= | 19, 23, 24 inch and ETSI Type 1 rack mount kit |
| 4PT-KIT-T2= | 4 Point rack mount kit New |
| C9K-MGNT-TRAY | Magnet and Mounting Tray for compact switches |
| C9K-CMPCT-DIN-MNT | DIN Rail Mount for compact switches |
| RACKMNT-19-CMPACT | 19-Inch Rack Mounting Brackets for compact switches |
| C9K-CMPCT-CBLE-GRD |
Cable guard for compact switches (for C9K-WALL-TRAY)
|
| C9K-WALL-TRAY |
Wall mount bracket for compact switches
|
| C9K-CMPCT-DESK-MNT |
Under desk mount for compact switches
|
[/accesories]

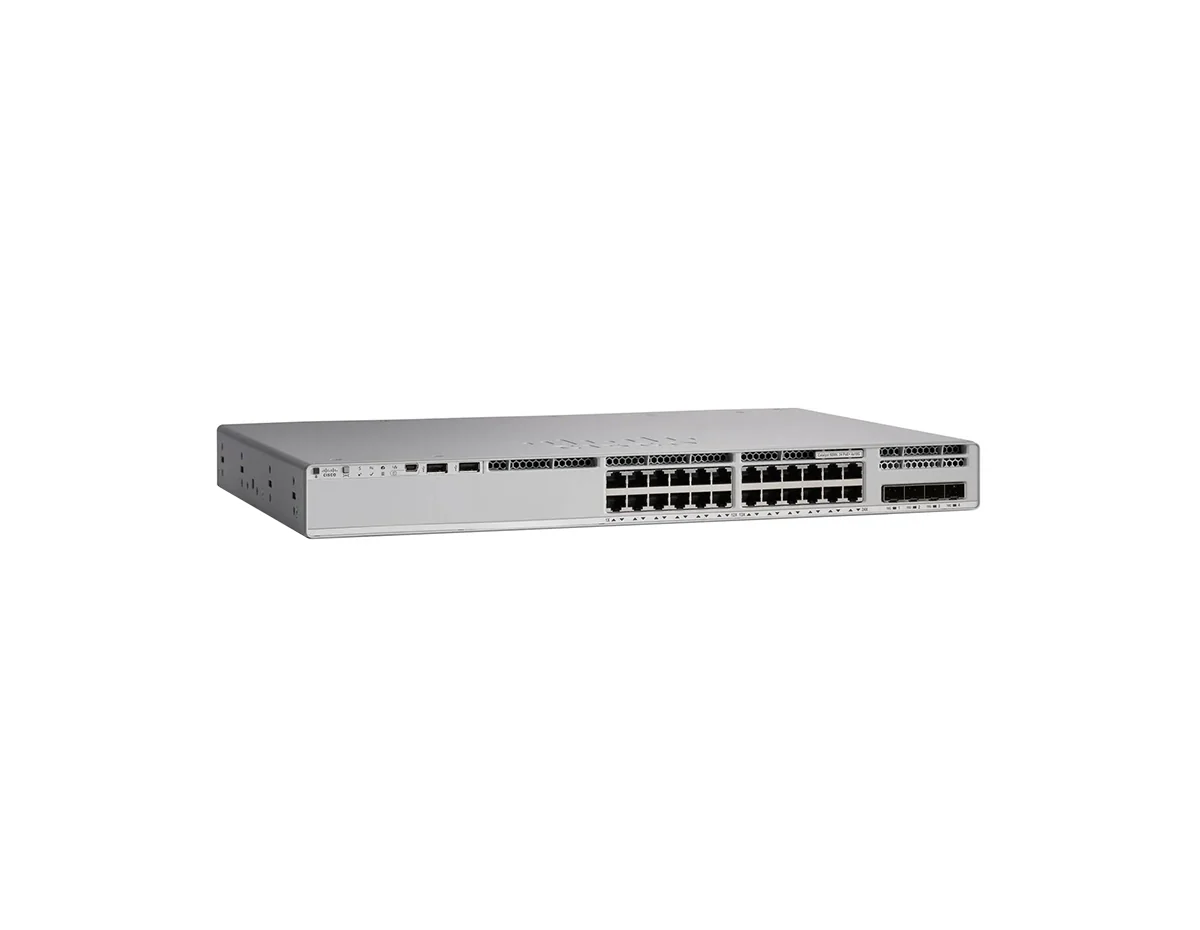

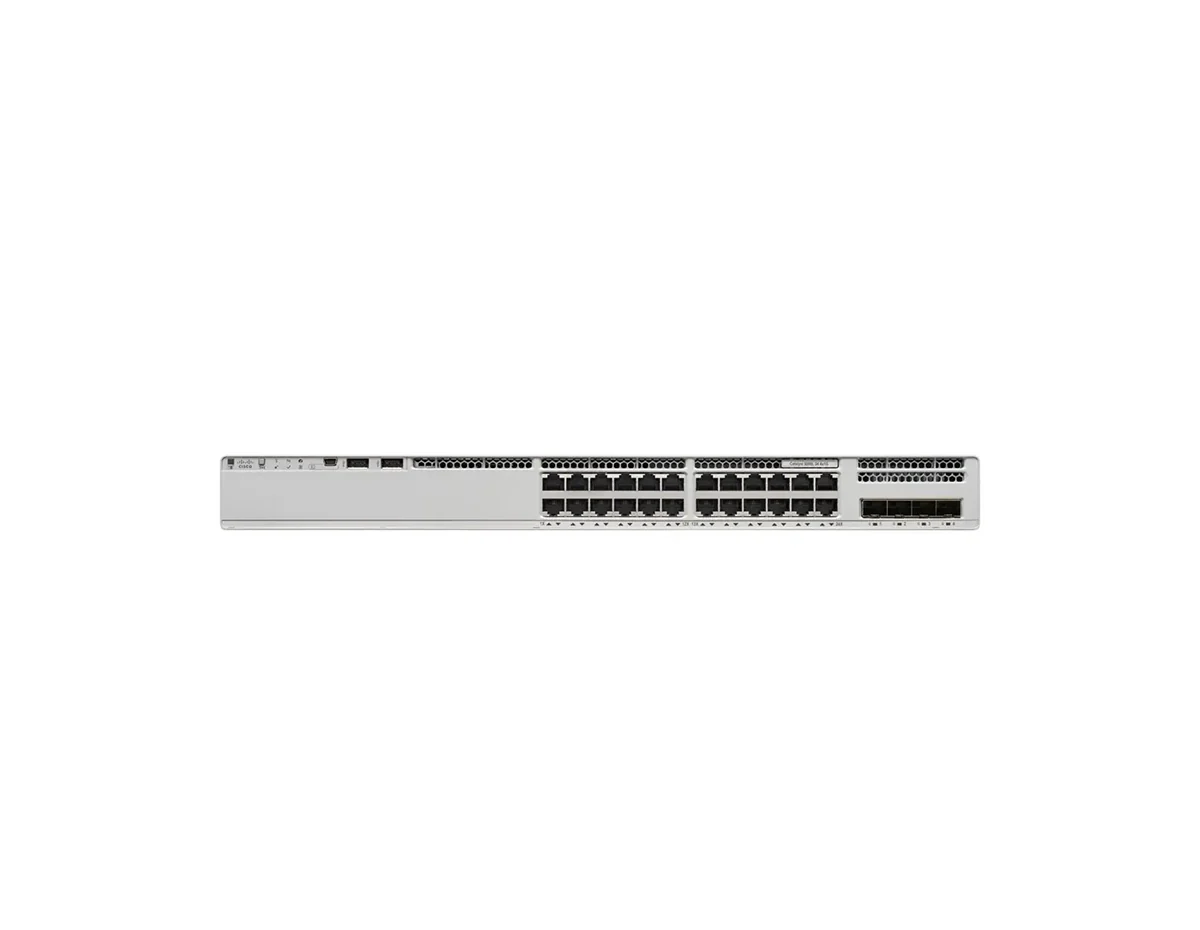

Cisco C9200L-24PXG-4X-E Switch
The Cisco Catalyst 9200 Series switches are secure, resilient, and programmable networking solutions suited for small businesses and branch offices. Built-in support for Cisco DNA, QoS, and advanced security features are offered without complicating management.
Quick Specs of C9200L-24PXG-4X-E:
- Network Essentials License
- Full PoE+ capability
- Fix redundant fans
- 4 fixed uplinks
Please check the above tabs for detailed specifications and compatible accessories.
