The Cisco C9200-STACK-KIT includes two data stack adapters and a 0.5m cable for stacking Catalyst 9200 modular switches, enabling 160 Gbps of bandwidth per switch.

[/shortdesc]

[properties]

Properties	Cisco C9200-STACK-KIT
Description	The Cisco C9200-STACK-KIT enables high-performance stacking for Catalyst 9200 modular switches, simplifying management, monitoring, and troubleshooting.
Compatibility	Cisco Catalyst 9200 modular models only (C9200 SKUs). Not compatible with C9200L or C9200CX models.
Product Type	Stacking Kit (Adapters and Cable)
Key Features	Stacking Bandwidth: 160 Gbps One kit required per switch Manages stacked switches as a single entity

[/properties]

[specifications]

Specifications	Cisco C9200-STACK-KIT
Device Type	Network stacking kit
Form Factor	Plug-in StackWise-160 adapters
Connectivity Technology	Wired (via StackWise cable)
Performance (Bandwidth)	160 Gbps per switch

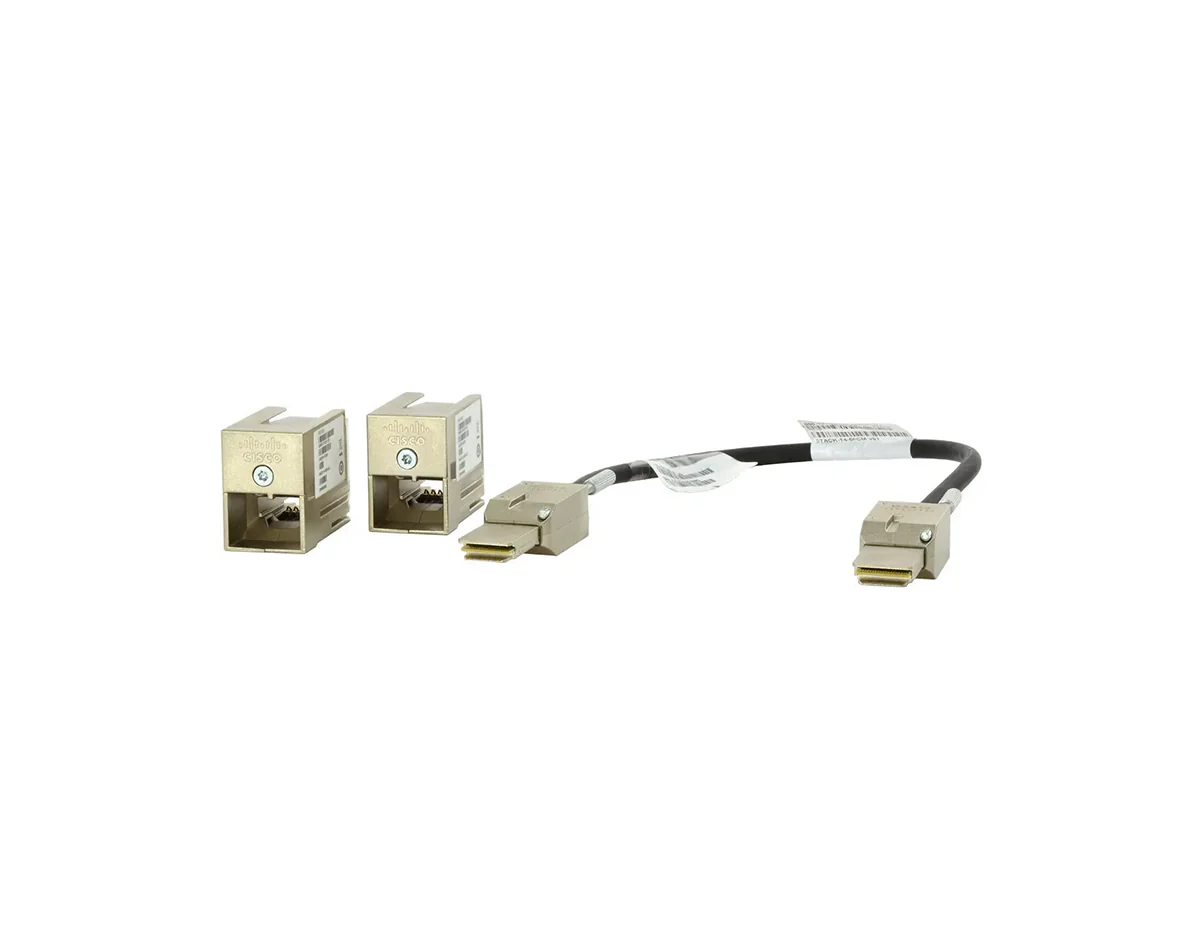

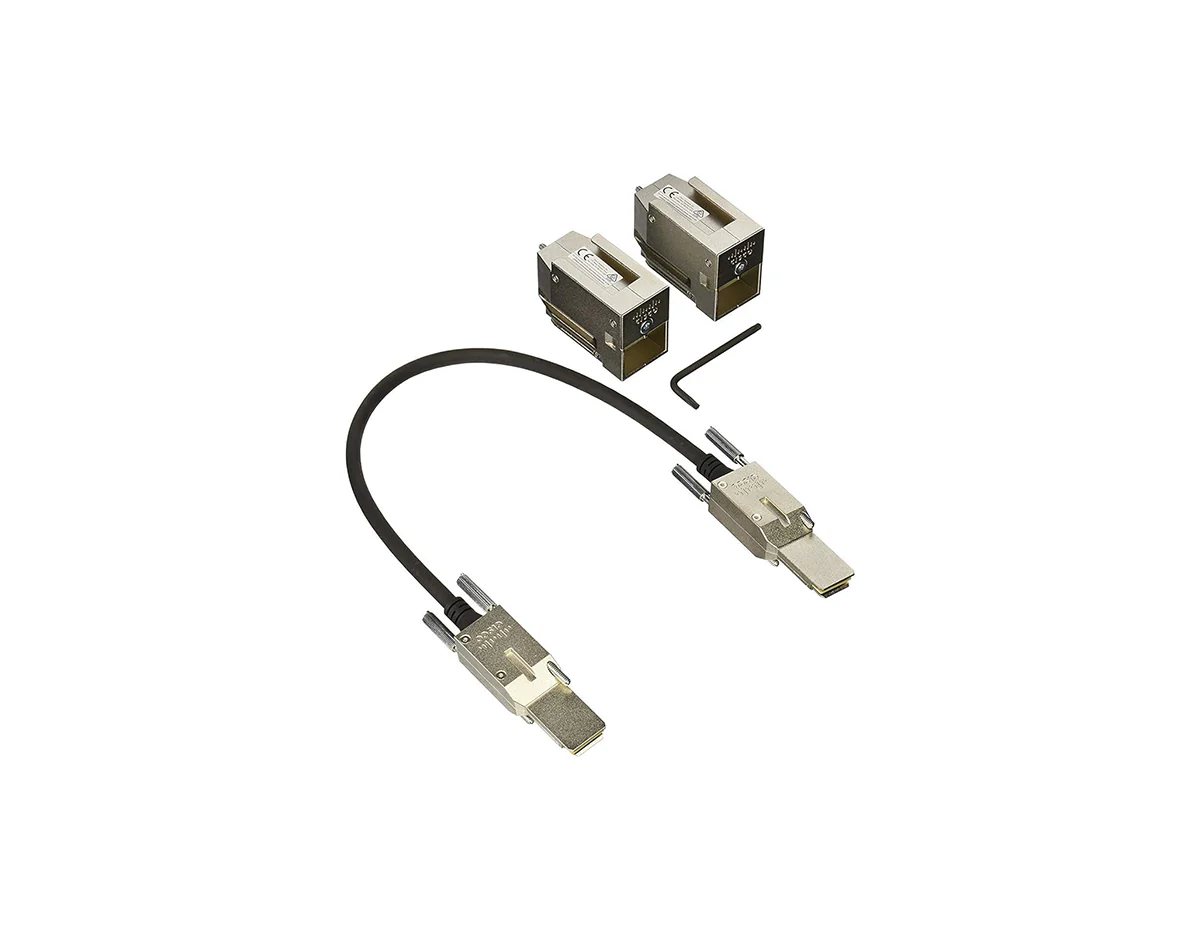

Kit Contents	2 × Data Stack Adapters, 1 × 0.5m StackWise cable (STACK-T4-50CM)
Dimensions (Module)	1.5 × 5.4 × 8.2 in (3.8 × 13.7 × 20.8 cm)
Weight (with cable)	1.8 lbs (0.82 kg)
Operating Temperature	0°C to +45°C
Storage Temperature	–40°C to +70°C

[/specifications]

[accesories]

Related Switches	Short Description
C9200-24T-A	Catalyst 9200 24-port Data Switch, Network Advantage
C9200-24P-E	Catalyst 9200 24-port PoE+ Switch, Network Essentials
C9200-48T-A	Catalyst 9200 48-port Data Switch, Network Advantage
C9200-48P-E	Catalyst 9200 48-port PoE+ Switch, Network Essentials
C9200-48PXG	Catalyst 9200 48-port mGig PoE+ Switch, Network Essentials

[/accesories]

At a Glance

• Compatibility: Catalyst 9200 modular switches only (not 9200L or CX)
• Kit Contents: 2 × Data Stack Adapters, 1 × 0.5m StackWise cable
• Stacking Bandwidth: 160 Gbps per switch
• Max Stack Size: Up to 8 switches

Product Overview

The Cisco C9200-STACK-KIT provides high-performance stacking for Catalyst 9200 modular switches using StackWise-160 technology. Each kit includes two plug-in adapters and one 0.5-meter cable, delivering 160 Gbps of stacking bandwidth per switch. Up to 8 switches can be stacked into a unified system with full redundancy, simplifying deployment and operations.

This kit is not compatible with Catalyst 9200L (fixed uplink) or C9200CX (compact) models, which use different technologies or do not support stacking.

Technical Specifications

Hardware

• SKU: C9200-STACK-KIT
• Stacking Bandwidth: 160 Gbps per switch
• Default Cable: 0.5m StackWise cable (STACK-T4-50CM)
• Kit Contents: 2 × Data Stack Adapters, 1 × Stacking Cable
• Dimensions: 1.5 × 5.4 × 8.2 in (3.8 × 13.7 × 20.8 cm)
• Weight: 1.8 lbs (0.82 kg)
• Operating Temperature: 0°C to +45°C
• Storage Temperature: –40°C to +70°C

Compatibility

Compatible with all Catalyst 9200 modular models, including:

• C9200-24T, C9200-24P, C9200-24PB, C9200-24PXG
• C9200-48T, C9200-48P, C9200-48PL, C9200-48PB, C9200-48PXG

Not compatible with: Catalyst 9200L (StackWise-80) and C9200CX compact models.

Frequently Asked Questions

What is included in the C9200-STACK-KIT?

Each kit includes two data stack adapters and one 0.5-meter StackWise cable.

How many kits do I need to stack multiple switches?

You need one kit per switch. For example, stacking 3 switches requires 3 kits.

Is this kit compatible with Catalyst 9200L switches?

No. Catalyst 9200L models use StackWise-80 and require the C9200L-STACK-KIT instead.

What is the stacking bandwidth per switch?

Each switch in the stack provides 160 Gbps bandwidth with this kit.

What type of cable is included?

The kit includes a 0.5-meter passive StackWise cable (STACK-T4-50CM), ideal for stacking within the same rack.
