Cisco C9200-NM-2Q Catalyst 9200 2x40G QSFP+ Network Module for Multigigabit Switches
[shortdesc]
Expansion module, for P/N: C9200-24PXG-1A, C9200-48PB-1A, C9200-48PXG-A++, 40 Gigabit QSFP+ x 2 C9200-24PXG-A++, C9200-48PXG-1A
[/shortdesc]
[properties]
| Properties | Cisco Catalyst C9200-NM-2Q |
| Description | Catalyst 9200 Series 2x 40G Network Module |
| Product Family | Catalyst 9200 |
| Product Type | Expansion Module |
| Supported Devices | Cisco Catalyst 9200 Series Switches |
| Ports | 2 x 40G Gigabit Ethernet |
| Form Factor | Plug-in module |
| Connectivity Technology | Wired |
| Mean Time Between Failures MTBF (hours) |
10,778,230 |
[/properties]
[specifications]
| Specifications | C9200-NM-2Q |
| Connectors and cabling | 1000BASE-T ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling Multigigabit-T ports: RJ-45 connectors, 4-pair Cat 5E, Cat 6, Cat 6A UTP cabling 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling SFP transceivers: LC fiber connectors (single-mode or multimode fiber) SFP+ transceivers: LC fiber connectors (single-mode or multimode fiber) QSFP+ transceivers: MPO and LC fiber connectors (single-mode or multimode fiber) QSFP+ connector SFP+ connector Cisco StackWise stacking ports: copper-based Cisco StackWise cabling Cisco StackPower: Cisco proprietary power stacking cables Ethernet management port: RJ-45 connectors, 4-pair Cat 5 UTP cabling Management console port: RJ-45-to-DB9 cable for PC connections |
| Safety certifications | UL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEEE 802.3 |
| Electromagnetic emissions certifications | 47 CFR Part 15 CISPR22 Class A EN 300 386 V1.6.1 EN 55022 Class A EN 55032 Class A CISPR 32 Class A EN61000-3-2 EN61000-3-3 ICES-003 Class A TCVN 7189 Class A V-3 Class A CISPR24 EN 300 386 EN55024 TCVN 7317 V-2/2015.04 V-3/2015.04 CNS13438 KN32 KN35 IEC 61000-6-1 EN 61000-6-1 Additional Certifications for C9300L SKUs: QCVN 118:2018/BTTTT CISPR24/25 CISPR 32 Class A VCCI-CISPR 32 Class A EN55035 |
| Environmental | Reduction of Hazardous Substances (ROHS) 5 |
[/specifications]
[accesories]
| Stacking accessories | |
| C9200-STACK-KIT= | C9200 Stack Kit Spare |
| C9200L-STACK-KIT= | C9200L Stack Kit Spare |
| STACK-T4-50CM | 50CM Type 3 Stacking Cable |
| STACK-T4-1M | 1M Type 3 Stacking Cable |
| STACK-T4-3M | 3M Type 3 Stacking Cable |
[/accesories]

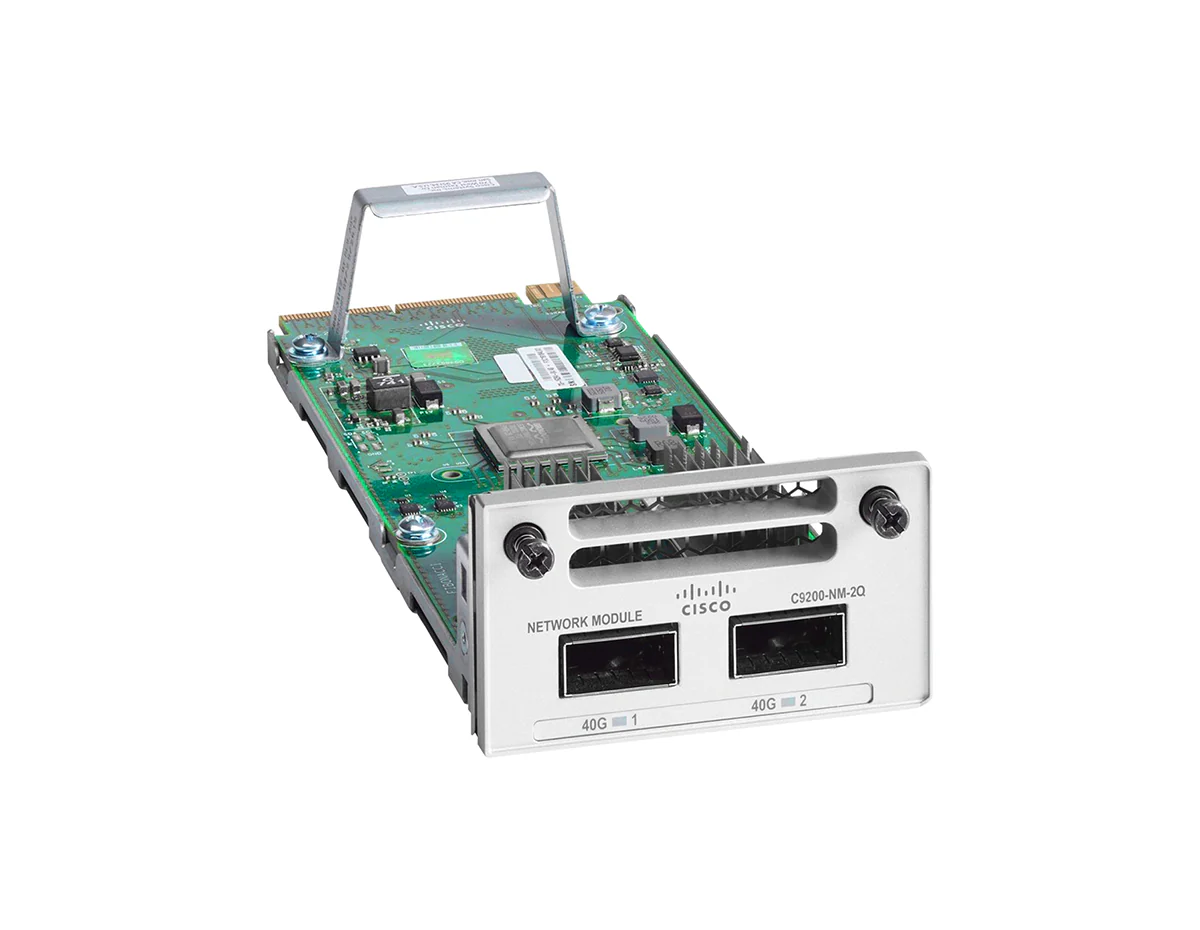

Cisco Catalyst C9200-NM-2Q Network Module
The Cisco Catalyst C9200-NM-2Q Network Module is an advanced uplink module designed to significantly enhance the scalability and performance of Cisco Catalyst 9200 Series switches. This module provides two 40G QSFP+ ports, offering ultra-fast and reliable uplink options for connecting to other switches or network devices. The C9200-NM-2Q is ideal for small to medium-sized businesses and branch offices that require higher uplink speeds and increased bandwidth capacity, ensuring your network is ready to meet future demands.
Key Features:
- 2 x 40G QSFP+ Ports: Delivers high-speed uplink options, ensuring fast and reliable connectivity to expand network capacity.
- Seamless Integration: Easily integrates with Cisco Catalyst 9200 Series switches, enhancing network performance and flexibility.
- High Availability: Supports redundant and resilient network designs, minimizing downtime and ensuring continuous operation.
- Scalability: Allows for network expansion by providing additional high-speed uplink ports to accommodate growing network demands.
- Energy Efficiency: Optimized for low power consumption, helping to reduce overall energy costs in your network environment.
Technical Overview:
- Recommended for: Small to medium-sized businesses, branch offices, and enterprise networks requiring additional 40G uplink ports for enhanced performance.
- Ports: 2 x 40G QSFP+ ports.
- Compatibility: Fully compatible with Cisco Catalyst 9200 Series switches.
- Management: Seamless integration with Cisco DNA Center and other network management tools.
You can check the related tab for the C9200-NM-2Q datasheet.
