CISCO Catalyst 9130AX Series Access Point, Internal Antennas; Wi-Fi 6; 4x4:4 MIMO, B Domain (C9130AXI-B)

Product image 1
Product image 2

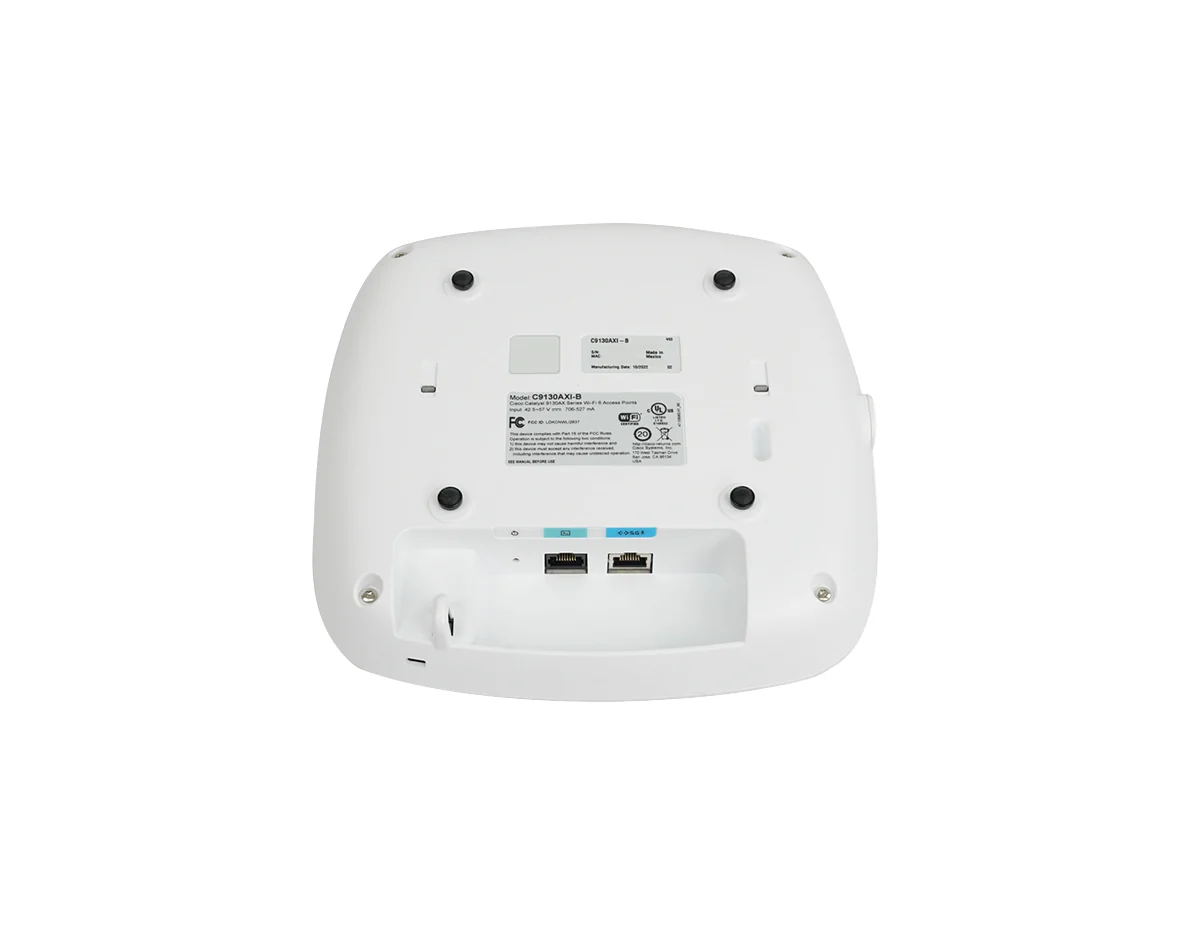

Product image 3

CISCO Catalyst 9130AX Series Access Point, Internal Antennas; Wi-Fi 6; 4x4:4 MIMO, B Domain (C9130AXI-B)

CISCO Catalyst 9130AX Series Access Point, Internal Antennas; Wi-Fi 6; 4x4:4 MIMO, B Domain (C9130AXI-B)

[shortdesc]

  • Wi-Fi 6 certified, supporting 802.11ax on both 2.4-GHz and 5-GHz bands,Ā Up to four Wi-Fi radios: 5GHz flexible radio (single 8x8 or dual 4x4), 2.4GHz (4x4) and Cisco RF ASIC,Ā OFDMA and MU-MIMO

[/shortdesc]

[properties]

Product Name Cisco Catalyst 9130AXI-B
Description High-performance Wi-Fi 6 access point featuring 8x8 MU-MIMO, ideal for enterprise networks requiring reliable, high-density wireless connectivity.
Product Type Access Point
Wi-Fi Standards 802.11ax (Wi-Fi 6), 802.11ac, 802.11n, 802.11a/g
Bands Supported 2.4 GHz and 5 GHz
Antennas Internal, 4x4 MIMO on 2.4 GHz and 8x8 MIMO on 5 GHz
Ethernet Ports 1x Multigigabit Ethernet (up to 5 Gbps), 1x RJ-45 console
USB Port 1x USB 2.0
Operating Temperature 0Ā°C to 50Ā°C
Weight 1.36 kg

[/properties]

[specifications]

Certifications CE, FCC, RoHS compliant
Environmental Safety Uses low-halogen components and energy-efficient design
Memory 2048 MB DRAM, 1024 MB flash
Data Rate Up to 10 Gbps (5 GHz)
Mounting Wall or ceiling mountable
Power Supply 802.3at PoE+, 802.3bt Cisco UPOE
Management Features Supports Cisco DNA, controller-based or standalone operation
Security Features WPA3, AES encryption, secure boot
Dimensions 22.6 cm x 22.6 cm x 4.8 cm
LED Indicators Status LEDs for operation and connectivity

[/specifications]


Cisco Catalyst C9130AXI-B Access Point

The Cisco Catalyst C9130AXI-B Access Point is part of the next generation of enterprise access points, offering resilience, security, and intelligence. Equipped with internal antennas, this model supports Wi-Fi 6 and features 4x4:4 MU-MIMO, making it an ideal choice for high-performance wireless connectivity in the B Domain.

Quick Specs:

  • Wi-Fi 6 certified, supporting 802.11ax on both 2.4-GHz and 5-GHz bands
  • Up to four Wi-Fi radios: 5GHz flexible radio (single 8x8 or dual 4x4), 2.4GHz (4x4) and Cisco RF ASIC
  • OFDMA and MU-MIMO
  • Multigigabit support
  • Internal antennas
  • IoT ready (BLE, other 802.15.4 protocols like Zigbee, supported in future software releases)
  • Supports Cisco 3500, 5520, 8540, and 9800 series Wireless Controllers
  • PHY data rates up to 10 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz)
  • 802.11 Dynamic Frequency Selection (DFS) and Cyclic Shift Diversity (CSD) support
  • WPA3 support

Please see the related tabs for the C9130AXI-B datasheet and compatible accessories.

$784.35

Original: $2,241.00

-65%
CISCO Catalyst 9130AX Series Access Point, Internal Antennas; Wi-Fi 6; 4x4:4 MIMO, B Domain (C9130AXI-B)ā€”

$2,241.00

$784.35
