[shortdesc] 24x Gigabit RJ-45, 4x 10G SFP+, 128 Gbps switching, 95.23 Mpps forwarding, Layer 3, fanless, stackable (up to 8) [/shortdesc]

[properties]

Model	Cisco Catalyst C1300-24T-4X
Product Type	Managed Layer 3 Switch
Ports	24 × 10/100/1000Base-T + 4 × 10G SFP+
Switching Capacity	128 Gbps
Forwarding Rate	95.23 Mpps
Stacking	Hardware stacking up to 8 switches
MAC Address Table	16,000 entries
Packet Buffer	1.5 MB (dynamic, aggregate)
DRAM / Flash	1 GB DDR4 / 512 MB
Processor	ARM dual-core 1.4 GHz
Form Factor	Rack-mountable (1RU), fanless
Dimensions (W × D × H)	17.5 × 9.45 × 1.73 in (445 × 240 × 44 mm)
Weight	6.92 lb (3.14 kg)
Power Supply	Internal, AC 100–240 V, 50–60 Hz
System Power (Max)	22.3 W @110 V / 22.4 W @220 V
Heat Dissipation	76.4 BTU/hr
Operating Temperature	23°F to 122°F (-5°C to 50°C)
Operating Humidity	10% to 90% (non-condensing)
MTBF	646,083 hours (fanless)

[/properties]

[specifications]

Layer Support	Layer 2 and Layer 3 switching
VLANs	Up to 4093 VLANs; Private VLAN, PVE; Voice/Guest VLAN
Link Aggregation	IEEE 802.3ad LACP; up to 8 groups; up to 8 ports per group
Spanning Tree	802.1D, 802.1w (RSTP), 802.1s (MSTP), PVST+, RPVST+
Routing	IPv4/IPv6 static routing (up to 990 routes, 128 SVIs); RIP v2; Policy-Based Routing (PBR)
ACLs	IPv4/IPv6/MAC rules; VLAN, protocol, ports, DSCP matching
QoS	8 queues per port; Strict Priority & WRR; DiffServ/DSCP
Multicast	IGMP snooping v1/v2/v3; IGMP querier; up to 2000 multicast groups
Security	802.1X (RADIUS), DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, Port Security, Storm Control
Jumbo Frame	Up to 9000 bytes
Management	Managed (Cisco IOS XE WebUI/CLI; optional Cisco Catalyst Center)
Discovery	LLDP, LLDP-MED, Cisco Discovery Protocol
Stacking Support	Supported (Family 1); up to 8 switches; LAG across units; fast failover
Certifications	UL 62368, CSA 22.2, CE, FCC Part 15 Class A, WEEE

[/specifications]

[accessories]

Included	Mounting kit (19-in brackets for 24/48-port models), Power cord, Pointer card
Optional – SFP Modules	MGBSX1, MGBLX1, MGBLH1, MGBT1, GLC-SX-MMD, GLC-EX-SMD, GLC-ZX-SMD, GLC-LH-SMD, GLC-BX-U, GLC-BX-D, GLC-TE, CWDM-SFP series
CAB-CONSOLE-RJ45	RJ-45 console cable
CAB-CONSOLE-USB-C / CAB-CONSOLE-USB-C=	USB-C console cable
PWR-CLP	Power cable clip
RCKMNT-1RU-1K=	Rack-mount kit for 1U devices

[/accessories]

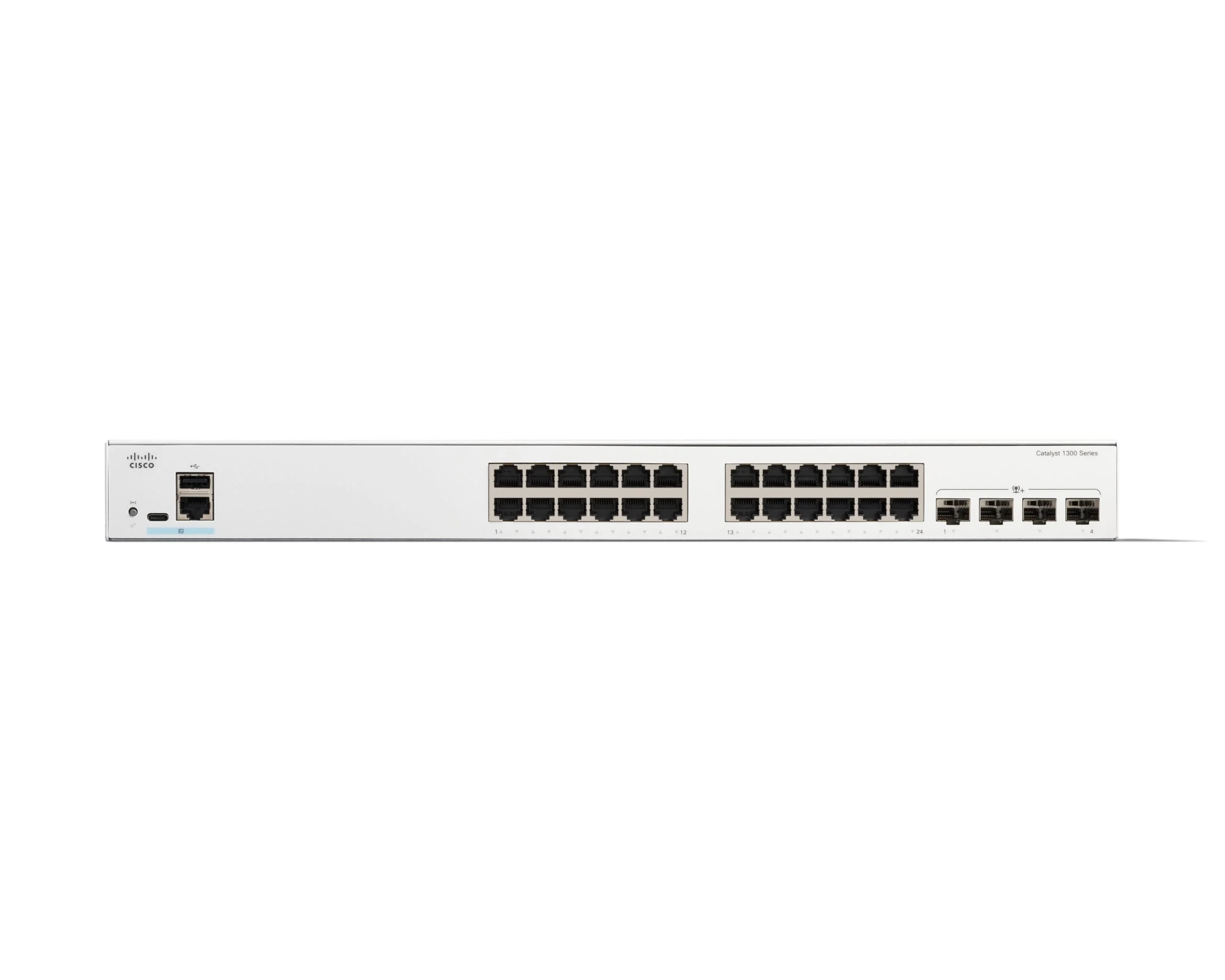

Cisco Catalyst C1300-24T-4X 24-Port Gigabit Managed Switch

The Cisco Catalyst C1300-24T-4X is a fanless, stackable Layer 3 managed switch designed for small to medium-sized businesses. With 24 Gigabit Ethernet ports and 4 high-speed 10G SFP+ uplinks, it delivers reliable connectivity and enterprise-grade features for modern workloads while keeping acoustic noise at zero in operation.

Key Features

• Fast & Efficient: 128 Gbps switching capacity and 95.23 Mpps forwarding for non-blocking performance.
• Silent Operation: Fanless hardware for quiet offices, classrooms, and retail spaces.
• Scalable Design: Hardware stacking up to 8 units with fast failover and cross-unit LAG.
• Layer 3 Ready: IPv4/IPv6 static routing, RIP v2, PBR, and up to 990 routes/128 SVIs.
• Strong Security: 802.1X, DHCP Snooping, IP Source Guard, DAI, and port/storm controls.
• Flexible Uplinks: Four 10G SFP+ for high-speed aggregation to core/distribution.
• Low Power Draw: Max system power about 22 W; 76.4 BTU/hr heat dissipation.

Technical Overview

• VLANs: Up to 4093 with Private VLAN/PVE, Voice/Guest VLAN.
• L2 Resiliency: STP/RSTP/MSTP with PVST+/RPVST+; loopback detect; HOL blocking prevention.
• Aggregation: IEEE 802.3ad LACP (8× groups, 8× ports per group).
• Multicast: IGMP snooping/querier with up to 2000 multicast groups.
• Buffers & Tables: 1.5 MB dynamic packet buffer; 16K MAC.
• Hardware: ARM dual-core 1.4 GHz, 1 GB DDR4, 512 MB flash.
• Mechanical: 1RU rack-mount, 17.5 × 9.45 × 1.73 in; 6.92 lb.
• Environment: -5 to 50 °C operating; 10–90% RH non-condensing.
