Tripp Lite B020-U08-19KTAA Console KVM Switch
- Control up to 8 computers with one KVM switch with integrated console. This KVM switch is a smart solution for centralized server control that saves rack space and money. And, it's TAA compliant for GSA Schedule purchases.
| Product Name | Tripp Lite B020-U08-19KTAA Console KVM Switch | Type | Compatibility | Media Type | Power | Connectivity | Wearing Style | Microphone Type | Audio Performance | Hearing Protection | Inline Controls | Headband | Ear Cushion Material | Weight | Color | Software Compatibility |
| Product Description | 8-port console KVM switch with integrated 19" LCD, keyboard, and touchpad in a 1U rack-mountable drawer | Corded UC Headset | PC via USB-A | Voice, music, and multimedia | USB-powered | USB-A | Over-the-head, monaural | Noise-canceling | Dynamic EQ, microphone frequency response 100 Hz–10 kHz, enhanced digital signal processing | SoundGuard technology | Call answer/end, mute, volume +/- | Lightweight metal with adjustable fit | Soft foam | 87 grams (with cable) | Black | Plantronics Manager Pro (additional purchase) |
| Type | Rack Mount KVM Switch/Rack Mount Console | |||||||||||||||
| Compatibility | Compatible with all major operating systems | |||||||||||||||
| Media Type | Supports video resolutions up to 1280 x 1024 | |||||||||||||||
| Power | 100-240V AC, 50/60 Hz, 1A | |||||||||||||||
| Connectivity | Includes eight 6-ft. PS/2 or USB combo cable kits; additional ports for external console or IP remote access unit | |||||||||||||||
| Inline Controls | On-console push buttons, On-Screen Display (OSD), keyboard hotkey commands | |||||||||||||||
| Headband | Not applicable | |||||||||||||||
| Ear Cushion Material | Not applicable | |||||||||||||||
| Weight | 14.5 kg (32 lbs) | |||||||||||||||
| Color | Black | |||||||||||||||
| Software Compatibility | Not applicable | |||||||||||||||
[specifications]
| Display Size | 19 inches |
| Display Resolution | Up to 1280 x 1024 |
| Number of Ports | 8 |
| Mounting Height | 1U |
| Daisy-Chaining | Supports up to 504 computers with additional 16-port KVM switches (model B022-U16) |
| Included Accessories | Eight 6-ft. PS/2/USB combo cables; console cable kit |
| USB Ports | Two USB ports for external mouse and peripherals |
| Password Security | 2-level password security (administrator and 4 users) |
| Construction | Heavy-duty steel housing |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity Range | 20% to 80% non-condensing |
| Compliance | TAA Compliant |
[/specifications]

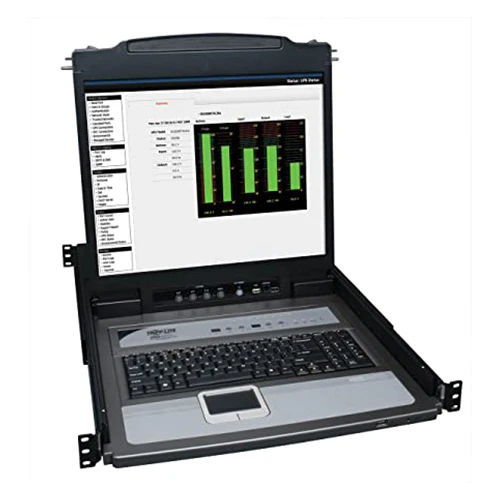

Tripp Lite's 8-port console KVM switch with 19" LCD is the optimal solution for controlling multiple computers from one keyboard, mouse and monitor. This single unit combines an 8 port KVM switch, keyboard, 19" LCD monitor and touchpad; all in a mere 1U of rack space. Stores neatly in the rack, pulls out when needed. Control up to 504 computers from this single console by daisy-chaining additional 16 port KVM switches (model B022-U16). Easily switch ports using the On-Console push buttons, On Screen Display (OSD) or keyboard hotkey commands.
Includes eight, six-foot combo cable kits, which allow connection to either PS/2 or USB servers, no adapters needed. Includes a console cable kit that plugs into the port on the back of the unit, providing an extra HD15, (2) USB and (2) PS/2 ports that can be used to connect a Tripp Lite B051-000 IP Remote Access Unit or an external console. Two USB ports are provided on the front of the unit: One for attachment of a separate USB mouse, and the other for attachment of USB peripherals, such as a flash drive, external hard drive, etc. to be shared between connected servers. Compatible with all major operating systems. Constructed of heavy-duty steel housing.
- TAA Compliant for GSA NetDirector 8-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD +8 PS2/USB Combo Cables control up to 8 computers with single KVM switch with integrated console
Secure and centralized server control that saves rack space and money
19" LCD screen supports video resolutions up to 1280 x 1024
Easy switching between all 8 ports
2-level password security (administrator and 4 users)
Rack Mount KVM Switch/ Rack Mount Console
