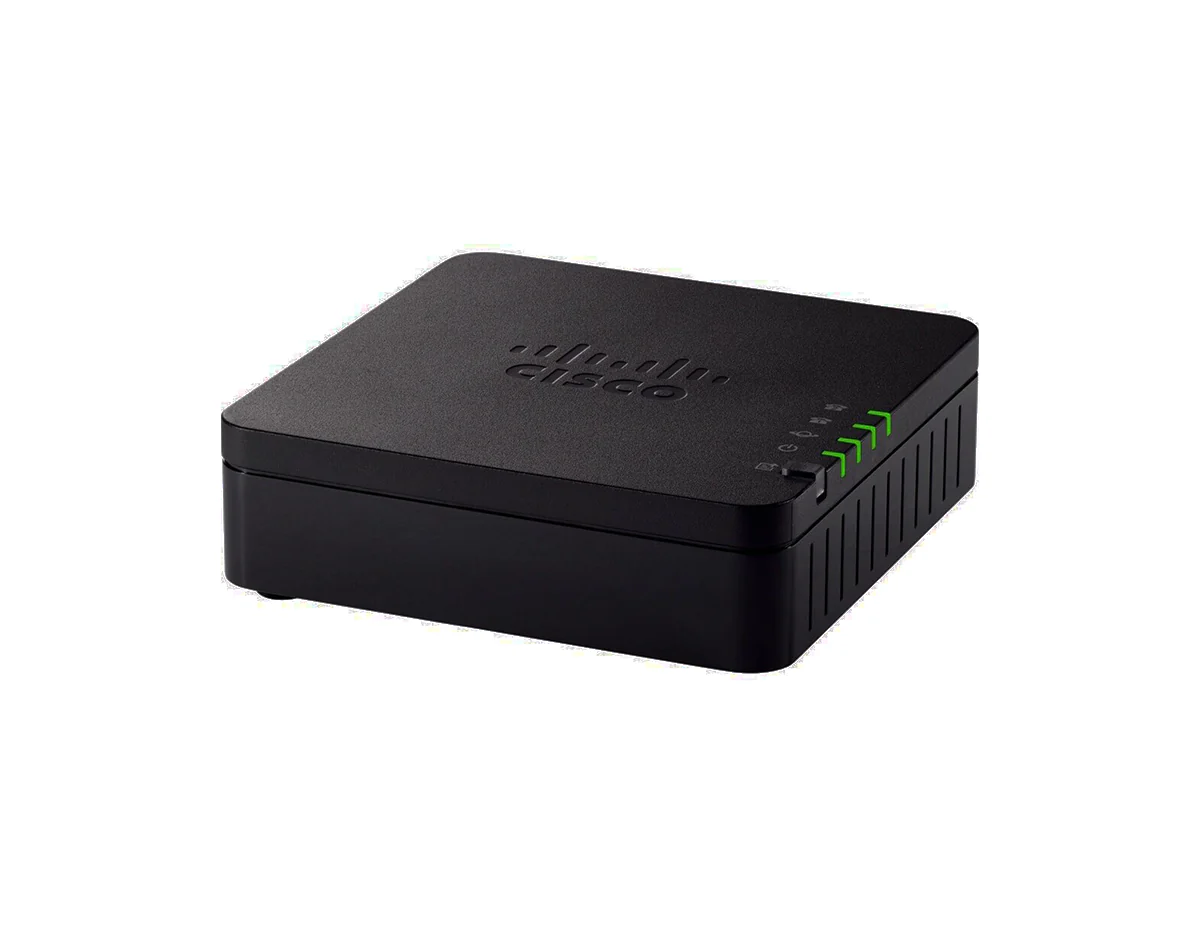

Cisco ATA192-3PW-K9 VoIP Phone Adaptor
- VoIP phone adapter, 2 ports, 100Mb LAN, for multiplatform
| Product Name | Cisco ATA192-3PW-K9 VoIP Phone Adapter |
| Product Description | VoIP phone adapter with two RJ-11 FXS ports and two 10/100 Mbps Ethernet ports, enabling analog devices to integrate into IP networks |
| Type | VoIP Phone Adapter |

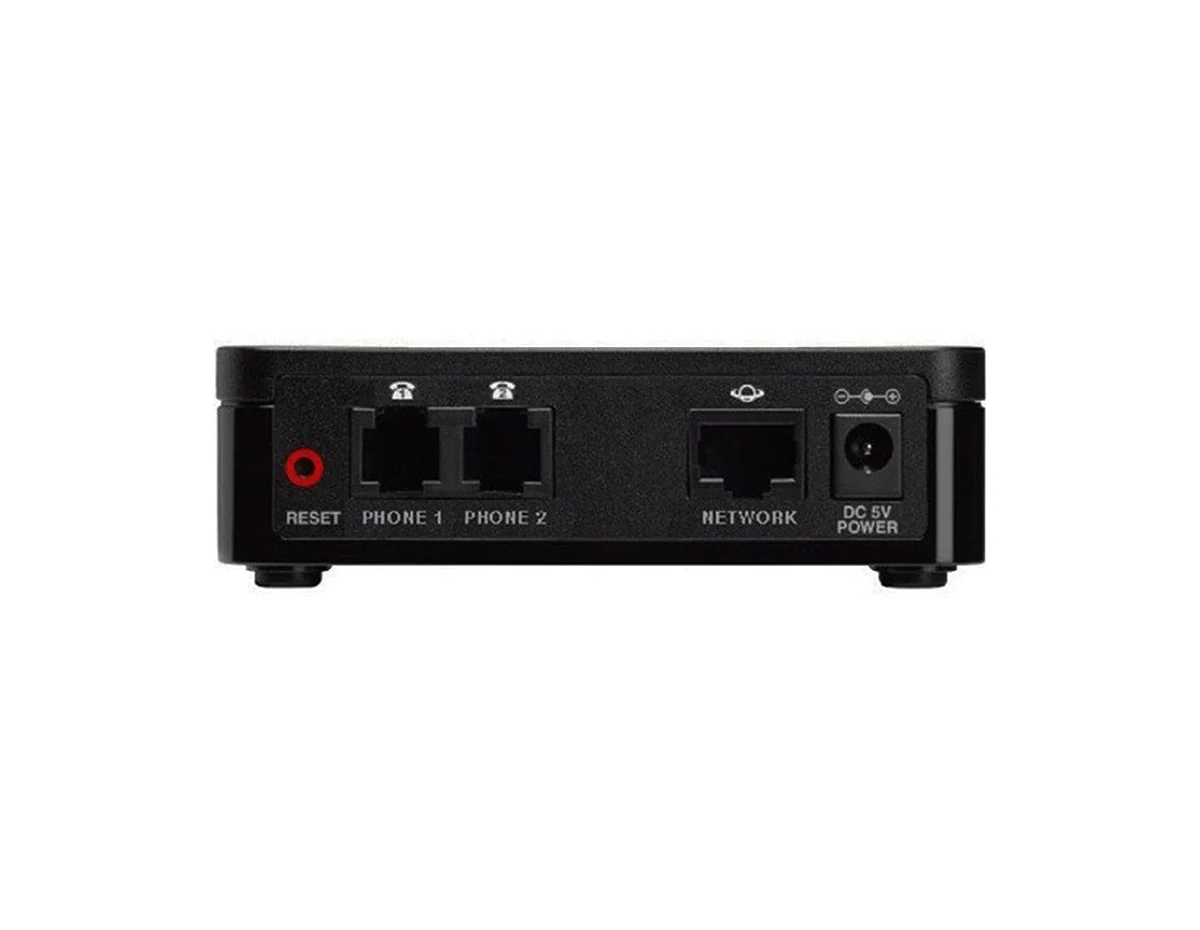

| Interface | Two RJ-11 FXS ports, two 10/100 Mbps RJ-45 Ethernet ports |
| Form Factor | Wall mountable |
| Compatibility | Cisco Webex Calling, BroadCloud, BroadWorks, Metaswitch, Asterisk, and other third-party call control systems |
| Power Adapter | 100-240V AC input, 50-60 Hz, with 1.8m cord |
| Networking Protocols | IPv4, IPv6, SIP, TCP, UDP, RTCP, RTP, SRTP, HTTP, HTTPS, TFTP, ARP, DHCP, ICMP, SNTP, LLDP, PPPoE |
[specifications]
| Product Code | ATA192-3PW-K9 |
| Ring Voltage | 40 to 90 Vpk configurable |
| On-Hook Voltage | -46 to -56V |
| Off-Hook Current | 25 mA ± 10% |
| Frequency Response | 300 to 3400 Hz |
| QoS Support | IEEE 802.1p/Q, Differentiated Services (DiffServ), Type of Service (ToS) |
| Dimensions | 3.9 x 3.9 x 1.1 inches |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Weight | 0.5 lbs (0.23 kg) |
| Certificates | CE, FCC, RoHS compliant |
[/specifications]
Cisco ATA192-3PW-K9 VoIP Phone Adaptor
The Cisco Analog Telephone Adapter integrates traditional analog telephony devices into an IP network, enabling them to operate within modern IP telephony applications. The Cisco ATA192-3PW-K9 delivers 2-port handset-to-Ethernet adapter for telephone, fax, and overhead paging communications devices into IP devices for greater cost-effectiveness.
Key Features:
- two RJ-11 FXS ports
- Cisco Webex Calling
The tabs contain the Cisco ATA192-3PW-K9 datasheet with all the specifics you need.
