[shortdesc]

• Security appliance
• 8 ports
• GigEdesktop
• with Cisco Security Plus License

[/shortdesc]

[properties]

Properties	ASA5506-SEC-BUN-K9
Product Family	ASA 5506 with FirePOWER services and Unlimited-User Security Plus Bundle
Product Type	Firewalls
Throughput: FW + AVC (1024B)	450 Mbps
Throughput: FW + AVC + Intrusion Prevention System (IPS) (1024B)	125 Mbps
Throughput: FW + AVC (450B)	100 Mbps
Throughput: FW + AVC + Intrusion Prevention System (IPS) (450B)	75 Mbps
Maximum concurrent sessions, with AVC	50K
Maximum new connections per second, with AVC	3K
Transport Layer Security (TLS)	-
Throughput: IPS (1024B)	125 Mbps
Throughput: IPS (450B)	75 Mbps
IPSec VPN throughput (1024B TCP w/Fastpath)	100 Mbps
Cisco Device Manager (local management)	Yes
Centralized management	Centralized configuration, logging, monitoring, and reporting are performed by the Management Center or alternatively in the cloud with Cisco Defense Orchestrator
Cisco Security Intelligence	Standard, with IP, URL, and DNS threat intelligence
URL filtering: number of categories	More than 80
URL filtering: number of URLs categorized	More than 280 million
Dimensions in. (H x W x D)	1.72 x 7.871 x 9.23 in.
Integrated I/O	8 x 1GE
Expansion I/O	N/A
Expansion Slot	N/A
Dedicated Management Port	Yes (Shared)
Serial Ports	1 RJ-45 and Mini USB console
Solid State Drive	50 GB mSata
USB 2.0 ports	USB port type ‘A’, High Speed 2.0
AC normal line voltage	90 to 240 VAC
Dual-power supplies	None
Form factor	Desktop rack- mountable

[/properties][specifications]

Specifications	ASA5506-SEC-BUN-K9
Stateful inspection firewall throughput	1 Gbps
Stateful inspection firewall throughput (multiprotocol)	300 Mbps
Concurrent Connections	50K
New connections per second	5K
IPSec VPN Throughput (450B UDP L2L test)	100 Mbps
Security Contexts (Included/ Maximum)	N/A
Operating Temperature	32 to 104°F (0 to 40 °C)
Regulatory compliance	Products comply with CE markings per directives 2004/108/EC and 2006/108/EC
Safety	● UL 60950-1 ● CAN/CSA-C22.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● AS/NZS 60950-1 ● GB4943
EMC: Emissions	● 47CFR Part 15 (CFR 47) Class A (FCC Class A) ● AS/NZS CISPR22 Class A ● CISPR22 CLASS A ● EN55022 Class A ● ICES003 Class A ● VCCI Class A ● EN61000-3-2 ● EN61000-3-3 ● KN22 Class A ● CNS13438 Class A ● EN300386 ● TCVN7189
EMC: Immunity	● EN55024 ● CISPR24 ● EN300386 ● KN24 ● TVCN 7317 ● EN-61000-4-2, EN-61000-4-3, EN-61000-4-4, EN-61000-4-5, EN-61000-4-6, EN-61000-4-8, EN61000-4-11

[/specifications]

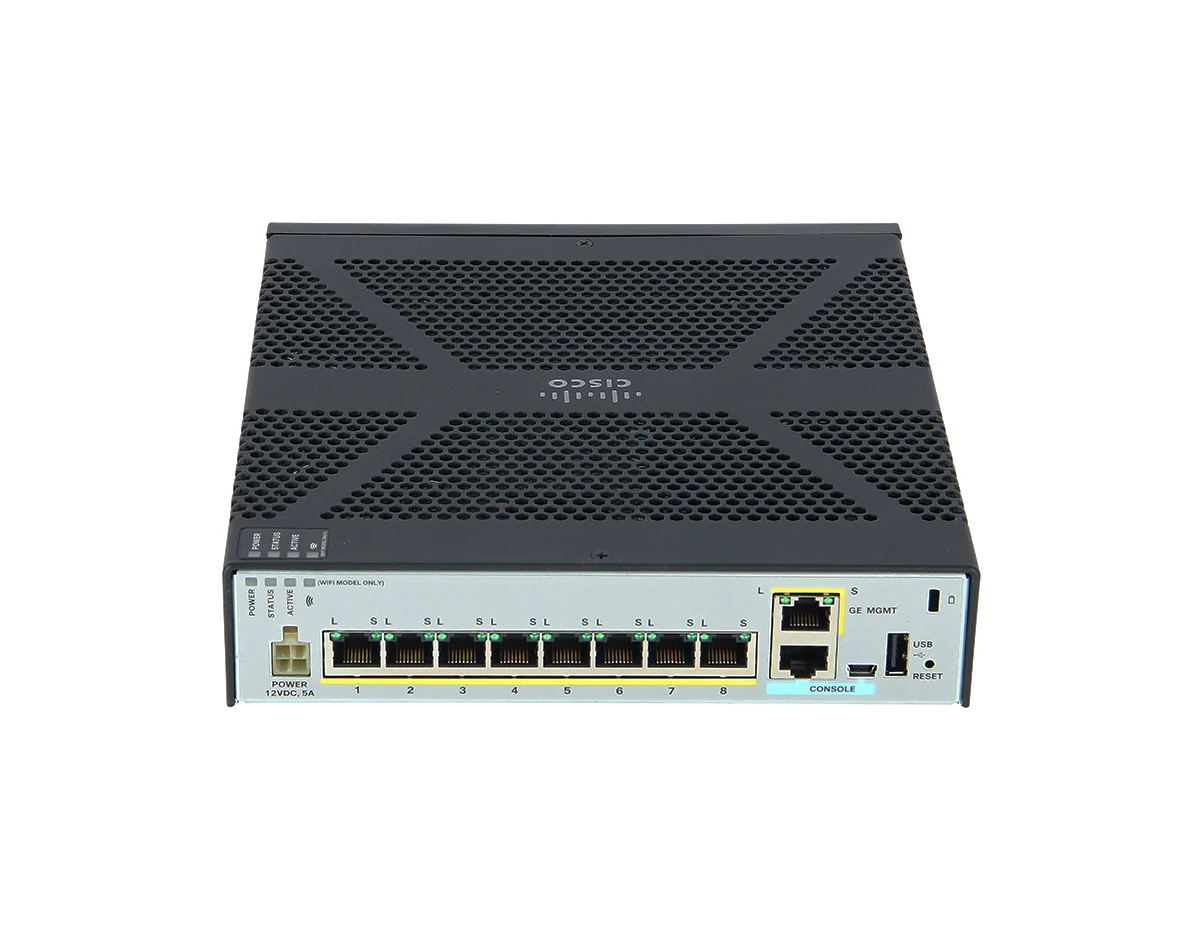

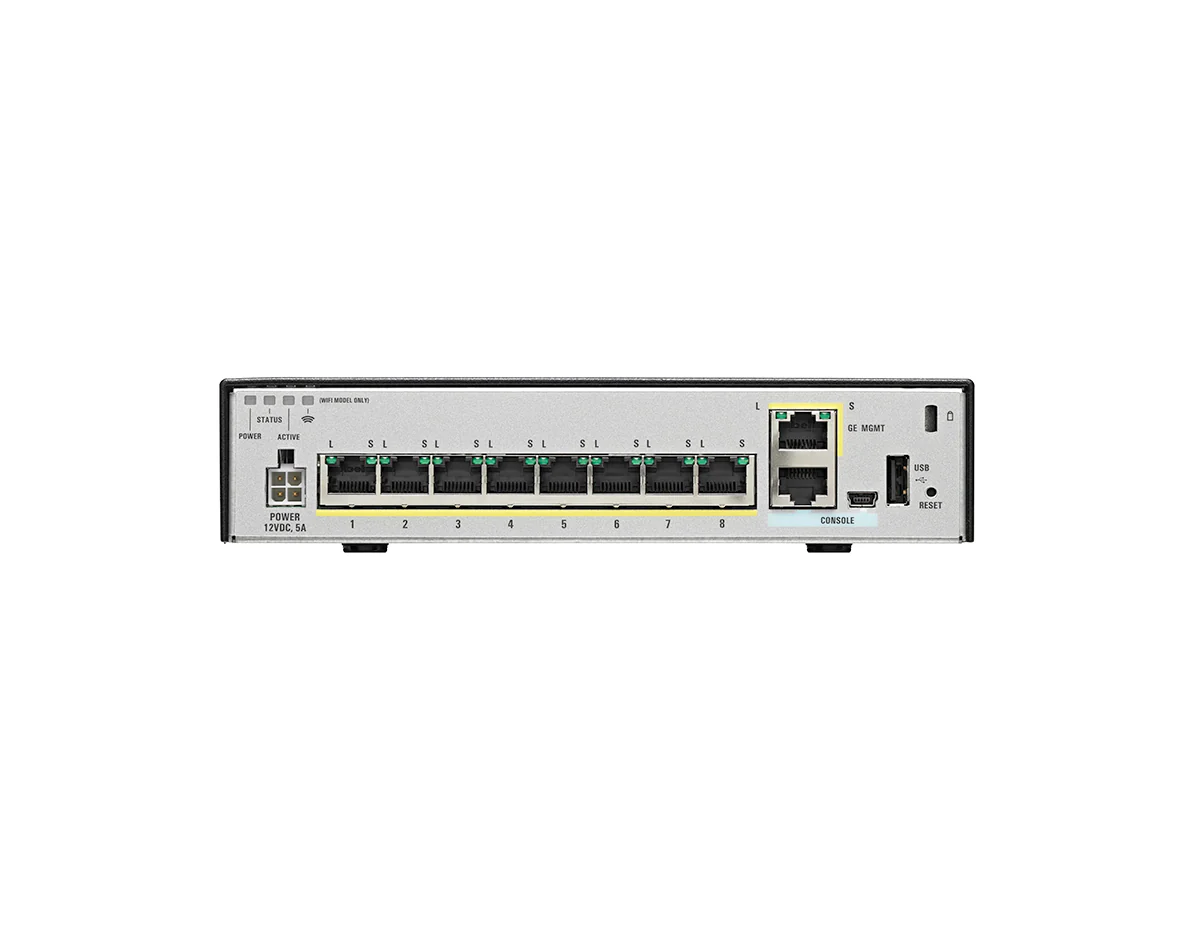

Cisco ASA5506-SEC-BUN-K9 Firewall

The Cisco ASA 5500 Series combines various security functions, including application-aware firewall, SSL/IPsec VPN, intrusion prevention (IPS), and content security services. The Cisco ASA5506-SEC-BUN-K9 firewall offers high-performance firewall and VPN services, a flexible 8-port switch, PoE support, and options for intrusion prevention. It is an ASA5506 firewall with unlimited-user security plus bundle.

Key Features:

• Modular Policy Framework (MPF)
• Adaptive Security Device Manager (ASDM)
• More than 280 million URLs categorized

The tabs contain the Cisco ASA5506-SEC-BUN-K9 datasheet with all the specifics you need.
