[shortdesc]

23.0kW 3-Phase, 0U Vertical, 30 C13 + 12 C19 Outlets, Active Metering & Alarms, Metered Monitoring

[/shortdesc]

[properties]

Brand	APC by Schneider Electric
Model	AP8888
Product Type	NetShelter Metered Rack PDU
Form Factor	0U Vertical
Dimensions (H x W x D)	72.01" x 2.20" x 2.01" (1829 x 56 x 51 mm)
Weight	22.3 lb (10.1 kg)
Color	Black
Number of Rack Units	0U
Mounting Mode	Rack-mounted (Vertical, Side Mountable)
Cooling	Passive

[/properties]

[specifications]

PDU Type	Metered
Input Voltage	400 V (3 Phase)
Output Voltage	240 V
Input Plug Type	IEC 60309 60 A 3P+N+E
Input Frequency	50/60 Hz
Line Rated Current	32 A (Max 40 A)
Load Capacity	23,000 VA
Outlets	30 × IEC C13, 12 × IEC C19
Cord Length	5.97 ft (1.82 m)
Operating Temperature	23–140 °F (-5–60 °C)
Storage Temperature	-13–149 °F (-25–65 °C)
Operating Humidity	5–95% non-condensing
Storage Humidity	5–95% non-condensing
Operating Altitude	0–10,000 ft
Storage Altitude	0–50,000 ft
Compliance	cUL Listed, UL Listed, VCCI Class A, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, RoHS, REACh
Warranty	2 years repair or replace

[/specifications]

[accesories]

Installation Guide	Included in the box
Rack Mounting Brackets	Included in the box
Serial Configuration Cable	Included in the box
Safety Guide	Included in the box
Warranty Card	Not specified

[/accesories]

Overview

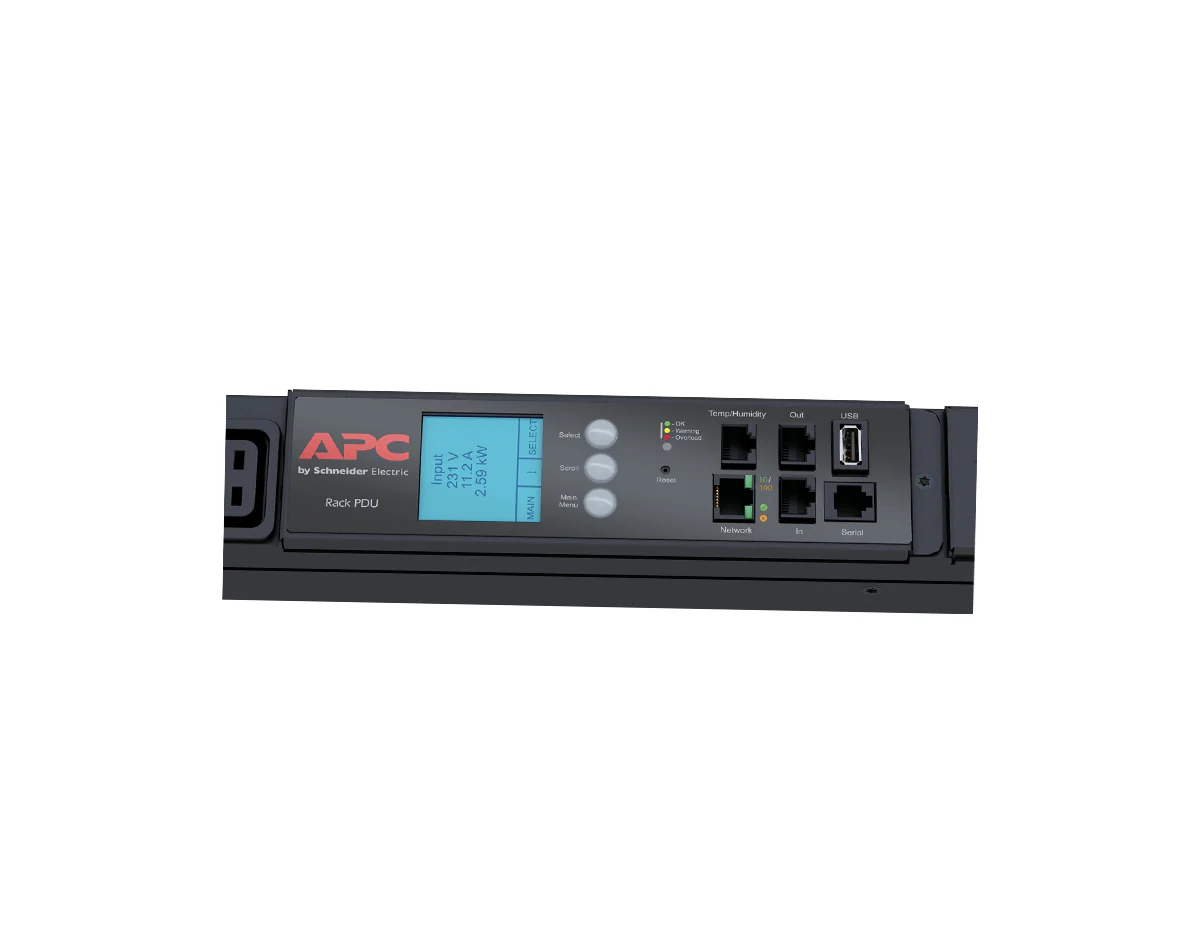

The APC AP8888 Metered Rack PDU provides 23.0kW of reliable three-phase power distribution in a 0U vertical form factor. Designed for enterprise and colocation data centers, it combines active metering with user-defined alarm thresholds to enable precise energy monitoring and overload protection. Its compact 0U design preserves valuable rack space while delivering advanced power visibility.

Key Features & Benefits

• Active Metering: Real-time power data and thresholds support efficient capacity planning.
• Alarm Thresholds: Alerts help prevent potential circuit overloads and downtime.
• High Outlet Density: 30 C13 and 12 C19 outlets support diverse IT equipment.
• 0U Vertical Design: Maximizes rack space for servers and network hardware.
• Remote Access: Configure and monitor via secure Web, SNMP, or Telnet; integrates with APC centralized platforms such as InfraStruxure Central.

Technical Deep Dive

The AP8888 uses a 400 V three-phase input and delivers 240 V output with a maximum load capacity of 23,000 VA. With 30 IEC C13 and 12 IEC C19 outlets, it supports a broad mix of servers, storage, and network equipment while maintaining balanced load distribution.

Metered monitoring provides granular visibility into energy usage, helping administrators right-size infrastructure and reduce operating costs. Configurable alarm thresholds add protection by issuing alerts on potential overload conditions.

Its vertical 0U form factor integrates into standard racks without consuming rack units, enabling high-density deployments without compromising equipment space.

Ideal Applications

• Enterprise and colocation data centers
• High-density server racks
• Network distribution closets
• Remote energy monitoring scenarios

Frequently Asked Questions (FAQs)

Q1: How is the AP8888 installed?
A: It mounts vertically in the rack’s zero-U space using the included brackets and installation guide.

Q2: What performance can I expect?
A: The unit provides up to 23.0kW (23,000 VA) with 30 C13 and 12 C19 outlets. Actual performance depends on load balance and environment.

Q3: How is it managed remotely?
A: Management is available via secure Web, SNMP, or Telnet and integrates with APC platforms such as InfraStruxure Central.
