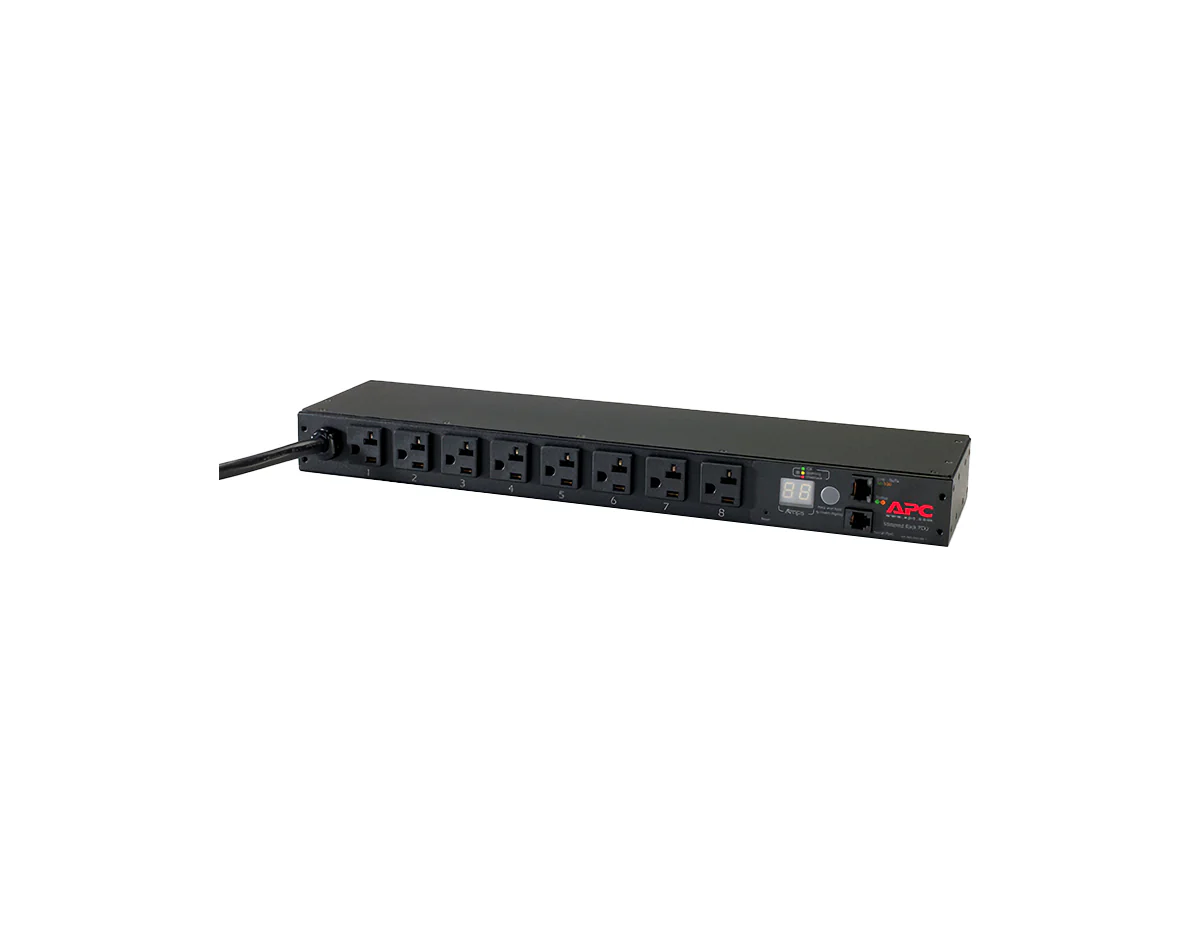

APC AP7801B - NetShelter 1U Metered Rack PDU 20A 120V
[shortdesc]
1U Rackmount, 20A 120V Input (16A Line Rated), 1920VA Load Capacity, 8 NEMA 5-20R Outlets, NEMA L5-20P Plug, Integrated Metering
[/shortdesc]
[properties]
| Brand | APC by Schneider Electric |
| Model | AP7801B |
| Product Type | NetShelter Metered Rack PDU |
| Form Factor | Rackmount 1U |
| Dimensions (H x W x D) | 1.7" x 17.5" x 4.02" (44 x 444 x 102 mm) |
| Weight | 3.81 lb (1.73 kg) |
| Color | Not stated by manufacturer |
| Number of Rack Units | 1U |
| Mounting Mode | Rack-mounted (Horizontal, Front/Rear) |
| Cooling | Not stated by manufacturer |
[/properties]
[specifications]
| PDU Type | Metered |
| Input Voltage | 100 V / 120 V |
| Output Voltage | 120 V |
| Input Plug Type | NEMA L5-20P |
| Input Frequency | 50/60 Hz |
| Line Rated Current | 16 A (Line Rated); 20 A Input Current Limit |
| Load Capacity | 1920 VA |
| Outlets | 8 × NEMA 5-20R |
| Communication Ports | Not stated by manufacturer (no communication ports listed in datasheet) |
| Operating Temperature | 23–113 °F (-5–45 °C) |
| Storage Temperature | -13–149 °F (-25–65 °C) |
| Operating Humidity | 5–95% |
| Storage Humidity | 5–95% |
| Operating Altitude | 0–10,000 ft |
| Storage Altitude | 0–50,000 ft |
| Compliance | cUL Listed, CSA, UL Listed; FCC Part 15 Class A, ICES-003, UL 60950; EU RoHS (Compliant with Exemptions); REACh Declaration |
| Warranty | 24 months (2 years) |
[/specifications]
[accesories]
| Cord Retention Brackets | Included in the box |
| Installation Guide | Included in the box |
| Rack Mounting Brackets | Included in the box |
| User Manual | Included in the box |
[/accesories]
Overview
The APC NetShelter AP7801B is a metered rack power distribution unit engineered to provide reliable, monitored power for enterprise IT racks. Its 1U horizontal design integrates seamlessly into network and server environments, delivering consistent 120V power with clear load visibility through its front-facing meter display.
Key Features & Benefits
- 1U Horizontal Form Factor: Saves vertical rack space while ensuring simple integration.
- Metered Load Monitoring: Real-time visibility of current draw for capacity planning.
- High Load Capacity: Supports up to 1920VA across 8 outlets for multiple devices.
- Reliable Input Plug: NEMA L5-20P input for secure connection to 20A circuits.
- Durable Construction: Built for data center and enterprise environments with long-term performance.
Technical Deep Dive
The AP7801B leverages APC’s proven NetShelter platform to provide dependable rack power distribution. Its integrated digital display allows administrators to monitor real-time load in amperes, enabling proactive capacity management and preventing overloads.
Technical Specifications Summary
- Rack form factor: 1U horizontal, rack-mounted
- Input voltage: 100 V / 120 V
- Output voltage: 120 V
- Input plug: NEMA L5-20P
- Outlet count/type: 8 × NEMA 5-20R
- Current rating: 16 A line rated; 20 A input current limit
- Load capacity: 1920 VA
- Input frequency: 50/60 Hz
- Physical (H × W × D): 1.7" × 17.5" × 4.02" (44 × 444 × 102 mm)
- Weight: 3.81 lb (1.73 kg)
- Operating environment: 23–113 °F (-5–45 °C), 5–95% RH; operating altitude 0–10,000 ft
With a 20A input current limit and 1920VA total load capacity, the unit powers network switches, servers, and storage systems reliably. The NEMA L5-20P input plug ensures secure power delivery, while the 8 NEMA 5-20R outlets distribute clean 120V power to connected devices.
The slim 1U horizontal profile makes it a versatile choice for installations with limited vertical rack space, ensuring efficient use of available capacity without compromising accessibility.
Ideal Applications
- Enterprise server racks
- Network closets and branch offices
- High-density IT environments
- Edge computing and managed service deployments
Frequently Asked Questions (FAQs)
Q1: How is the AP7801B installed?
A: It is a 1U horizontal rackmount PDU, supplied with brackets for front or rear mounting in standard racks.
Q2: What performance can I expect?
A: The PDU supports up to 1920VA with 8 NEMA 5-20R outlets. Performance depends on load type and circuit capacity.
Q3: How is power usage monitored?
A: A front-mounted digital meter provides instant amperage readings, simplifying load balancing and preventing overloads.
