Properties	AMD EPYC 32 CORE PROCESSOR 7542 2.9GHZ BASE / 3.4GHZ MAX 128MB L3 CACHE TDP 225W SP3 SOCKET
Description	A powerful server CPU with 32 cores, 2.9GHz base clock (3.4GHz max), and 128MB L3 cache. Designed for an SP3 socket with a TDP of 225W.
Product Family	2ND GEN AMD EPYC FAMILY ( 7002 SERIES )
Product Type	Processor

[/properties] [specifications]

General Specifications
Platform	Server
Product Line	AMD EPYC™ 7002 Series
Number of CPU Cores	32
Number of Threads	64
Max. Boost Clock	Up to 3.4GHz
Base Clock	2.9GHz
L3 Cache	128MB
1kU Pricing	3,400 USD
Default TDP	225W
CPU Socket	SP3
Socket Count	1P / 2P
Connectivity
PCI Express Version	PCIe 4.0 x128
System Memory Type	DDR4
Memory Channels	8
System Memory Specification	Up to 3200MT/s
Per Socket Mem BW	204.8 GB/s
Product Ids
Product ID Boxed	100-100000075WOF
Product ID Tray	100-000000075
Supported Technologies	• AMD Infinity Guard • AMD Infinity Architecture
Workload Affinity	• Analytics • CAE/CFD/FEA • ERM/SCM/CRM apps • Media streaming • Medium capacity data mgmt (NR/RDBMS) • VDI • VM Density

[/specifications] [accesories] [/accesories]

AMD-EPYC7542

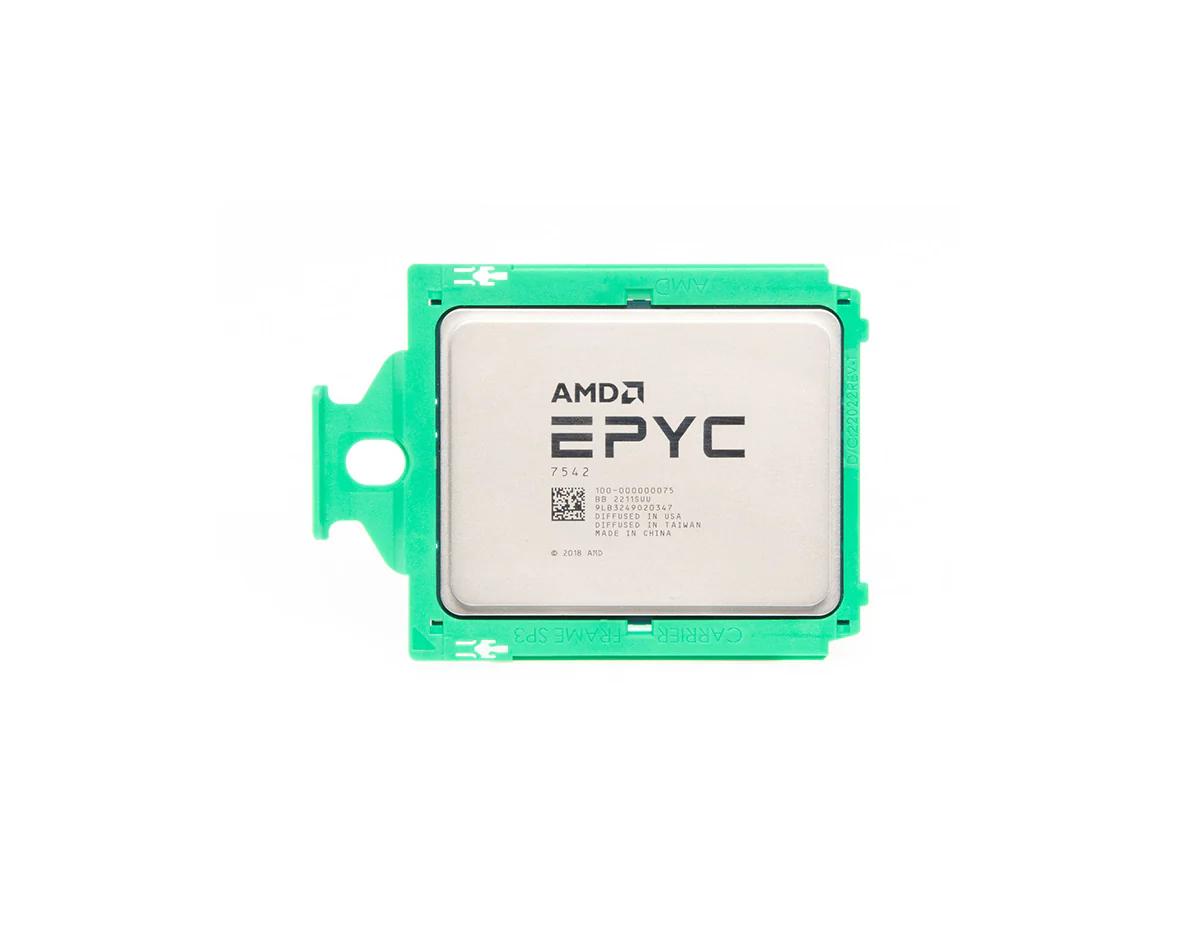

The AMD EPYC 7542 is a processor designed for server and workstation use, featuring a total of 32 cores. It is a member of the EPYC series, utilizing the Zen 2 (Rome) architecture and Socket SP3. By implementing AMD Simultaneous Multithreading (SMT), the core count effectively doubles, resulting in 64 threads. Additionally, to enhance overall system performance, it is possible to connect up to two EPYC 7542 CPUs in a multi-processor (SMP) configuration. The EPYC 7542 is equipped with 128 MB of L3 cache and operates at a base frequency of 2.9 GHz, which can boost up to 3.4 GHz depending on the workload.

Quick Specs:

• Typical TDP: 225W
• Clockspeed: 2.9GHz / Turbospeed: 3.4 GHz
• 128 x PCIe 4.0
• CPU Socket: SP3

Please see the related tabs for the AMD-EPYC7542 datasheet and compatible accessories.
