[properties]

Properties	Cisco AIR-PWRINJ7 Power Injector
Description	The Cisco Multigigabit 802.3bt Power Injector is a reliable, standards-compliant power injector capable of powering the latest high-performance access points and other network devices.
Product Family	Cisco Multigigabit 802.3bt Power Injector
Product Type	Power Injector

[/properties] [specifications]

Specifications	Cisco AIR-PWRINJ7 Power Injector
Nominal Input Voltage	100 ~ 240Vac
Input Voltage Range	90 ~ 264Vac
Nominal Input Frequency	50 ~ 60Hz
Input Frequency Range	47 ~ 63Hz
Input Current	2.0A Maximum
Average Efficiency	(@115Vac / 60Hz >88% (on board)) (@230Vac / 50Hz >89% (on board))
No-Load Power Consumption	(@115Vac / 60Hz <0.21W) (@230Vac / 50Hz <0.15W)
Rated Output Voltage	56Vdc
Output Voltage Range	54 ~ 57Vdc (on board)
Output Current	0 ~ 1.161A
Leakage Current	<250uA at 264 Vac
Insulation Resistance	DC 500V 10M ohm minimum
Overvoltage	Auto-Recovery
Overload / Overcurrent	Auto-Recovery
Over Temperature	Auto-Recovery
Short Circuit	Auto-Recovery
Interfaces	Data Input 1 x 10/100/1000/2500/5000 BASE-T autosensing (RJ-45) Data+Power Output (PoE): 1 x 10/100/1000/2500/5000 BASE-T autosensing (RJ-45) AC power input: C14 type socket
Indicators	Two Status LED indicate input power and PoE status
Dimensions (W x L x H)	(without cables): 2.6 x 5.5 x 1.5 in (65 x 140 x 38.5 mm)
Weight	0.5 lbs. (1.1 kg)
Environmental	● Operating ◦ Temperature: 14° to 104°F (–10° to 40°C) ◦ Humidity: 5% to 95% (noncondensing) ◦ Maximum altitude: 10,000 ft (3,048 m) ● Nonoperating (storage and transportation) ◦ Temperature: –13° to 149°F (–25° to 65°C) ◦ Humidity: 5% to 90% (noncondensing) ◦ Maximum altitude: 15,000 ft (4500 m) @ 77°F (25°C)
Compliance	● IEC 61000-4-2, +/– 6kV ● IEC 61000-4-3, 3V/m, 80%am, 1kHz, 80MHz to 1GHz Criterion A ● IEC 61000-4-4. +/–1kV on input, Criterion B ● IEC 61000-4-5 (lightning surge, AC Input port), 1.2/50 μs / 8/20 μs combination wave, +/–6kV from line to line,+/–6kV line to earth, Generator impedance：2ohm; Criterion B ● EN55204 (lightning surge, RJ45 port), 10/700 μs wave +/–2kV all lines to earth ● IEC-61000-4-6 (conducted immunity), 3V, 80%AM, 1kHz, 150 kHz–80MHz; Criterion A ● CISPR 32/EN55032 Class B FCC Part 15 Class B ● Safety UL, CE, CCC, IEC/UL/EN 62368

[/specifications] [accesories] [/accesories]

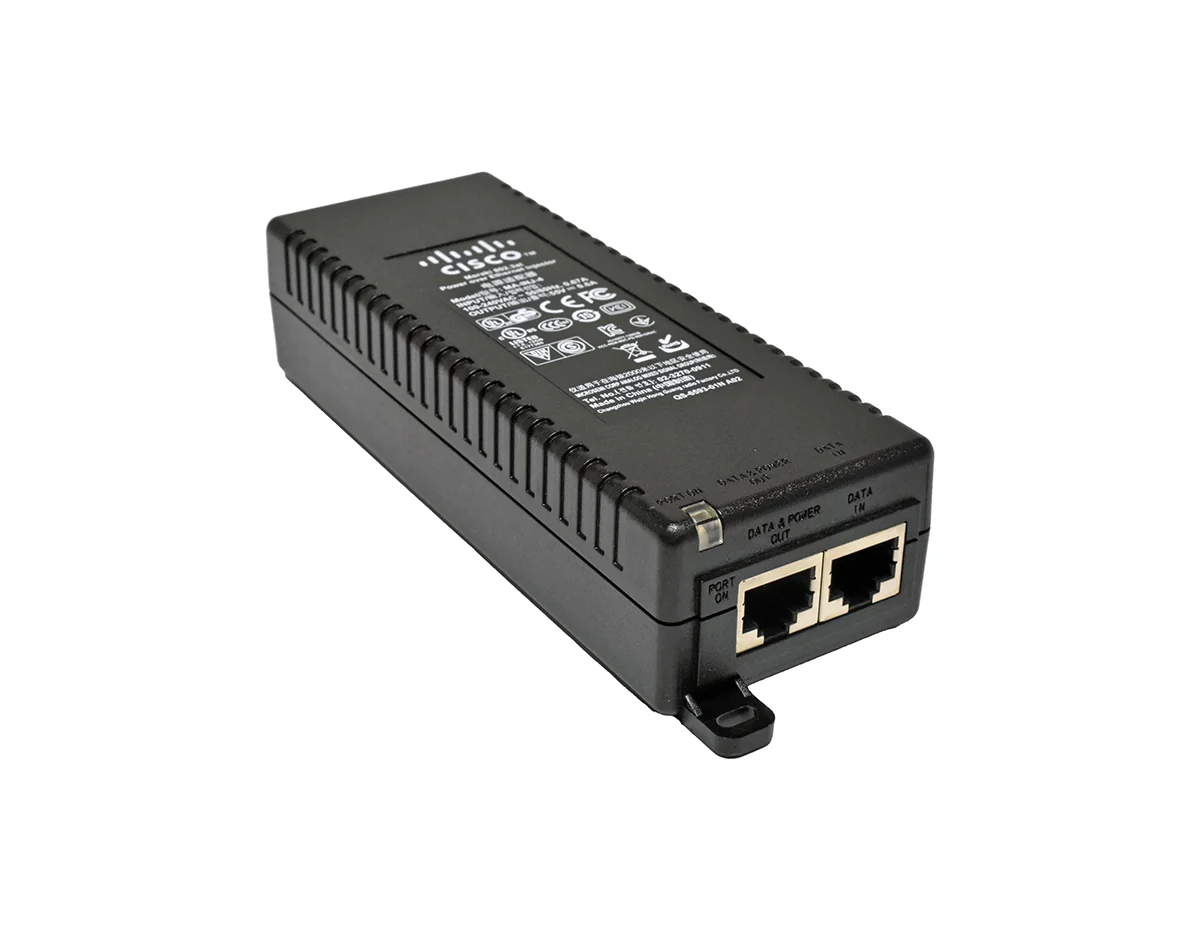

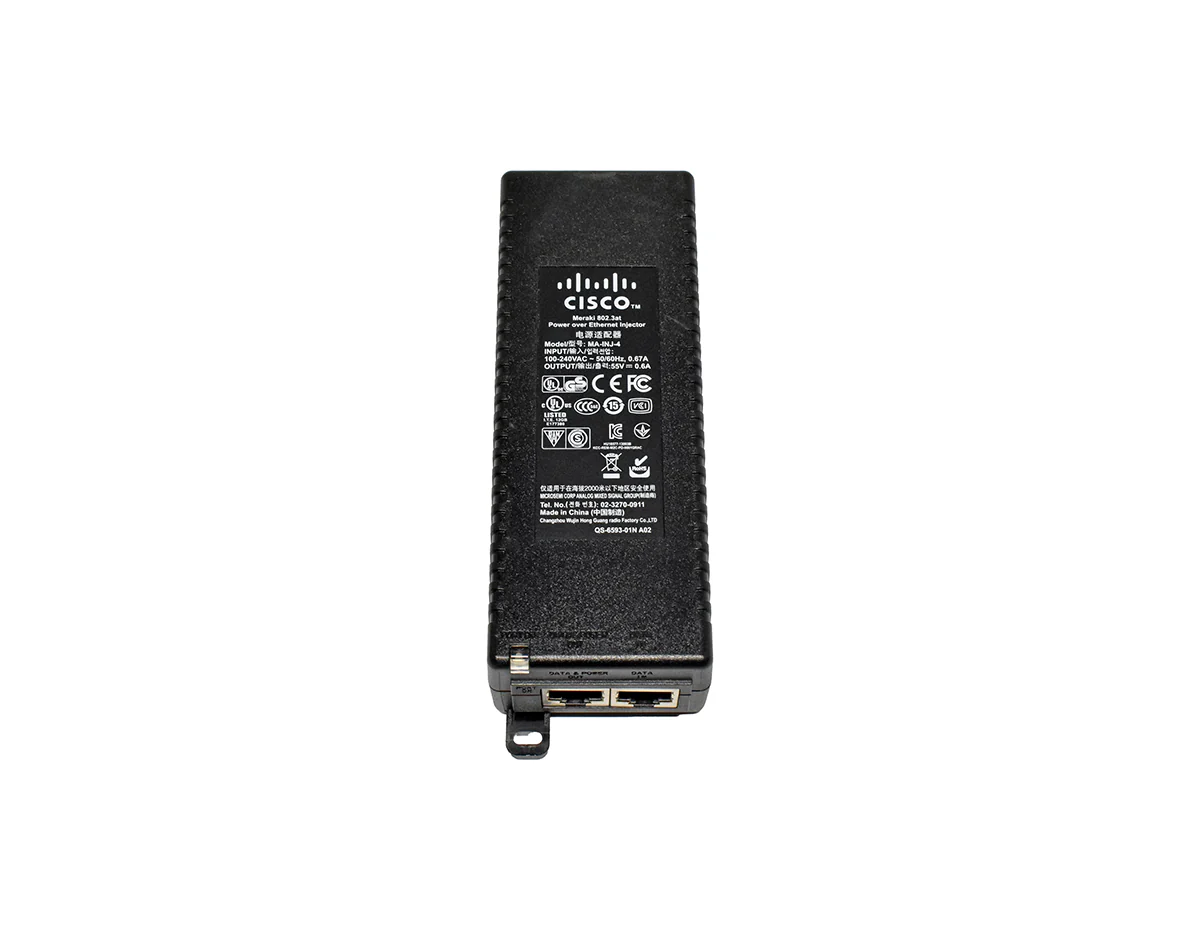

Cisco AIR-PWRINJ7 Power Injector

The Cisco Multigigabit 802.3bt Power Injector is a dependable power injector that adheres to industry standards and has the capacity to power modern high-performance access points and various network devices. Access to power is a significant challenge in wireless network design, and the installation of power cables is a considerable cost factor in wireless setups. The Cisco PoE Injector facilitates the simultaneous transmission of data and power to a Cisco access point through a single Ethernet cable. This capability enables the strategic placement of devices to optimize wireless coverage while reducing installation expenses.

Quick Specs:

• 1x 5GbE Ethernet Input Port
• 1x 5GbE Ethernet Output Ports
• Maximum Output Power: 50W
• Compatibility: Cisco Catalyst Access Points

Please see the related tabs for the AIR-PWRINJ7 datasheet.
