[properties]

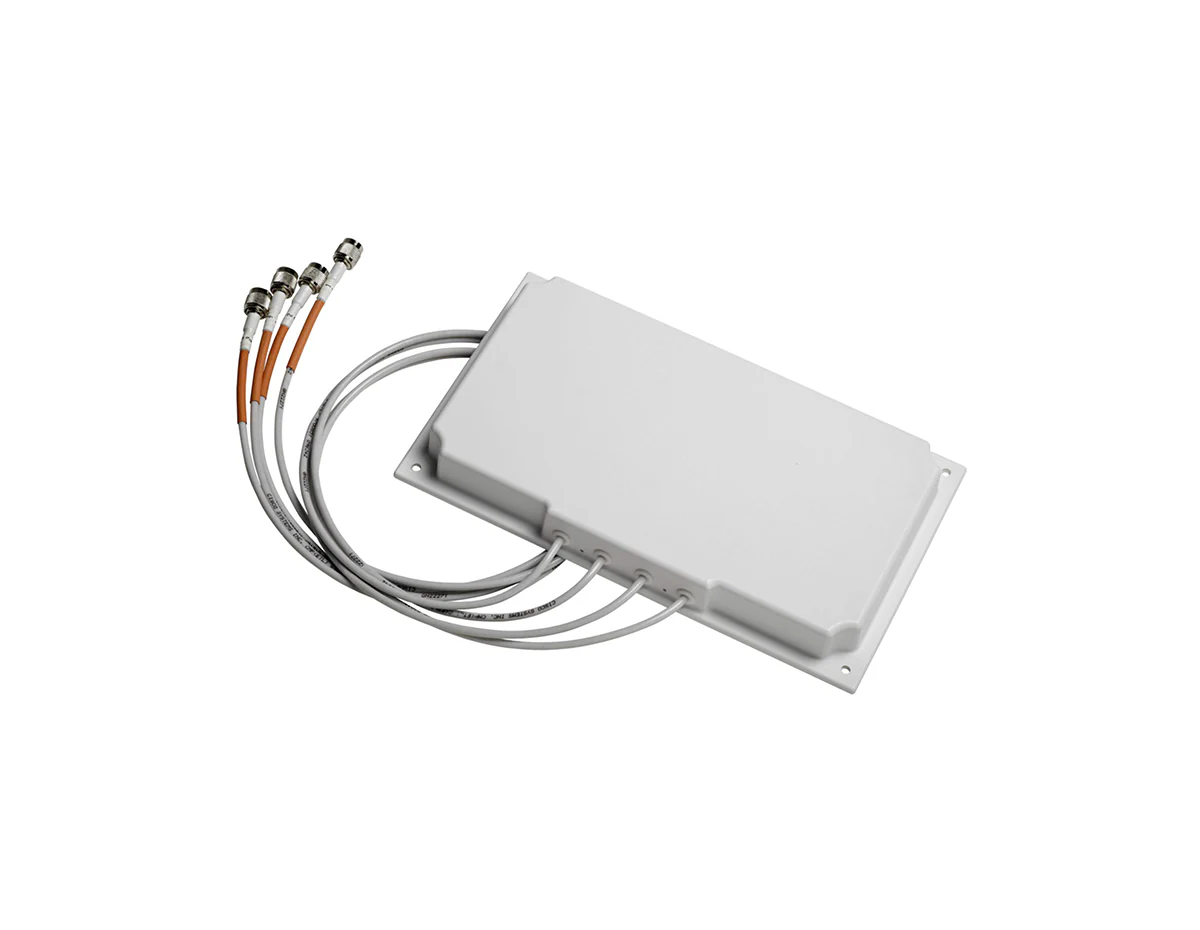

Properties	Cisco AIR-ANT2566P4W-R Dual-Band Patch Antenna
Description	Directional 4-element MIMO patch antenna for indoor and outdoor use
Product Type	2.4/5 GHz Dual-Band Patch Antenna
Compatibility	Cisco Aironet access points with RP-TNC connectors
Mount Type	Wall or mast mount (hardware included)

[/properties] [specifications]

Frequency Range	2400–2484 MHz / 5150–5850 MHz
Gain	6 dBi (2.4 GHz and 5 GHz)
Polarization	Linear, vertical
Beamwidth (Azimuth/Elevation)	2.4 GHz: 105°/65°, 5 GHz: 110°/55°
Connector Type	RP-TNC plug, 4 integrated leads
Cable Length	91.4 cm (3 feet), plenum rated
Ingress Protection	IP54 (splash and dust resistant)
Operating Temperature	-40°C to +70°C
Dimensions	16.0 x 27.9 x 3.05 cm
Weight	0.64 kg

[/specifications] [accesories]

Included Mount Kit	Wall-mount plate, screws, anchors, end caps (included in the box)
Compatible Mounting Hardware	Cisco AIR-ACC2662 mount kit (optional)
Use With	Cisco indoor/outdoor Aironet APs with RP-TNC ports

[/accesories] As this access point takes greater advantage of the multiple-input-multiple-output (MIMO) features supported under the 802.11n standard, the number of radio transceivers per frequency band has increased. Using the dual-band antenna port allows the access point to support these added transceivers while maintaining a reasonably low number of antenna connections.
