[shortdesc]

• Network adapter
• ATM
• T-1/E-1
• for Cisco 26XX
• 3660
• 37XX
• 3845 V3PN
• 38XX

[/shortdesc]

[properties]

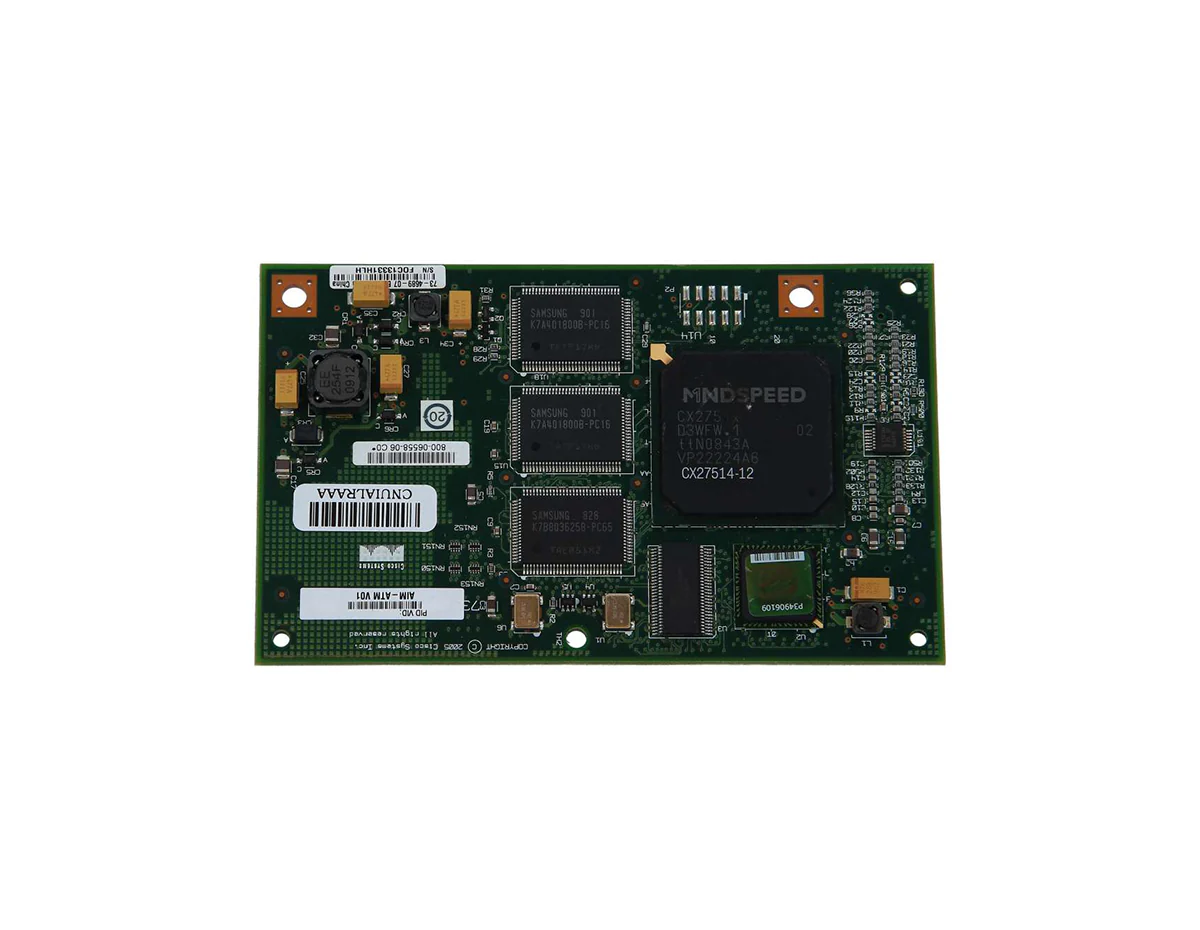

Properties	Cisco AIM-ATM Advanced Integration Module for ATM Connectivity
Description	Integrated hardware module that enables ATM connectivity and service interworking on Cisco routers
Product Type	Advanced Integration Module (AIM)
Compatibility	Cisco 2600, 3600, and 3700 Series Routers
Mount Type	Internal AIM slot (embedded)

[/properties] [specifications]

Supported Protocols	ATM, AAL5, AAL2, PPP over ATM, RFC 1483, LANE
Interface Type	ATM via internal router connection (no external port)
Maximum Throughput	Up to 12 Mbps bidirectional (based on router model)
Application Support	ATM PVCs, SVCs, AAL2 Voice over ATM
QoS Support	CBR, VBR, UBR traffic shaping and policing
Software Requirements	Cisco IOS with ATM feature set
Operating Temperature	0°C to 40°C

[/specifications] [accesories]

Included Items	AIM-ATM module only (installed internally, no external cables)
Compatible Devices	Cisco 2600, 3600, 3700 Series Routers
Optional Accessories	None required (no external connectors or accessories)

[/accesories] Cisco is the worldwide leader in networking for the Internet. Cisco provides the broadest line of solutions for transporting data, voice and video within buildings, across campuses, or around the world. Cisco solutions ensure that networks both public and private operate with maximum performance, security, and flexibility.
