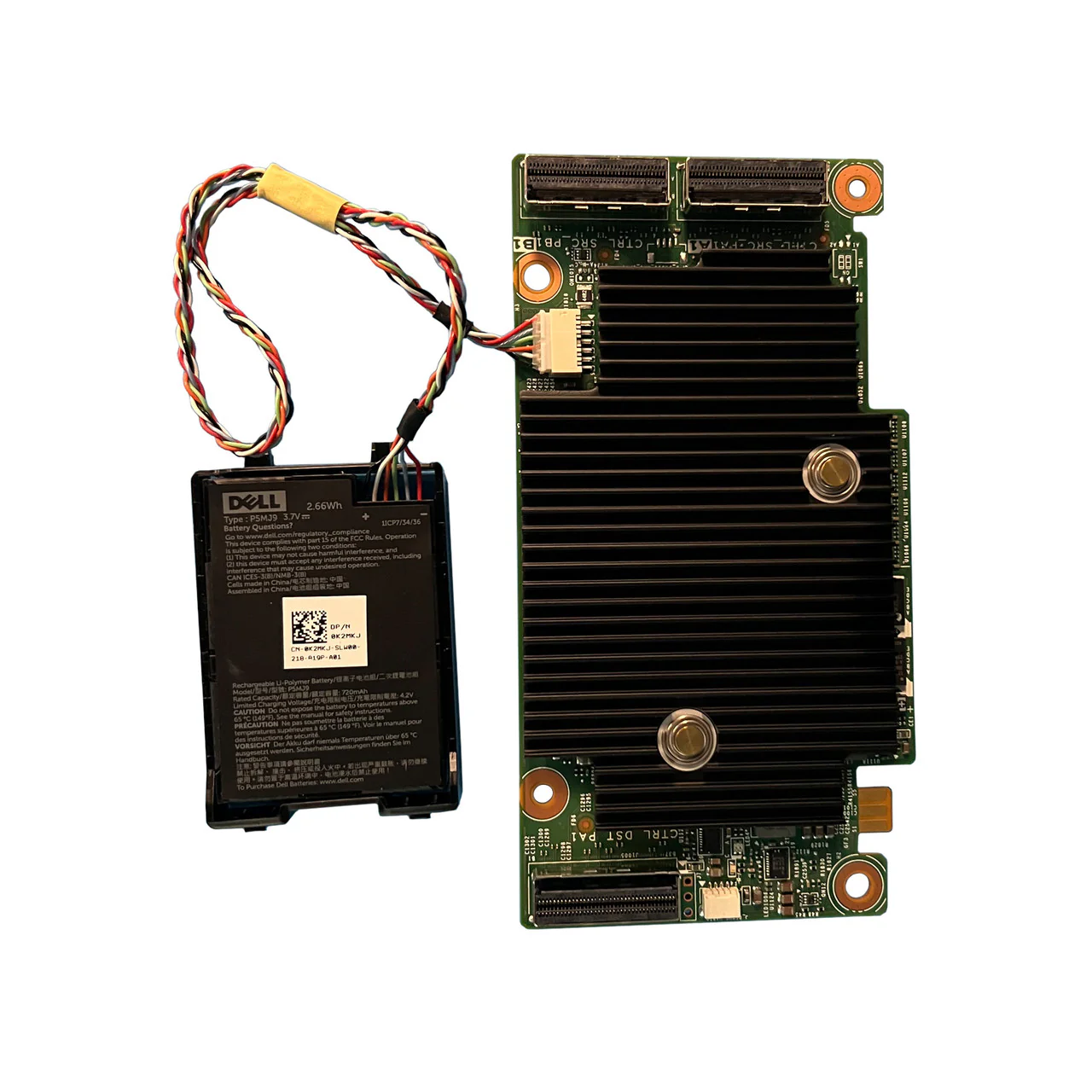

Dell Perc H755N 8GB NVMe Raid Controller (9K2C2)
[shortdesc]
- 8GB NV cache memory, PCI-e Gen4, 16 lanes ā 2x8 internal sas connections
[/shortdesc]
[properties]
| Properties | 9K2C2 |
| Description | Dell 405-AAXN / 0DXN6 PERC H755N Front PCIe Gen4 8GB Cache NVMe RAID Controller |
| Compatibility | PowerEdgeĀ T550 PowerEdge R7615 PowerEdge R650 PowerEdge R960 PowerEdge R750 PowerEdge R750XS PowerEdge T560 PowerEdge R650XS PowerEdge R750XA PowerEdge R450 PowerEdge R660 PowerEdge R550 Power Edge R660XS PowerEdge R760 |
| Product Type | RAID (Redundant Array of Independent Disks) controller |
[/properties] [specifications]
| Dell 405-AAXN / 0DXN6 PERC H755N Front PCIe Gen4 8GB Cache NVMe RAID Controller | |
| Tech Specs | |
| Device Type | Storage Controller (RAID) - Front Chassis Ā Plug-in moduleĀ |
| Disk Type | NVMe Gen3 (8 GT/s) and NVMe Gen4 (16 GT/s)Ā |
| Buffer Size | 8 GB |
| Supported Devices | NVMe Gen3 (8 GT/s) NVMe Gen4 (16 GT/s) |
| Hot Swap Devices Supported | Yes |
| MAX # Drive Support | Without PCIe Switch Expander: 8 drives per controllerĀ With PCIe Switch Expander: Limited by platform offerings |
| Raid Level | RAID 0 RAID 1 RAID 5 RAID 6 RAID 10 RAID 50 RAID 60 |
| Host Bus | PCIe Gen4 |
| Interface | PCIe |
| Processor | Broadcom RAID-on-chip, SAS3916 chipset |
| Battery Backed Cache | Yes |
| OS Required | Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 Microsoft Windows Server 2019 Windows Server 2019 LTSC Windows Server 2022 LTSC Red Hat Enterprise Linux 9 Red HatĀ® Enterprise Linux 7 Red HatĀ® Enterprise Linux 8 SuSE Linux ES 15 Ubuntu Server 20.04 LTS Ubuntu Server 22.04 LTS VMware ESXi 6.7 VMware ESXi 7.0 VMware ESXi 8.0 |
| MAX no of VDs in RAID modeE | 240 |
| Designed For | PowerEdge C6525 PowerEdge R440 PowerEdge R540 PowerEdge R640 PowerEdge R740 PowerEdge R740XD PowerEdge R840 PowerEdge R940xa PowerEdge T440 PowerEdge T640 PowerEdge R7615 PowerEdge R960 Ā PowerEdge T640 |
[/specifications] [accesories] [/accesories]
Dell Perc H755N 8GB NVMe Raid Controller (9K2C2)
The Dell Perc 5755N is a controller card equipped with 16 lanes of PCl-e 3.0, facilitating rapid data transfer rates to enhance operational efficiency. This device is compatible with advanced NVMe storage technology and incorporates an 8GB non-volatile cache to enhance storage performance by caching frequently accessed data.
Quick Specs:
- 8GB NV cache memory
- PCI-e Gen 4
- 16 lanes ā 2x8 internal
- Raid Levels: 0,1,5,6,10,50,60
Please see the related tabs for the 9K2C2 datasheet and compatible accessories.
