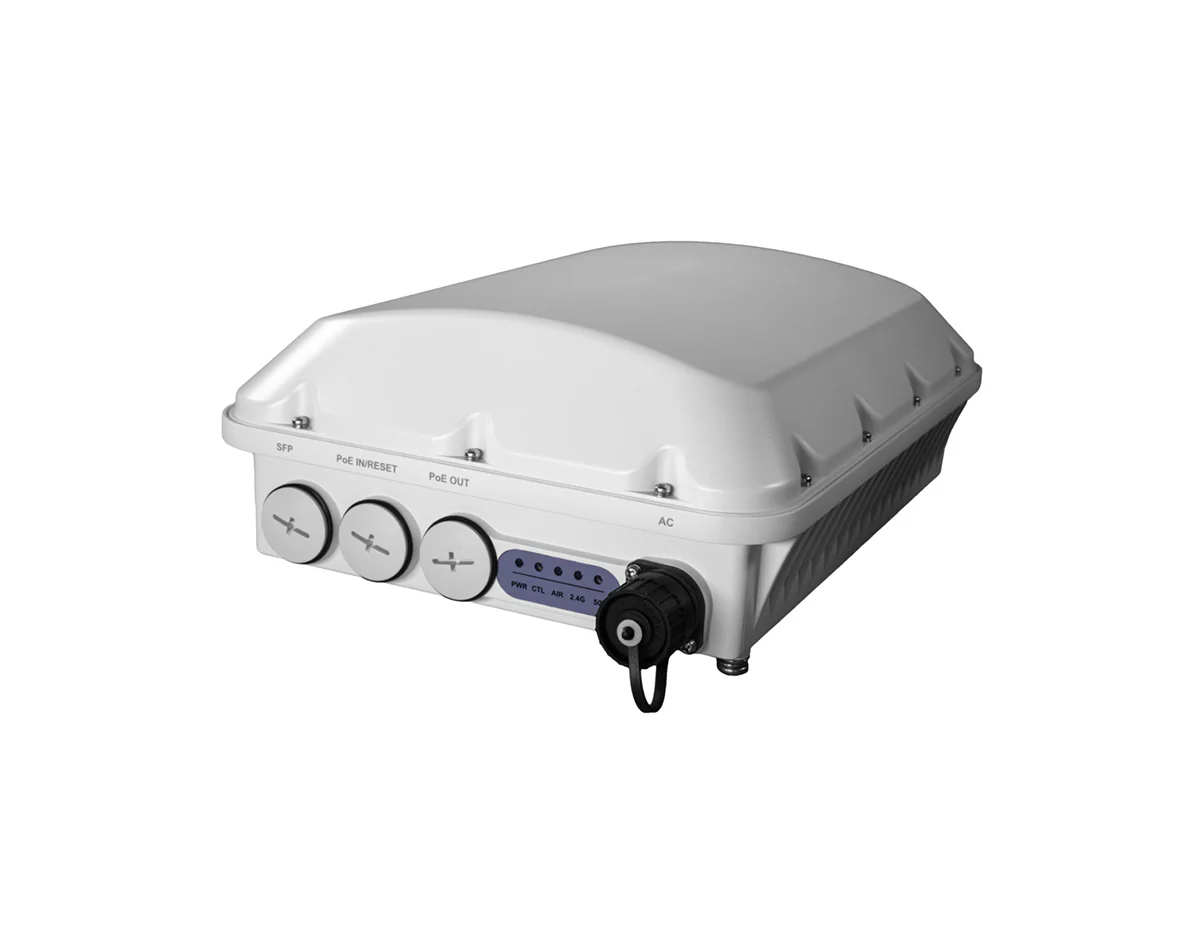

Ruckus T750 Outdoor Wi-Fi 6 (802.11ax) Access Point
[shortdesc] 901-T750: Advanced outdoor Wi-Fi 6 (802.11ax) access point, designed for superior performance in high-density environments. [/shortdesc]
[properties]| Properties | T750 |
| Description |
High-end Wi-Fi 6 (802.11ax) dual-concurrent Access Point with BeamFlex+ |
| Product Family | Ruckus Outdoor Access Points |
| Product Type | Access Point |
| Ethernet Interface | 1x 2.g Gbps, 1 x 10/100/1000 Mbps ports, RJ-45 LACP |
| Fiber | SFP, 1Gbps, SFP+ 10 Gbps |
| USB | 1 USB 2.0 port, Type A (On Omni SKU only) |
| Dimensions in. | 13.64in (L) x 9.47in (W) x 4.0in (H) |
| Operating Temperature | -40°C (-40°F) to 65°C (145°F) |
| Mounting | Pole Mount |
| Concurrent users | 1024 |
| Radio chains:streams |
4x4:4 |
| Antenna patterns (per band) |
4,000+ |
| Antenna gain | Up to 3dBi |
| Rx sensitivity (2.4/5GHz) | -103dBm |
| Maximum PHY rate | 2400 Mbps (5GHz) 1148 Mbps (2.4GHz) |
| Wi-Fi technology | 802.11ax (2.4GHz, 5GHz) Wi-Fi CERTIFIED 6™ |
| Supported Rates | 802.11ax: 4 to 2400 Mbps 802.11ac: 6.5 to 1732 Mbps 802.11n: 6.5 to 600 Mbps 802.11a/g: 6 to 54 Mbps 802.11b: 1 to 11 Mbps |
| Supported Channels | · 2.4GHz: 1-13 · 5GHz: 36-64, 100-144, 149-165 |
| PD-MRC | Yes |
| ChannelFly | Yes |
| SmartMesh | Yes |
|
GPS |
Yes |
| WLAN Control and Management | • ZoneDirector • SmartZone • Unleashed • RUCKUS Cloud |
| IP | IPv4, IPv6, dual-stack |
| MIMO | · 4x4 SU-MIMO · 4x4 MU-MIMO |
| Standards Compliance | EN 60950-1 Safety EN 60601-1-2 Medical EN 61000-4-2/3/5 Immunity EN 50121-1 Railway EMC EN 50121-4 Railway Immunity IEC 61373 Railway Shock & Vibration EN 62311 Human Safety/RF Exposure WEEE & RoHS ISTA 2A Transportation |
| 902-0180-XX00 | PoE Injector (60W) |
| 902-1170-XX00 | Power Supply (48V, 0.75A, 36W) |
| 902-0125-000 | Spare, Articulating Mounting Bracket |
| 902-0195-0000 | Spare, T-bar ceiling mount kit for mounting to flush frame ceiling |
| E1MG-BXD | 1000BASE-BXD SFP optic SMF, transmits at 1490nm and receives at 1310nm, LC connector, single strand SMF fiber. This optic should only be connected to an E1MG-BXU at the far end. |
| E1MG-BXU | 1000BASE-BXU SFP optic SMF, transmits at 1310nm and receives at 1490nm, LC connector, single strand SMF fiber. This optic should only be connected to an E1MG-BXD at the far end |
| E1MG-LHA-OM | 1000BASE-LHA SFP optic, SMF, LC connector, optical monitoring capable |
| E1MG-LHA-OM-T | 1000BASE-LHA SFP optic, SMF, LC connector, optical monitoring capable, industrial temperature (-40°C to 85°C) |
| E1MG-LX-OM | 1000Base-LX SFP optic, SMF, LC connector, Optical Monitoring Capable |
| E1MG-LX-OM-8 | 1000BASE-LX SFP optic, SMF, LC connector, optical monitoring capable, 8-pack |
| E1MG-LX-OM-T | 1000Base-LX SFP optic, SMF, LC connector, Optical Monitoring Capable, Industrial Temperature |
| E1MG-SX-OM | 1000Base-SX SFP optic, MMF, LC connector, Optical Monitoring Capable |
| E1MG-SX-OM-8 | 1000BASE-SX SFP optic MMF, LC connector, optical monitoring capable, 8-pack |
| E1MG-SX-OM-T | 1000Base-SX SFP optic, MMF, LC connector, Optical Monitoring Capable, Industrial Temperature |
| E1MG-LX-A | 1000BASE-LX SFP Optic, SMF, LC connector, Optical Monitoring Capable, TAA compliant |
| E1MG-LX-A8 | 1000BASE-LX SFP Optic, SMF, LC connector, Optical Monitoring Capable, TAA compliant, 8-pack |
| E1MG-SX-A | 1000BASE-SX SFP Optic, MMF, (LC), Optical Monitoring Capable, TAA compliant |
| E1MG-SX-A8 | 1000BASE-SX SFP Optic, MMF, (LC), Optical Monitoring Capable, TAA compliant, 8-pack |
| 10G-SFPP-SR-SA | 10GBASE-SR, SFP+ optic (LC), target range 300m over MMF, standard temperature (0°C to 70°C),TAA compliant |
| 10G-SFPP-SR-SA8 | 10GBASE-SR, SFP+ optic (LC), target range 300m over MMF, standard temperature (0°C to 70°C),TAA compliant, 8 pack |
| 10G-SFPP-SR-S | 10GBASE-SR,SFPP MMF LC CONNECTOR (No TAA) |
| 10G-SFPP-SR-S8 | 10GBASE-SR,SFPP MMF LC CONNECTOR 8-PACK (No TAA) |
| 10G-SFPP-LR-SA | 10GBASE-LR, SFP+ optic (LC), for up to 10km over SMF, standard temperature (0°C to 70°C), TAA compliant |
| 10G-SFPP-LR-SA8 | 10GBASE-LR, SFP+ optic (LC), for up to 10km over SMF, -standard temperature (0°C to 70°C), TAA compliant, - 8 pack |
| 10G-SFPP-LR-S | 10GBASE-LR,SFPP SMF LC CONNECTOR (No TAA) |
| 10G-SFPP-LR-S8 | 10GBASE-LR,SFPP SMF LC CONNECTOR 8-PACK (No TAA) |
| 10G-SFPP-USR-SA | 10GE USR SFP+ OPTIC (LC),RANGE 100M MMF,Standard Temperature, TAA Compliant,1-Pack |
| 10G-SFPP-USR-SA8 | 10GE USR SFP+ OPTIC (LC),RANGE 100M MMF,Standard Temperature, TAA Compliant,8-Pack |
Experience unparalleled outdoor connectivity with the Ruckus T750. This cutting-edge access point supports the latest Wi-Fi 6 (802.11ax) standards, delivering exceptional speed, range, and capacity. The T750 is purpose-built for high-density environments, from busy urban settings to stadiums. Leveraging patented technologies like BeamFlex+ and ChannelFly, it dynamically adjusts to environmental changes for optimal performance. In addition to its impressive wireless capabilities, the T750 also offers support for IoT technologies, making it a comprehensive solution for modern outdoor connectivity challenges.
