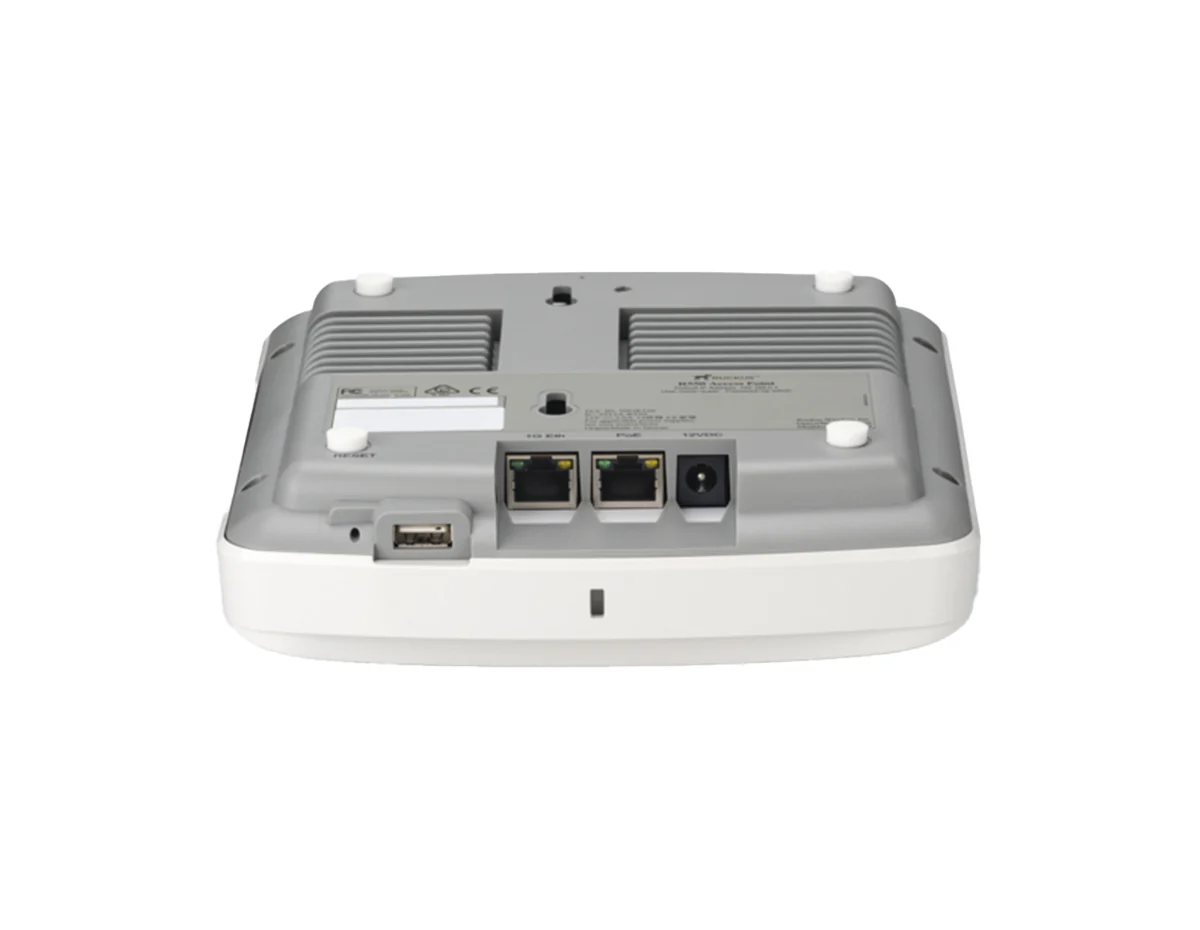

Ruckus R550 Access Point (901-R550)
[shortdesc]
[properties]
- Wireless access point, ZigBee, 802.11ax, Bluetooth, ZigBee, Wi-Fi, Dual Band
| Properties | R550 |
| Description | Mid-range Wi-Fi 6 (802.11ax) dual-concurrent Access Point with MU-MIMO and BeamFlex+ |
| Product Family | Ruckus Indoor Access Points |
| Product Type | Access Point |
| Ethernet Interface | · 2 x 1GbE Ethernet ports · Power over Ethernet (802.3af/at) with Category 5/5e/6 cable · LLDP |
| USB | · 1 USB 2.0 Port, Type A |
| Maximum Power Consumption | PoE (Full Functionality): 18.71W 802.3af PoE: 12.71W DC input: 11.4 W |
| Dimensions in. | 6.93in (L) x 7.49in (W) x 1.88in (H) |
| Operating Temperature | · 0ºC (32ºF) - 50ºC (122ºF) |
| Mounting | · Wall, Drop ceiling, Desk · Secure bracket (sold separately) |
| Concurrent users | 512 |
| Radio chains:streams | 2x2:2 |
| Antenna patterns (per band) | 64 |
| Antenna gain | Up to 3dBi |
| Rx sensitivity (2.4/5GHz) | -103dBm |
| Maximum PHY rate | 1200 Mbps (5GHz) 574 Mbps (2.4GHz) |
| Wi-Fi technology | 802.11ax (2.4GHz, 5GHz) Wi-Fi CERTIFIED 6™ |
| Supported Rates | · 802.11ax: 4 to 1774 Mbps · 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80) · 802.11n: 6.5 Mbps to 300 Mbps (MCS0 to MCS15) · 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6Mbps · 802.11a/g: 6 to 54 Mbps · 802.11b: 1 to 11 Mbps |
| Supported Channels | · 2.4GHz: 1-13 · 5GHz: 36-64, 100-144, 149-165 |
| PD-MRC | Yes |
| ChannelFly | Yes |
| SmartMesh | Yes |
| Integrated BLE/ZigBee | Yes |
| WLAN Control and Management | • ZoneDirector • SmartZone • Unleashed • RUCKUS Cloud |
| IP | IPv4, IPv6 |
| MIMO | · 2x2 SU-MIMO · 2x2 MU-MIMO |
| Standards Compliance | · EN 60950-1 Safety · EN 60601-1-2 Medical · EN 61000-4-2/3/5 Immunity · EN 50121-1 Railway EMC · EN 50121-4 Railway Immunity · IEC 61373 Railway Shock & (bbr-ࢢon · UL 2043 Plenum · EN 62311 Human Safety/RF Exposure · WEEE & RoHS · ISTA 2A $r-nsror|-ࢢon |
| 902-0162-XXYY | · PoE injector (24W) (Sold in quantities of 1, 10 or 100) |
| 902-1169-XX00 | · Power Supply (12V, 2.0A, 24W) |
| 902-0120-0000 | · Spare, Accessory Mounting Bracket |
| 902-0195-0000 | · Spare, T-bar ceiling mount kit for monࢢn] to Ys_ frame ceiling |
The R550 access point (AP) with the Wi-Fi 6 (802.11 ax) technology delivers the ideal combination of increased capacity, improved coverage and affordability in dense environments. The R550 is the mid-range dual-band, dual-concurrent AP that supports four spatial streams (2x2:2 in 2.4GHz/5GHz). The R550 supports peak data rates of up to 1774 Mbps and efficiently manages up to 512 clients connections.
