[shortdesc]

• Data Rate: 10/100/1000 Mbps, Automatically detects PoE and High PoE-enabled devices ensuring easy setup and integration, Supports wall, shelf, or DIN rail mounting options.

[/shortdesc]

[properties]

Product Name	AXIS T8134 60 W Midspan
Description	The AXIS T8134 60 W Midspan is a high-power PoE injector designed to supply up to 60 W of power to demanding network devices, such as Axis PTZ cameras, through existing Ethernet cabling. Its plug-and-play design allows easy installation and flexible mounting options, while its robust build supports operation in varied temperature ranges.
Power Output	High Power over Ethernet, 55 V DC max 60 W, ideal for high-power network devices
Data Rate	Supports 10/100/1000 Mbps for gigabit Ethernet speeds
Connectors	Shielded RJ45 (EIA 568A/568B), C13 power input connector
Input Voltage	100–240 V AC, 50–60 Hz, for global compatibility
Operating Temperature	-10 °C to 45 °C at 60 W output, up to -10 °C to 55 °C at 30 W output
Dimensions	38 mm x 62 mm x 151 mm (1.5 in x 2.4 in x 5.9 in)
Weight	320 g (0.7 lb)
Installation Options	Mountable on wall, shelf, or DIN rail for versatile installation
Compatibility	Compatible with PoE and High PoE devices, including Axis PTZ cameras
Environmental Impact	PVC-free construction for eco-friendly installations
Compliance	RoHS, REACH, CB, WEEE, CE, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, FCC Part 15 Class B, VCCI Class B, RCM, KC, KCC, CCC, S-Mark, IEC/EN/UL 60950-1, EN 62368-1, GS Mark, IS 13252.
Reliability	Rigorous power and thermal stability testing conducted for high-demand applications

[/properties]

[specifications]

IEEE Standard	IEEE 802.3at compliant, supporting PoE+ for high-power devices
Efficiency	Tested for 92% efficiency at typical load to ensure minimal energy loss
Thermal Testing	Stably operates in environments up to 45°C at 60W, and up to 55°C at 30W output, with automatic load adjustment
Overload Protection	Integrated over-voltage and over-current protection to prevent device damage
EMC Compliance	Meets EN 55032, EN 55024, and FCC Part 15 standards for electromagnetic compatibility
Environmental Safety	RoHS 3 compliant (Directive 2015/863/EU)
Humidity Range	Tested for 10% to 90% relative humidity, non-condensing, without performance degradation
Vibration Resistance	Verified to withstand vibrations up to 3 Hz for reliable operation in industrial settings
Power Consumption	Typical input of 60W matching output, optimized for high-demand scenarios
MTBF Rating	Mean time between failures calculated at 100,000 hours under controlled test conditions
Color Finish	Black, designed to blend with typical industrial and network environments
Noise Level	Passively cooled for silent operation, with noise levels below 15 dB
Safety Certifications	RoHS, REACH, CB, WEEE, CE, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, FCC Part 15 Class B, VCCI Class B, RCM, KC, KCC, CCC, S-Mark, IEC/EN/UL 60950-1, EN 62368-1, GS Mark, IS 13252 certified for safety and compatibility
Installation Hardware	Includes screws and brackets for all mounting options
Firmware Updates	Not applicable
Maintenance Requirement	Minimal maintenance; designed for extended durability in demanding environments
Reliability	Passed continuous power delivery tests at maximum load for 72 hours

[/specifications]

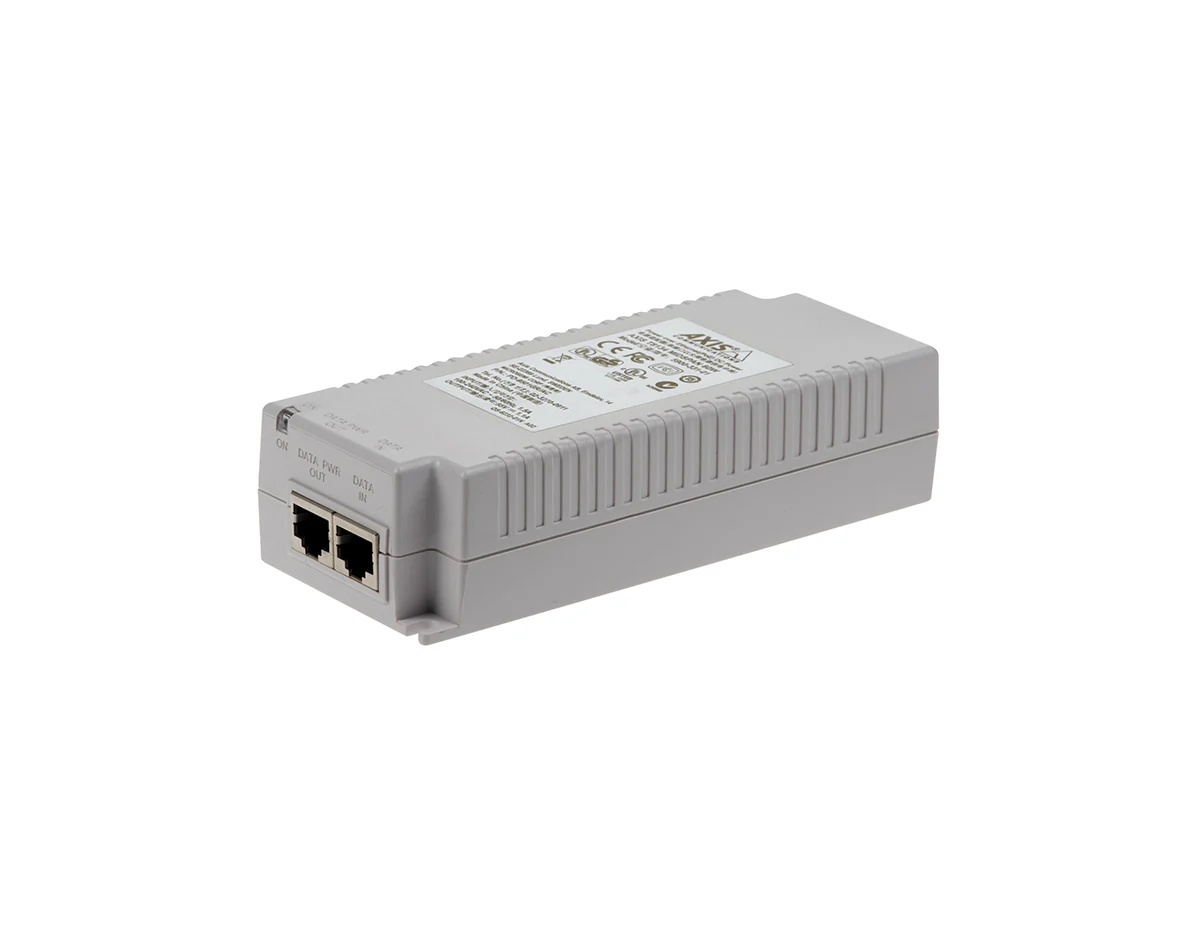

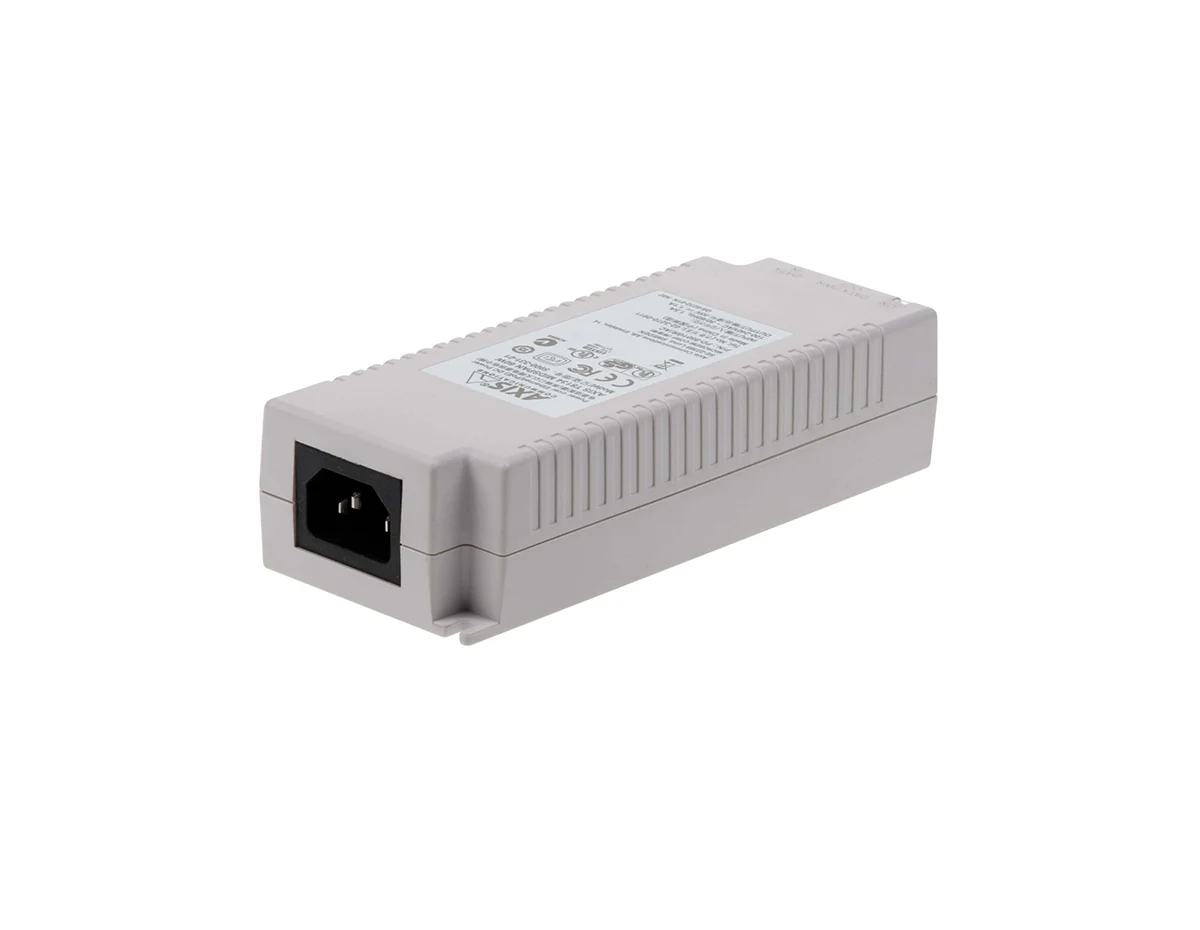

AXIS T8134 60 W Midspan

The AXIS T8134 60 W Midspan is a reliable Power over Ethernet (PoE) solution designed to supply up to 60W of power to network devices such as Axis PTZ domes and other high-power network cameras. It enables easy installation without the need for replacing existing Ethernet switches or cabling, offering a cost-effective and fast way to provide power and data through a single Ethernet cable. The midspan is ideal for operating network devices in extreme temperatures, supporting installations where power demands are high.

Key Features:

• High Power Output: Delivers up to 60W of power, making it suitable for demanding devices like Axis PTZ network cameras.
• Plug-and-Play Installation: Automatically detects PoE and High PoE-enabled devices, ensuring easy setup and integration.
• Flexible Installation: Supports wall, shelf, or DIN rail mounting options for versatile installation.
• Wide Operating Range: Operates in temperatures from -10 °C to 45 °C, supporting up to 60W of output, and from -10 °C to 55 °C at 30W.
• Environmental Sustainability: Made with PVC-free materials, contributing to eco-friendly installations.

Technical Specifications:

• Power Output: 55 V DC, max 60 W
• Data Rate: 10/100/1000 Mbps
• Connectors: Shielded RJ45, EIA 568A and 568B, Power connector C13
• Input Voltage: 100–240 V AC, 50–60 Hz
• Operating Temperature: -10 °C to 45 °C (up to 60W), -10 °C to 55 °C (up to 30W)
• Dimensions: 38 x 62 x 151 mm (1.5 x 2.4 x 5.9 in)
• Weight: 320 g (0.7 lb)

For more information about the AXIS T8134 60 W Midspan, visit the Axis product page.
