[shortdesc]

• The AXIS T8612 550m Multi-mode LC.SX SFP Module is an industrial-grade fiber transceiver designed for gigabit Ethernet over multimode fiber, supporting up to 550 meters of transmission distance.

[/shortdesc]

[specifications] [/specifications]

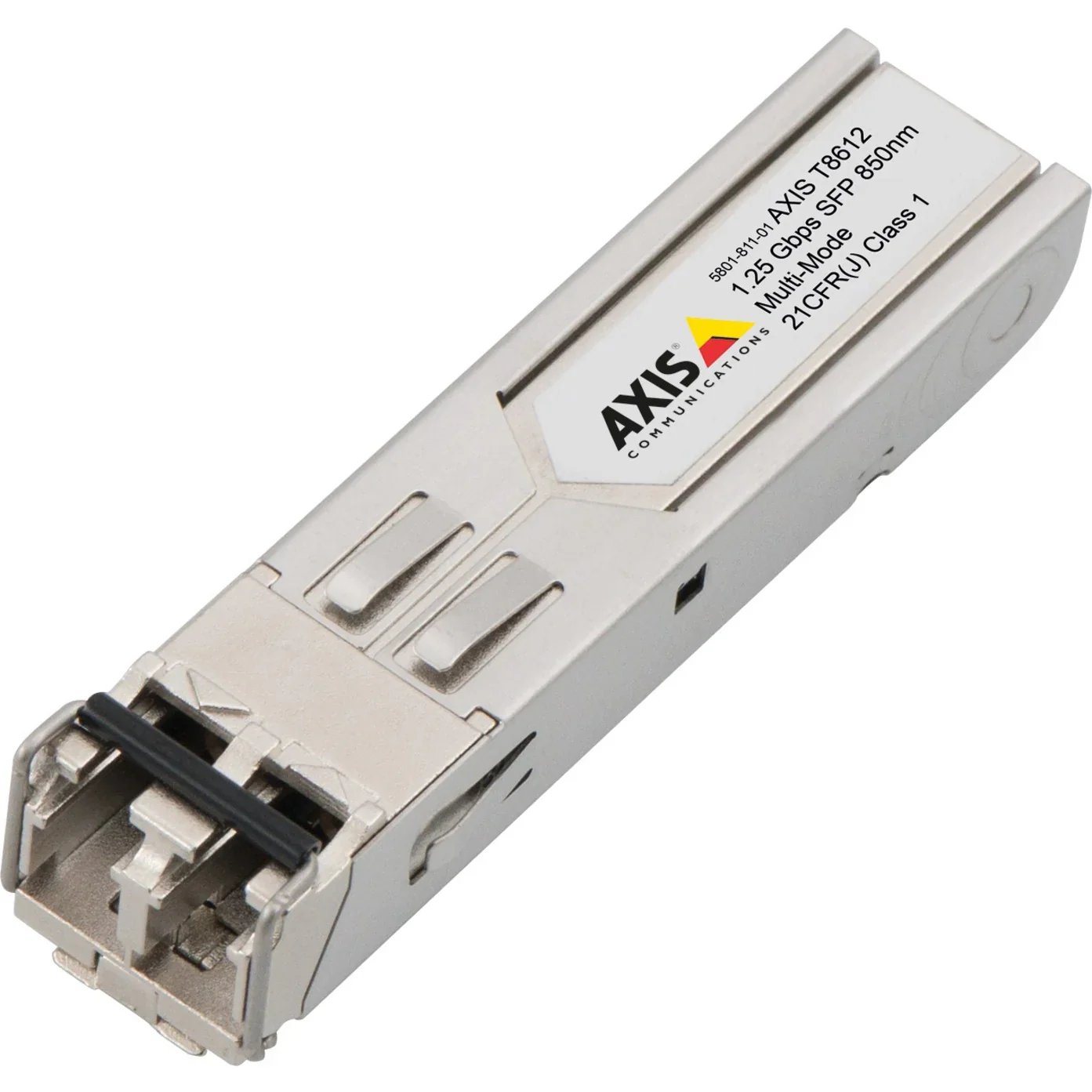

AXIS T8612 550m Multi-mode LC.SX SFP Module (5801-811)

The AXIS T8612 SFP Module LC.SX is a compact and high-performance multimode fiber transceiver designed for network devices such as switches and routers. Featuring an 850 nm short-wavelength VCSEL laser diode, this SFP module enables gigabit Ethernet transmission over multimode fiber up to 550 meters (0.34 miles). It is fully compliant with the SFP Multi-Source Agreement (MSA) and can be hot-plugged into compatible devices without interrupting network operations. Designed for industrial use, it supports an extended temperature range and includes a link-loss feature for network redundancy.

Key Features:

• 550m Transmission Range: Supports high-speed gigabit Ethernet connections over multimode fiber.
• Multimode Fiber Optic Connectivity: Uses an 850 nm wavelength for stable and efficient data transmission.
• Industrial-Grade Design: Wide operating temperature range from -40°C to 85°C (-40°F to 185°F).
• Hot-Pluggable Module: Can be inserted or removed without network downtime.
• Link-Loss Feature: Supports network redundancy and improved failover handling.
• MSA Compliance: Fully compatible with all Axis products that support SFP slots.

Technical Specifications:

• Transceiver Type: Multimode fiber
• Wavelength: 850 nm
• Maximum Transfer Distance: 550 m (0.34 miles)
• Switching Capacity: 1.25 Gbps
• Supported Protocols: Gigabit Ethernet
• Connector Type: LC duplex receptacle
• Hot-Pluggability: Yes
• Operating Temperature: -40°C to 85°C (-40°F to 185°F)
• Operating Humidity: 10–90% RH (non-condensing)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Storage Humidity: 5–95% RH (non-condensing)
• Certifications: EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 60825-1 Class 1, FDA 21 CFR 1040, FCC Part 15 Subpart B Class B, IEC/EN/UL 60950-1, RoHS, REACH, WEEE
• Compatibility: Works with all Axis products that support SFP slots
