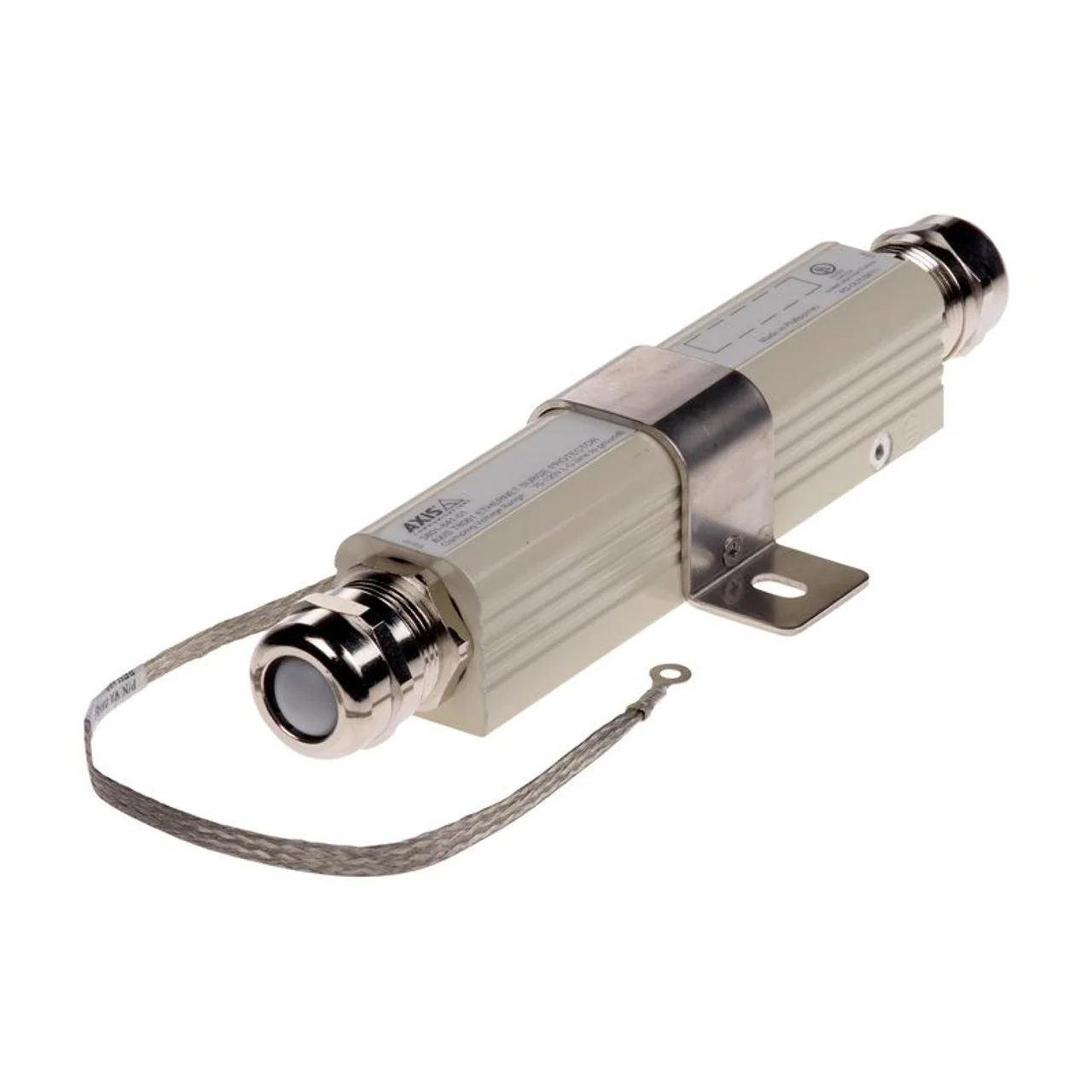

AXIS T8061 Ethernet Surge Protector (5801-641)
[shortdesc]
- The AXIS T8061 Ethernet Surge Protector safeguards your network devices, such as IP cameras and switches, from damaging power surges, ensuring reliable and uninterrupted performance
[/shortdesc]
[specifications] [/specifications]
AXIS T8061 Ethernet Surge Protector (5801-641)
The AXIS T8061 Ethernet Surge Protector is a robust solution for protecting Ethernet network devices against power surges and lightning strikes. Designed for both indoor and outdoor use, it features a weatherproof metal enclosure that ensures durability in challenging environments. Supporting data rates of up to 1 Gbps, the device provides comprehensive protection for all eight lines, including PoE, and can be conveniently installed on walls or poles. Whether safeguarding outdoor cameras or securing network cables entering a building, this surge protector offers reliable protection for critical infrastructure.
Key Features:
- Comprehensive Surge Protection: Safeguards against up to 10 kV surges to protect network devices.
- Wide Compatibility: Compatible with 10BASE-T, 100BASE-TX, and 1000BASE-T PoE devices.
- Durable Construction: Weatherproof metal enclosure rated IP66 and NEMA 250 Type 4X for harsh conditions.
- Flexible Installation: Supports wall and pole mounting for diverse deployment scenarios.
- High Data Rate Support: Maintains data transmission speeds up to 1 Gbps.
Technical Specifications:
- Power Surge Handling: Up to 10 kV, 5 kA to ground (8/20 Āµs); 800 V, 100 A for PoE.
- Input Power: 95 W (max); Input Current: 2 A (max).
- Operating Temperature: -40 Ā°C to 85 Ā°C (-40 Ā°F to 185 Ā°F).
- Dimensions: 30 x 30 x 190 mm (1.18 x 1.18 x 7.48 in).
- Weight: 0.6 lbs
- Approvals: IEC 60529 IP66, NEMA 250 Type 4X, UL 497B, EN 50581.
- Environmental Compliance: REACH, WEEE certifications.
- Mounting Options: Wall or pole mount (requires straps or similar).
