Product Name	AXIS A9801 Security Relay (5801-141)
Description	Compact relay designed for integration with Axis network video door stations to enhance door security and prevent unauthorized access during tampering.
Tamper Response	Automatically disconnects door strike upon tampering, keeping the door locked.
Input Voltage Range	Operates between 11 V and 13 V
Output Voltage Options	Provides either 12 V (730 mA) or boosted 24 V (300 mA) for flexible door strike support
Voltage Doubling	Doubles input from 12 V to 24 V, allowing for control of higher voltage door strikes without extra wiring
Dimensions	48 x 45 x 30 mm (1.9 x 1.8 x 1.2 in), fits standard installation boxes (US Single Gang, EU 60mm)
Weight	100 g (0.2 lbs), lightweight for easy installation
Reset Mechanism	Equipped with a reset button to manually restore function post-tampering
Compatible Door Strikes	Supports both 12 V and 24 V door strikes, offering flexibility in various applications
Installation	Suitable for installation within standard indoor electrical boxes, enabling easy integration
Temperature Range	Designed for environments between -20 °C and 50 °C (-4 °F to 122 °F)
Humidity Range	Operates reliably in humidity from 10-100% (condensing)
Material	Constructed with flame-retardant plastic casing to minimize risk and enhance safety
Power Efficiency	Low power consumption, with max 8.76 W under full operation

[/properties]

[specifications]

Environment	Indoor
Input	11–13 V DC, max 750 mA
Relay Input	Max 30 V DC, 1.2 A
Output	12 V (730 mA) or 24 V (300 mA)
Mounting	Shelf mount; fits US Single Gang or EU 60 mm boxes
Operating Conditions	–20 °C to 50 °C (–4 °F to 122 °F), 10–100% RH (condensing)
Approvals	EN 55022 Class A, EN 55024, EN 61000-6-1, EN 61000-6-2, AS/NZS CISPR 22 Class A, FCC Part 15 Class A, UL 60950-1, UL294
Dimensions	48 × 45 × 30 mm (1.9 × 1.8 × 1.2 in)
Weight	100 g (0.2 lb)

[/specifications]

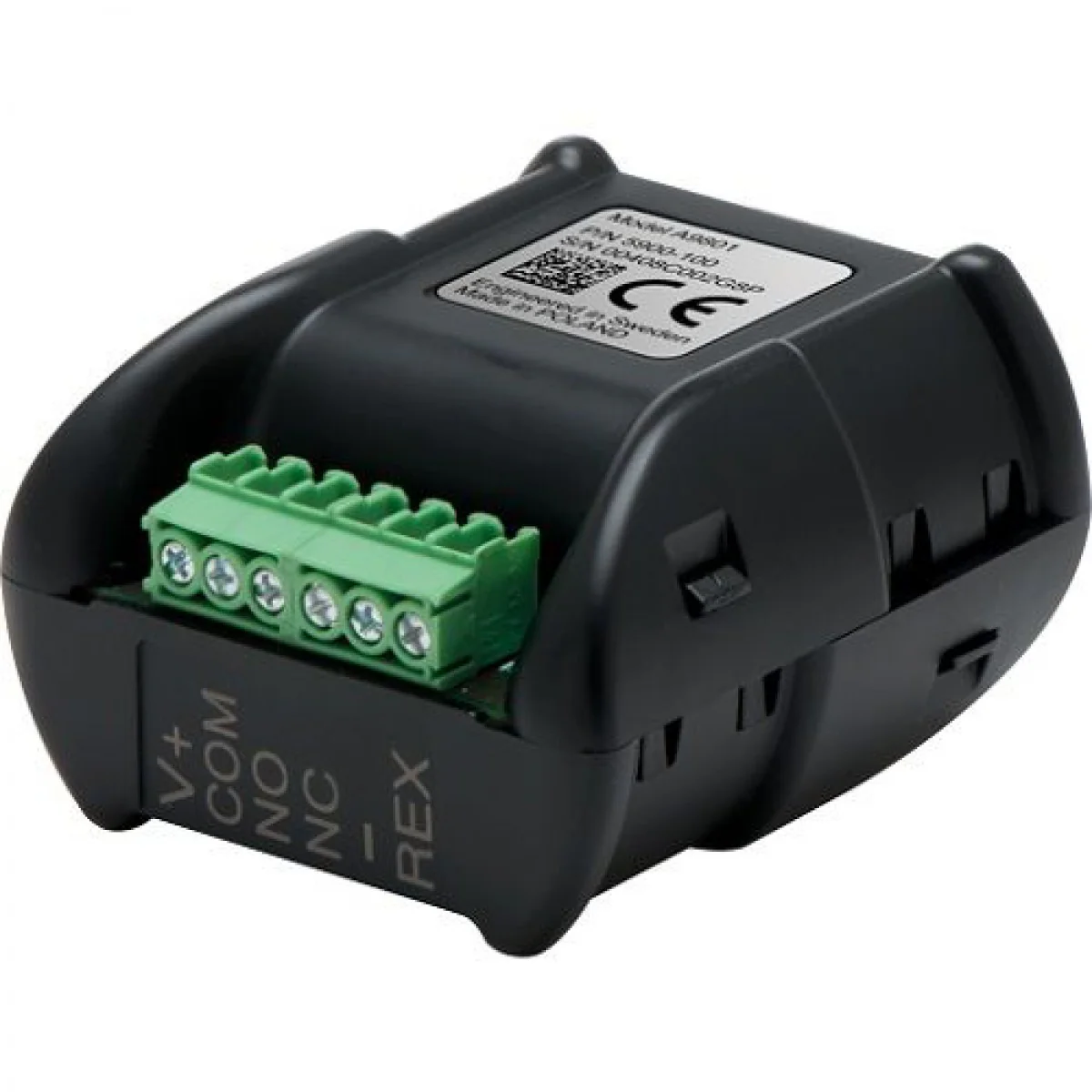

AXIS A9801 Security Relay (5801-141)

The AXIS A9801 Security Relay is designed to improve security for doors controlled by Axis network video door stations. This compact relay, which fits in most standard installation boxes, is installed on the secure side of the door. In case of tampering or vandalism attempts, the relay cuts the connection to the door strike, ensuring that the door remains securely locked. The relay also acts as a power transformer, doubling the 12 V output from a door station to enable control of 24 V locks without the need for additional wiring or power supplies. The normal function can be restored via the relay's reset button.

Key Features:

• Enhanced Security: Automatically cuts connection to the door strike in case of tampering, ensuring the door remains locked.
• Supports Multiple Door Strikes: Compatible with both 12 V and 24 V door strikes for added flexibility.
• Compact Design: Fits easily into standard installation boxes (US Single Gang, EU 60mm).
• Power Transformer: Doubles the 12 V output, allowing control of 24 V locks without extra wiring or power supply.
• Easy Installation: Pre-configured for simple installation with Axis door stations.

Technical Specifications:

• Environment: Indoor
• Input: On +/-: min 11 V, max 13 V, max 750 mA; On relay: max 30 V DC, max 1.2 A
• Output: 12 V (730 mA), 24 V (300 mA)
• Mounting: Shelf mount; fits in standard installation boxes (US Single Gang, EU 60mm)
• Operating Conditions: -20 °C to 50 °C (-4 °F to 122 °F), 10-100% humidity (condensing)
• Certifications: EN 55022 Class A, EN 55024, EN 61000-6-1, FCC Part 15 Class A, UL 60950-1, UL294
• Dimensions: 48 x 45 x 30 mm (1.9 x 1.8 x 1.2 in)
• Weight: 100 g (0.2 lbs)
