• The Canon VB-M46 1.3MP Canon PTZ Network Camera is a high-performance security camera with 20x optical zoom, excellent low-light performance, and Wide Dynamic Range (WDR) for clear surveillance.

[/shortdesc]

[specifications] [/specifications]

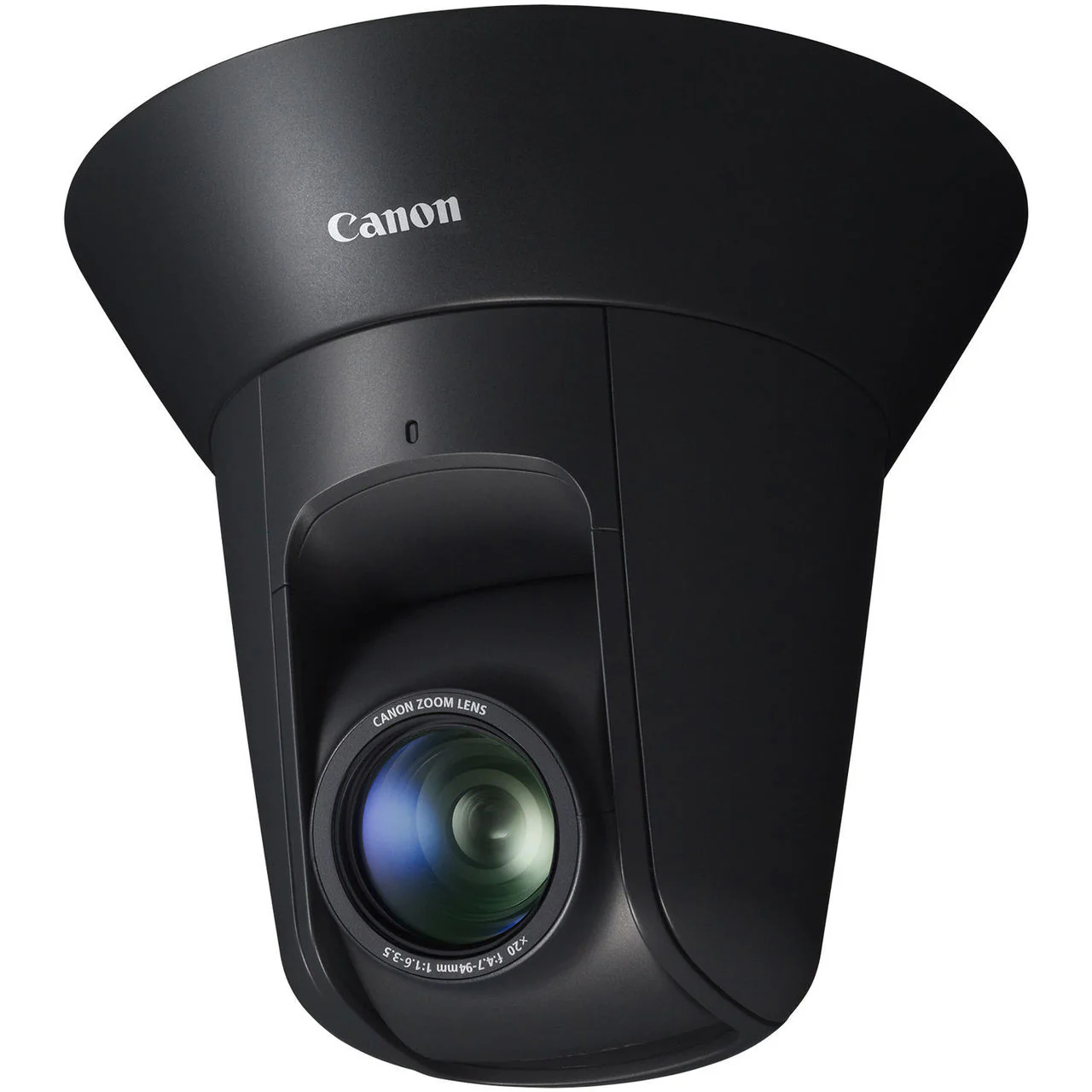

AXIS Canon VB-M46 1.3MP Canon PTZ Network Camera (5716C002)

The AXIS Canon VB-M46 1.3MP Canon PTZ Network Camera is designed for precise indoor surveillance with its powerful 20x optical zoom and 16x digital zoom. Featuring exceptional low-light performance, this camera captures color images at 0.02 lux and monochrome images at 0.003 lux. With WDR (Wide Dynamic Range) for high-contrast scenes and fast auto-focus, it ensures high-quality video streaming. Supporting multiple compression formats, including H.265, H.264, and MJPEG, the camera is also ONVIF Profile S, G, and T compliant, making it easy to integrate into existing security systems.

Key Features:

• 1.3MP Resolution: Delivers crisp and clear HD video.
• 20x Optical Zoom: Provides high-detail zoom for surveillance applications.
• Low-Light Performance: Captures images in color at 0.02 lux and in monochrome at 0.003 lux.
• WDR Support: Ensures balanced exposure in high-contrast environments.
• Fast & Precise PTZ: Quick pan, tilt, and zoom functionality.
• ONVIF Compliance: Supports ONVIF Profile S, G, and T for seamless integration.
• Multiple Streaming Formats: Supports H.265, H.264, and MJPEG.

Technical Specifications:

• Image Sensor: 1/2.8” CMOS
• Resolution: 1280 x 960 (1.3MP)
• Lens: 20x optical zoom, 16x digital zoom
• Field of View: Horizontal: 62.4° (wide) – 3.3° (tele), Vertical: 36.3° (wide) – 1.9° (tele)
• Minimum Illumination: 0.02 lux (color), 0.003 lux (monochrome)
• Pan/Tilt Range: 340° pan, 100° tilt
• Pan/Tilt Speed: Max. 150°/sec
• Video Compression: H.265, H.264, MJPEG
• Frame Rate: Up to 60 fps
• Network Interface: RJ45, 100Base-TX
• Audio Input/Output: 3.5 mm mini-jack (mono)
• Power Supply: PoE (IEEE 802.3at) or 12V DC
• Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Storage Support: microSD/microSDHC/microSDXC
• Dimensions: 132 x 155 mm (5.2 x 6.1 in)
• Weight: 1.1 kg (2.43 lb)
