[shortdesc] 1.3MP CMOS, 20x optical zoom, 340° pan, H.265/H.264, PoE powered [/shortdesc]

[properties]

Model	Canon VB-M46
SKU	5716C001AA (White) / 5716C002AA (Black)
Product Type	PTZ IP Security Camera
Image Sensor	1/2.8 type CMOS
Effective Pixels	Approx. 1.3 Megapixels
Optical Zoom	20x
Digital Zoom	16x
Focal Length	4.7 mm (W) – 94 mm (T)
Maximum Resolution	1280 × 960
Video Compression	JPEG, H.264, H.265
Frame Rate	Up to 60 fps (60 Hz) / 50 fps (50 Hz)
Pan Range	340° (±170°)
Tilt Range	100° (ceiling-mounted: -90° to +10°)
Minimum Illumination	Color: 0.02 lux; Mono: 0.003 lux
WDR	Available
Power Supply	PoE (IEEE802.3at Type1), 12 V DC, AC Adapter PA-V18 (sold separately)
Power Consumption	PoE: Max. approx. 9.1 W; DC: Max. approx. 7.9 W
Network Interface	RJ45, 100Base-TX (Auto)
Memory Card Support	SD, SDHC, SDXC (Class 10 recommended)
Operating Temperature	-10°C to +50°C
Dimensions (Ø × H)	Ø132 × 155 mm
Weight	Approx. 1100 g

[/properties]

[specifications]

Angle of View	16:9 – Horizontal: 62.4° (W) to 3.3° (T); Vertical: 36.3° (W) to 1.9° (T). 4:3 – Horizontal: 47.9° (W) to 2.5° (T); Vertical: 36.3° (W) to 1.9° (T)
Day/Night Mode	Auto / Day Mode / Night Mode (IR cut filter)
Shutter Speed	1/1 to 1/16000 sec.
Exposure Control	Auto, Flickerless, Shutter-priority AE, Aperture-priority AE, Manual
White Balance	Auto / Manual
Image Enhancements	WDR, Smart Shade Control, Haze Compensation, AGC Limit, Motion-Adaptive NR, Image Stabilizer
Moving Speed	Pan: Max. 150°/sec.; Tilt: Max. 150°/sec.
Simultaneous Clients	Max. 30 Clients + 1 Admin (H.264: Max. 10; H.265: Max. 10)
Bit Rate Control	CBR, VBR, MBR
Audio Compression	G.711 μ-law (64 kbps), AAC (16/48 KHz, 16/32/64/96/128 Kbps)
Audio Communication	Full-duplex (two-way) / Half-duplex
External I/O	2 × Inputs, 2 × Outputs
Security	User authentication, Host access restrictions (IPv4/IPv6), IEEE802.1X (EAP-TLS, EAP-TTLS, EAP-PEAP), SSL/TLS
Protocols	IPv4, IPv6, TCP/IP, UDP, HTTP, SNMPv1/v2c/v3, DHCP, DNS, NTP, SMTP, RTP/RTCP, RTSP, ONVIF
ONVIF Profile	Profile-S, Profile-G, Profile-T
Intelligent Functions	Moving Object Detection, Abandoned Object Detection, Removed Object Detection, Camera Tampering Detection, Passing Detection, Intrusion Detection, Volume Detection, Face Detection
Operating Humidity	5% – 85% (without condensation)
Storage Temperature	-30°C to +60°C

[/specifications]

[accesories]

Included	VB-M46 Main Unit; Power Connector; Before Using This Camera
Optional Accessories	Indoor Dome Housing DR41-C-VB; Indoor Dome Housing DR41-S-VB; Ceiling Mount Cover SS40-W-VB; Ceiling Mount Cover SS40-B-VB; Pendant Mounting Kit PC600-VB

[/accesories]

Keep Every Angle Covered with Precision PTZ Control

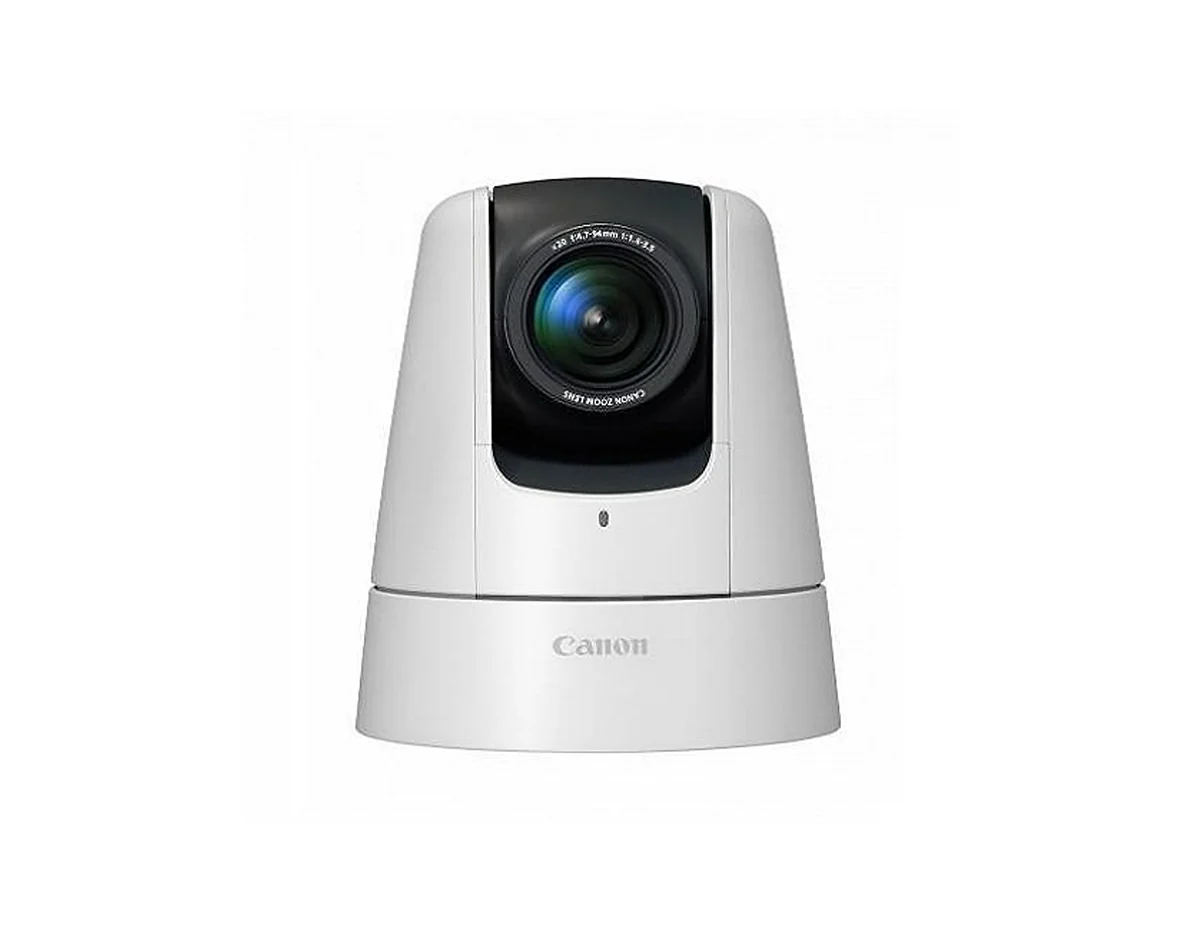

The Canon VB-M46 is a professional 1.3MP PTZ IP security camera engineered for high-visibility indoor surveillance. Equipped with a powerful 20x optical zoom and advanced Wide Dynamic Range (WDR), it captures clear, detailed footage even in challenging lighting conditions. With fast, high-precision pan, tilt, and zoom performance, the VB-M46 ensures critical areas remain in focus at all times.

Key Benefits & Features

• 20x Optical Zoom with Autofocus: The 4.7–94mm lens with F1.6–F3.5 aperture delivers detailed close-ups and a wide 62.4° horizontal viewing angle, ensuring flexible scene coverage for large indoor spaces.
• Exceptional Low-Light Performance: Advanced sensors capture color images at 0.02 lux and monochrome at 0.003 lux, maintaining high-resolution clarity in dim environments such as warehouses or retail floors.
• Advanced PTZ Mechanics: A 340° pan range and 100° tilt range with speeds up to 150°/sec allow for rapid, precise repositioning across expansive monitoring areas.
• H.265 / H.264 Multi-Stream Video: Delivering 1.3M resolution at 60 fps with simultaneous multi-stream output, this camera optimizes bandwidth without compromising video quality.
• Enterprise-Grade Security & Compliance: Fully ONVIF Profile S, G, and T compliant with SSL/TLS encryption and IEEE 802.1X authentication for secure network integration.

Ideal Use Cases

• Retail stores requiring flexible PTZ monitoring and loss prevention
• Corporate offices, lobbies, and reception areas
• Warehouses and logistics facilities for asset tracking
• Educational campuses and public building hallways
• Indoor critical infrastructure monitoring

Technical Specifications

• Image Sensor: 1/2.8 type CMOS, approx. 1.3 megapixels
• Lens: 20x optical zoom, 16x digital zoom, fast autofocus
• Focal Length: 4.7–94 mm (35mm equivalent: 30.5–610 mm)
• Minimum Illumination: 0.02 lux (color), 0.003 lux (mono)
• Pan/Tilt Range: 340° pan (±170°), 100° tilt (-90° to +10°)
• Video Compression: JPEG, H.264, H.265
• Max Frame Rate: Up to 60 fps (60 Hz) / 50 fps (50 Hz)
• Network Interface: RJ45, 100Base-TX (Auto)
• Power Supply: PoE IEEE802.3at Type 1 or 12V DC
• Dimensions: Φ132 x 155 mm; Weight approx. 1100 g

Upgrade Your Surveillance with Intelligent PTZ Control

Enhance indoor security with precise zoom, intelligent detection functions, and reliable Canon imaging technology. Order your Canon VB-M46 today.
