• Compact form factor for discreet installations in indoor and outdoor environments, Built with durable materials to withstand harsh weather conditions and tampering, Max Load: 10 kg (22 lb).

[/shortdesc]

[properties]

Product Name	AXIS T91E61 Wall Mount
Description	The AXIS T91E61 Wall Mount is a robust solution designed for mounting Axis fixed dome cameras indoors or outdoors. Constructed from impact- and corrosion-resistant materials, this mount supports discreet and durable installations. It is compatible with Axis pendant kits with a 1.5” NPS thread and enables protected cable routing through AXIS T94R01P Conduit Back Box.
Material	Powder-coated, chromated aluminum (white NCS S 1002-B)
Max Load	Supports up to 10 kg (22 lb)
Cable Management	Internal routing with back cable hole and side cut-outs for clean installation
Dimensions	80 mm x 161 mm x 120 mm (3.1 in x 6.3 in x 4.7 in)
Weight	525 g (1.15 lb)
Environmental Suitability	Designed for indoor and outdoor use
Mounting Flexibility	Can be installed on walls, poles, corners, and AXIS T98A-VE Cabinet Series with appropriate accessories
Impact Resistance	IK10-rated for resistance to impacts up to 20 joules
Corrosion Resistance	NEMA 250 Type 4X rating for outdoor durability in corrosive environments
Color	White, matching Axis camera aesthetics for cohesive installation
Compliance	RoHS and REACH compliant

[/properties]

[specifications]

Compatibility	Supports Axis fixed dome pendant kits with 1.5” NPS thread; compatible with AXIS T94R01P Conduit Back Box for cable protection
Temperature Range	Tested for stable operation in environments ranging from -50 °C to 60 °C (-58 °F to 140 °F)
Ingress Protection	NEMA 250 Type 4X rated, ensuring resistance to dust and water in outdoor settings
Corrosion Testing	Tested in salt spray conditions for 240 hours to verify outdoor corrosion resistance
Vibration Testing	Verified for stability in installations exposed to vibrations up to 5 Hz
Humidity Resistance	Operates effectively in 10% to 100% relative humidity (condensing environments)
Material Composition	Powder-coated, chromated aluminum for long-term corrosion protection
Cable Routing Options	Supports back and side routing for flexible cable management
Certifications	CE certified, compliant with RoHS and REACH standards
EMC Compliance	Meets EN 55032, EN 55024, and FCC Part 15 standards for electromagnetic compatibility
Load Bearing Capacity	Tested to safely support loads up to 10 kg (22 lb) in varied environmental conditions
Mounting Orientation	Supports various mounting configurations, including wall, pole, and corner (with additional accessories)
Reliability	Passed environmental testing in high and low temperature cycles over 72 hours
Maintenance Requirements	Minimal maintenance; designed for durability in extreme weather and high-traffic areas
Noise Level	Silent operation, with passive cooling and no moving parts
Color Finish	White NCS S 1002-B, designed to match typical Axis camera finishes
Firmware Updates	Not applicable

[/specifications]

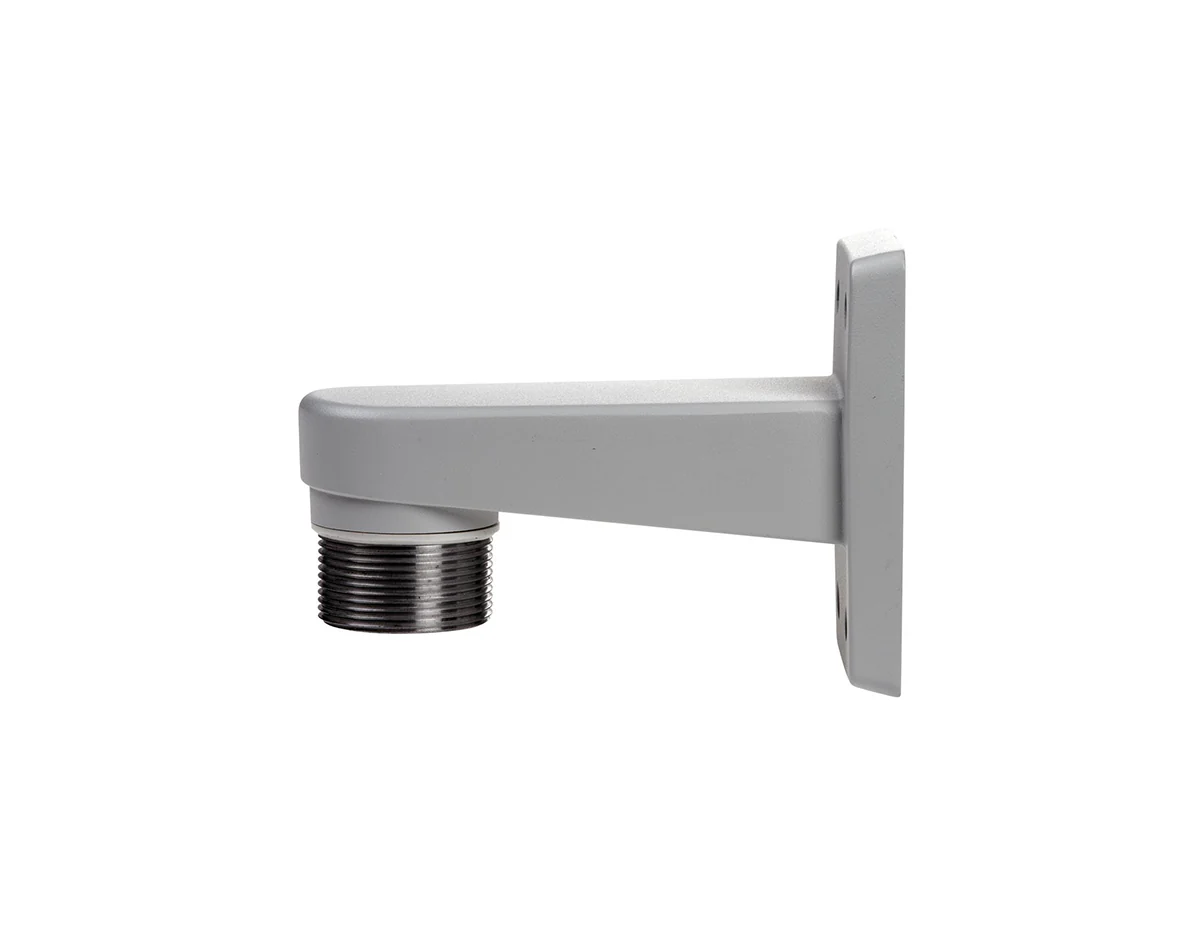

AXIS T91E61 Wall Mount

The AXIS T91E61 Wall Mount is specifically designed for Axis fixed dome network cameras, providing a neat and discreet installation solution for both indoor and outdoor environments. Made from impact-resistant and corrosion-resistant materials, this wall mount is suitable for tough environments. It is compatible with all Axis fixed dome pendant kits with a 1.5” NPS thread and can be mounted on AXIS T94R01P Conduit Back Box to enable cable protection using conduits.

Key Features:

• Small and Robust Design: Compact form factor for discreet installations in indoor and outdoor environments.
• Impact and Corrosion Resistant: Built with durable materials to withstand harsh weather conditions and tampering.
• Flexible Installation: Compatible with Axis fixed dome pendant kits and can be installed on poles, corners, and AXIS T98A-VE Cabinet Series with the appropriate accessories.
• Easy Cable Routing: Supports internal cable routing through the back or side cut-outs for clean installations.

Technical Specifications:

• Material: Powder-coated, chromated aluminum (white NCS S 1002-B)
• Max Load: 10 kg (22 lb)
• Cable Routing: Internal (Back: Cable hole, Side: Cut-outs)
• Operating Environment: Indoor/Outdoor
• Compliance: RoHS, REACH, CE, IK10, NEMA 250 Type 4X
• Dimensions: 80 x 161 x 120 mm (3.1 x 6.3 x 4.7 in)
• Weight: 525 g (1.15 lb)

For more information about the AXIS T91E61 Wall Mount, visit the Axis product page.
