[shortdesc] Outdoor-ready IK10/IP66 protection, pre-installed power supply and AXIS T8604 media converter, 12 V DC output, dual RJ45 ports, dual SFP fiber ports [/shortdesc]

[properties]

Model	AXIS T98A17-VE Media Converter Cabinet A (120 V) (5505-371)
Product Type	Outdoor-Ready Media Converter Cabinet
Casing	Polycarbonate cabinet & stainless steel mounting plate
Color	White NCS 1002-B & stainless steel
Environment	Indoor / Outdoor
Power Input	90–175 V AC, Max. 4 A
Power Output	12 V DC, 20 W
Connectors	2x RJ45 (10/100 Mbps); 2x SFP (100/1000 Mbps)
Operating Temperature	-40 °C to 65 °C (-40 °F to 149 °F)
Humidity	10–100% RH (condensing)
Approvals	IP66, NEMA 250 Type 4X, IK10, EN 50121-4, EN 60529, EN 50581, EN 62368-1, UL 50/50E
Dimensions	361 x 282 x 131 mm
Weight	4.4 kg (9.7 lb)

[/properties]

[specifications]

Supported Cameras	Cameras using 12 V DC input
SFP Compatibility	100/1000 Mbps SFP fiber optic modules or SFP-to-copper modules
Included Electronics	AXIS T8604 Media Converter Switch, 12 V DC power supply, pre-mounted surge protection, electrical safety kit
Installation Components	Pre-mounted DIN rails, cable gaskets, cable clamps, MCB fuse cover
Certifications (EMC)	FCC Part 15 Subpart B Class A (120 V), VCCI Class A, ICES-003 Class A, C-tick AS/NZS CISPR 22 Class A
Material Durability	IK10 impact protection; IEC 60068-2-6 4M4, IEC 60068-2-27 4M4

[/specifications]

[accesories]

Included in the Box	Installation guide; Pre-mounted cable gaskets; Pre-mounted DIN rails; Cable clamps; Pre-mounted MCB fuse cover; Pre-mounted surge protection; Pre-mounted 12 V DC power supply
Optional Accessories	AXIS Cabinet Lock A; AXIS Door Switch A; AXIS T98-VE Sunshield; AXIS T95A64; AXIS T95A67

[/accesories]

Streamline Outdoor Camera Deployments with Rugged Fiber-Ready Protection

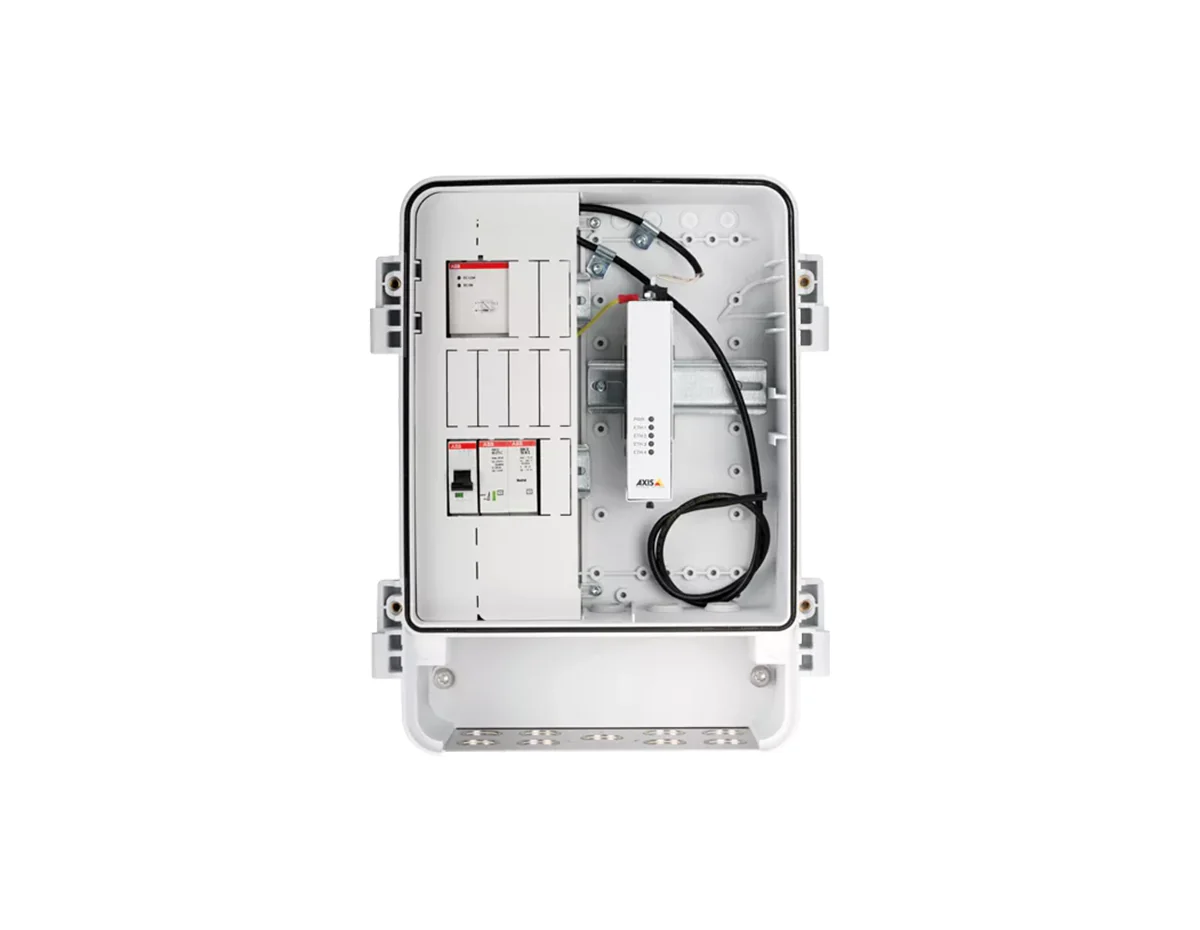

The AXIS T98A17-VE Media Converter Cabinet A 120 V delivers a complete, pre-configured solution for installing Axis fixed dome outdoor cameras. Built to withstand dust, water, impact, and extreme temperatures, it combines power delivery, fiber media conversion, and electrical safety into one secure enclosure. This cabinet ensures faster installation, lower field labor costs, and long-term reliability for mission-critical surveillance environments.

Key Benefits & Features

• Rugged IP66 and IK10 design: Protects equipment against weather, vandalism, dust, and impact, ensuring stable outdoor performance.
• Pre-installed power and media converter: Includes a 12 V DC power supply and AXIS T8604 Media Converter Switch for fiber or copper connectivity.
• Simplified camera integration: Door pre-drilled for Axis fixed dome cameras, reducing installation time and ensuring precise fit.
• Flexible network options: Dual RJ45 (10/100 Mbps) and dual SFP (100/1000 Mbps) ports support fiber modules and extended network distances.
• Extreme temperature tolerance: Operates from -40 °C to 65 °C for reliable performance in harsh climate conditions.

Ideal Use Cases

• City surveillance installations requiring vandal-resistant outdoor cabinets
• Critical infrastructure sites with fiber connectivity needs
• Perimeter security for utilities, transportation, and industrial facilities
• Remote or high-risk camera deployments needing protected power and conversion

Technical Specifications

• Power Input: 90–175 V AC (120 V model), Max. 4 A
• Power Output: 12 V DC, 20 W
• RJ45 Ports: 2x 10/100 Mbps
• SFP Ports: 2x 100/1000 Mbps
• Operating Temperature: -40 °C to 65 °C
• Humidity: 10–100% RH (condensing)
• Casing: Polycarbonate with stainless steel mounting plate
• Environmental Rating: IP66, NEMA 4X, IK10
• Dimensions: 361 x 282 x 131 mm
• Weight: 4.4 kg (9.7 lb)
• Included Accessories: Electrical safety kit, power supply, surge protection, gaskets, clamps
