[shortdesc]Outdoor-ready IP66/IK10 cabinet with pre-installed 120 V AC power supply, electrical safety kit, and media converter for Axis cameras, designed for secure and vandal-resistant mounting.[/shortdesc]

[properties]

Model	AXIS T98A16-VE Media Converter Cabinet A 120 V (5505-361)
Product Type	Outdoor media converter and power cabinet for Axis cameras
Casing	Polycarbonate cabinet with stainless steel mounting plate
Color	White NCS 1002-B and stainless steel
Environment	Indoor/Outdoor
Operating Temperature	-40 °C to 65 °C (-40 °F to 149 °F)
Humidity	10–100% RH (condensing)
Dimensions	361 mm (14.2 in) × 249 mm (9.8 in) × 131 mm (5.2 in)
Weight	4.4 kg (9.7 lb)
Connectors	2× RJ45 (10/100 Mbps), 2× SFP (100/1000 Mbps)
Power Input	90–175 V AC, Max. 4 A
Power Output	12 V DC, 20 W

[/properties]

[specifications]

Supported Cameras	Devices using 12 V DC input
Performance	Pre-installed media converter for copper and fiber deployment
Connectivity	2× RJ45 10/100 Mbps; 2× SFP 100/1000 Mbps
Power Supply	120 V AC model: Input 90–175 V AC; 12 V DC 20 W output
Security & Protection	Electrical safety kit, surge protection, tamper-resistant construction
Environmental Ratings	IP66; NEMA 250 Type 4X; IK10
Certifications	EN 50121-4, IEC 62236-4, EN 50581, IEC/EN 60529 IP66, NEMA 250 Type 4X, IEC/EN 62262 IK10, REACH, WEEE, CE, IEC 60068-2-6 4M4, IEC 60068-2-27 4M4, IEC/EN/UL 60950-1, IEC/EN/UL 60950-22, EN 62368-1, UL 50, UL 50E; FCC Part 15 Subpart B Class A, VCCI Class A, ICES-003 Class A, AS/NZS CISPR 22 Class A
Mounting Options	Camera mounting on door with pre-aligned drilling pattern; includes mounting plate

[/specifications]

[accesories]

Included	Installation guide, Pre-mounted cable gaskets, Pre-mounted DIN rails, Cable clamps, Pre-mounted power cover for MCB fuse, Pre-mounted surge protection, Pre-mounted 12 V DC power supply
Optional Accessories	AXIS Cabinet Lock A, AXIS Door Switch A, AXIS T98-VE Sunshield, AXIS T95A64, AXIS T95A67

[/accesories]

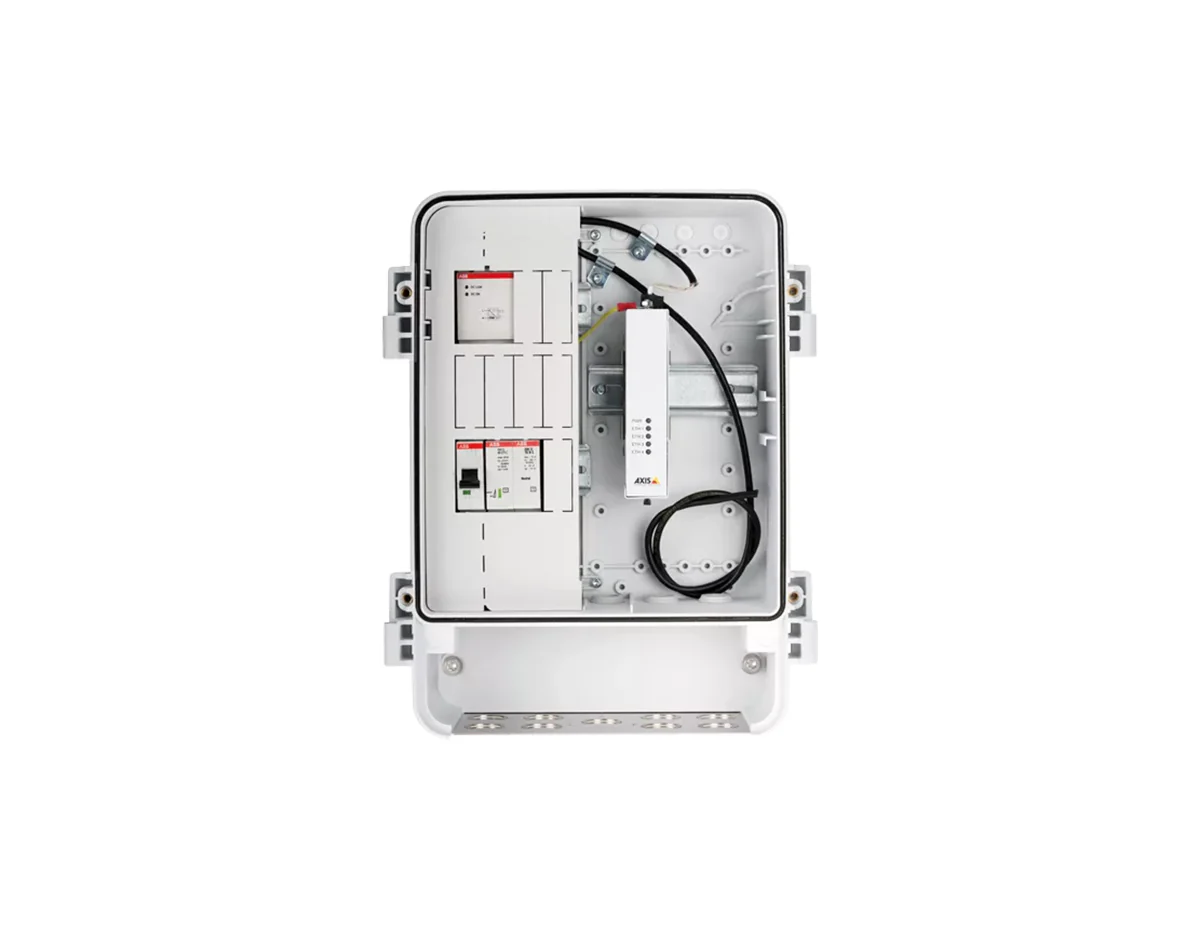

The AXIS T98A16-VE Media Converter Cabinet A 120 V is an industrial-grade enclosure designed to simplify and secure field installation of Axis outdoor cameras. It provides fast deployment, protection from weather, electrical hazards, and vandalism — ensuring long-term system reliability in demanding environments.

This cabinet arrives pre-configured with 120 V AC power supply, safety components, and a media converter supporting both standard Ethernet and fiber connectivity, reducing installation time and eliminating onsite component assembly.

Optimized for secure outdoor camera deployment with pre-installed fiber-ready networking and electrical protection

• Ensures high reliability in harsh conditions with IP66, Type 4X, and IK10 protection
• Pre-installed power and media conversion enables faster installation
• Supports both copper and fiber applications via dual SFP and RJ45 ports
• Purpose-designed mounting surface for Axis fixed outdoor cameras
• Includes surge protection and electrical safety enhancements
• Ideal for critical infrastructure, public spaces, and perimeter security

Ideal Use Cases

• City surveillance and public environment monitoring
• Transportation hubs, airports, rail stations
• Industrial facilities and perimeter defense
• Outdoor security camera installations requiring vandal protection

Technical Specifications Summary

• Casing: Polycarbonate with stainless steel mounting plate
• Ingress Protection: IP66 / NEMA Type 4X
• Impact Rating: IK10
• Temperature: -40 °C to 65 °C (-40 °F to 149 °F)
• Connectors: 2× RJ45, 2× SFP
• Power Output: 12 V DC, 20 W
• Dimensions: 361 × 249 × 131 mm (14.2 × 9.8 × 5.2 in)
• Weight: 4.4 kg (9.7 lb)

Upgrade Your Operations

Deploy robust, fiber-ready outdoor camera installations with the AXIS T98A16-VE Media Converter Cabinet A 120 V.
