[shortdesc] Outdoor-ready cabinet, 12 V DC output, IK10 impact rating, IP66 weatherproof, RJ45 and SFP ports [/shortdesc]

[properties]

Model	AXIS T98A15-VE Media Converter Cabinet A 120 V
Product Type	Outdoor Media Converter Cabinet
Supported Cameras	Cameras using 12 V DC input
Casing	Polycarbonate cabinet; Stainless steel mounting plate; Color: White NCS 1002-B
Environment	Indoor/Outdoor
Power Input	90–175 V AC, Max. 4 A
Power Output	12 V DC, 20 W
Connectors	2x RJ45 (10/100 Mbps); 2x SFP (100/1000 Mbps)
Operating Temperature	-40 °C to 65 °C (-40 °F to 149 °F)
Humidity	10–100% RH (condensing)
Approvals	EN 50121-4, IEC 62236-4, EN 50581, IEC/EN 60529 IP66, NEMA 250 Type 4X, IEC/EN 62262 IK10, REACH, WEEE, CE, IEC 60068-2-6 4M4, IEC 60068-2-27 4M4, UL 50, UL 50E; FCC Part 15 Class A, VCCI Class A, ICES-003 Class A, AS/NZS CISPR 22 Class A
Weight	4.4 kg (9.7 lb)
Dimensions (H x W x D)	361 x 282 x 131 mm (14.2 x 11.1 x 5.2 in)

[/properties]

[specifications]

Model Variants	120 V AC (This Model); 230 V AC (Separate SKU)
Supported Cameras	12 V DC cameras (full compatibility list available online)
Network Ports	2x RJ45 (10/100 Mbps); 2x SFP slots (100/1000 Mbps)
Installation Components	AXIS T98A15-VE Surveillance Cabinet; Electrical Safety Kit; Power Supply DIN CP-D 12/2.1 25 W; AXIS T8604 Media Converter Switch
Operating Conditions	-40 °C to 65 °C; 10–100% RH (condensing)
Certifications	IP66, NEMA 250 Type 4X, IK10, CE, FCC Class A, UL 60950-1 / 60950-22 / 62368-1
Construction	Polycarbonate cabinet; Stainless steel mounting plate
Environmental Protection	Weatherproof, dustproof, vandal-resistant
Additional Notes	Includes pre-mounted DIN rails, cable gaskets, clamps, and power cover

[/specifications]

[accesories]

Included	Installation guide; Pre-mounted cable gaskets; Pre-mounted DIN rails; Cable clamps; Pre-mounted power cover for MCB fuse
Optional	AXIS Cabinet Lock A; AXIS Door Switch A; AXIS T98-VE Sunshield; AXIS T95A64; AXIS T95A67

[/accesories]

Reliable Outdoor Fiber Connectivity with Rugged Protection

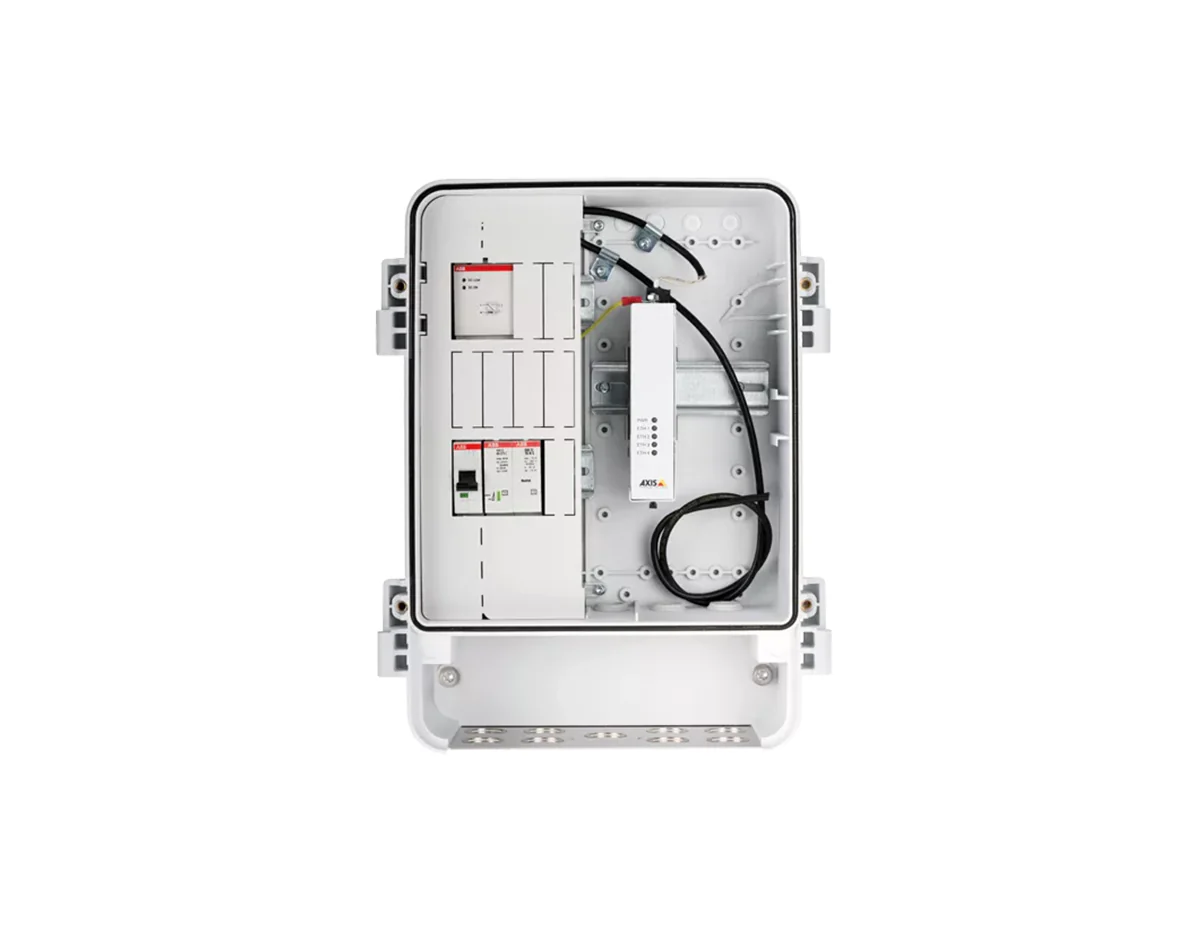

The AXIS T98A15-VE (5505-351) Media Converter Cabinet A 120 V delivers a complete, pre-configured outdoor solution for secure fiber-based installations. Designed specifically for Axis cameras, it integrates a 12 V DC power supply, electrical safety kit, and media converter to streamline deployment. Its IK10 vandal resistance, IP66 weather protection, and wide operating temperature range ensure reliable performance in harsh environments.

This cabinet is engineered to safeguard critical network components against dust, water, ice, vibration, and tampering—making it ideal for demanding surveillance, municipal, and critical infrastructure environments.

Key Benefits & Features

• Pre-configured media converter: Integrated 10/100 Mbps RJ45 and dual 100/1000 Mbps SFP ports simplify fiber installation.
• Rugged outdoor-ready build: Polycarbonate housing with stainless steel mounting plate provides IP66 and IK10 protection.
• Reliable power delivery: 120 V AC input with 12 V DC, 20 W output meets camera temperature and power requirements.
• Wide operating temperature: Stable performance from -40 °C to 65 °C (-40 °F to 149 °F) ensures year-round reliability.
• Easy installation: Pre-mounted gaskets, DIN rails, cable clamps, and power safety components reduce on-site labor.

Ideal Use Cases

• City surveillance deployments requiring tamper-resistant fiber connectivity
• Critical infrastructure sites needing vandal-proof, weather-protected housings
• Outdoor Axis camera installations using 12 V DC power
• Remote or exposed environments where equipment security is essential
• Installations requiring standalone cabinet-mounted networking equipment

Technical Specifications

• Power Input: 120 V AC (90–175 V AC), Max. 4 A
• Power Output: 12 V DC, 20 W
• Connectors: 2x RJ45 (10/100 Mbps), 2x SFP (100/1000 Mbps)
• Supported Cameras: Models using 12 V DC input
• Casing: Polycarbonate cabinet with stainless steel mounting plate
• Weather Rating: IP66, NEMA 250 Type 4X
• Impact Resistance: IK10 vandal protection
• Operating Temperature: -40 °C to 65 °C (-40 °F to 149 °F)
• Humidity: 10–100% RH (condensing)
• Weight: 4.4 kg (9.7 lb)

Upgrade Your Outdoor Infrastructure Today

Enhance your surveillance reliability with the durable AXIS T98A15-VE Media Converter Cabinet A. Order now.
