[shortdesc]

• CompactLogix 5380 Controller

[/shortdesc]

[properties]

Properties	5069-L306ER
Description	The Allen-Bradley 5069L306ER CompactLogix 5380 Controller is a part of the Logix 5000® family that offers EtherNet/IP™ connectivity for diverse applications. It has 0.6 MB memory and can support up to 16 Ethernet/IP nodes, making it ideal for small to large automation needs.
Product Family	CompactLogix 5380 Controller
Product Type	Controller
Controller tasks	Continuous: 32 tasks Periodic : 1000 programs/task Event:  All event triggers
Built-in communication ports	1 x USB port 2 x Ethernet ports
USB port communication	USB 2.0, Type B,  Full speed (12 Mbps)
Ethernet performance	10 Mbps/100 Mbps/1 Gbps  Full-duplex only
MOD Power voltage range	18 - 32V DC
MOD Power current, max	450 mA
SA Power voltage ranges	0 - 32V DC
SA Power current, max	10 mA (DC power) 25 mA (AC power)
Dimensions	143.97 x 98.10 x 136.81 mm (5.67 x 3.86 x 5.39 in.)
Mounting Options	DIN rail mount (horizontal mount only)
Operating Temperature	0 °C - 60 °C (32 °F - 140 °F)

[/properties][specifications]

Specifications	5069-L306ER
User memory	0.6 MB
Optional nonvolatile memory	• 1784-SD1 (1 GB) • 1784-SD2 (2 GB), ships with controller • 1784-SDHC8 (8 GB) • 1784-SDHC32 (32 GB) • 9509-CMSDCD4 (4 GB) CodeMeter CmCard SD
Local I/O modules, max	8
Number of power cycles	80000
I/O Capacity (Class 0/1)	• 128,000 without CIP Security • 40,000 with integrity • 20,000 with integrity and confidentiality
Message Rate Capacity HMI/MSG (Class 3)	• 2000 without CIP Security • 1500 with integrity • 900 with integrity and confidentiality
EtherNet/IP modes supported	Dual-IP mode (Available with the Studio 5000 Logix Designer® application, version 29.00.00 or later) Linear/DLR mode
EtherNet/IP network topologies supported	DLR Star Linear
EtherNet/IP nodes supported, max	16
Socket interfaces supported, max	32
Integrated motion	-
Number of axes supported	256
Programming languages	Ladder Diagram (LD) Structured Text (ST) Function Block Diagram (FBD) Sequential Function Chart (SFC)
Local Compact 5000 Standard I/O Modules Supported, Max	8
Any Combination of Standard and Safety I/O Modules	-
Ethernet Nodes Supported	16
Emissions	IEC 61000-6-4

[/specifications]

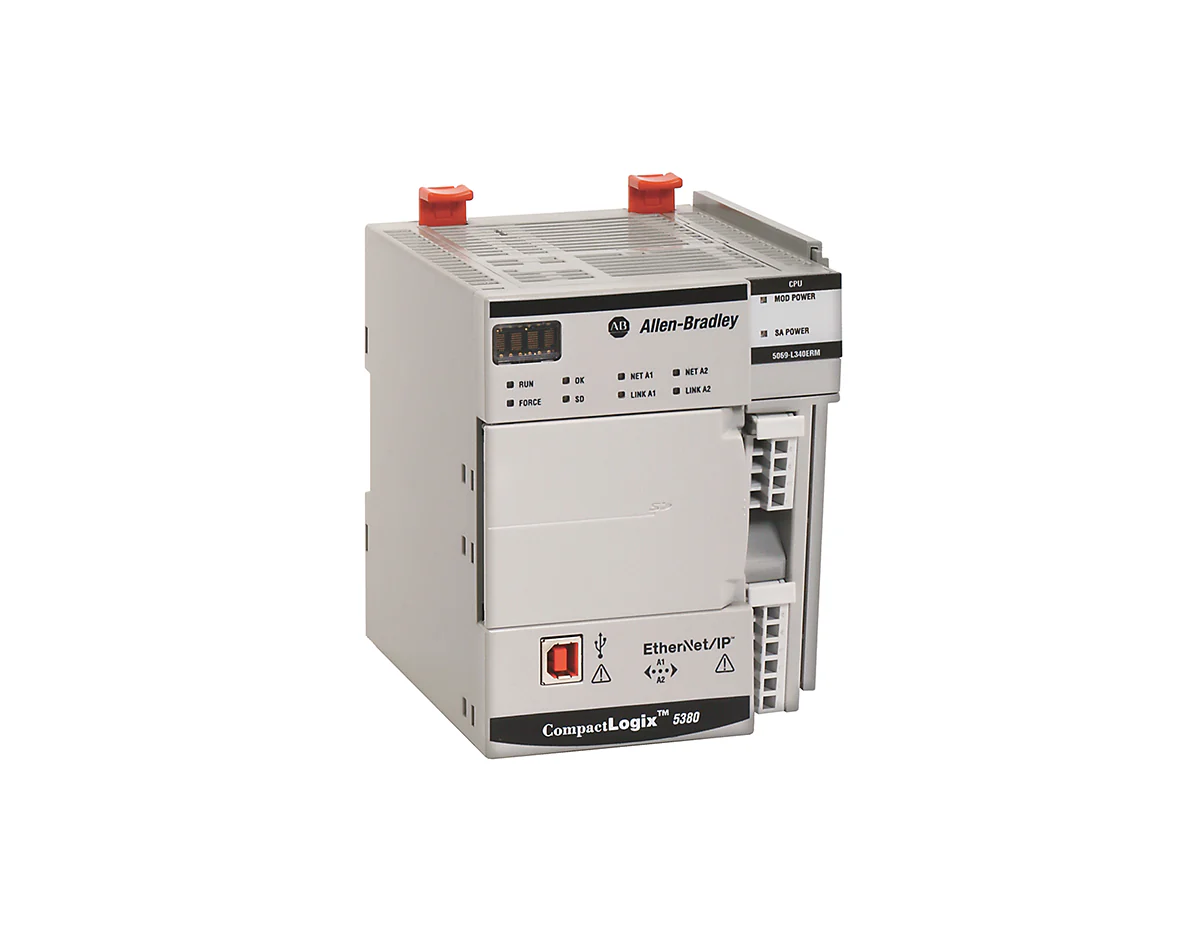

Allen-Bradley 5069-L306ER/A CompactLogix 5380 Controller

The Allen-Bradley 5069-L306ER/A is a 5380 CompactLogix controller. This Programmable Automation Controller (PAC) is equipped with compact and expandable hardware, making it suitable for a diverse range of industrial applications across various sectors. The 5069-L306ER is notable for its embedded 0.6 MB user memory, which does not rely on a battery for operation due to its energy storage solution. This feature allows the user's memory to retain its contents without the need for a battery. Furthermore, the 5069-L306ER comes with a 1784-SD2 Secure Digital (SD) Card boasting a memory size of 2GB.

Quick Specs:

• 6 MB memory
• EtherNet/IP, EtherNET/OCPP
• Max EtherNet/IP Nodes:16
• Support up to 31 local Compact 5000 I/O modules

Please see the related tabs for the 5069-L306ER/A datasheet and compatible accessories.
