[shortdesc]

• Provides reliable power delivery to PoE-enabled devices supporting up to 15.4 W, Data Rate: 10/100/1000 Mbps.

[/shortdesc]

[properties]

Product Name	AXIS T8120 15W Midspan 1-Port
Description	The AXIS T8120 15W Midspan 1-Port is a compact, cost-effective Power over Ethernet (PoE) injector designed to deliver 15.4 W of power to network devices over Ethernet cables. Compatible with IEEE 802.3af standards, it provides a reliable solution for powering network cameras and other PoE-enabled devices in small to medium-sized setups.
Power Output	48 V DC (max 15.4 W per port), supporting PoE-powered devices
Data Rate	Supports 10/100/1000 Mbps Ethernet speeds
Connectors	Shielded RJ45 connectors, EIA 568A/568B standard
Input Power	100–240 V AC, 50–60 Hz
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F), humidity range of 10–90% RH (non-condensing)
Dimensions	33 mm x 53 mm x 140 mm (1.3 in x 2.1 in x 5.5 in)
Weight	450 g (1 lb)
Installation Type	Plug-and-play with automatic device detection, local LED management display, and IEEE 802.3af auto-sensing for simplified installation
Compatibility	IEEE 802.3af standard, compatible with a wide range of Axis network devices
Environmental Use	Indoor use, tested within temperature and humidity ranges suitable for controlled environments
Compliance Standards	Complies with EN 62368-1, FCC Part 15 Class B, EN 55022, RCM AS/NZS CISPR 22 Class B, KCC KN32 Class A, KN35, IS 13252, CE

[/properties]

[specifications]

IEEE Standard	IEEE 802.3af compliant for Power over Ethernet (PoE) applications
Efficiency	Tested to meet 90% efficiency under typical load conditions (as per IEEE 802.3af standard)
Thermal Testing	Operationally stable up to 40°C in continuous use, with heat dissipation via passive cooling
EMC Compliance	Meets EN 55032, EN 55024, FCC Part 15 standards
Overload Protection	Includes built-in overload, over-voltage, and short-circuit protection for enhanced safety
Power Consumption	Typical consumption matches input and output requirements for efficient power distribution
Noise Level	Designed for silent operation, with noise levels below 20 dB
Power Efficiency	Power factor correction of ≥ 0.9 at typical loads
Environmental Safety	RoHS 3 compliant (Directive 2015/863/EU)
Humidity Testing	Validated for operation in 20–80% relative humidity without performance degradation
Build Quality	Constructed with high-durability components rated for 10-year operational life at 25°C
Mounting Options	Supports wall or shelf mounting only
Reliability	Continuous operational testing conducted over 48 hours in controlled environments without thermal shutdown
Color	Neutral black finish suitable for integration in various environments
Firmware Updates	Not applicable

[/specifications]

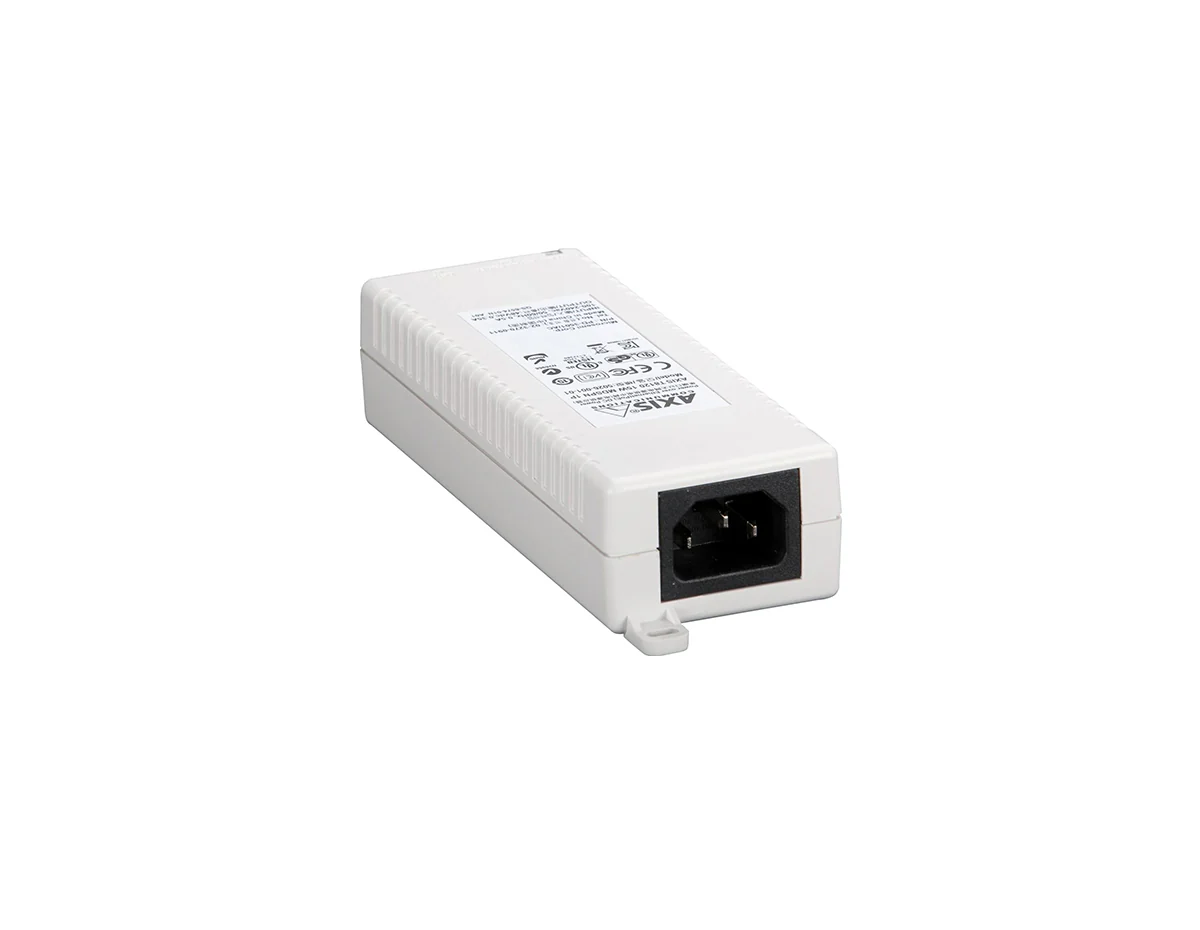

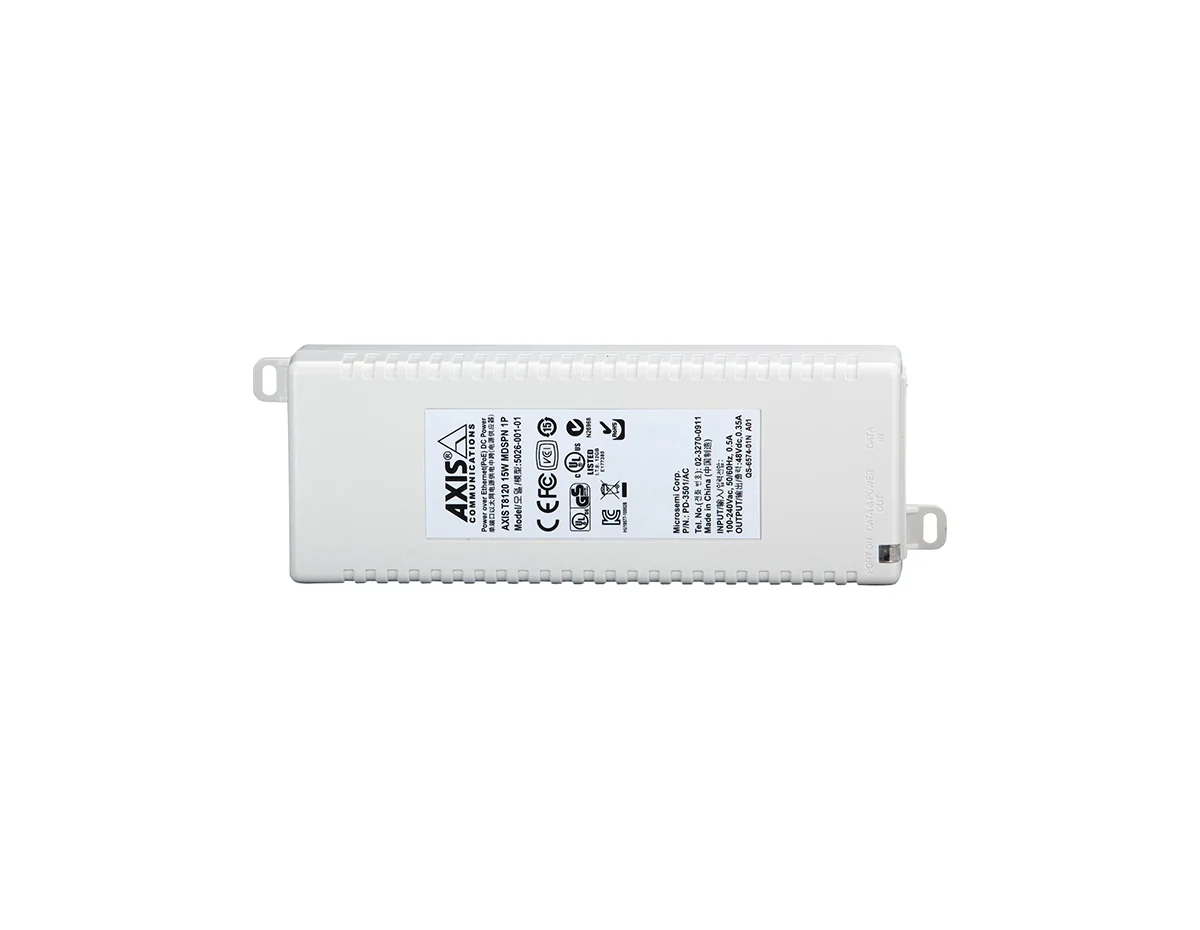

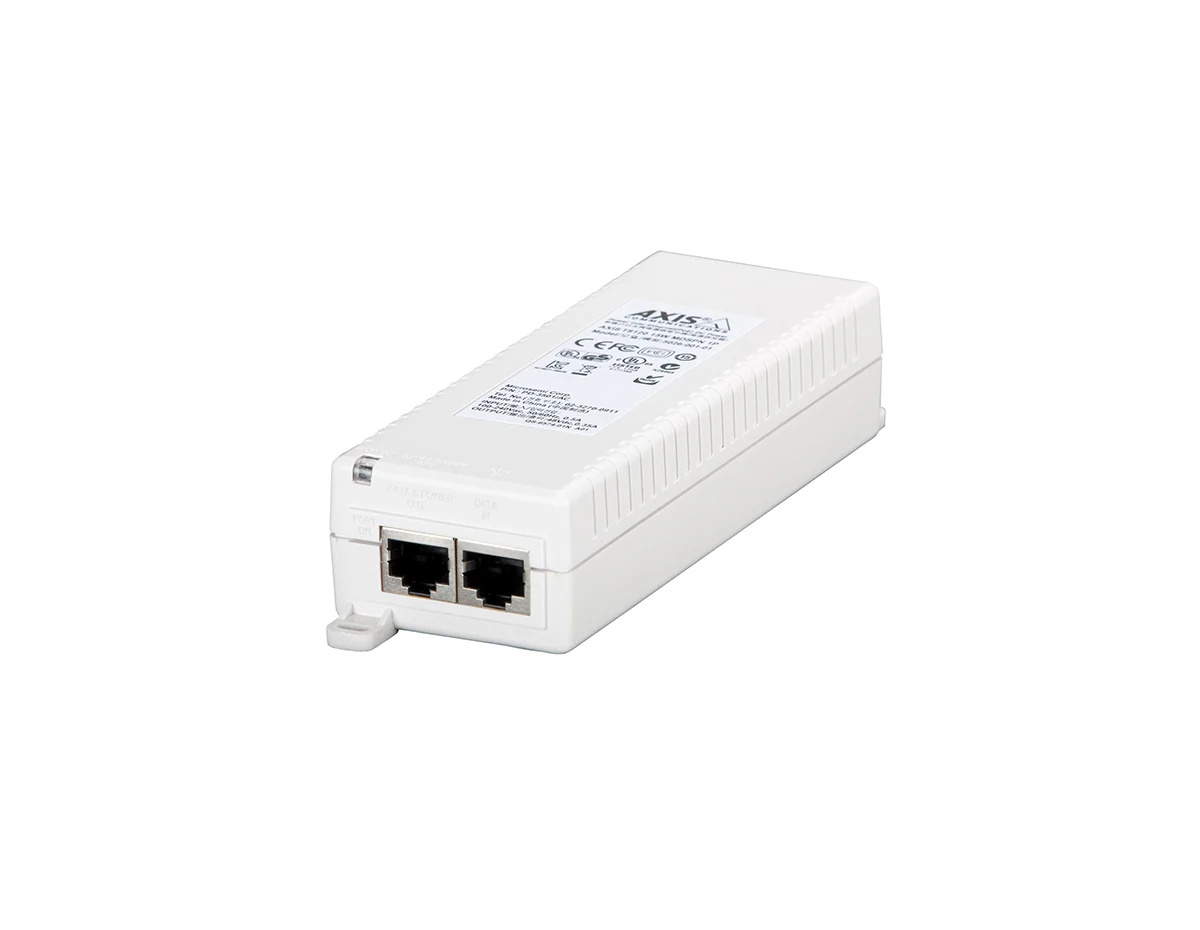

AXIS T8120 15W Midspan 1-Port

The AXIS T8120 15W Midspan 1-Port is a compact and cost-effective Power over Ethernet (PoE) solution designed to power network devices through existing Ethernet cables. Delivering up to 15.4 W of power per port, it complies with IEEE 802.3af standards, making it compatible with a wide range of Axis network devices. The midspan eliminates the need for additional power cables, offering an easy plug-and-play installation. It's ideal for powering network cameras and other PoE devices in small to medium-sized installations.

Key Features:

• 15.4 W PoE Power: Provides reliable power delivery to PoE-enabled devices, supporting up to 15.4 W per port.
• Plug-and-Play Installation: Automatically detects and powers PoE-enabled devices for simple and fast setup.
• IEEE 802.3af Compliance: Ensures compatibility with most Axis network products with built-in PoE support.
• Cost-Effective Solution: Reduces installation costs by eliminating the need for additional power cables.
• Compact Design: Fits easily into network setups with its small form factor and versatile mounting options.

Technical Specifications:

• Power Output: 15.4 W per port, 48 V DC
• Data Rate: 10/100/1000 Mbps
• Connectors: Shielded RJ45, EIA 568A/568B
• Power Input: 100–240 V AC, 50–60 Hz
• Operating Conditions: 0 °C to 40 °C (32 °F to 104 °F)
• Dimensions: 33 x 53 x 140 mm (1.3 x 2.1 x 5.5 in)
• Weight: 450 g (1 lb)
• Compliance: IEEE 802.3af, cUL/UL, TUV, CE
• Input Current: 100–240 V AC, 47–63 Hz, max 0.5 A
• Power Consumption: 2 W with no device connected, 18.9 W with 15.4 W load

For more information about the AXIS T8120 15W Midspan 1-Port, visit the Axis product page.
