[shortdesc]

• Enables Ethernet and PoE connections beyond 100 meters (328 feet), The extender is powered directly by the PoE switch or midspan, Data Rate: 10/100 Mbps half/full duplex.

[/shortdesc]

[properties]

Product Name	Axis T8129 Power over Ethernet Extender
Description	Allows Ethernet and PoE connections beyond 100 meters (328 feet), enabling flexible placement of Axis network video products.
Extended Distance	Extends Ethernet and PoE connections beyond the standard 100 meters, with one T8129 added per additional 100 meters.
Power Supply	No additional power supply needed; powered directly by the PoE switch or midspan.
Network Throughput	Maintains full network speed over extended distances for reliable performance.
Plug-and-Play Installation	Forwards in-line power to PoE and High PoE devices automatically, requiring no manual configuration.
Compatibility	Compatible with IEEE 802.3af and IEEE 802.3at standards, suitable for a variety of Axis network devices.
Recommended Use	Ideal for installations needing Ethernet and PoE connections beyond 100 meters.
Mounting Options	Can be mounted on a wall or shelf, offering flexible installation options.

[/properties]

[specifications]

Data Rate	10/100 Mbps half/full duplex, ensuring stable and fast network connections.
Connectors	Shielded RJ45, compatible with EIA 568A and 568B standards for secure connectivity.
Network Cable Requirements	Requires shielded Category 5 or higher network cables for optimal performance.
Operating Temperature	Operates between -10 °C to 50 °C (14 °F to 122 °F), suitable for various environments.
Humidity	Max 85% RH (non-condensing), designed for indoor installations.
Dimensions	105 x 40 x 22 mm (4.1 x 1.6 x 0.9 in), compact size for convenient placement.
Weight	45 g (1.6 oz), lightweight for easy installation.
Compliance	Supports IEEE 802.3af and IEEE 802.3at standards, ensuring broad device compatibility.
Installation	Easy to install with plug-and-play functionality, requiring minimal setup.
Scalability	Can extend network connections by 100 meters per extender, adaptable to different project needs.

[/specifications]

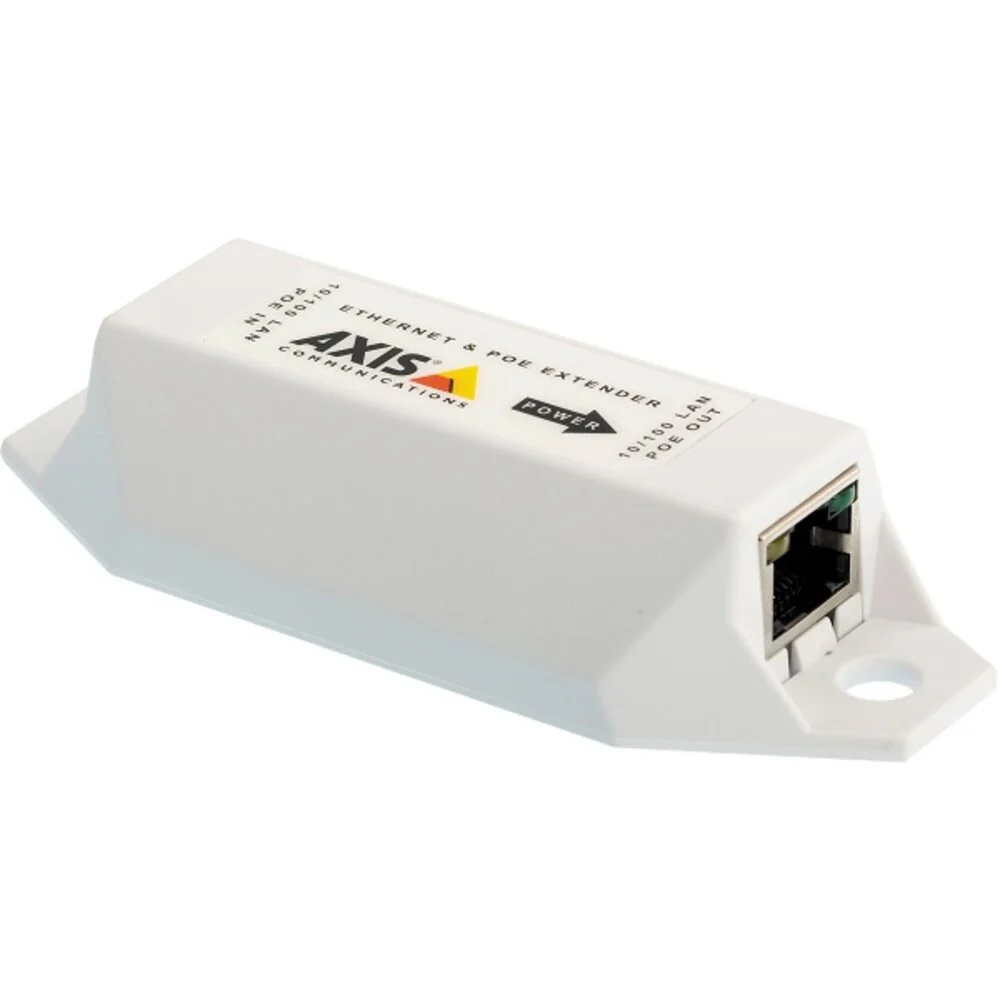

Axis T8129 Power over Ethernet Extender

The Axis T8129 Power over Ethernet Extender is the ideal solution for extending the distance between Axis network video products beyond the standard 100 meters (328 feet). By adding an AXIS T8129 for every additional 100 meters of cable, you can extend both Ethernet and PoE connections to greater distances, depending on the camera model and power source. This extender does not require an additional power supply, as the connected network camera is powered by a single PoE switch or midspan, simplifying installation. With plug-and-play installation, the extender maintains full-rate network throughput across the extended distance.

Key Features:

• Extended Distance: Enables Ethernet and PoE connections beyond 100 meters (328 feet), allowing for more flexible installations.
• No Additional Power Supply Needed: The extender is powered directly by the PoE switch or midspan, simplifying installation.
• Full-Rate Network Throughput: Maintains full network speed across the entire extended distance, ensuring reliable performance.
• Plug-and-Play Installation: Automatically forwards in-line power to PoE and High PoE-enabled devices, with no manual configuration required.
• Compatibility: Works with IEEE 802.3af and IEEE 802.3at standards, making it compatible with a wide range of Axis network devices.

Technical Overview:

• Recommended for: Extending the distance of Ethernet and PoE connections in installations where the standard 100 meters is not sufficient.
• Data Rate: 10/100 Mbps half/full duplex.
• Connectors: Shielded RJ45, EIA 568A and 568B.
• Network Cables: Requires shielded Category 5 (or higher) cables.
• Operating Conditions: -10 °C to 50 °C (14 °F to 122 °F), humidity max. 85% RH (non-condensing).
• Dimensions: 105 x 40 x 22 mm (4.1 x 1.6 x 0.9 in).
• Weight: 45 g (1.6 oz).
• Mounting Options: Can be mounted on a wall or shelf.

You can check the related tab for the Axis T8129 Power over Ethernet Extender datasheet.
