[shortdesc]

• 4K Ultra HD Resolution, Provides clear images in complete darkness with OptimizedIR range of 50 m or more (depending on the scene), Varifocal 3.9–10 mm F1.5 with horizontal field of view: 115°–45°.

[/shortdesc]

[properties]

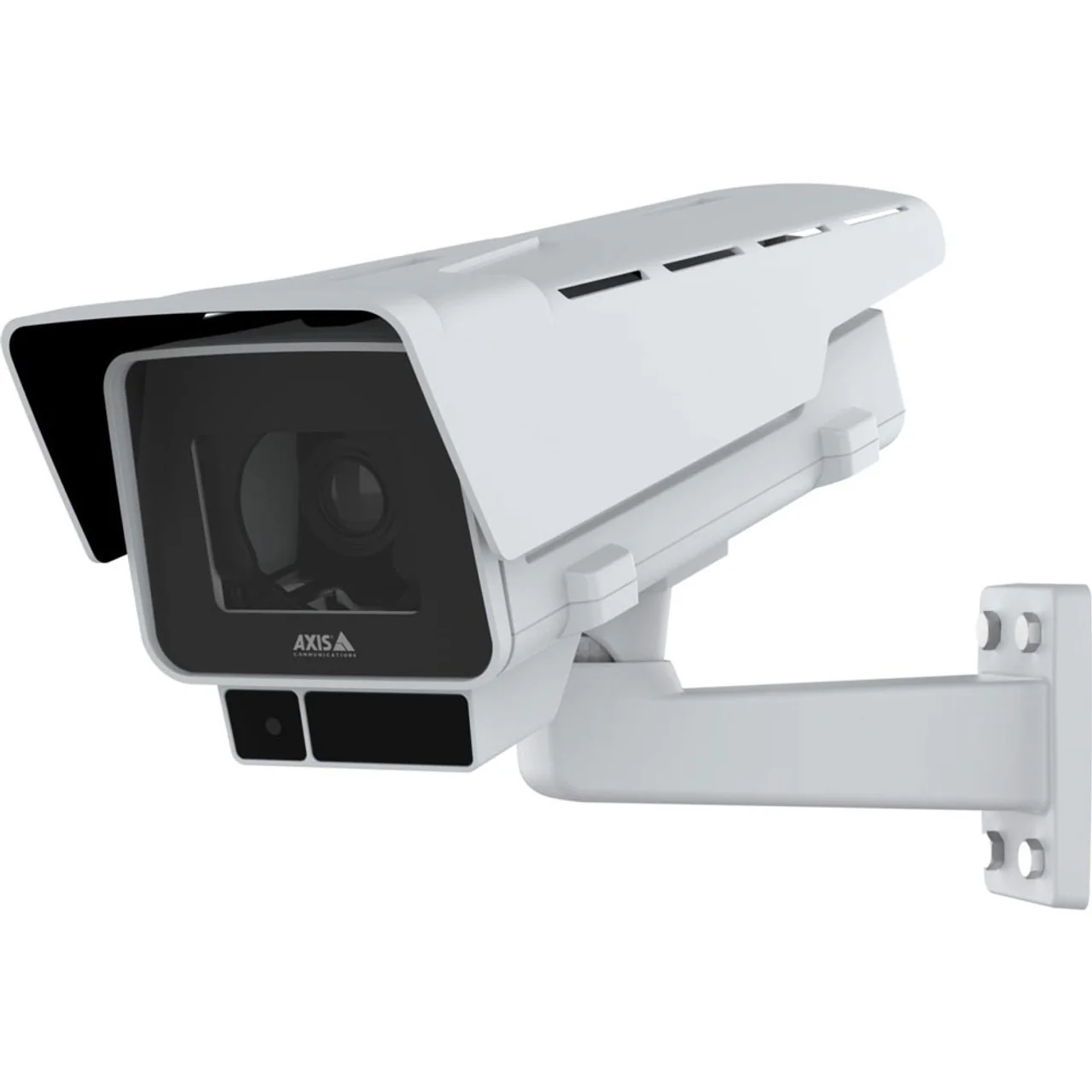

Product Name	AXIS P1378-LE Network Camera
Description	The AXIS P1378-LE is a high-performance outdoor network camera offering 4K Ultra HD resolution, ideal for detailed surveillance. Featuring OptimizedIR with range of 50 m or more (depending on the scene), and Forensic WDR for excellent performance in challenging lighting. Its rugged design includes tamper detection, shock detection, and electronic image stabilization to maintain stable video in harsh conditions.
Resolution	3840x2160 (4K Ultra HD) at 30 fps
Optical Technology	Forensic WDR, Lightfinder, and OptimizedIR for 50 m or more in complete darkness (scene dependent)
Lens	IR-corrected CS-mount varifocal 3.9–10 mm F1.5, P-Iris, motorized i-CS compatible; horizontal FOV 115°–45°
Power Supply	12–28 V DC or PoE IEEE 802.3af/at Type 1 Class 4 (typical 11.7 W, max 25.5 W including heater)
Dimensions	404 mm x 159 mm x 168 mm (15.9 in x 6.3 in x 6.6 in)
Weight	2.4 kg (5.3 lb)
Mounting Options	Wall, pole, or corner mount with additional accessories
Environmental Use	Suitable for outdoor installations with IK10, IP66/IP67 and NEMA 4X ratings
Impact Resistance	IK10-rated for protection against vandalism and impacts up to 20 joules
Image Stabilization	Electronic image stabilization to counteract camera vibrations
Cybersecurity	Signed firmware, secure boot, and Axis Edge Vault for device security
Audio	Two-way, full-duplex audio with external mic/line-in and line-out; codecs: AAC-LC, G.711, G.726, Opus, LPCM
SoC & Memory	ARTPEC-7, 2 GB RAM, 512 MB Flash

[/properties]

[specifications]

Image Sensor	1/1.8” progressive scan RGB CMOS
Field of View	Horizontal: 115°–45°; Vertical: 62°–25° (without window protection) or 61°–25° (with window protection)
OptimizedIR	50 m or more, depending on the scene
Bandwidth Optimization	Axis Zipstream technology with H.264 and H.265 support, reducing bandwidth by up to 50%
Low-Light Sensitivity	Lightfinder technology enables color video capture at 0.15 lux illumination
Ingress Protection	IP66/IP67 and NEMA 4X-rated for harsh outdoor environments
Temperature Tolerance	Operates reliably between -40°C and 60°C (-40°F to 140°F)
Tamper Detection	Integrated shock detection and tampering alarms for security notifications
Power Consumption	Max 20.7 W via PoE (device total); typical 11.7 W; up to 25.5 W including heater
Vibration Resistance	Tested for continuous stability under vibrations of 5–500 Hz, meeting IEC 60068 standards
Humidity Resistance	10–100% RH (condensing)
Reliability	Passed 48-hour stress tests at maximum operating temperature for durability
Material Composition	Constructed with corrosion-resistant materials suitable for outdoor environments
Safety Certifications	IEC/EN/UL 62368-1, 60950-22; FCC; other regional marks as applicable
Environmental Safety	RoHS 3 compliant (Directive 2015/863/EU)
Mounting Compatibility	Compatible with Axis wall, pole, and corner mounts
Maintenance	Minimal maintenance required; durable design for extended outdoor performance
Firmware Updates	Supports secure, remote firmware updates for enhanced security
Color Finish	White NCS S 1002-B

[/specifications]

AXIS P1378-LE Network Camera

The AXIS P1378-LE Network Camera offers exceptional image quality in 4K resolution, making it ideal for detailed outdoor surveillance. With its robust design, the camera can operate in extreme temperatures ranging from -40 °C to 60 °C (-40 °F to 140 °F). The camera includes OptimizedIR with a range of 50 m or more depending on the scene, and Forensic WDR to capture clear details in challenging lighting conditions. Designed as a deterrent, it features electronic image stabilization, shock detection, and tampering alarms. The camera supports Axis Zipstream technology, reducing bandwidth and storage requirements without compromising image quality.

Key Features:

• 4K Ultra HD Resolution: Delivers detailed and sharp images for effective outdoor surveillance.
• OptimizedIR Technology: Provides clear images in complete darkness with OptimizedIR range of 50 m or more (depending on the scene)
• Forensic WDR and Lightfinder Technology: Ensures high-quality video in both low-light and high-contrast conditions.
• Rugged Design: IK10, IP66, IP67, and NEMA 4X-rated for protection against impact, dust, water, and corrosion.
• Electronic Image Stabilization: Reduces the effects of camera vibrations for clear and stable video.
• Cybersecurity Features: Includes signed firmware, secure boot, and Axis Edge Vault for enhanced security.

Technical Specifications:

• Image Sensor: 1/1.8” progressive scan RGB CMOS
• Lens: IR-corrected CS-mount varifocal 3.9–10 mm, F1.5, P-Iris, motorized i-CS compatible; horizontal FOV 115°–45°; vertical FOV 62°–25° (w/o window) or 61°–25° (with window)
• Resolution: 3840x2160 (4K) to 160x90
• Power: 12–28 V DC or PoE IEEE 802.3af/at Type 1 Class 4 (typical 11.7 W, max 25.5 W including heater)
• Operating Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
• Dimensions: 404 x 159 x 168 mm (15.9 x 6.3 x 6.6 in)
• Weight: 2.4 kg (5.3 lb)

For more information about the AXIS P1378-LE Network Camera, visit the Axis product page.

This product has been discontinued. The manufacturer’s suggested replacement is P1388-LE (02738-001)
