[shortdesc] USB-C universal docking, triple 4K display support, 100W power delivery, 11+ ports connectivity, Gigabit Ethernet, enterprise IT features [/shortdesc]

[properties]

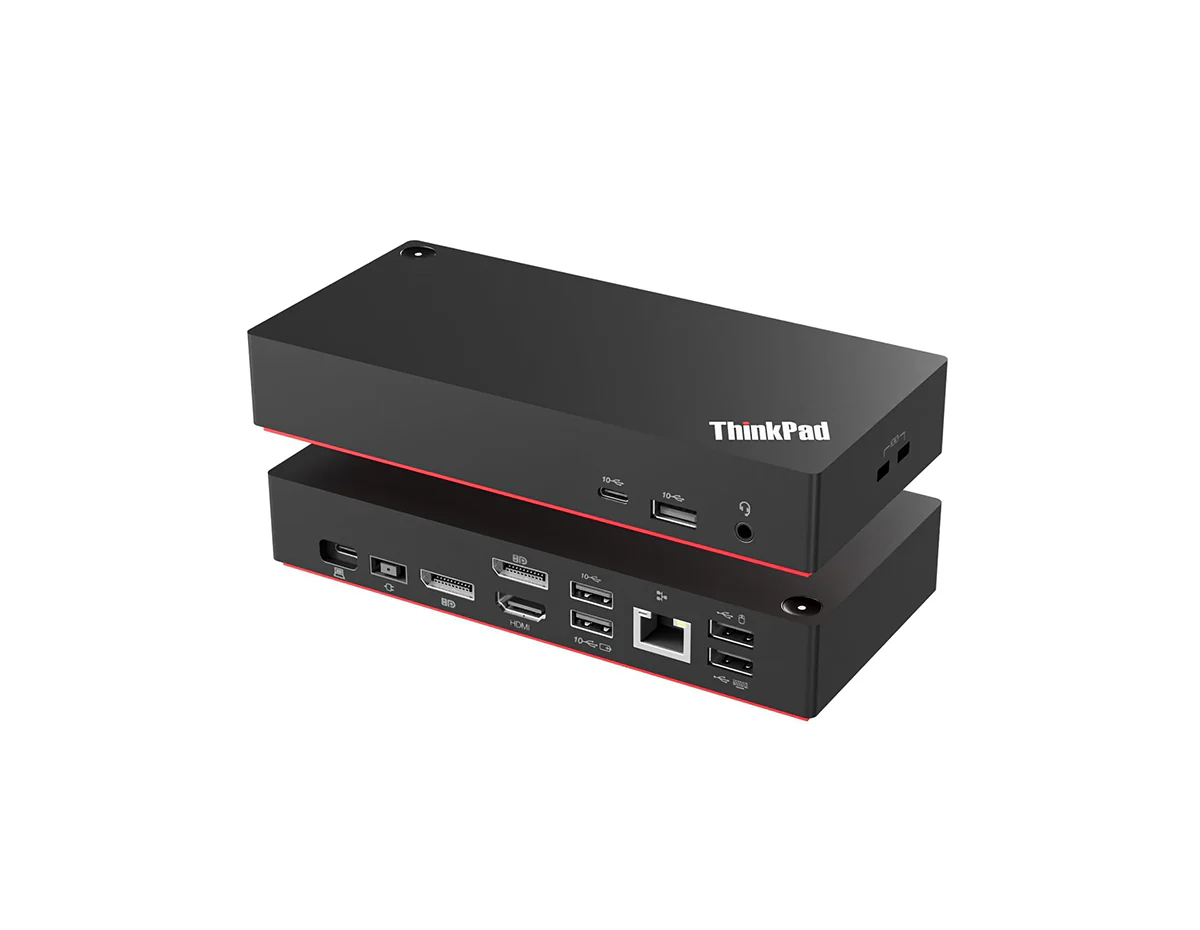

Model	Lenovo ThinkPad Universal USB-C Dock
Part Number	40AY0090
Product Type	USB-C Docking Station
Docking Interface	USB-C
Compatibility	USB-C laptops (Windows 10 and above)
Number of Ports	11+ ports
Video Ports	2 x DisplayPort 1.4, 1 x HDMI 2.0
USB Ports	3 x USB-A 3.1 Gen 2, 2 x USB-A 2.0, 1 x USB-C
Networking	1 x Gigabit Ethernet
Audio	1 x 3.5 mm Combo Audio Jack
Charging Capability	65W (with 90W adapter), up to 100W (with 135W adapter)
Power Input	90W power adapter
Security	Kensington lock slot, NanoSaver lock slot
Max External Displays	Up to 3 monitors
Max Resolution	Up to 4K (3840 x 2160)
Dimensions (W x D x H)	171 x 80 x 30 mm
Weight	Starting at 325 g
Color	Black
Operating Temperature	-20 °C to 60 °C
Operating Humidity	5% to 95%
Certifications	FCC, CE, cULus, EAC, TUV Mark, VCCI and others

[/properties]

[specifications]

Docking Cable	1 m USB-C cable
Display Support	Up to 3 external displays
Video Output Capability	2 x 4K @60Hz, 1 x 4K @30Hz
USB Data Transfer	Up to 10 Gbps (USB 3.1 Gen 2)
USB-C Port	10 Gbps, 5V / 3A
Always-On Charging	Supported on 1 USB-A port
System Charging	65W standard, up to 100W with optional adapter
Networking	Gigabit Ethernet
Audio Support	3.5 mm combo audio
Driver Requirement	Yes
Power Delivery	Supported
Power Button	Supported
Firmware Management	Automatic firmware updates supported
IT Features	PXE boot, Wake-on-LAN, MAC address pass-through
Operating Systems	Windows 10, Windows 11
Security Features	Dual lock slots for physical security

[/specifications]

[accesories]

Included	ThinkPad Universal USB-C Dock; 90W Power Adapter; Power Cord; USB-C Cable; Documentation
Optional	135W Slim Tip Power Adapter (for 100W charging); Dock Mounting Bracket

[/accesories]

Transform Any Workspace with One-Cable Simplicity

The Lenovo ThinkPad Universal USB-C Dock 40AY0090 is engineered for modern hybrid work environments. Designed to simplify connectivity, this universal docking station enables seamless integration across multiple devices while delivering high-speed data, multi-display output, and intelligent power management. With broad compatibility and enterprise-grade features, it empowers IT teams and professionals to work smarter and more efficiently.

Key Benefits & Features

• Universal USB-C Compatibility: Works with most USB-C laptops and Windows systems, making it ideal for mixed-device environments and enterprise deployments.
• Triple 4K Display Support: Connect up to three external monitors with 2x DisplayPort and 1x HDMI for enhanced multitasking and productivity.
• Power Delivery up to 100W: Efficiently charges laptops via a single cable, supporting up to 100W with optional adapter for high-performance devices.
• 11+ Port Expansion: Includes USB-A, USB-C, Ethernet, audio, and display ports for full workstation connectivity without additional hubs.
• Enterprise IT Features: Supports PXE boot, Wake-on-LAN, and MAC address pass-through for advanced network and device management.

Ideal Use Cases

• Corporate workstations and enterprise IT environments
• Hybrid and remote workforce setups
• Hot-desking and shared office spaces
• Multi-monitor productivity workstations
• IT-managed deployments requiring remote monitoring

Technical Specifications

• Docking Interface: USB-C
• Video Outputs: 2 x DisplayPort 1.4, 1 x HDMI 2.0
• Max Display Support: Up to 3 external displays (4K supported)
• USB Ports: 3 x USB 3.2 Gen 2, 2 x USB 2.0, 1 x USB-C
• Networking: 1 x Gigabit Ethernet
• Power Delivery: 65W standard, up to 100W with optional adapter
• Audio: 3.5 mm combo audio jack
• Dimensions: 171 x 80 x 30 mm
• Weight: Approx. 325 g
• Security: Kensington lock slot and NanoSaver lock slot

Upgrade Your Workspace with Smart Docking

Streamline your setup and maximize productivity with Lenovo’s universal docking solution. Order today and transform how you work.
