[shortdesc]

• Expected Duration of Operation: 14 hours, Power Options: Battery: 2400 mAh Li-ion minimum

[/shortdesc]

[properties]

Product Name	Honeywell Voyager XP 1472g Cordless Scanner (1472G1D-2USB-5-R)
Product Description	Cordless area-imaging scanner for retail, designed for high-accuracy 2D scanning
Operating Temperature	5°C to 40°C (charging), 0°C to 50°C (non-charging)
Storage Temperature	-40°C to 60°C
Humidity	0% to 95% relative humidity, non-condensing
Tumble Spec	1,000 tumbles from 0.5 m
Drop Specification	Withstands 30 drops from 1.8 m to concrete
Environmental Sealing	IP52-rated
Light Levels	0 to 100,000 lux
Battery	2400 mAh Li-ion, 14-hour operation per charge
Charging Time	Approximately 4.5 hours
User Indicators	Good Decode LEDs, Rear View LEDs, Adjustable Beeper
Dimensions	62 mm x 173 mm x 82 mm
Weight	210 g
Wireless Range	30 m line of sight
Host System Interfaces	USB, Keyboard Wedge, RS-232, RS485 for IBM 46xx
Barcode Types	Standard 1D, PDF, 2D, and DotCode symbologies
Scan Angle	Horizontal: 39.2°; Vertical: 27.4°

[/properties]

[specifications]

Wireless Communication	2.4 GHz to 2.5 GHz (ISM Band), Bluetooth v4.2
Battery Capacity	2400 mAh Li-ion
Battery Life	Up to 14 hours per charge
Charging Time	4.5 hours to full charge
Scan Pattern	Area Image (1040 x 720 pixel array)
Motion Tolerance	70 cm/s for 13 mil UPC
Print Contrast	Minimum 20%
Operating Power	2.5 W (charging), 0.5 W standby
Scanner Weight	210 g
Base Dimensions	132 mm x 102 mm x 81 mm
Base Weight	179 g
Temperature Range	Operating: 5°C to 40°C (charging), 0°C to 50°C (non-charging)
Storage Temperature	-40°C to 60°C
Humidity Tolerance	0% to 95% RH, non-condensing
Environmental Rating	IP52-rated for dust and moisture resistance
Drop Specification	Engineered to withstand 30 drops from 1.8 m to concrete
Host Interfaces	USB, Keyboard Wedge, RS-232, RS485 for IBM 46xx
Scan Performance	Reads 1D, PDF, 2D, DotCode symbologies

[/specifications]

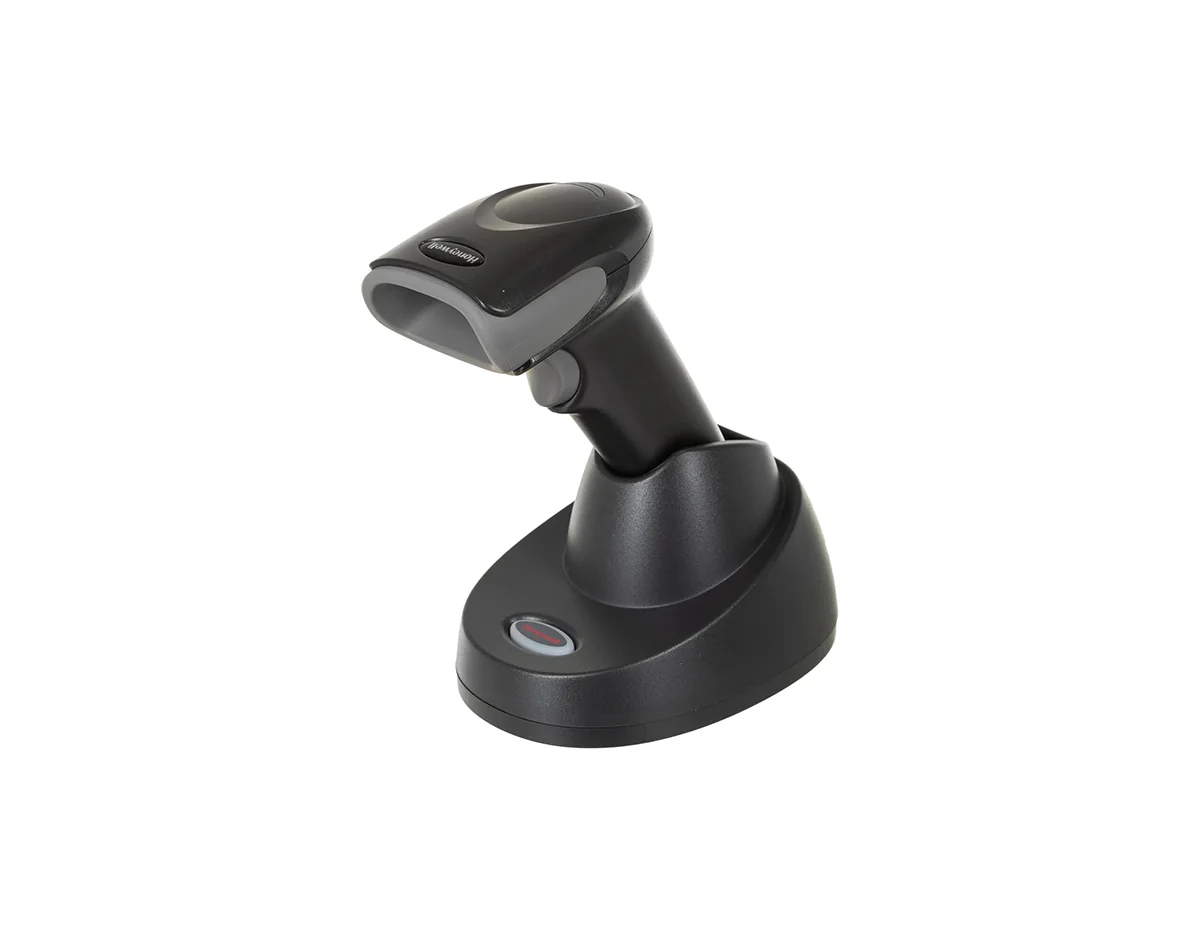

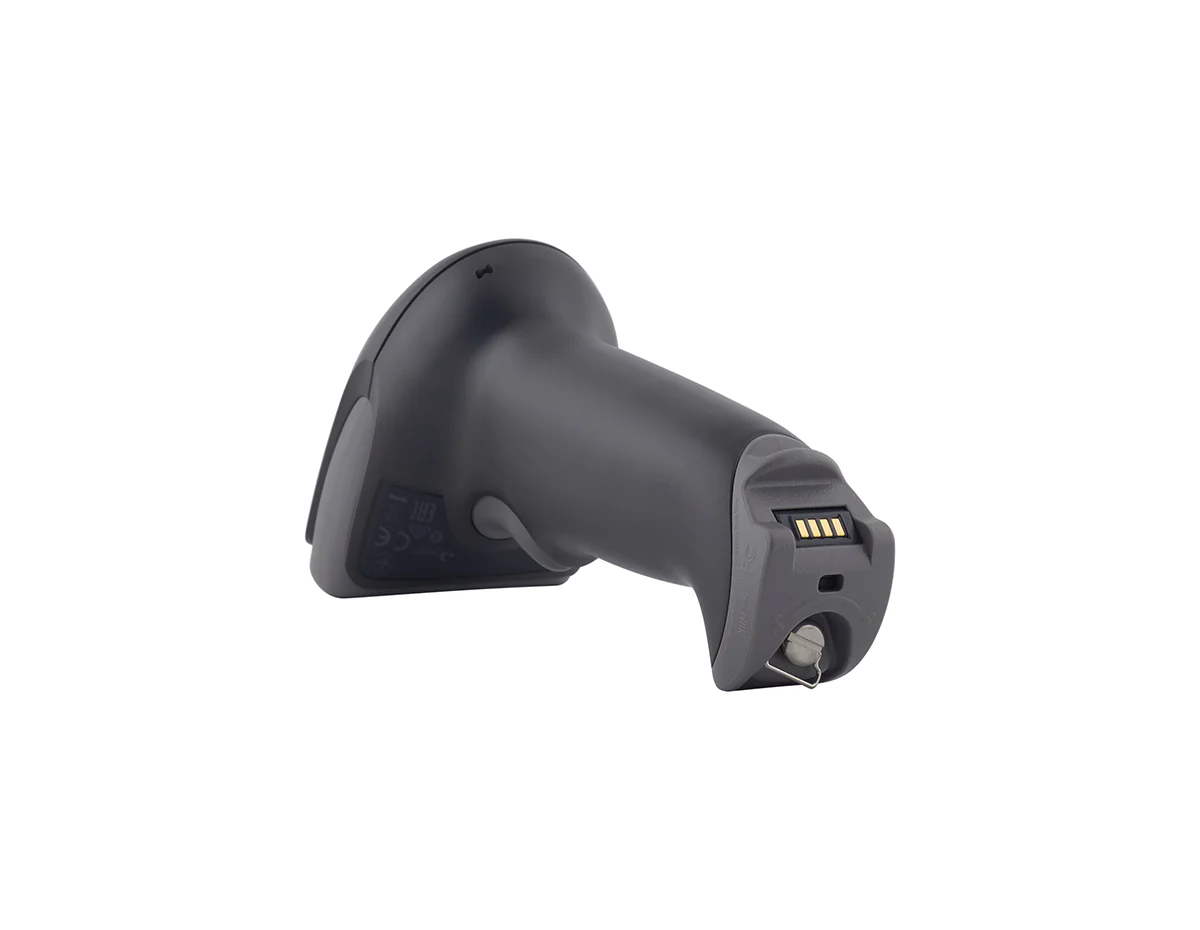

Honeywell 1472G1D-2USB-5-R Voyager XP 1472g Cordless Scanner

Designed for in-store retail environments requiring a highly accurate 2D scanning solution in a durable form factor, the Voyager™ Extreme Performance (XP) 1472g cordless scanner delivers industry-leading scanning capability on traditional barcodes and digital screens – even on damaged and difficult-to-read codes.

Quick Specs:

• Operating Temperature: 5°C to 40°C (41°F to 104°F) charging, 0°C to 50°C (32°F to 122°F) non-charging
• Storage Temperature: -40°C to 60°C (-40°F to 140°F)
• Humidity: 0% to 95% relative humidity, non-condensing
• Tumble Spec: 1,000 0.5 m (1.6 ft) tumbles (impacts)
• Drop: Engineered to withstand 30 1.8 m (6 ft) drops to concrete
• Environmental Sealing: IP52
• Light Levels: 0 to 100,000 lux (9,290 foot-candles)

Wireless:

• Radio/Range: 2.4 GHz to 2.5 GHz (ISM Band), Adaptive Frequency Hopping Bluetooth v4.2
• Range: 30 m (98 ft) line of sight with Honeywell charger/communication base
• Power Options: Battery: 2400 mAh Li-ion minimum
• Number of Scans: Up to 50,000 scans per charge
• Expected Duration of Operation: 14 hours
• Expected Charge Time: 4.5 hours
• User Indicators: Good Decode LEDs, Rear View LEDs, Beeper (adjustable tone and volume)

Mechanical/Electrical:

• Dimensions (L x W x H): 62 mm x 173 mm x 82 mm (2.5 in x 6.8 in x 3.2 in)
• Charger/Communication Base: (CCB01-010BT-V1N) 132 mm x 102 mm x 81 mm (5.2 in x 4.0 in x 3.2 in)
• Scanner Weight: 210 g (7.4 oz)
• Charger/Communication Base: 179 g (6.3 oz)
• Operating Power (Charging): 2.5 W (0.5A @ 5V)
• Standby Power: Charger/Communication Base: 0.5 W (0.1A @ 5V)
• Host System Interfaces: USB, Keyboard Wedge, RS-232, RS485 support for IBM 46xx (RS485)

Scan Performance:

• Scan Pattern: Area Image (1040 x 720 pixel array)
• Motion Tolerance: 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus
• Print contrast: 20%
• Scan Angle: Horizontal: 39.2° nominal, Vertical: 27.4° nominal
• Roll, Pitch, Skew: ±180°, ±65°, ±70°
• Barcode Types: Reads standard 1D, PDF, 2D, and DotCode symbologies
