[shortdesc]

• Interface Type: USB, Scan Speed: 270 scan/sec, Scan Element Type: Linear Imager

[/shortdesc]

[properties]

Product Name	Honeywell Hyperion 1300g Barcode Scanner (1300G-1USB)
Description	The Honeywell Hyperion 1300g is a reliable and high-performance barcode scanner designed to meet the needs of various industries. With its versatile capabilities and robust build, it ensures efficient and accurate data capture.
Product Type	Barcode Scanner
Interface Type	USB
Connectivity Technology	Wired
Cables Included	1 x USB cable
Compliant Standards	RoHS, WEEE, cULus, IP41
Brand	Honeywell
Power Connector Type	Corded
Form Factor	Gun Shape
OK Notification	Beeper, LED indicator
Features	Automatic Interface Detection, Triggered
Standby Power	0.63 W
Operating Power	1 W
Input Voltage	5 V DC
Operating Temperature	32°F to 122°F (0°C to 50°C)
Storage Temperature Range	-40°F to 140°F (-40°C to 60°C)
Operating Humidity	0% to 95% (non-condensing)

[/properties]

[specifications]

Minimum Bar Width	3 mil
Scan Field Width	0.39 in - 25.98 in
Scan Element Type	Linear Imager
Scan Mode	Single-pass
Scan Speed	270 scan/sec
Max Working Distance	18 in
Skew (Degrees)	65
Pitch (Degrees)	65
Print Contrast Signal (PCS)	0.2
Depth of Field	0.5 - 26 in
Motion Tolerance	51 cm/s (20 in/s)
Scanning Range	Standard range (SR)
Decode Capability	Code 93, Matrix 2 of 5, Industrial 2 of 5, Code 39, Code 49, ISBT 128, ISBN, GS1 DataBar, Telepen, Code 32, EAN/JAN-13, UPC-A, Codabar, Code 128, Code 11, Interleaved 2 of 5, China Post, Korea Post, Codablock F, UPC-E1, UPC-E0, Trioptic Code, Plessey, GS1 DataBar Omnidirectional, GS1 DataBar Expanded, GS1 DataBar Limited, MSI, Straight 2 of 5
TTL Decoding	Decoded
Brightness	0 - 70,000 lux
Dimensions (W x D x H)	3.1 in x 4.4 in x 5.9 in (15 x 11.2 x 7.9 cm)
Weight	5.64 oz
Drop Specification	50 drops from 5 ft to concrete
Protection Ratings	IP41
Host System Interfaces	KBW, RS-232, RS-232C, RS-485, USB
Engine Type	1D Imager

[/specifications]

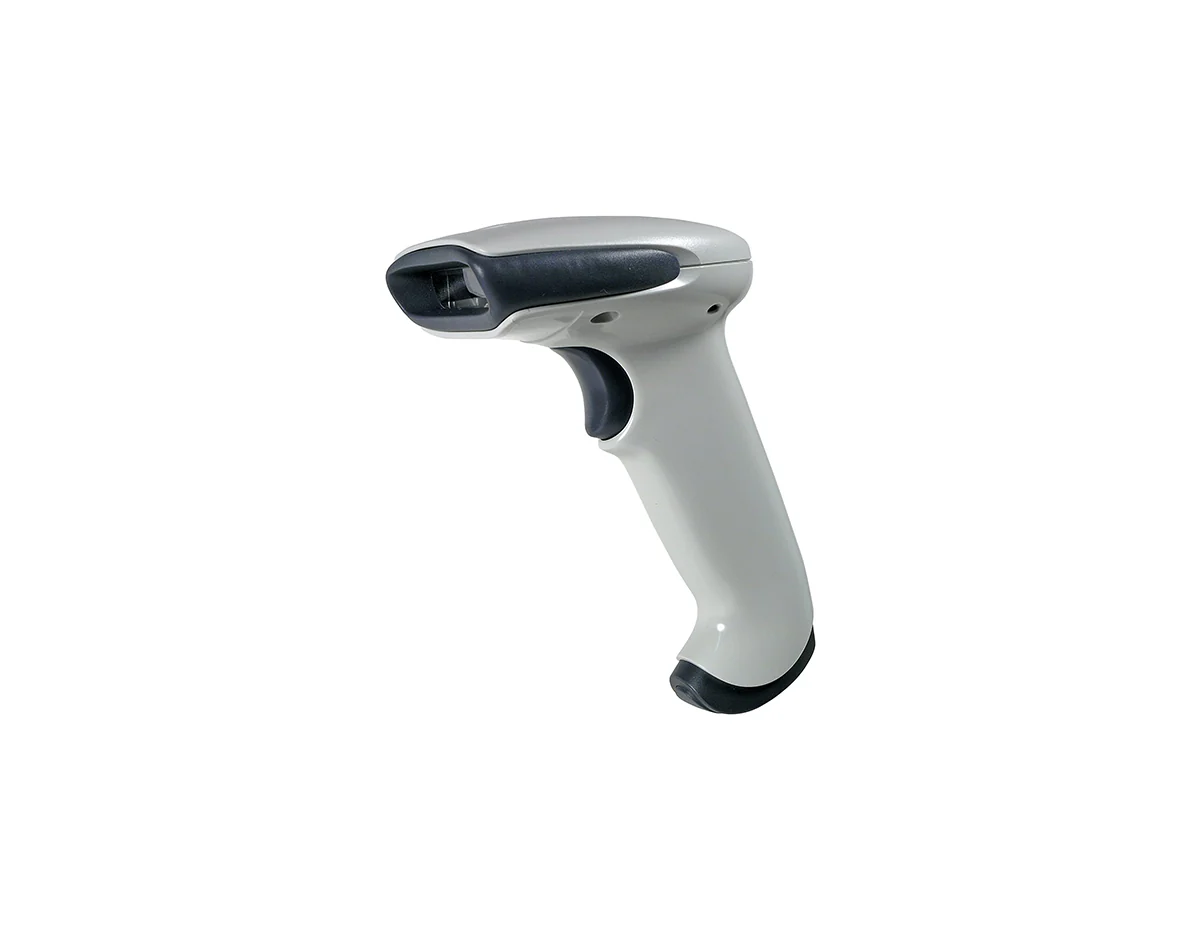

Honeywell Hyperion 1300g Barcode Scanner (1300G-1USB)

The Honeywell Hyperion 1300g is a reliable and high-performance barcode scanner designed to meet the needs of various industries. With its versatile capabilities and robust build, it ensures efficient and accurate data capture.

Quick Specs:

• Product Type: Barcode Scanner
• Interface Type: USB
• Minimum Bar Width: 3 mil
• Scan Field Width: 0.39 in - 25.98 in
• Scan Element Type: Linear Imager
• Scan Mode: Single-pass
• Scan Speed: 270 scan/sec
• Max Working Distance: 18 in
• Skew (Degrees): 65
• Pitch (Degrees): 65
• Print Contrast Signal (PCS): 0.2
• Decode Capability: Code 93, Matrix 2 of 5, Industrial 2 of 5, Code 39, Code 49, ISBT 128, ISBN, GS1 DataBar, Telepen, Code 32, EAN/JAN-13, UPC-A, Codabar, Code 128, Code 11, Interleaved 2 of 5, China Post, Korea Post, Codablock F, UPC-E1, UPC-E0, Trioptic Code, Plessey, GS1 DataBar Omnidirectional, GS1 DataBar Expanded, GS1 DataBar Limited, MSI, Straight 2 of 5
• TTL Decoding: Decoded
• Connectivity Technology: Wired
• OK Notification: Beeper, LED indicator
• Features: Triggered
• Interfaces: 1 x USB
• Cables Included: 1 x USB cable
• Compliant Standards: RoHS, WEEE, cULus, IP41
• Electric Current Required: 125 mA (standby)
• Dimensions (W x D x H): 3.1 in x 4.4 in x 5.9 in
• Weight: 5.64 oz

• Min Operating Temperature: 32°F
• Max Operating Temperature: 122°F
• Humidity Range Operating: 0 - 95% (non-condensing)
• Drop Specification: 5 ft to concrete
