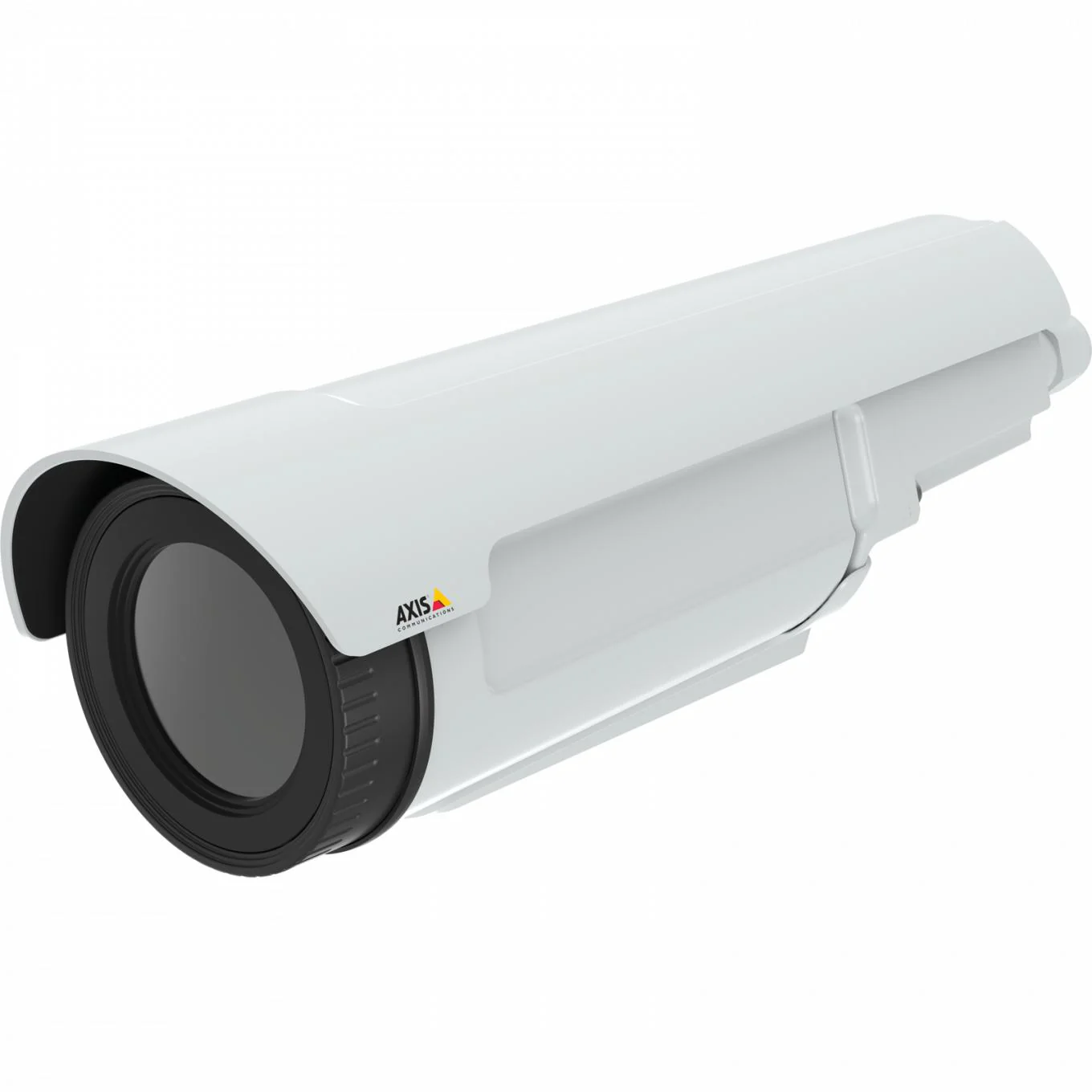

AXIS Q1942-E PT Mount 60 mm 8.3 fps Thermal Network Camera

The AXIS Q1942-E PT Mount 60 mm 8.3 fps Thermal Network Camera is designed for long-range detection in all weather conditions. With a 60 mm lens offering a narrow 10° horizontal field of view and an 8.3 fps frame rate, this camera is ideal for perimeter protection and wide-area surveillance. The advanced thermal imaging technology ensures accurate detection, even in low-contrast environments, providing reliable performance for 24/7 monitoring. The camera is IP66- and NEMA 4X-rated, ensuring durability in harsh outdoor environments. Axis Zipstream technology reduces bandwidth and storage needs while maintaining high image quality.

Key Features:

• 60 mm Lens with 10° Field of View: Ideal for long-range detection and perimeter surveillance.
• 8.3 fps Frame Rate: Ensures smooth, real-time video capture for accurate detection and monitoring.
• Pan/Tilt Mount Ready: Designed for flexible installation with pan/tilt motors for enhanced coverage.
• Rugged Outdoor Design: IP66- and NEMA 4X-rated for protection against dust, water, and harsh weather conditions.
• Axis Zipstream Technology: Reduces bandwidth and storage requirements while maintaining critical image details.

Technical Specifications:

• Image Sensor: Uncooled microbolometer, 640x480 pixels
• Lens: 60 mm, F1.25, horizontal field of view: 10°
• Frame Rate: 8.3 fps
• Power: Power over Ethernet (PoE) IEEE 802.3af/at, typical 4.8 W, max 11.8 W
• Operating Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
• Weight: 2.0 kg (4.4 lb)



This product has been discontinued.
