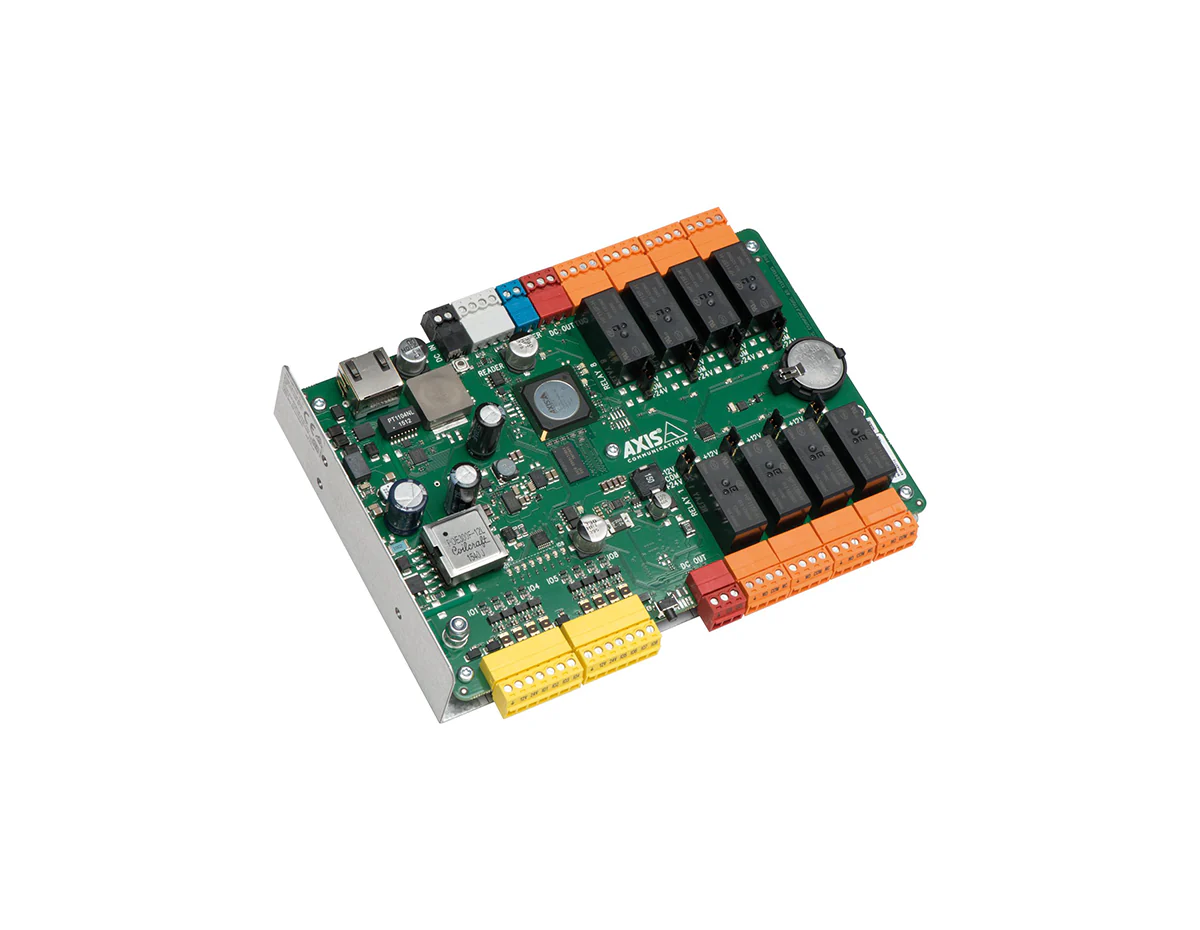

AXIS A9188 Network I/O Relay Module (0820-001)
- Intelligent module with supervised inputs, 8 I/Os with configurable levels, 8 form C relays, 12 and 24 V DC output, PoE or 8–28 V DC input, Axis open protocols – VAPIX and ACAP
[properties]
| Product Name | AXIS A9188 Network I/O Relay Module (0820-001) |
| Description | Intelligent network I/O relay module with 8 configurable I/Os and 8 form C relays, ideal for expanding Axis systems with additional inputs and outputs. |
| Power Options | Supports PoE (IEEE 802.3af Class 3 / 802.3at Class 4) or 8–28 V DC input for flexible installation. |
| DC Output | Provides 12 V and 24 V DC output to power connected I/O devices. |
| PoE-out Limits | Maximum shared power out: 3.6 W (Class 3) or 12 W (Class 4 /DC power input). |
| I/O Ports | 8 supervised inputs/outputs with configurable levels for custom applications. |
| Relay Output | 8 form C relays for enhanced control and integration with third-party systems. |
| Integration | Compatible with AXIS A1001 Network Door Controller; ideal for elevator and floor management applications. |
| Protocols | Supports Axis open protocols VAPIX® and AXIS Camera Application Platform (ACAP). |
| Software Compatibility | Supported by AXIS Camera Station and third-party software via VAPIX. |
| Status Indicators | LED indicators for real-time monitoring of input and output status. |
| Usage Application | Extends Axis product functionality where additional I/Os or relays are needed. |
| Operating Temperature Range | −30 °C to 55 °C (−22 °F to 131 °F); outdoor use requires AXIS T98A15-VE Cabinet. |
| Network Connectivity | Ethernet interface for seamless system integration. |
| Security | Supervised inputs provide tamper detection and status monitoring. |
| Mounting Type | Designed for indoor installation (standard DIN-rail mount). |
| Dimensions | 43 × 186 × 120 mm (W × H × D). |
| Weight | 500 g (1.1 lb). |
[/properties]
[specifications]
| Power Input | 8–28 V DC or PoE IEEE 802.3af Class 3 / 802.3at Class 4. |
| DC Output | 12 V and 24 V DC outputs for connected devices. |
| PoE-out Power | Max 3.6 W (Class 3) or 12 W (Class 4 /DC input) shared power out. |
| I/O Configuration | 8 configurable supervised inputs/outputs. |
| Relay Outputs | 8 form C relays for expanded system control. |
| Protocols | VAPIX® and ACAP for integration with Axis and third-party platforms. |
| Operating Temperature | −30 °C to 55 °C (−22 °F to 131 °F); outdoor operation requires AXIS T98A15-VE. |
| Status Indicators | LED indicators for input/output and power status. |
| Network Interface | Ethernet 10/100 Mbps. |
| Mounting | Indoor DIN-rail mounting. |
| Dimensions | 43 × 186 × 120 mm (W × H × D). |
| Weight | 500 g. |
[/specifications]
AXIS A9188 Network I/O Relay Module (0820-001)
AXIS A9188 Network I/O Relay Module is an intelligent module with 8 configurable I/Os and 8 form C relays supporting supervised inputs. It uses open APIs including VAPIX for software integration and works seamlessly with AXIS A1001 Network Door Controller for applications such as elevator control and floor management. Supported by AXIS Camera Station and third-party software, the module provides 12 V and 24 V DC outputs for connected I/O devices and offers maximum PoE-out power of 3.6 W (Class 3) or 12 W (Class 4 /DC input). Powered by 8–28 V DC or PoE IEEE 802.3af Class 3 / 802.3at Class 4.
