[shortdesc]

• HDTV 1080p and 3 MP resolution for clear and detailed monitoring, Maintains high image quality even in low-light conditions, 1/3.6” progressive scan RGB CMOS.

[/shortdesc]

[properties]

Product Name	Axis M3026-VE Network Camera
Description	Outdoor-ready, vandal-resistant fixed dome camera designed for high-resolution surveillance in challenging environments.
Outdoor-Ready Design	Vandal-resistant with IP66 and NEMA 4X ratings, ensuring durability against dust, rain, and snow.
High-Resolution Video	Provides HDTV 1080p and 3 MP resolution for detailed wide-angle monitoring.
Day/Night Functionality	Features an infrared-cut filter for maintaining image quality in low-light conditions.
Multi-View Streaming	Supports streaming of multiple cropped views from the full scene for focused monitoring.
Corridor Format	Optimized for hallways or aisles with vertically oriented video streams.
Power over Ethernet (PoE)	Enables combined data and power transmission over a single cable for simplified setup.
Recommended Use	Ideal for outdoor surveillance requiring durability and high-resolution imaging.
Installation Method	Vandal-resistant casing suitable for wall or ceiling installation.
Sustainability	Constructed with durable materials meeting environmental and industry standards.

[/properties]

[specifications]

Image Sensor	1/3.6” progressive scan RGB CMOS for clear, high-resolution imaging.
Lens Type	M12 mount, fixed iris, IR-corrected lens with 2.0 mm focal length and F2.0 aperture.
Field of View	Horizontal FOV of 106° and vertical FOV of 78° for broad area coverage.
Video Compression	Supports H.264 (Baseline and Main Profile) and Motion JPEG for flexible streaming options.
Operating Temperature	Functions between -30 °C to 50 °C (-22 °F to 122 °F), suitable for extreme outdoor conditions.
Humidity	Operates in 10–100% RH, condensing environments for reliable performance in varied weather.
Dimensions	Ø 132 x 93 mm (Ø 5 3/16 x 3 11/16 in), compact yet robust.
Weight	740 g (1.6 lb), built to withstand outdoor exposure.
Protection Standards	Meets IP66 and NEMA 4X standards for dust, rain, and snow resistance.
Power Supply	Powered by PoE for easy installation and reduced cabling needs.
Video Streaming	Supports simultaneous streams of full and cropped views for customized monitoring.

[/specifications]

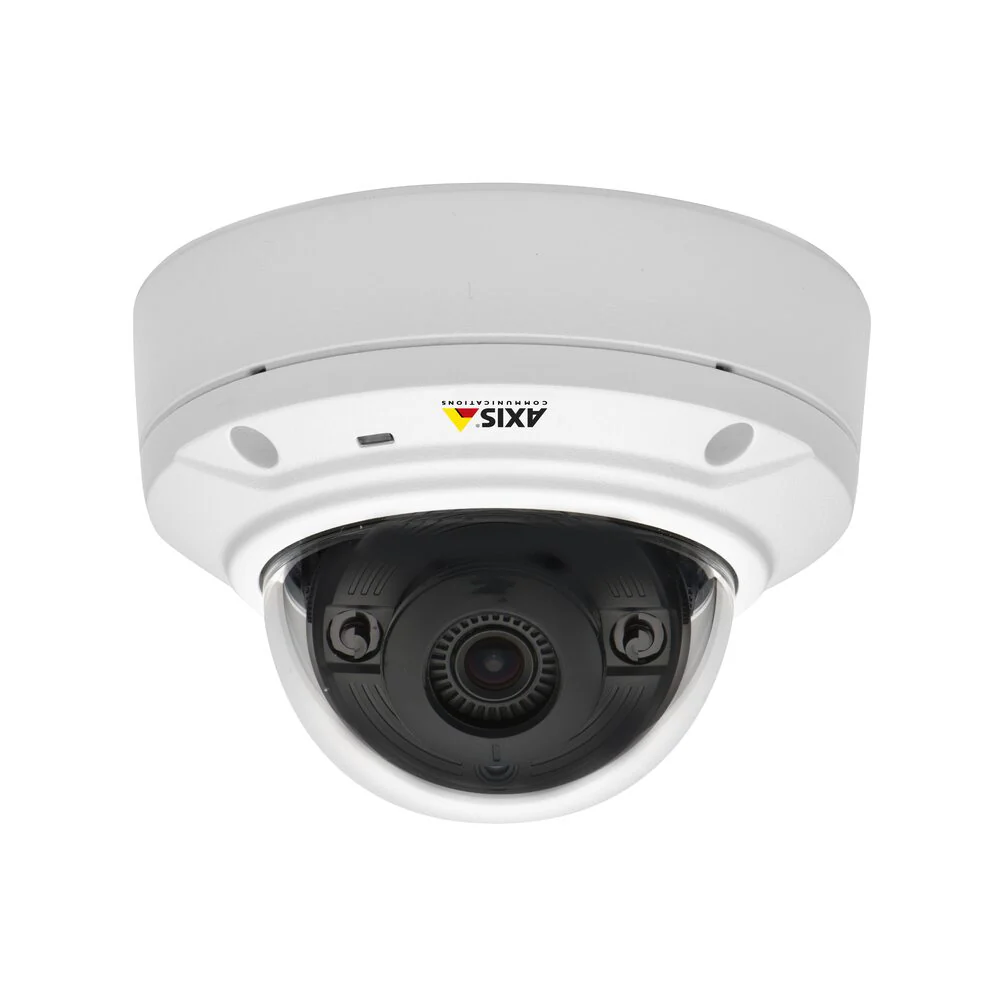

Axis M3026-VE Network Camera

The Axis M3026-VE Network Camera is an outdoor-ready, vandal-resistant fixed dome camera designed for high-performance surveillance in any environment. With HDTV 1080p resolution and 3 MP capabilities, this camera provides detailed wide-angle views, making it ideal for monitoring large areas. Its day and night functionality ensures clear images even in low-light conditions, while the multi-view streaming feature allows different areas of a scene to be cropped and viewed simultaneously. The camera is also equipped with Axis' Corridor Format for vertically oriented video streams, making it perfect for hallways or aisles. Its rugged design meets IP66 and NEMA 4X standards, offering protection against dust, rain, and snow.

Key Features:

• Outdoor-Ready Design: Vandal-resistant with IP66 and NEMA 4X ratings, ensuring durability in harsh weather conditions.
• High-Resolution Video: Offers HDTV 1080p and 3 MP resolution for clear and detailed monitoring.
• Day/Night Functionality: Maintains high image quality even in low-light conditions with an automatically removable infrared-cut filter.
• Multi-View Streaming: Supports streaming of multiple cropped areas from the full view, allowing for focused monitoring of different regions.
• Power over Ethernet (PoE): Simplifies installation by combining power and data over a single cable.

Technical Overview:

• Recommended for: Outdoor surveillance requiring high-resolution imaging and durable, weather-resistant construction.
• Image Sensor: 1/3.6” progressive scan RGB CMOS.
• Lens: M12 mount, fixed iris, IR corrected, 2.0 mm, F2.0 with a horizontal FOV of 106° and a vertical FOV of 78°.
• Video Compression: H.264 (Baseline and Main Profile), Motion JPEG.
• Operating Conditions: -30 °C to 50 °C (-22 °F to 122 °F), humidity 10–100% RH (condensing).
• Dimensions: Ø 132 x 93 mm (Ø 5 3/16 x 3 11/16 in).
• Weight: 740 g (1.6 lb).
• Included Accessories: Installation guide, Windows® decoder 1-user license, drill hole template, Resitorx L-key, terminal block connector.

You can check the related tab for the Axis M3026-VE Network Camera datasheet.

This product has been discontinued. The manufacturer's suggested replacement is M3206-LVE (01518-001)
