[shortdesc] Intel Core Ultra 5 235 CPU, Nvidia A400 GPU, 16GB RAM, 256GB SSD, 4x 4K monitor support, Windows 11 IoT Enterprise LTSC 2024 [/shortdesc]

[properties]

Model	AXIS Camera Station S9302 Mk II
Product Type	Workstation
Processor	Intel Core Ultra 5 Processor 235
Memory	16 GB (2x 8 GB)
Storage	256 GB SSD
Graphics Card	Nvidia A400
Operating System	Windows 11 IoT Enterprise LTSC 2024
Display Support	Up to four 4K monitors
Network Interface	1x 1 GbE RJ45
Power Supply	360 W Platinum (100–240 V AC, 5 A, 50/60 Hz)
Power Consumption	Typical: 110 W; Maximum: 160 W
Dimensions	303 x 95 x 293 mm
Weight	4.5 kg
Operating Temperature	10°C to 35°C
Storage Temperature	-40°C to 65°C
Operating Humidity	20–80% RH (non-condensing)
Storage Humidity	5–95% RH (non-condensing)
Licenses Included	10 AXIS Audio Manager Pro licenses
System Scalability	200 simultaneous audio streams; up to 1,000 doors (access control only)

[/properties]

[specifications]

Front Connectors	1x Universal audio jack; 2x USB 2.0; 1x USB 3.2 gen 2x2 USB-C; 1x USB 3.2 gen 2x1
Rear Connectors	3x DisplayPort; 4x Mini DisplayPort; 1x USB 3.2 gen 2x1 USB-C; 3x USB 3.2 gen 1x1; 2x USB 2.0; 1x 1 GbE RJ45; 1x Power connector
Video Streaming	1x 4K @30 fps; 9 split @1080p; up to 36 split @360p @15 fps
Playback	Matches recording resolution; high-speed playback may affect performance
Cybersecurity Features	FIPS 140-2 level 2 certified TPM 2.0; Secure Boot; Encrypted OS and recording drive support
Compliance	TAA compliant
EMC Standards	EN 55032 Class B; EN 55035; FCC Part 15 Subpart B Class B; VCCI Class B; RCM AS/NZS CISPR 32 Class B
Safety Standards	IEC/EN 62368-1; CAN/CSA C22.2 No. 62368-1; KC-Mark; NOM-019
Environmental Compliance	RoHS; REACH; EN 50564
Operating System Recovery	Built-in operating system recovery included

[/specifications]

[accesories]

Included	4x Mini DisplayPort to DisplayPort adapters; Wall plug power cord
Optional	Axis joysticks and control boards

[/accesories]

High-Performance Surveillance Workstation for Scalable Video Systems

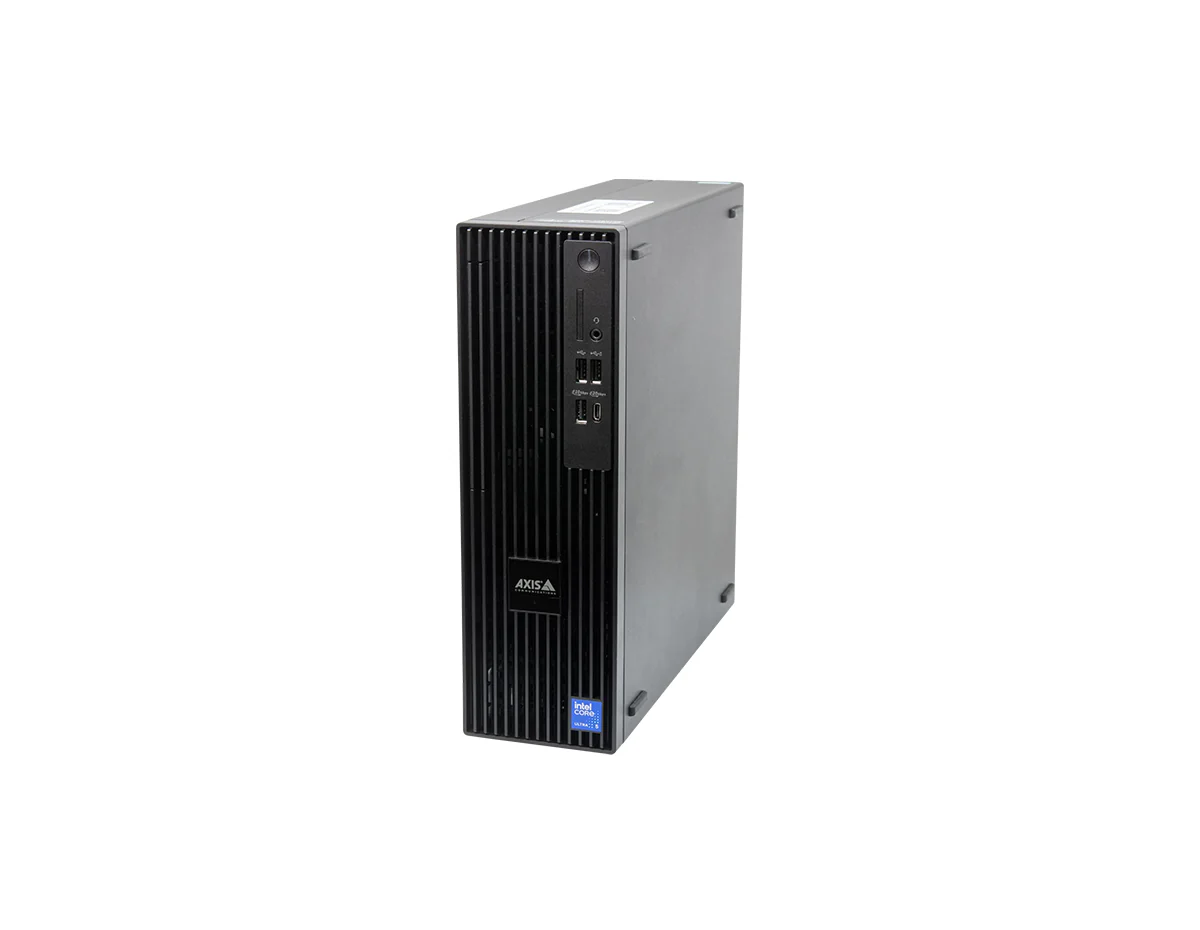

The AXIS Camera Station S9302 Mk II Workstation (03427-004) is a powerful and flexible solution designed for modern video surveillance environments. Built and validated by Axis Communications, it operates seamlessly as both a client or server, delivering high-performance video management with support for demanding multi-monitor setups. Its compact form factor makes it ideal for control rooms and installations where space efficiency is critical.

Key Benefits & Features

• Dual Role Flexibility: Functions as both a client workstation or server when paired with AXIS S30 or S40 Series, enabling scalable deployment options.
• Multi-Monitor 4K Support: Supports up to four 4K monitors, providing enhanced situational awareness and efficient video monitoring.
• Preloaded VMS Software: Includes AXIS Camera Station Pro client software for streamlined setup and optimized video management workflows.
• Powerful Processing Performance: Equipped with Intel Core Ultra 5 processor 235 and Nvidia A400 GPU for smooth video decoding and multitasking.
• Fast Installation Tools: Integrated AXIS Recorder Toolbox ensures quick and easy installation, reducing deployment time significantly.

Ideal Use Cases

• Enterprise video surveillance control rooms
• Retail and commercial security monitoring stations
• Access control and audio management systems
• Transportation hubs and smart city surveillance
• Small to mid-scale centralized monitoring setups

Technical Specifications

• Processor: Intel Core Ultra 5 Processor 235
• Memory: 16 GB RAM (2x 8 GB)
• Storage: 256 GB SSD (Operating system drive)
• Graphics: Nvidia A400 GPU
• Operating System: Windows 11 IoT Enterprise LTSC 2024
• Network: 1x 1 GbE RJ45
• Display Outputs: Supports up to four 4K monitors via DisplayPort and Mini DisplayPort
• Video Capability: 4K live view at 30 fps, multi-split streaming support up to 36 streams
• Power Supply: 360W Platinum efficiency
• Form Factor: Small form factor workstation

Upgrade Your Surveillance Performance Today

Maximize your video management efficiency with this powerful Axis workstation. Order today and deploy with confidence.
