[shortdesc]

• Connects to both digital (DVI) and analog (RCA composite) monitors, Automatically displays alarm-triggered video for immediate monitoring, NTSC 720x480, PAL 720x576, VGA, SVGA, and HDTV 720p.

[/shortdesc]

[properties]

Product Name	AXIS P7701 Video Decoder
Description	The AXIS P7701 Video Decoder enables live video display from Axis network cameras and video encoders on digital and analog monitors. Supporting multiple video compression formats, it provides flexible video output options and is ideal for surveillance setups requiring reliable display without a PC. Power over Ethernet (PoE) simplifies installation by reducing the need for extra power cables.
Supported Video Compression	H.264, MPEG-4, Motion JPEG
Maximum Resolution	Up to D1 (720x480 NTSC, 720x576 PAL) for H.264 and MPEG-4; up to 720p (1280x720) for Motion JPEG
Audio Support	AAC-LC, G.711 PCM, and G.726 ADPCM decoding; audio output (line out) only — no two-way audio.
Video Output	Supports NTSC (720x480), PAL (720x576), VGA, SVGA, and HDTV 720p resolutions
Power Supply	8–20 V DC, max 8.3 W, or Power over Ethernet (PoE) IEEE 802.3af Class 3
Dimensions	99 x 118 x 33 mm (3.9 x 4.6 x 1.3 in)
Weight	318 g (0.70 lb)
Installation Type	Plug-and-play with PoE for simple setup
Alarm Response	Auto-connect feature for alarm-triggered video display
Audio Out	Supports RCA output for audio playback
RS-485/RS-422 Serial Port	Enables control of legacy surveillance equipment

[/properties]

[specifications]

Supported Protocols	IPv4/v6, TCP/IP, HTTP, HTTPS, FTP, Bonjour, UPnP, SNMPv1/v2c/v3, DynDNS, RTSP, RTP, RTCP, ICMP, ARP, SSL/TLS
Network Speed	10/100 Mbps Ethernet, compatible with PoE IEEE 802.3af for simplified cabling
Bandwidth Usage	Optimized for efficient decoding of multiple video streams; supports H.264 compression to reduce bandwidth requirements
Temperature Range	Tested for stable performance between 0 °C and 50 °C (32 °F to 122 °F)
Humidity Range	Supports non-condensing humidity levels between 20% and 80%
Audio Compression	AAC (16 kHz, 32 kHz), G.711, G.726 formats supported for compatibility with multiple devices
LED Indicators	Power and network status indicators for easy monitoring of device status
Power Consumption	Max 5 W via PoE for efficient energy usage
Dimensions	Compact form factor: 99 x 118 x 33 mm (3.9 x 4.6 x 1.3 in)
Weight	318 g (0.70 lb) for lightweight installation on walls or surfaces
Reliability	Tested for continuous operation in controlled environments for 72 hours with stable video and audio decoding
Vibration Resistance	Tested for operational stability under vibrations up to 2 Hz
Color	Black, designed to blend seamlessly into security setups
Compliance	Complies with EN 55022 Class B, EN 55024, EN 60950-1, FCC Part 15 Subpart B Class B, and RoHS
Environmental Safety	RoHS 3 compliant (Directive 2015/863/EU)
Firmware Updates	Supports remote firmware updates for enhanced security
Maintenance	Minimal; designed for long-term performance without frequent servicing
Noise Level	Passive cooling for silent operation without fans
Mounting Options	Supports wall and surface mounting with optional brackets

[/specifications]

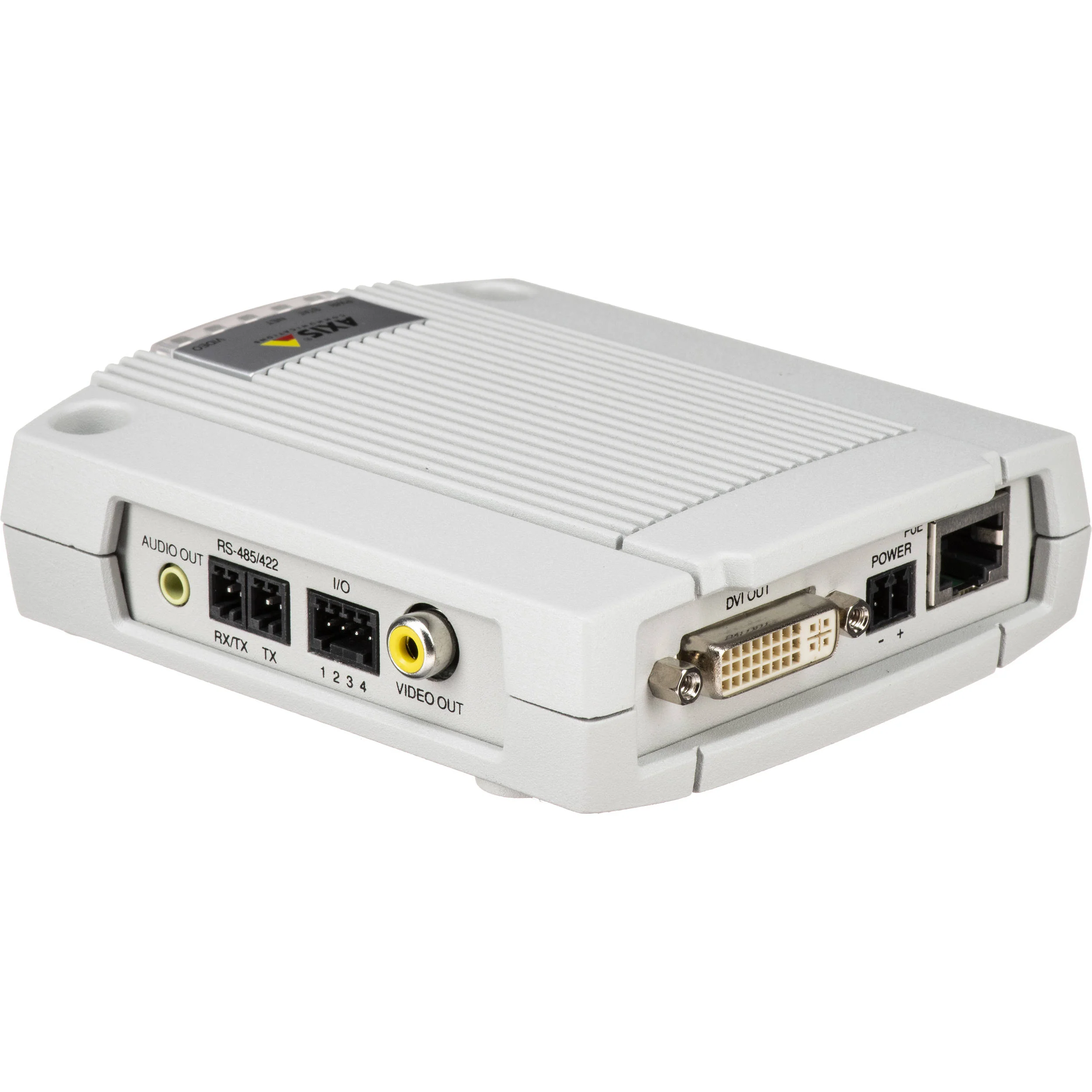

AXIS P7701 Video Decoder

The AXIS P7701 Video Decoder is a full-featured solution that enables digital and analog monitors to display live video from Axis network cameras and video encoders. It supports decoding of video streams in H.264, MPEG-4, and Motion JPEG, making it an ideal choice for surveillance systems requiring reliable video display without the need for a PC. With Power over Ethernet (PoE) support, it simplifies installation by reducing the need for additional power cables. The AXIS P7701 is perfect for use with public view monitors and for offloading decoding tasks from video management systems.

Key Features:

• Full Frame Rate Video Decoding: Supports H.264, MPEG-4, and Motion JPEG video streams up to D1 resolution for H.264 and MPEG-4, and up to 720p for Motion JPEG.
• Digital and Analog Output: Connects to both digital (DVI) and analog (RCA composite) monitors for flexible display options.
• Power over Ethernet (PoE): Simplifies installation by powering the device through an Ethernet cable.
• Auto-Connect on Alarm: Automatically displays alarm-triggered video for immediate monitoring.
• High-Quality Audio Support: Decodes audio streams in AAC, G.711, and G.726 formats.
• RS-485/RS-422 Serial Port: Allows serial commands to be sent to legacy equipment in the surveillance system.

Technical Specifications:

• Video Compression: H.264, MPEG-4, Motion JPEG
• Resolutions: H.264 and MPEG-4 up to D1 (720x480 NTSC, 720x576 PAL); Motion JPEG up to 720p (1280x720)
• Audio Compression: AAC, G.711, G.726
• Video Output: NTSC 720x480, PAL 720x576, VGA, SVGA, and HDTV 720p
• Network: 10/100 Mbps Ethernet with PoE support
• Operating Conditions: 0-50 °C (32-122 °F)
• Dimensions: 99 x 118 x 33 mm (3.9 x 4.6 x 1.3 in)
• Weight: 318 g (0.70 lb)
• Processor: TI DM6443 processor for efficient video decoding
• Memory: 128 MB RAM, 128 MB Flash

For more information about the AXIS P7701 Video Decoder, visit the Axis product page.

This product has reached its end-of-life. The recommended replacement model is D1110 (02282-001)
