[shortdesc] 4MP resolution, 34x optical zoom, Laser focus, ARTPEC-9 SoC, AI-powered analytics, Lightfinder 2.0, IP66/IP67/IK10 rated, AV1 compression. [/shortdesc]

[properties]

Model	AXIS Q6086-E
Product Type	PTZ Network Camera
Image Sensor	1/2 inch progressive scan RGB CMOS
Lens	Varifocal 6.64 - 225.5 mm, F1.7 to 5.1
Optical Zoom	34x optical zoom
Digital Zoom	12x digital zoom (total 408x)
Minimum Illumination	Color: 0.07 lux at 30 IRE; B/W: 0.005 lux at 30 IRE
Resolution	2688 x 1512 (4 MP)
Frame Rate	Up to 50/60 fps
Video Compression	H.264, H.265, AV1, Motion JPEG
WDR	Forensic WDR up to 120 dB
Pan Range	360 degree endless
Tilt Range	0 to -90 degrees
Focus	Laser focus, autofocus, P-iris
Memory	4096 MB RAM, 8192 MB Flash
Analytics	AXIS Object Analytics, Image Health Analytics, Scene Metadata
Network Interface	RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE
Power	IEEE 802.3bt PoE Class 4 / Class 6
Max Power Consumption	Up to 51 W
Storage	SD/SDHC/SDXC card support, NAS support
Protection Rating	IP66, IP67, IK10, NEMA 4X, NEMA TS2
Operating Temperature	-50 C to 55 C (-58 F to 131 F)
Dimensions	231 x 231 x 264 mm
Weight	4100 g

[/properties]

[specifications]

Field of View	Horizontal: 61.5 to 2.0 degrees; Vertical: 37.3 to 1.1 degrees
Minimum Focus Distance	3 m
Shutter Speed	1/49500 s to 2 s
Pan/Tilt Speed	0.05 to 500 degrees/s
Preset Positions	Up to 300 presets
Video Streams	Up to 20 configurable streams
Bandwidth Optimization	Axis Zipstream (H.264, H.265, AV1)
Noise Reduction	2D and 3D noise reduction
Image Settings	Saturation, contrast, brightness, sharpness, white balance, defog, overlays
Scene Profiles	Outdoor, indoor, forensic, traffic overview, license plate
Audio	Portcast technology or edge-to-edge pairing
Network Protocols	IPv4, IPv6, HTTP, HTTPS, FTP, SFTP, MQTT, SNMP, SSH, TLS, NTP
ONVIF Compliance	Profile S, G, T, M
Cybersecurity	Axis Edge Vault, Secure boot, Signed OS, Encrypted filesystem
Operating Humidity	10 to 100 percent RH (condensing)
Storage Temperature	-40 C to 65 C
Certifications	CE, FCC, KC, VCCI, RCM, ICES, IEC 62236-4
Compliance	RoHS, REACH, TAA compliant

[/specifications]

[accesories]

Included	Camera, weathershield, installation guide, 90 W midspan, RJ45 push-pull connector, authentication key
Optional Connectivity	AXIS TU8003 90 W Connectivity Midspan
Optional Mounting	AXIS T91/T94/TQ mounting accessories
Optional Tools	AXIS T8415 Wireless Installation Tool
Optional Storage	AXIS Surveillance Cards

[/accesories]

Precision PTZ Surveillance with AI-Powered Performance

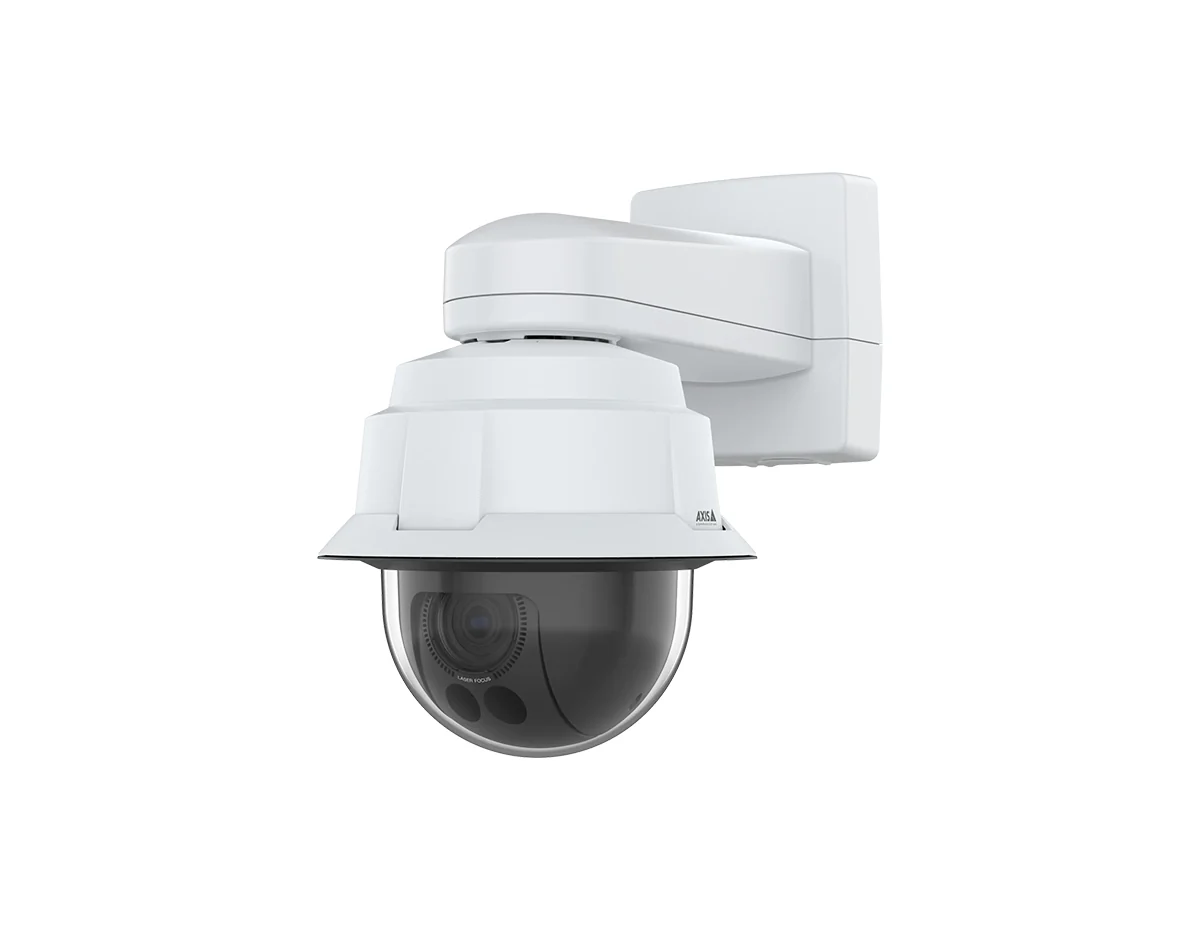

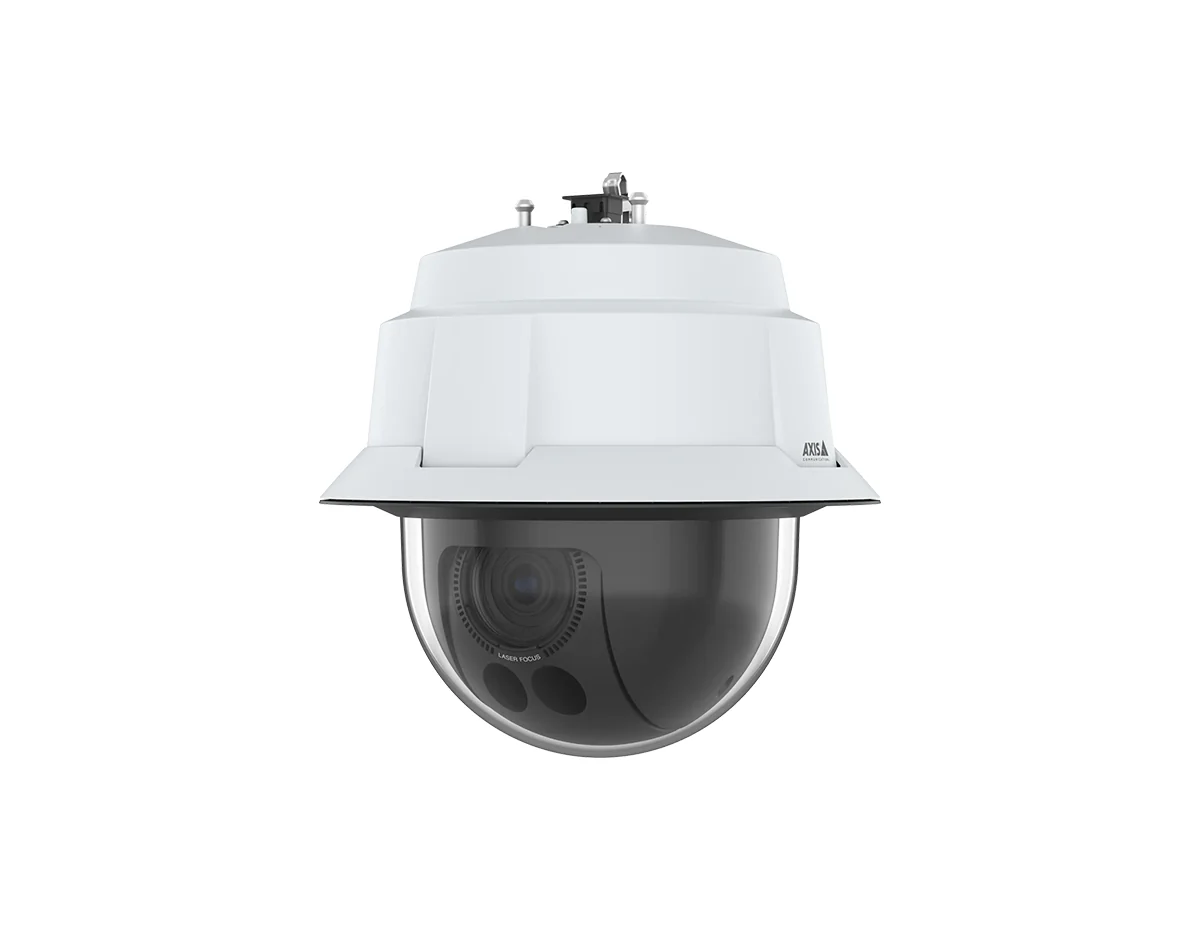

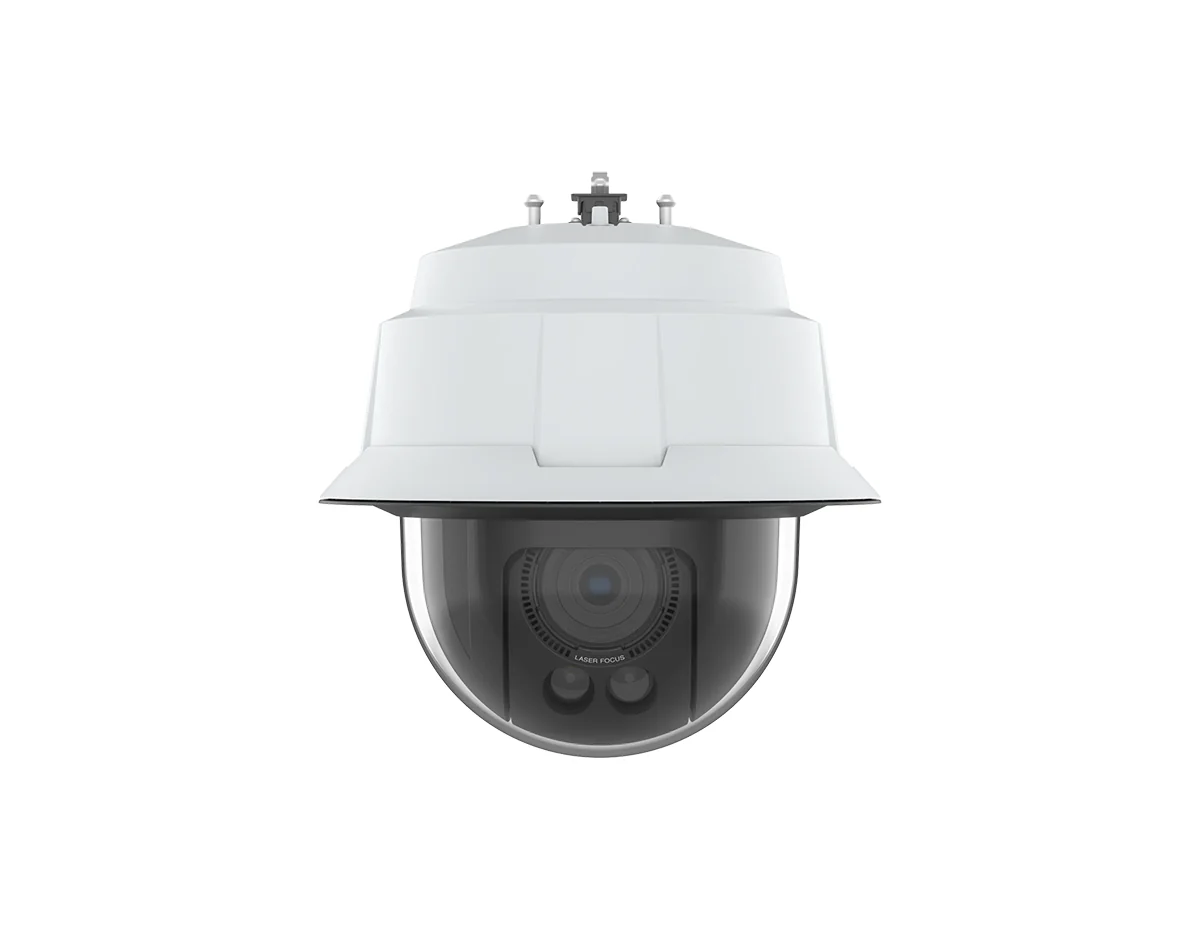

The Axis Q6086-E PTZ Camera is engineered for demanding surveillance environments requiring precision, clarity, and intelligent monitoring. Featuring a highly light-sensitive 1/2 inch sensor, advanced AI analytics, and 34x optical zoom, this camera ensures accurate detection and tracking even in challenging lighting conditions. Built on the powerful ARTPEC-9 chipset, it enables high-performance edge analytics while optimizing bandwidth and storage efficiency.

Key Benefits & Features

• Ultra-Light Sensitive Imaging: Equipped with a 1/2 inch sensor and Lightfinder 2.0, the camera delivers exceptional image quality in low-light environments with minimal noise.
• 34x Optical Zoom with Laser Focus: Capture distant objects with precision using advanced laser-assisted focusing that finds focus faster than standard autofocus, even in low contrast scenes.
• AI-Powered Object Analytics: Built-in AXIS Object Analytics enables real-time detection and classification of humans and vehicles directly on the edge for proactive security.
• Efficient Video Compression: Support for AV1, H.265, and H.264 with Axis Zipstream significantly reduces bandwidth and storage requirements without sacrificing image detail.
• Rugged Outdoor Design: IP66, IP67, IK10, and NEMA 4X ratings ensure reliable operation in harsh weather, high-impact areas, and corrosive environments.

Ideal Use Cases

• City surveillance and smart city deployments
• Critical infrastructure and transportation hubs
• Large campuses and industrial facilities
• Perimeter security and long-range monitoring
• Airports, ports, and public safety environments

Technical Specifications

• Resolution: 2688 x 1512 (4MP)
• Image Sensor: 1/2 inch progressive scan CMOS
• Optical Zoom: 34x optical, 12x digital (408x total)
• Minimum Illumination: 0.005 lux (B/W), 0.07 lux (color) at 30 IRE
• Video Compression: AV1, H.265, H.264, Motion JPEG
• Frame Rate: Up to 60 fps
• Pan/Tilt: 360 degree endless pan, 0 to -90 degree tilt
• Protection Rating: IP66/IP67, IK10, NEMA 4X, NEMA TS2
• Power: IEEE 802.3bt PoE (Class 4/6)
• Storage: SD card support (SD/SDHC/SDXC) and NAS recording

Upgrade to Intelligent PTZ Security Today

Deploy advanced surveillance with AI-driven analytics and precision zoom capabilities. Order today to enhance your security infrastructure.
