[shortdesc] 92 dB audio, RGB call button, IP66/IP69 rating, IK10 protection, PoE-powered, SIP integration [/shortdesc]

[properties]

Model	AXIS I7010-VE (03109-001)
Product Type	Safety Network Intercom
Color	Orange RAL 2004
Audio Output	Built-in speaker, max 92 dB SPL @ 1 m
Audio Input	2x built-in microphones; line input
Audio Features	Echo cancellation, noise reduction, wind reduction, beamforming
PoE	PoE IEEE 802.3at Type 2 Class 4 (max 25.5 W) / PoE Class 3 (max 12.7 W)
Casing	IP66/IP69, NEMA 4X, IK10; Stainless steel & zinc
Mounting	Recessed & wall mounting options (Compatible with T18202, T18602, T18603)
Operating Temperature	-40 °C to 60 °C
Storage Temperature	-40 °C to 65 °C
Operating Humidity	10–100% RH (condensing)
Weight	890 g (2.0 lb)
Dimensions	123.9 mm x 123.9 mm (See datasheet for depth profiles)

[/properties]

[specifications]

System on Chip	CV25
Memory	2 GB RAM, 1 GB Flash
Audio Encoding	LPCM 16 kHz; AAC 8/16 kHz; G.711 A-law/u-law; G.722; G.726 ADPCM; Opus 8/16/48 kHz
VoIP / SIP Support	SIP, SRTP, SIPS, TLS, DTMF, NAT (ICE/STUN/TURN), parallel & sequential call forking
Supported SIP Codecs	PCMU, PCMA, Opus, L16/16000, L16/8000, Speex 8/16 kHz, G.726-32, G.722
Network Protocols	IPv4/IPv6, HTTP/HTTPS, TLS, FTP/SFTP, SNMP, DHCP, RTP/SRTP, RTSP, MQTT, LLDP, CDP, NTP/PTP, IEEE 802.1X
I/O Ports	2x supervised inputs/outputs (12 V DC, 50 mA max); 1 relay (30 V, 0.7 A)
Connectors	RJ45 (10/100/1000BASE-T PoE), Terminal block (I/O), RS485, 4-pin audio terminal
Storage Options	microSD/microSDHC/microSDXC with encryption; NAS recording
Security	Axis Edge Vault, Secure Boot, Encrypted filesystem, Secure keystore, IEEE 802.1AE MACsec
Certifications	CE, UL/cUL, RCM, VCCI, FCC Class A, IK10, IP66/IP69, NEMA 4X
Languages	English, German, French, Spanish, Italian, Russian, Chinese (S/T), Japanese, Korean, Portuguese, Polish, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese

[/specifications]

[accesories]

Included in the Box	Intercom, Installation guide, RESISTORX L-key, Terminal block connector, Owner authentication key
Optional Accessories	AXIS T18202 Recessed Mount; AXIS T18602 Wall Mount; AXIS T18603 Conduit Adapter; AXIS T18906 Glass Replacement Kit; AXIS T18908 Safety Face Plate; AXIS A9801 Security Relay; AXIS T18904 Induction Loop

[/accesories]

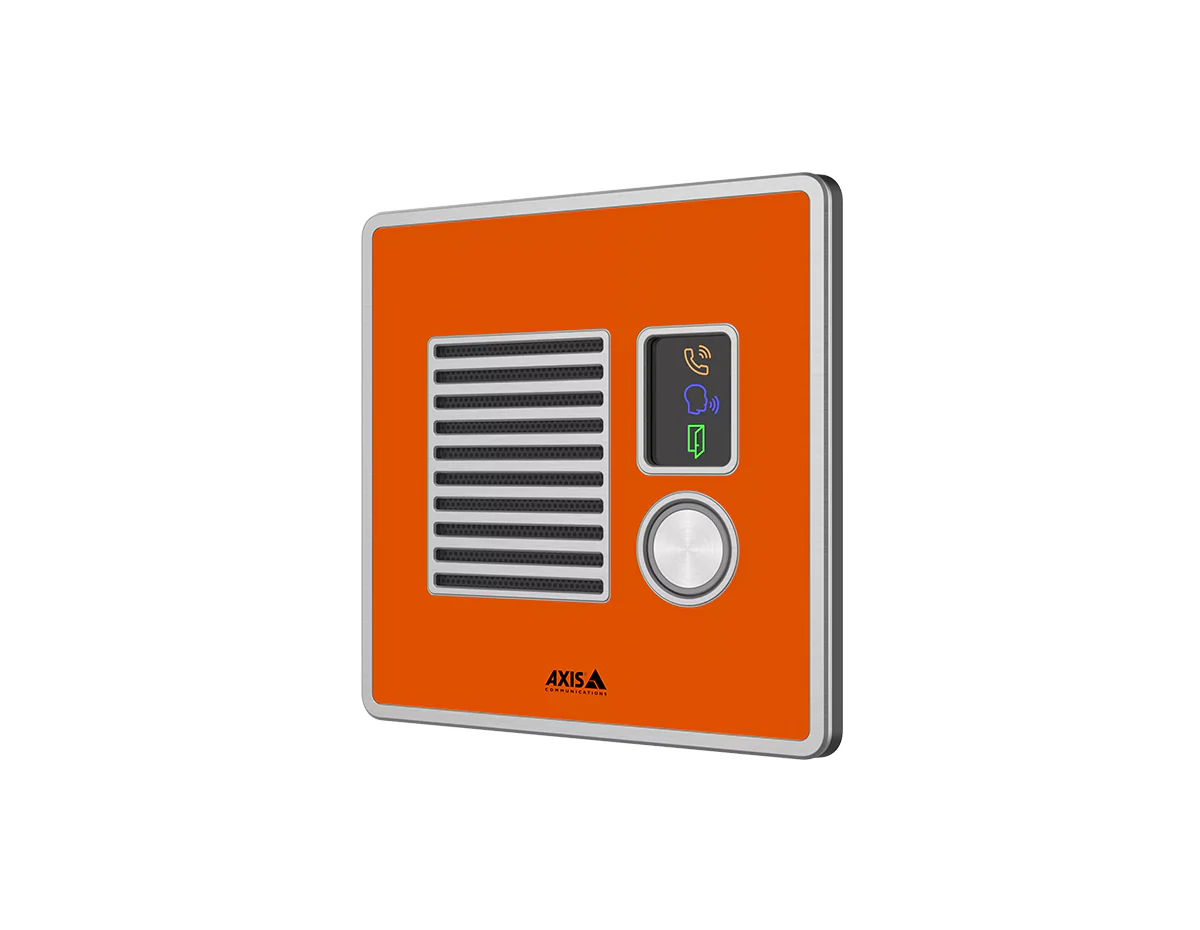

High-Visibility Intercom for Demanding Safety Environments

The AXIS I7010-VE Safety Network Intercom delivers exceptional clarity with 92 dB SPL output, advanced echo cancellation, and noise reduction for communication in harsh and loud environments. Its bright RAL 2004 orange finish and illuminated RGB call button maximize visibility even in darkness, fog, or smoke. Built with IP66/IP69 and IK10-certified protection, it operates reliably in extreme outdoor conditions while Axis Edge Vault strengthens cybersecurity across your deployment.

Key Benefits & Features

• 92 dB Clear Audio Output: Powerful built-in speaker ensures audible communication in hazardous or high-noise areas, supported by echo and noise reduction for clarity.
• Industrial-Grade Durability: IP66/IP69 and IK10 ratings provide resistance against dust, water, impacts, and vandalism, ensuring long-term reliability in extreme conditions.
• Enhanced Visibility: Bright orange enclosure and illuminated RGB call button improve detection in low-visibility environments, essential for emergency and safety zones.
• SIP & VMS Integration: Full SIP support makes it compatible with VoIP systems, PBX platforms, and major VMS solutions including AXIS Camera Station and third-party options.
• Cybersecurity with Axis Edge Vault: Hardware-based secure boot, encrypted storage, and device identity protection prevent unauthorized access and tampering.

Ideal Use Cases

• Industrial safety stations and hazardous work zones
• Public transit platforms and emergency call points
• Warehouses, manufacturing plants, and logistics hubs
• Outdoor perimeters and secured facility entrances
• Any SIP-based emergency communication and alerting system

Technical Specifications

• Audio Output: 92 dB SPL at 1 m with echo and noise reduction
• Microphones: Dual built-in microphones with beamforming
• Ingress Protection: IP66 / IP69, NEMA 4X-certified enclosure
• Impact Resistance: IK10 vandal-resistant front plate
• Network: RJ45 10/100/1000BASE-T with PoE (IEEE 802.3at Type 2)
• Power Consumption: Typical 3 W, max 25.5 W
• Operating Temperatures: -40°C to 60°C (-40°F to 140°F)
• Protocols: SIP, SRTP, HTTPS, TLS, MQTT, IPv4/IPv6, 802.1X
• Storage: microSD/microSDHC/microSDXC with encryption
• Dimensions: 123.9 x 123.9 x 36.2 mm (including wall mount protrusion)
