[shortdesc] 200 km/h LPR capture, 20–100 m range, OptimizedIR, ARTPEC-8 SoC, IK10/IP66, Varifocal 7–137 mm lens [/shortdesc]

[properties]

Model	AXIS Q1800-LE-3 (03108-001)
Product Type	License Plate Verifier Kit
Image Sensor	1/2.8” progressive scan RGB CMOS
Lens	Varifocal 7–137 mm, F1.5–4.0; Remote zoom & focus; P-Iris
Field of View	Horizontal 38°–2.3°; Vertical 22°–1.3°
Minimum Illumination	Color: 0.06 lux; B/W: 0.01 lux; 0 lux with IR on
IR Illumination	OptimizedIR, 850 nm, 40–50 m range (scene dependent)
Vehicle Speed Support	Up to 200 km/h (124 mph)
Detection Range	Day: 20–100 m; Night: 20–50 m (up to 100 m with optional IR)
Internal Storage	microSD/microSDHC/microSDXC supported
Operating Temperature	−40 °C to 60 °C (−40 °F to 140 °F)
Power	PoE IEEE 802.3af/at; 10–28 V DC; 20–24 V AC
Power Consumption	Typical 12.6 W; Max 25.5 W
Dimensions	See datasheet dimension diagram
Weight	3200 g (7.05 lb)
Casing	IP66 / NEMA 4X; IK10 aluminum; IK08 glass

[/properties]

[specifications]

Video Resolution	1400×1050 to 160×120 (4:3); 1920×1080 to 320×180 (16:9)
Frame Rate	Up to 25/30 fps with WDR; Up to 90 fps without WDR
WDR	Forensic WDR up to 120 dB
Image Processing	Zipstream, Lightfinder 2.0, OptimizedIR
Shutter Speed	1/111000 s to 2 s (depending on mode)
System on Chip	ARTPEC-8 with Deep Learning Processing Unit (DLPU)
Network Protocols	IPv4/IPv6, HTTPS, TLS, QoS, FTP/SFTP, RTSP, TCP/UDP, DHCP, ONVIF Profiles G/M/S/T
Audio	Two-way audio; AAC-LC, LPCM, G.711, Opus
I/O Ports	2 configurable supervised inputs/outputs
Storage Options	microSD; SD card encryption; NAS recording
Operating Humidity	10–100% RH (condensing)
Environmental Ratings	IEC/EN 60529 IP66; IK10; NEMA TS 2
Supported Analytics	License Plate Verifier, Scene Metadata, Speed Monitor, VMD, Tampering Alarm
Cybersecurity	Axis Edge Vault, TPM 2.0, Secure Boot, Signed OS, Encrypted Filesystem

[/specifications]

[accesories]

Included in the Box	Camera, installation guide, terminal block connector, RJ45 cable, connector guard, cable gaskets, owner authentication key
Optional Accessories	AXIS T8415 Wireless Installation Tool; AXIS Surveillance Cards; Additional accessories listed on Axis product page

[/accesories]

High-Speed, Precision License Plate Recognition in Any Environment

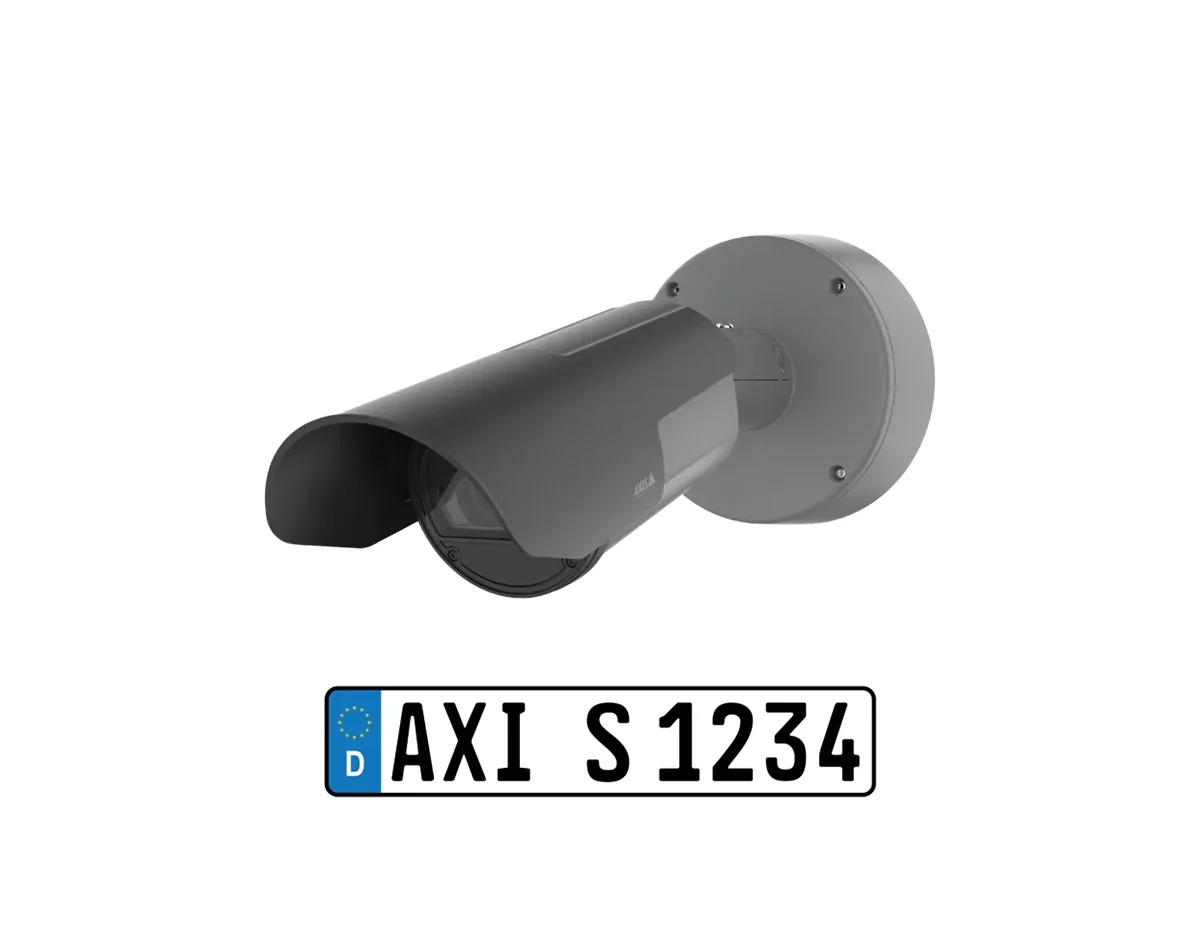

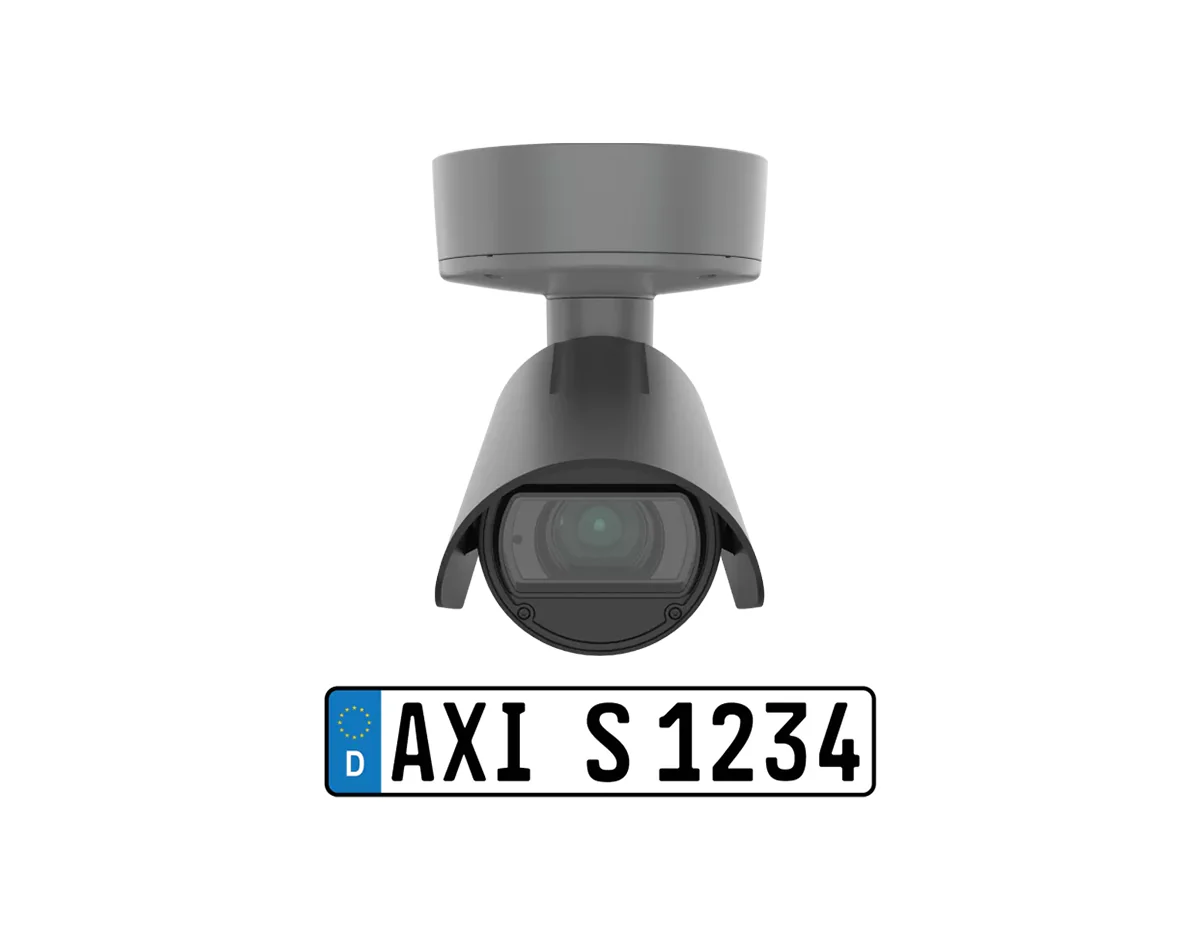

The AXIS Q1800-LE-3 License Plate Verifier Kit delivers 24/7, purpose-built vehicle plate recognition for demanding environments. Powered by the ARTPEC-8 SoC and AXIS License Plate Verifier preinstalled, it captures plates at speeds up to 200 km/h (124 mph) with exceptional accuracy in both day and night conditions. This robust, weatherproof system ensures consistent performance in extreme temperatures and harsh outdoor deployments.

With a powerful varifocal 7-137 mm lens, OptimizedIR, and intelligent analytics at the edge, the AXIS Q1800-LE-3 enables fast, reliable vehicle verification without the need for expensive external servers or complex infrastructure. The unit is designed with a built-in weathershield to withstand wind forces up to 60 m/s (134 mph), making it ideal for exposed traffic installations.

Key Benefits & Features

• High-speed LPR accuracy: Captures clear license plates at up to 200 km/h using purpose-tuned optics and built-in edge analytics.
• Long-range detection: Daytime reading range of 20–100 m and nighttime range up to 50 m, extendable to 100 m with optional IR illuminator.
• Edge-based processing: ARTPEC-8 with Deep Learning Processing Unit (DLPU) enables fast recognition, lower bandwidth use, and reduced server dependency.
• Rugged outdoor build: IP66, IK10, NEMA 4X-rated housing with integrated dehumidifying membrane ensures reliability in tough weather.
• OptimizedIR illumination: Adaptive 850 nm IR LEDs deliver even coverage in full darkness for higher recognition accuracy without external light sources.

Ideal Use Cases

• Highway and expressway speed checkpoints
• Commercial and industrial gate control and access management
• Parking facility automation, vehicle search, and enforcement
• Perimeter security for logistics and distribution centers
• Municipal traffic monitoring and law enforcement

Technical Specifications

• Sensor: 1/2.8” progressive scan RGB CMOS
• Lens: Varifocal 7–137 mm, F1.5–4.0, remote zoom and focus
• Field of View: 38°–2.3° horizontal, 22°–1.3° vertical
• IR Range: 40 m wide FOV, 50 m tele, scene dependent
• Vehicle Speed Support: Up to 200 km/h (124 mph)
• Detection Distance: 20–100 m (day), 20–50 m (night)
• Video Resolution: Up to 1920×1080, 90 fps (without WDR)
• WDR: Forensic WDR up to 120 dB
• Operating Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
• Power: PoE 802.3af/at, 10–28 V DC, 20–24 V AC

Upgrade Your Vehicle Monitoring Today

Enhance your traffic or access control system with reliable high-speed plate verification. Order now to secure your perimeter with the AXIS Q1800-LE-3.
