[shortdesc] PoE-powered strobe siren, RGBA and white LEDs, 110 dB sound, IP66 IK10 NEMA 4X, SIP MQTT VAPIX integration [/shortdesc]

[properties]

Model	AXIS D4100-VE Mk II (03105-001)
Product Type	Network Strobe Siren
Light Output	RGBA LEDs; White LEDs up to 893 lm (PoE Class 4) / 220 lm (PoE Class 3)
Siren Max Sound Level	110 dB at 1 m (3.4 kHz)
Coverage Pattern	150° coaxial at 2 kHz
IP Rating	IP66
IK Rating	IK10
NEMA Rating	NEMA 4X
Operating Temperature	-40 °C to 60 °C (-40 °F to 140 °F)
Storage Temperature	-40 °C to 70 °C (-40 °F to 158 °F)
Humidity	10–100% RH (condensing)
Power	PoE IEEE 802.3at Type 2 Class 4 (max 22.6 W) / PoE 802.3af/at Type 1 Class 3 (max 9.4 W)
Weight	1000 g (2.2 lb)
Dimensions	See datasheet dimensional drawing
Casing	Aluminum & plastic; White NCS S 1002-B
Mounting	Bracket with junction box holes; 1/4"-20 UNC tripod screw thread; 1/2” conduit (optional)

[/properties]

[specifications]

System on Chip	NXP i.MX8M Nano UL
Memory	1 GB RAM, 1 GB Flash
Network Protocols	IPv4, IPv6 USGv6, HTTP/HTTPS, TLS, SNMP v1–v3, SMTP, mDNS, UPnP, DHCP, RTP/RTSP/SRTP, MQTT v3.1.1, SSH, LLDP, CDP and more
Integrations	VAPIX, ACAP, SIP, AXIS Camera Station, third-party VMS
Event Conditions	Temperature, IP changes, live stream, network loss, I/O, manual trigger, MQTT, schedules
Event Actions	SIP call actions, I/O control, LED flash, light/siren profiles, MQTT publish, HTTP/TCP notifications
Environmental Standards	IEC 60068-2 series, MIL-STD-810H methods
Cybersecurity	Axis Edge Vault, Secure Keystore (CC EAL6+), Secure Boot, Encrypted Filesystem, 802.1X, Firewall
Power Consumption	Max 22.6 W (PoE Class 4) / Max 9.4 W (PoE Class 3)
Connectors	Shielded RJ45; 4-pin terminal block for 2 I/Os
Languages	English, German, French, Spanish, Italian, Russian, Chinese (Simplified/Traditional), Japanese, Korean, Portuguese, Polish, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese
Compliance & Certifications	UL/cUL, CE, RCM, VCCI, FCC Class A, EN 55032 Class A, EN 55035, EN 50130-4, IEC/EN/UL 62368-1
Box Contents	Network strobe siren, installation guide, terminal block connector, cable gaskets, connector guard

[/specifications]

[accesories]

Included	Network strobe siren; Installation guide; Terminal block connector; Cable gaskets; Connector guard
Optional – Sensors	AXIS D6210 Air Quality Sensor (PoE Class 4)
Optional – Mounting	TD4601 ACI Conduit Bracket; TD4801 Sunshield; T94K01D Pendant Kit; T94N01D Pendant Kit; T91B47 Pole Mount; T94R01B Corner Bracket; T91A64 Corner Bracket; T94V01C Dual Camera Mount; T91A33 Lighting Track Mount; T91A23 Tile Ceiling Mount; T91A04 Camera Holder; ACI Conduit Adapters; T94S01P Conduit Back Box; TD4301-E Angle Mount

[/accesories]

Advanced Visual and Audio Deterrence for High-Security Environments

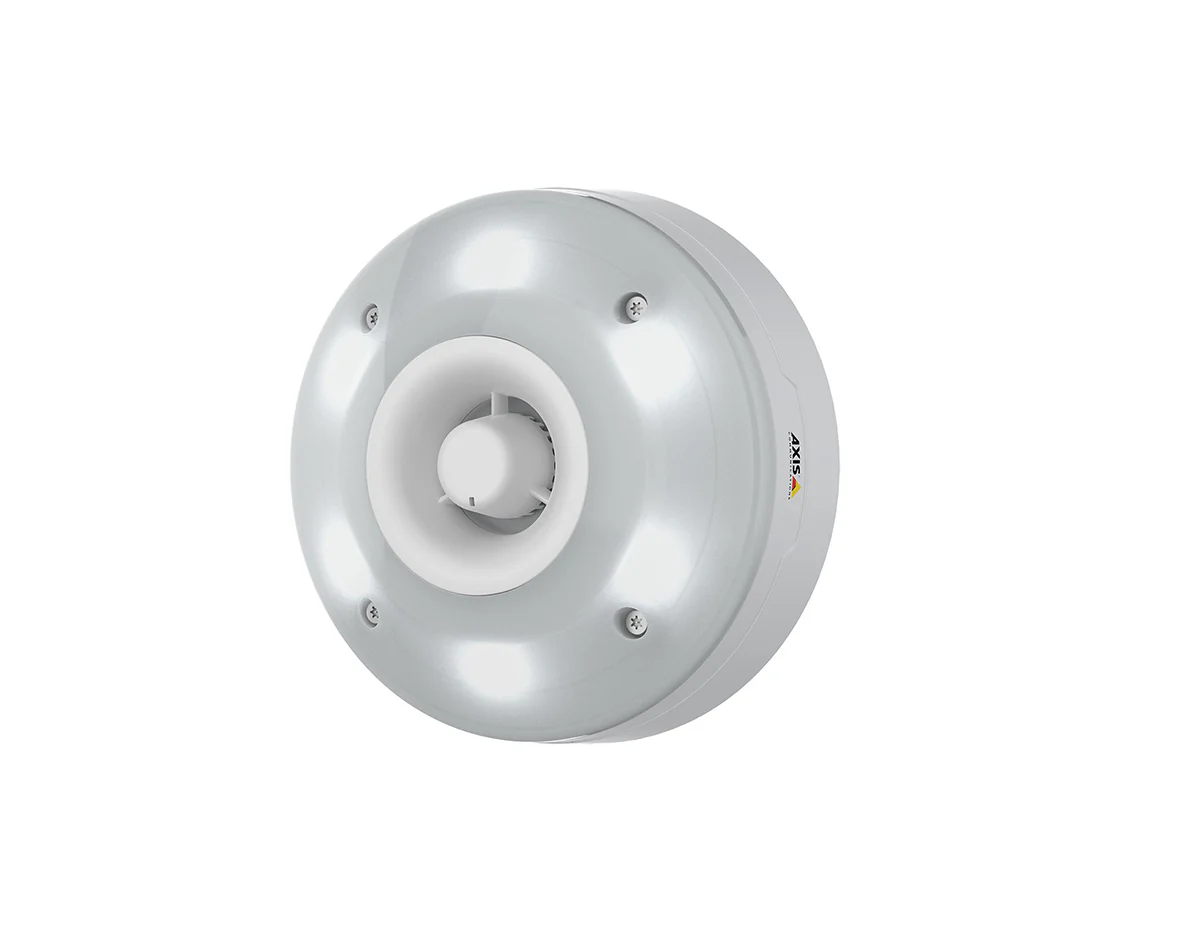

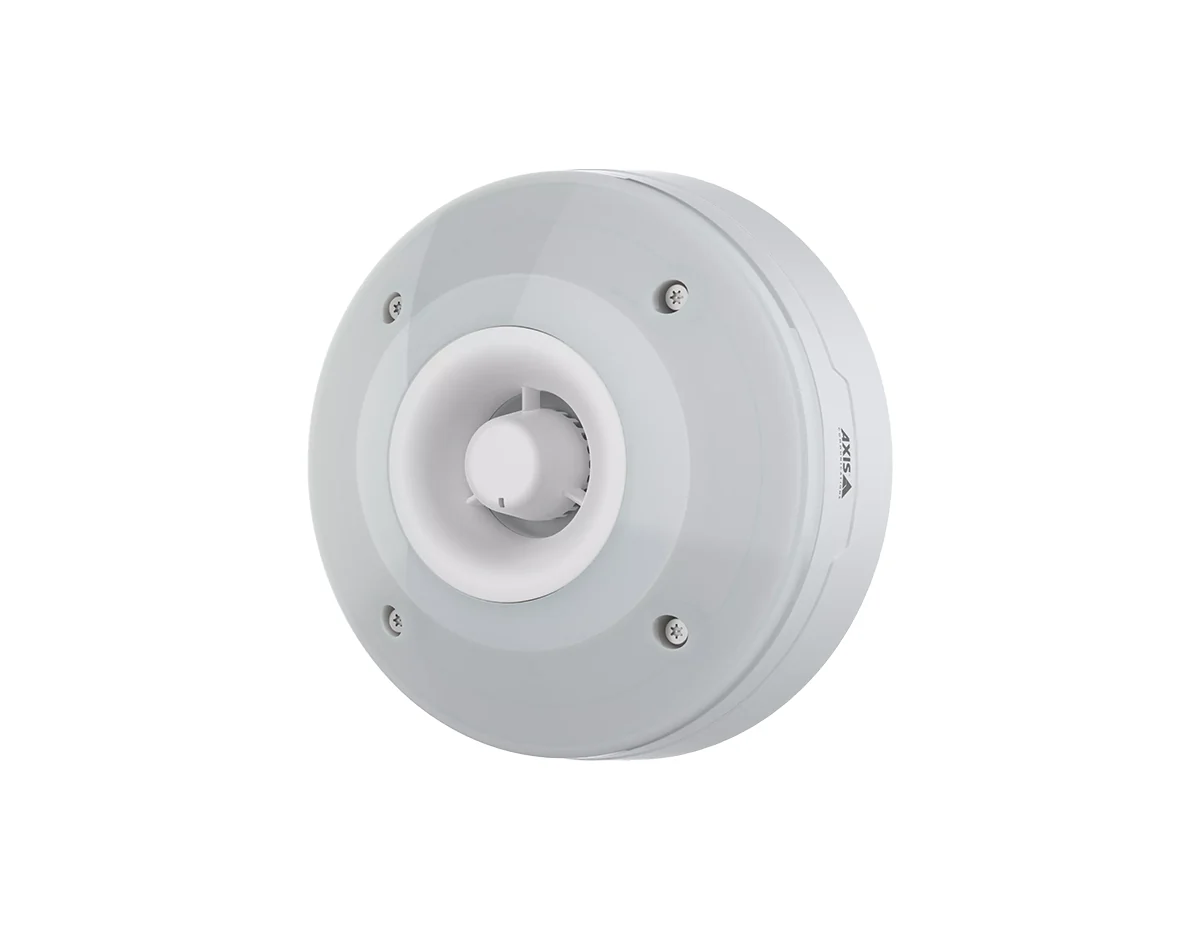

The AXIS D4100-VE Mk II Network Strobe Siren delivers powerful multicolored LED illumination and a 110 dB siren designed to stop threats before they escalate. Fully networked and powered by PoE, it integrates seamlessly with Axis cameras, AXIS Camera Station, and third-party VMS platforms through VAPIX, SIP, and MQTT. This rugged, outdoor-ready unit provides unmatched reliability with IP66, IK10, and NEMA 4X protection for demanding deployments.

Key Benefits & Features

• High-intensity illumination: RGBA and white LEDs provide up to 893 lm output for strong visual signaling in any condition.
• Powerful audible alerts: Integrated 110 dB siren delivers clear and penetrating alarms to deter intruders.
• Flexible integration: Supports VAPIX, SIP for VoIP systems, and MQTT for modern automation workflows.
• Rugged outdoor design: IP66, IK10, and NEMA 4X ratings ensure resistance to water, dust, impact, and extreme weather.
• Smart event handling: Configure profiles, triggers, and automated actions for optimized security responses.

Ideal Use Cases

• Perimeter security with Axis analytics and LPR cameras
• Parking and gate control with automated signaling
• Critical infrastructure requiring high-reliability alerting
• Industrial facilities with rugged environmental demands
• Commercial buildings integrating unified AV and security alerts

Technical Specifications

• LED Output: Up to 893 lm (PoE Class 4), 220 lm (PoE Class 3)
• Siren Output: 110 dB at 1 m, 3.4 kHz
• Light Colors: RGBA LEDs plus white LEDs
• Network Support: IPv4/IPv6, HTTPS, SIP, MQTT, UPnP, SNMP, RTSP
• API Integration: VAPIX and ACAP platform
• Operating Temperature: -40°C to 60°C
• Power: PoE IEEE 802.3at Type 2 Class 4 or 802.3af Type 1 Class 3
• Construction: IP66, IK10, NEMA 4X-rated aluminum and plastic casing
• I/O: 2 configurable input/output ports
• Weight: 1000 g

Strengthen Your Security Posture Today

Order now and enhance your visual and audible deterrence with AXIS D4100-VE Mk II.
