[shortdesc]AI-based 4-channel main unit with up to 4K support at 12/15 fps, rugged FAKRA connectors, deep learning analytics at the edge, ignition-controlled shutdown, and hardware-rooted cybersecurity with Axis Edge Vault.[/shortdesc]

[properties]

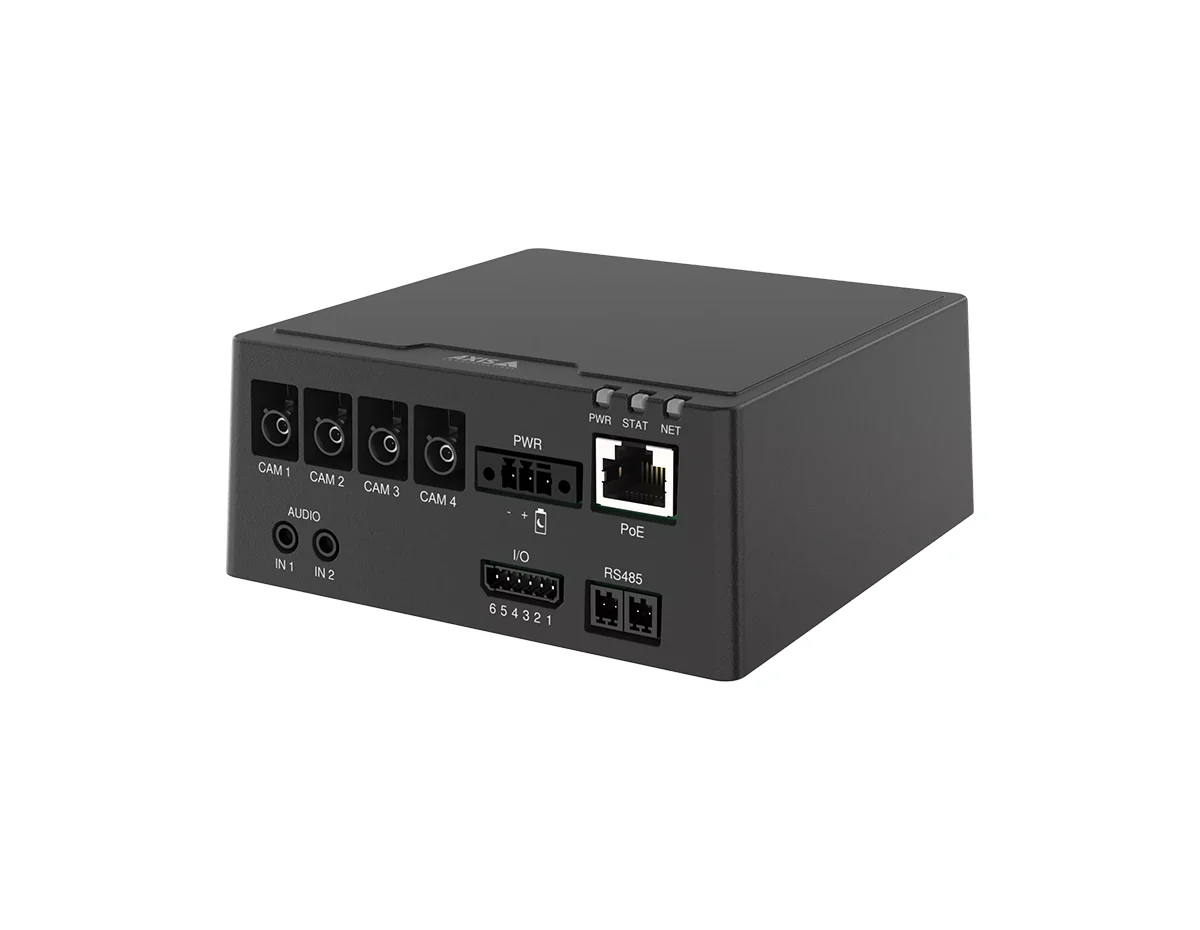

Model	AXIS F9114-R Mk II Main Unit (02999-001)
System-on-Chip	ARTPEC-8
Memory	4096 MB RAM, 8192 MB Flash
Casing	IP3X-rated aluminum, black (NCS S 9000-N)
Power input	PoE IEEE 802.3af/802.3at Type 2 Class 4 or 10–48 V DC
Typical/Max power consumption	12.7 W typical / 25.5 W max

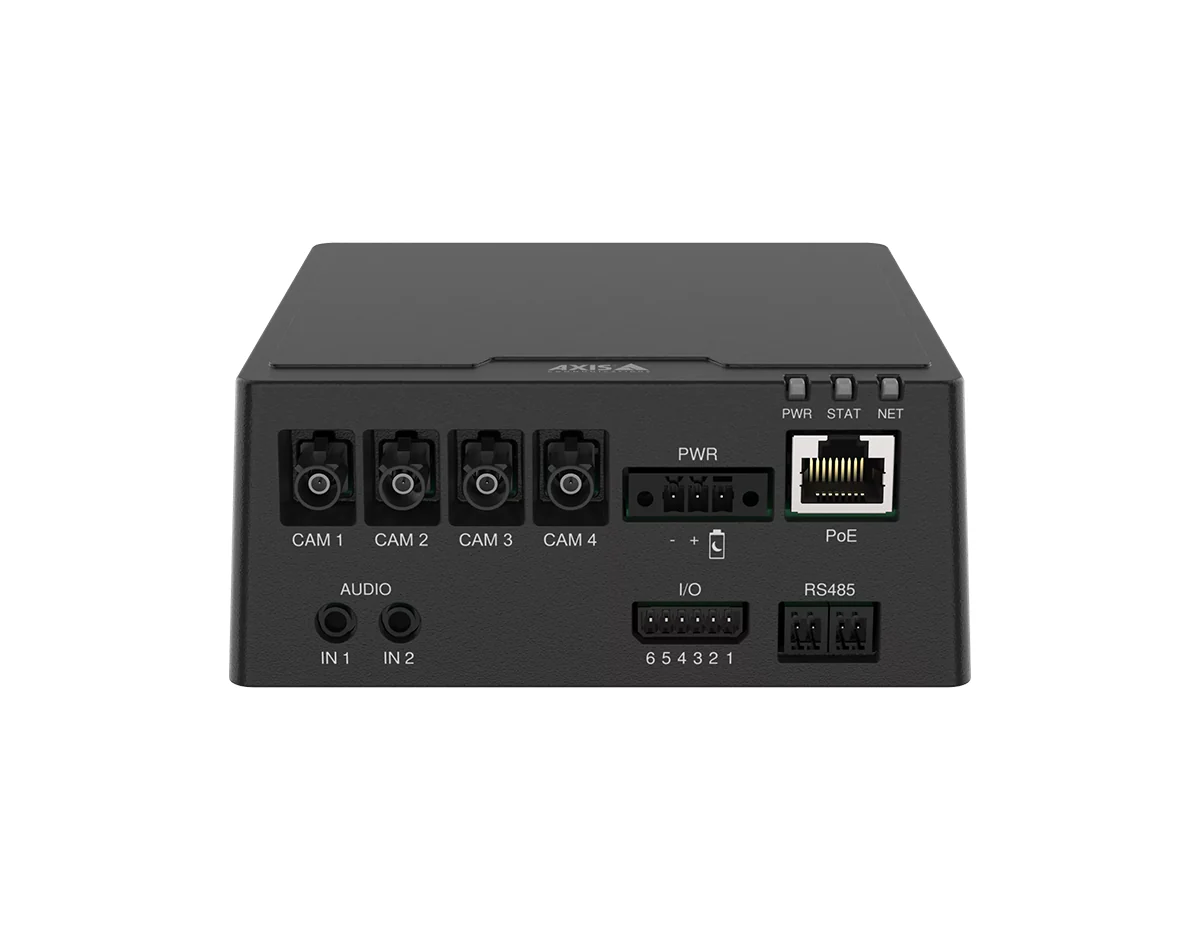

Connectors	4× FAKRA, RJ45 Ethernet, 6-pin I/O, RS-485, 2× 3.5 mm audio in, USB-A
Storage support	microSD/microSDHC/microSDXC, encrypted recording support
Operating temperature	-40 °C to 60 °C (-40 °F to 140 °F)
NEMA TS2 compliance max temp	74 °C (165 °F)
Operating humidity	10–95% RH non-condensing
Storage temperature	-40 °C to 65 °C (-40 °F to 149 °F)
Storage humidity	5–95% RH non-condensing
Weight	680 g (1.5 lb)

[/properties]

[specifications]

Video resolutions	Up to 3840×2160 (8MP), 2592×1944 (5MP), 1920×1080 (HDTV 2MP)
Frame rate	Up to 60/50 fps in all resolutions*
Video compression	H.264, H.265, Motion JPEG, Zipstream in H.264/H.265
Image settings	Contrast, brightness, sharpness, white balance, tone mapping, exposure modes, privacy masks, rotation (incl. corridor format)
Audio	One-way streaming; 2× external mic input; 24-bit LPCM, AAC-LC, G.711, G.726, Opus
Network protocols	IPv4, IPv6, ICMP, HTTP, HTTPS, TLS, FTP, SFTP, CIFS/SMB, SMTP, mDNS, UPnP, SNMP v1/v2c/v3, DNS, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, DHCP v4/v6, ARP, SSH, LLDP, CDP, MQTT, secure syslog
Security features	Axis Edge Vault, TPM 2.0 (FIPS 140-2 L2), secure boot, signed OS, encrypted filesystem AES-XTS-Plain64 256-bit, IEEE 802.1X & MACsec
Analytics included	AXIS Object Analytics, AXIS Scene Metadata, AXIS Audio Analytics, AXIS Video Motion Detection, AXIS Sensor Metrics Dashboard
Supported analytics	AXIS Perimeter Defender, AXIS People Counter
Serial communication	RS-485 2-wire
Event actions	I/O triggering, text overlays, email, SNMP traps, HTTP/HTTPS push, secure recordings
Certifications	FCC, UL/cUL, CE, KC, VCCI, EN 50121-4, IEC/EN 60529 IP3X, ETSI EN 303 645, E-mark (ECE R10 rev.06), IEC/EN 61373 Cat.1 Class B, IEC 60068-2

[/specifications]

[accesories]

Included	Main unit, installation guide
Optional accessories	TU6001 Connector 3-pin, Connector A 2-pin, TU6009 Connector 6-pin, TF9902 Surface Mount, AXIS Surveillance Cards

[/accesories]

The AXIS F9114-R Mk II is engineered for harsh, high-vibration environments such as onboard vehicles and industrial machinery. With ARTPEC-8 processing, it runs multiple sensor units simultaneously and enables advanced deep-learning analytics directly on the device. Its secure design ensures trusted video evidence while maintaining strong resistance to physical conditions and cyber threats.

With FAKRA connectivity, modular sensor flexibility, and industry certifications including railway and automotive E-marking, this main unit delivers mission-critical reliability in mobile surveillance deployments.

High-performance rugged unit with AI-powered analytics and secure edge processing

• Runs 4 sensor units simultaneously for wide-area coverage
• Deep-learning video analytics for human and vehicle classification
• Edge Vault security ensures cryptographic key protection and device integrity
• Engineered for vibrations and shock with IP3X aluminum housing
• Works in extreme temperatures from -40 °C to 60 °C (-40 °F to 140 °F)
• Flexible power: PoE or 10–48 VDC hardwired

Ideal Use Cases

• Vehicle-mounted mobile surveillance
• Railway-compliant security systems
• Factory and industrial monitoring
• Transportation hubs and fleet monitoring

Technical Specifications Summary

• SoC: ARTPEC-8
• Video: Up to 4K 12/15 fps; up to 60/50 fps depending on sensor mode
• Security: TPM 2.0, Secure boot, Signed OS, AES encrypted storage
• Operating temp: -40 °C to 60 °C (-40 °F to 140 °F)
• Dimensions: Exact size per dimension drawings
• Weight: 680 g (1.5 lb)

Upgrade Your Operations

Enhance your rugged surveillance with AI-accelerated, secure, multi-sensor performance.
