[shortdesc]AI-powered 1-channel 4K main unit for high-vibration and onboard environments, supporting advanced edge analytics, FAKRA-connected sensor units, secure TPM-based key storage, and rugged operation from -40 °C to 60 °C (-40 °F to 140 °F).[/shortdesc]

[properties]

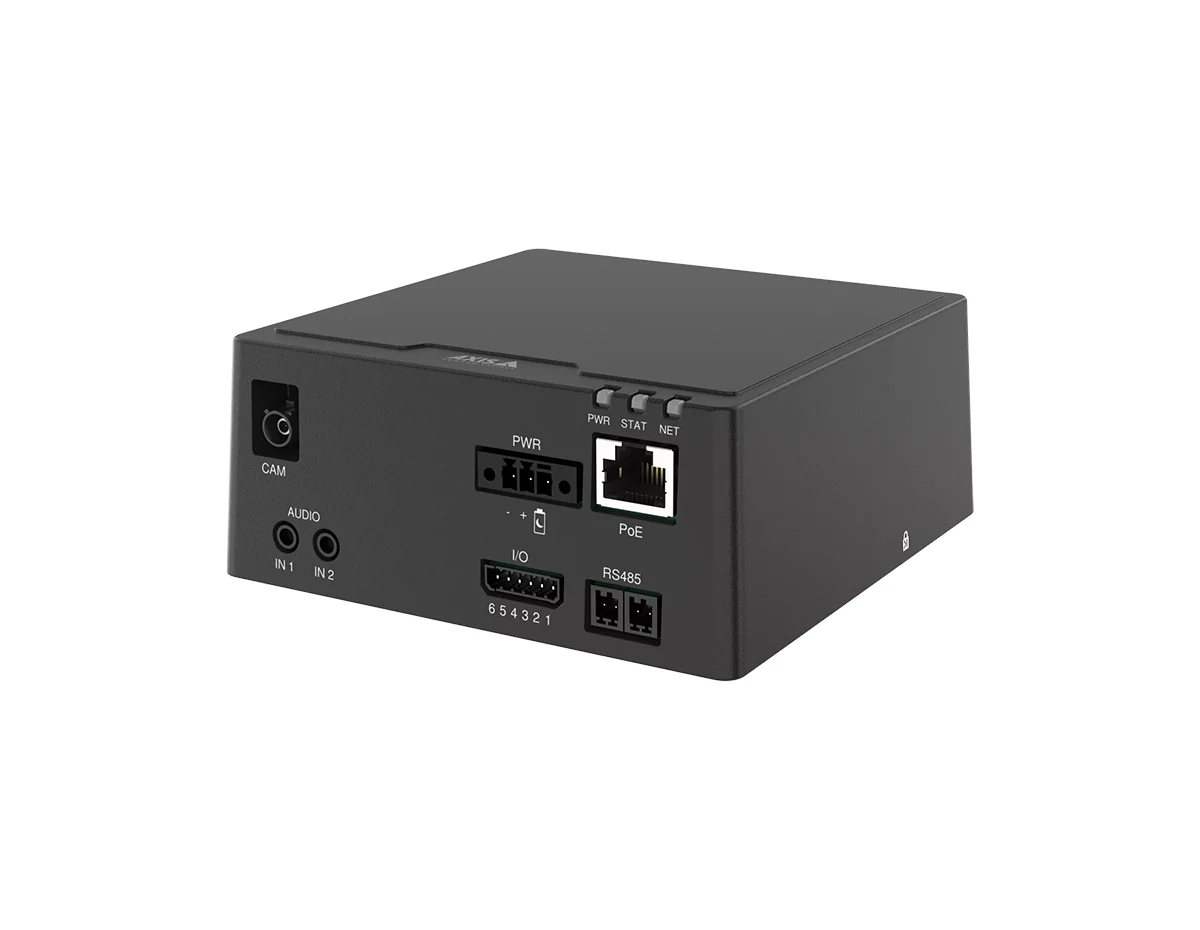

Model	AXIS F9111-R Mk II Main Unit (02998-001)
System on Chip	ARTPEC-8
RAM / Flash	4096 MB RAM, 8192 MB Flash
Casing	Aluminum, IP3X-rated, black (NCS S 9000-N)
Operating Temperature	-40 °C to 60 °C (-40 °F to 140 °F), up to 74 °C (165 °F) per NEMA TS 2
Operating Humidity	10–95% RH (non-condensing)
Storage Conditions	-40 °C to 65 °C (-40 °F to 149 °F), 5–95% RH (non-condensing)
Weight	675 g (1.5 lb)
Power Input	PoE IEEE 802.3af/at Type 2 Class 4 or 10–48 V DC

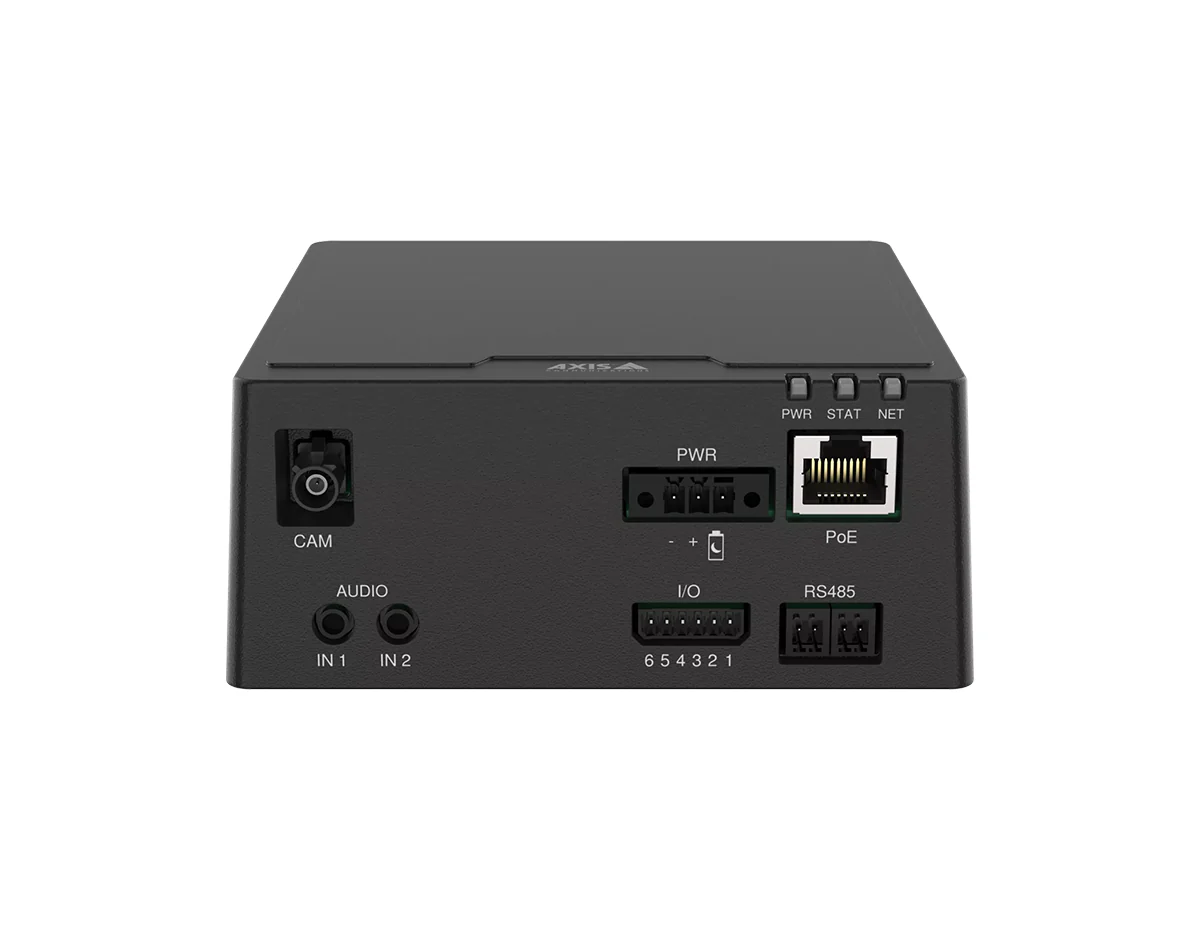

Connectors	RJ45 PoE LAN, FAKRA sensor, 6-pin terminal block for 4× configurable I/Os (12 V DC output, max load 50 mA), 2× audio inputs, RS485 terminal, USB-A, 3-pin DC connector
Storage	microSD/microSDHC/microSDXC support with AES-XTS-Plain64 256-bit encryption
Certifications	FCC, UL/cUL, CE, KC, VCCI, E-mark, NEMA TS 2, ETSI EN 303 645, FIPS 140 compliance

[/properties]

[specifications]

Performance	Deep learning processing unit (DLPU) for advanced analytics
Video	Up to 4K 30 fps or 720p 180 fps; H.264, H.265, Motion JPEG; Signal-to-noise ratio >55 dB; corridor mode; Zipstream
Analytics	AXIS Object Analytics, Scene Metadata, People Counter, Audio Analytics, VMD, Sensor Metrics Dashboard
Audio	Two-channel unbalanced microphone input; 24-bit LPCM, AAC-LC, G.711, G.726, Opus audio encoding
Security Features	Axis Edge Vault, secure boot, signed OS, encrypted filesystem, TPM 2.0, secure element (CC EAL 6+), brute force delay protection, OAuth 2.0, IEEE 802.1X, MACsec, TLS
Network Protocols	IPv4, IPv6, HTTPS, QoS, FTP, SFTP, CIFS/SMB, SNMP, DNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, MQTT v3.1.1, mDNS (Bonjour), SSH, LLDP, CDP
I/O Interface	4× configurable digital I/Os via 6-pin terminal block, 12 V DC output, 50 mA max load
Power Consumption	Typical 8.6 W, max 25.5 W
System Integration	VAPIX®, ACAP, ONVIF profiles G/M/S/T
Software Tools	AXIS Site Designer, AXIS Device Manager, lens calculator
Languages Supported	English, German, French, Spanish, Italian, Russian, Chinese (Simplified & Traditional), Japanese, Korean, Portuguese, Polish, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese

[/specifications]

[accesories]

Included	Main Unit, Installation Guide
Optional Accessories	TU6001 Connector 3-pin, Connector A 2-pin, TU6009 Connector 6-PIN, TF9902 Surface Mount, AXIS Surveillance Cards

[/accesories]

The AXIS F9111-R Mk II is engineered for extreme reliability in high-vibration conditions such as inside vehicles, trains, or industrial machinery. With AI-based detection and sensor-driven insights, it supports mission-critical use cases including object tracking, scene metadata extraction, and security-grade authenticated video recording.

Its rugged aluminum chassis and FAKRA sensor interface give maximum mounting flexibility across multiple onboard sensor types. Combined with Axis Edge Vault hardware security and FIPS-certified cryptographic storage, the device ensures the integrity of video data and platform authentication against tampering or intrusion.

4K onboard performance with deep-learning-powered analytics

• 4K/30fps or 720p/180fps capture enables optimal resolution for any operational scenario.
• DLPU architecture supports real-time human and vehicle analytics at the edge.
• FAKRA sensor connector supports multiple Axis modular sensor units.
• Secure OS, signed video, encrypted storage, and TPM-secured identities.
• Hard-rated environmental endurance from -40 °C to 60 °C (-40 °F to 140 °F).
• Extensive protocol support, including ONVIF profiles for multi-system integration.

Ideal Use Cases

• Vehicle-mounted mobile surveillance
• Industrial machinery monitoring
• Railway-standard control and recording applications
• Smart fleet monitoring and diagnostics
• Ruggedized security installations with vibration exposure

Technical Specifications Summary

• Resolution: Up to 3840×2160
• Frame rate: Up to 180/175 fps
• Memory: 4096 MB RAM / 8192 MB Flash
• Operating temp: -40 °C to 60 °C (-40 °F to 140 °F)
• Security: TPM 2.0, Edge Vault, secure element (CC EAL 6+), encrypted filesystem
• Casing: IP3X-rated rugged aluminum
• Weight: 675 g (1.5 lb)

Upgrade Your Operations

Deploy AI-driven 4K rugged sensing in the harshest environments with trusted Axis-grade cybersecurity.
